Description

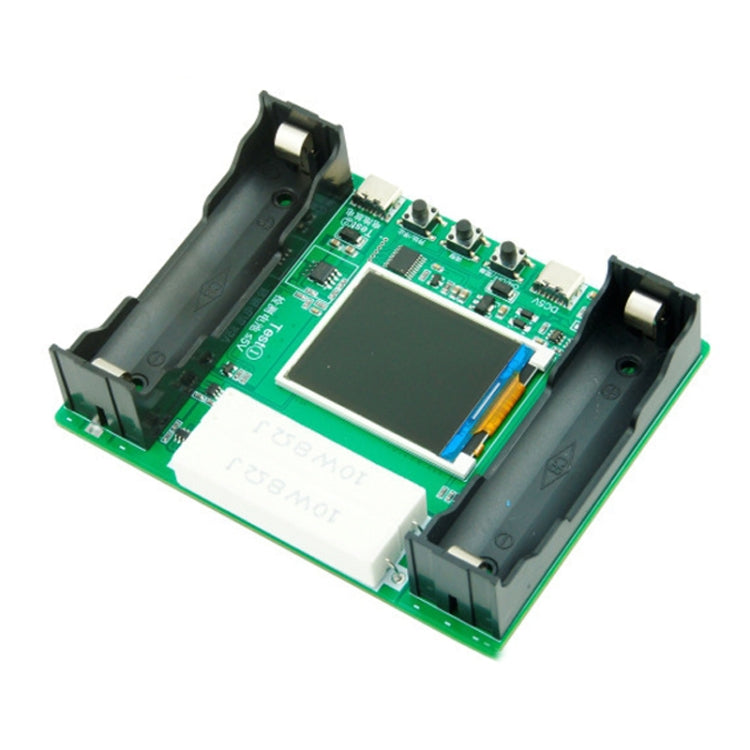

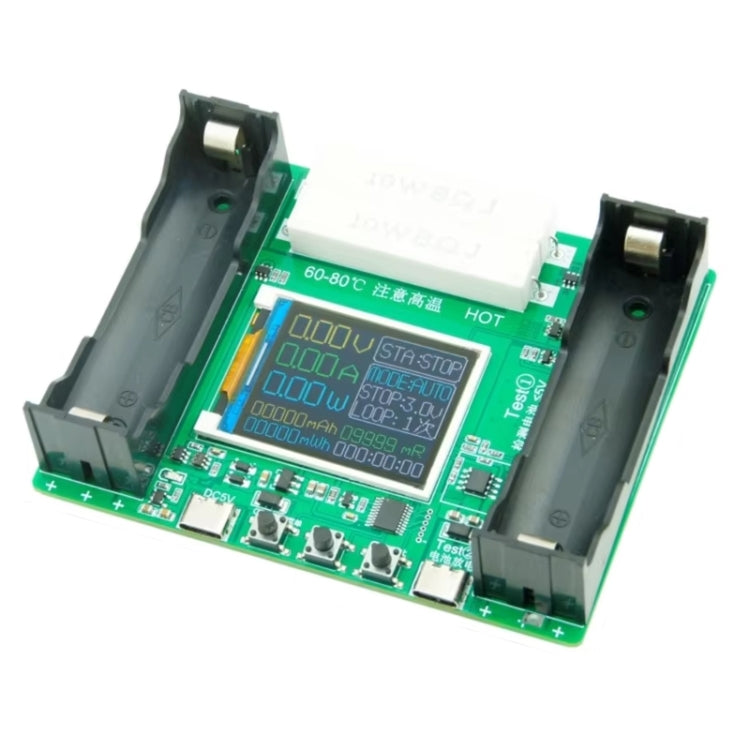

18650 Lithium Battery Capacity Automatic Charge Discharge Internal Resistance Tester is a device designed to measure the capacity, internal resistance, and charging/discharging characteristics of 18650 lithium batteries. It is applicable in scenarios where accurate battery performance assessment is required, such as in battery maintenance and quality control.

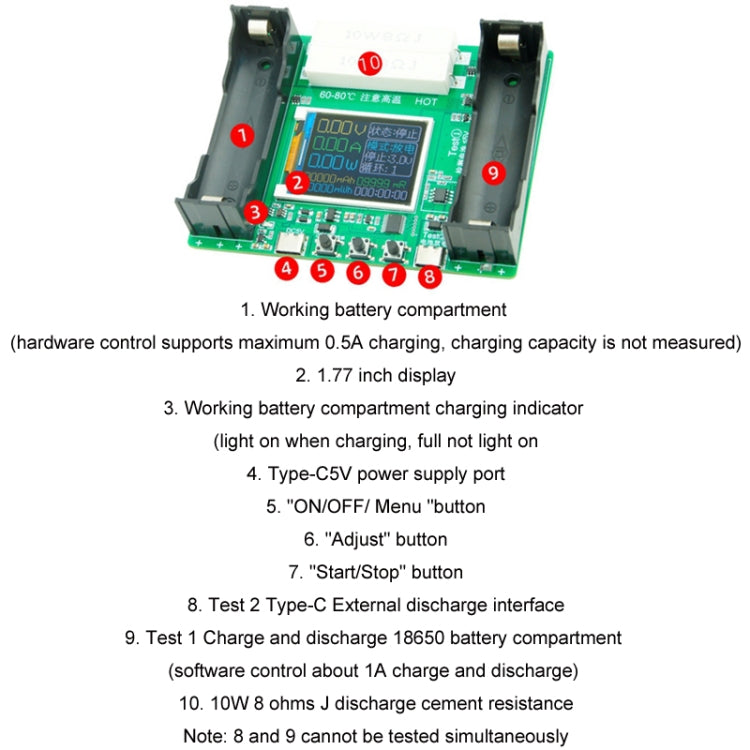

- Working power supply: DC5V external power supply or 18650 battery
- Applicable batteries: 18650 batteries with a stop discharge voltage of 2.5V to 3.5V and 4.2V charging
- Power supply interface: Type-C interface
- System language: Chinese, English
- Test quantity: 1-way charging and discharging measurement
- Internal resistance measurement: DC two-wire method
- Charging function: 1-way program control (MAX 1A), hardware control (MAX 0.5A)
- Discharging function: 1-way discharge (MAX 1A), automatic stop when conditions are met
- Automatic charging and discharging: Fully charged at the end of automatic mode (stop voltage set to 2.8V or above)
- Cyclic charging and discharging: 1 to 9 cycles adjustable

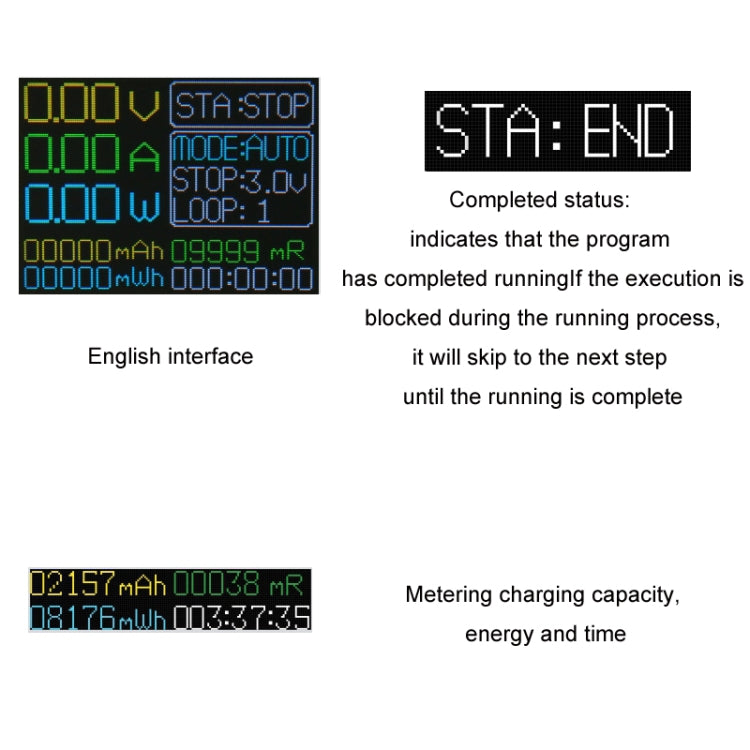

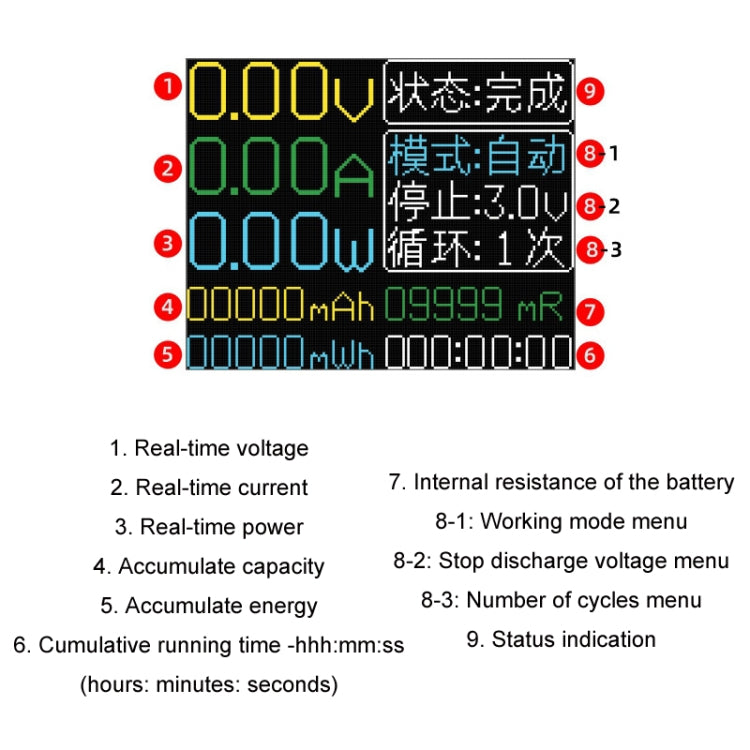

- Status prompt: Supported
- Stop discharge voltage: Adjustable from 2.5V to 3.5V in 11 levels
- Discharge current: Approximately 1A (MAX), not adjustable
- Charging voltage: Controlled by dedicated battery charging chip, full charge voltage 4.2V
- Power off save: Saves setting parameters only
- Weight: 80g
- Product size: 110mm x 88mm x 30mm
- Test method: Wait for battery data to stabilize after installation
- Capacity test: Requires complete discharge for accurate measurement
- Internal resistance testing principle: Based on DC impedance formula R=V/I
