500~6000MHz SMA RF Microstrip Power Splitter

• Product type: Power Splitter
• Compatibility: 500~6000MHz
• Material: Gold-plated
• Key feature: Low insertion loss
• Color/Variant: N/A
• Intended use: Signal distribution
• Category: Signal Boosters

1. Impedance: 50 Ohms
2. Phase balance: ±3 degrees
3. Surface treatment: sandblasting guide
4. Gold-plated joints, sandblasting process
5. Port connector: SMA-Female
6. Low insertion loss, low standing wave, high isolation
7. Working temperature: -40~+75 degrees Celsius
8. Frequency range: 500~6000MHz
9. Amplitude balance: less than or equal to 0.3dB
10. Isolation: Typ. 23dB / Min. 20dB

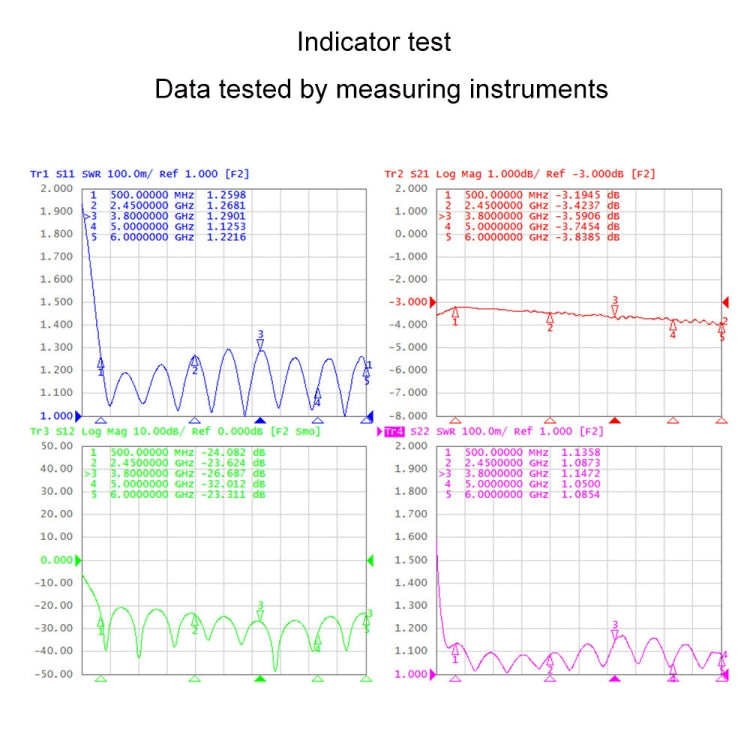

11. Input standing wave: Typ. 1.25 / Max. 1.31
12. Output standing wave: Typ. 1.12 / Max. 1.21
13. Withstand power: 30W for splitter; 2W for combiner
14. Insertion loss: less than or equal to 1.0dB (excluding theoretical loss of 3.0dB)

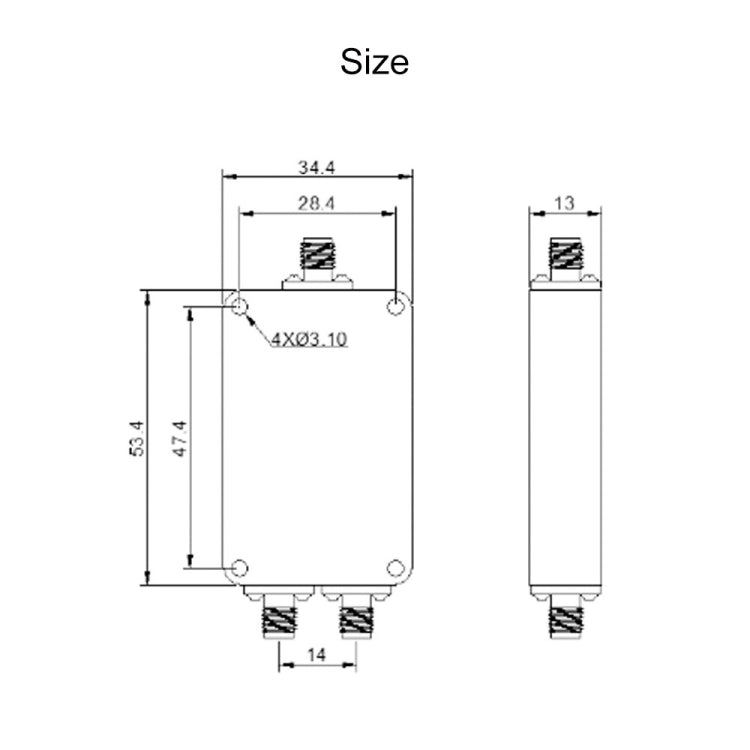

15. Dimensions: 53.4x34.4x13mm
16. Weight: 50g
