Description

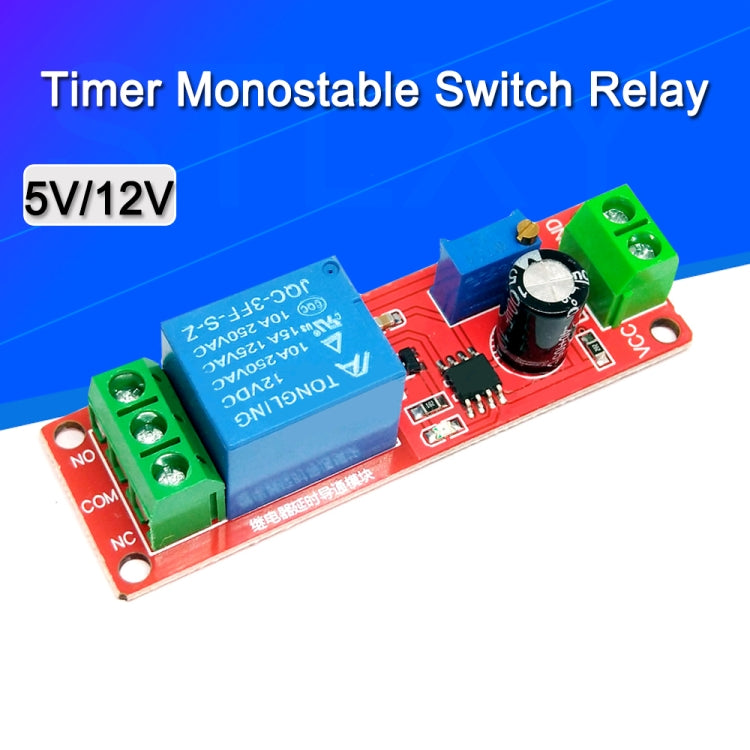

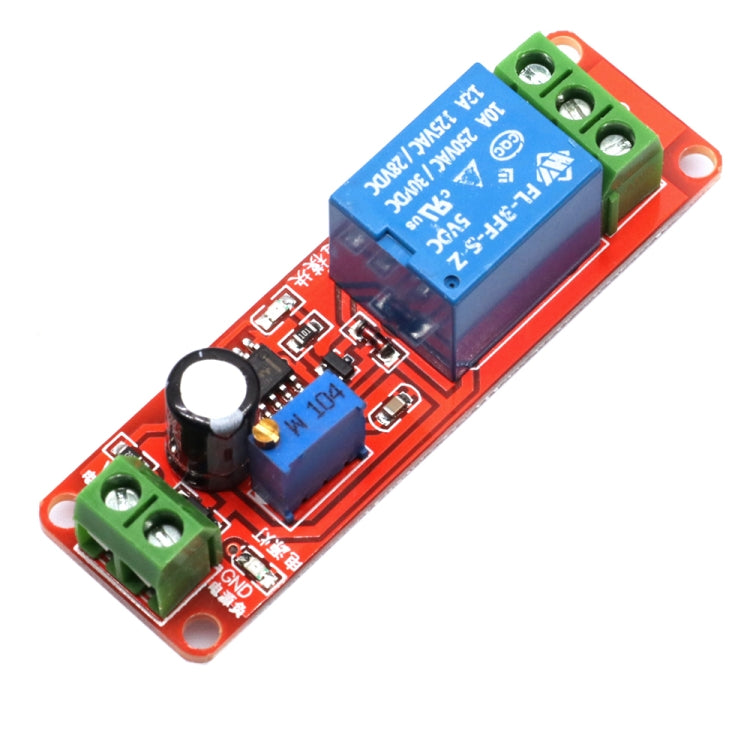

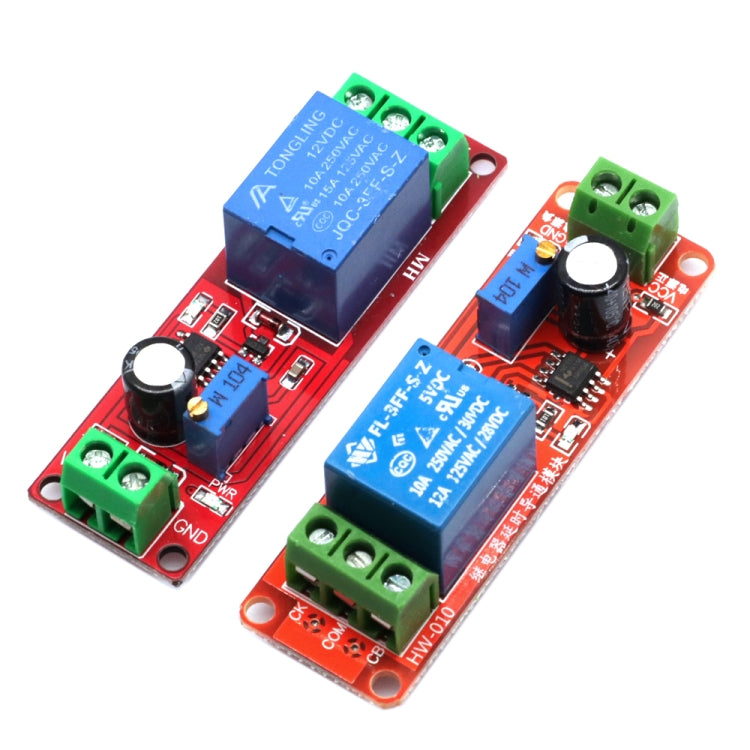

The 5V NE555 Time Relay Shield is a relay module designed for timing control applications. It can be used to delay the activation of devices, such as controlling AC equipment with a specified time delay.
- Product Type: Relay Module
- Compatibility: NE555
- Working Voltage: DC 12V/5V
- Size: 6.8 cm x 2.1 cm
- Main Chip: NE555
- Adjustable Delay Time: 1-10 seconds

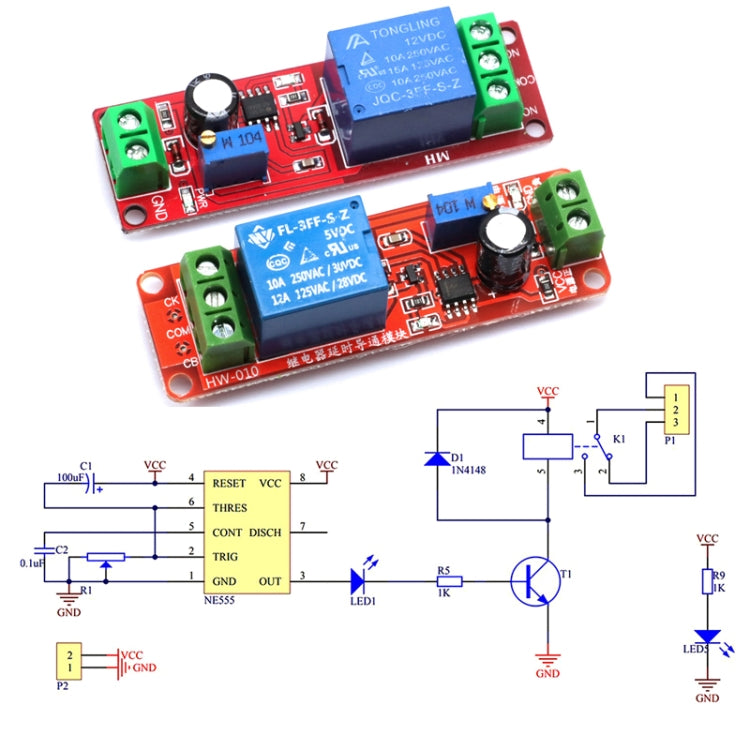

- Delay Time Formula: T=1.1RC
- Capacitor and Resistor Values: Example: 100uF capacitor and 100K resistor yields a delay of 11 seconds
- Relay Control: Can control AC 220V/10A equipment (up to 2000W)
- Indicators: Input power indicator light, relay pull-in indicator light
- Protection: Relay freewheeling protection
- Potentiometer: Increases delay time
- Capacitor C1: Increasing this component can extend delay time
