Description

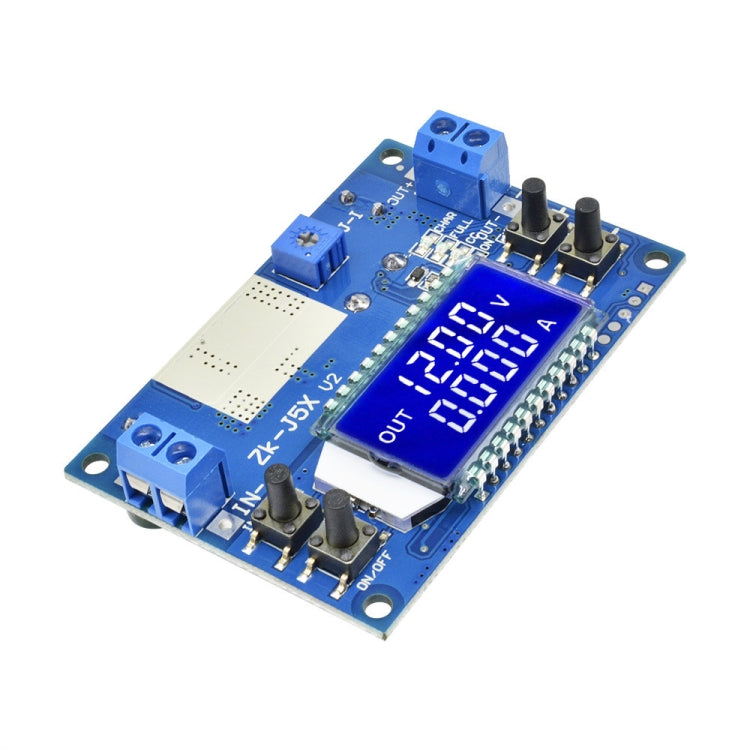

Adjustable Constant Voltage Constant Current Liquid Crystal LCD Multi-Display (PCB) is a power supply module that provides adjustable output voltage and current. It is suitable for applications such as battery charging and LED driving.
- Input voltage: 6.5-36V
- Output voltage: 1.2-32V, default output 5V
- Output current: stable at 3.5A, adjustable limit current 4.2-4.5A
- Output power: 50W (natural heat dissipation), 75W (with fan)
- Voltage display resolution: 0.05V, range 1.2-32V
- Current display resolution: 0.005A, range 0-4.5A
- Conversion efficiency: approximately 94%
- Working current: approximately 30mA
- Input reverse polarity protection: yes
- Short circuit protection: yes

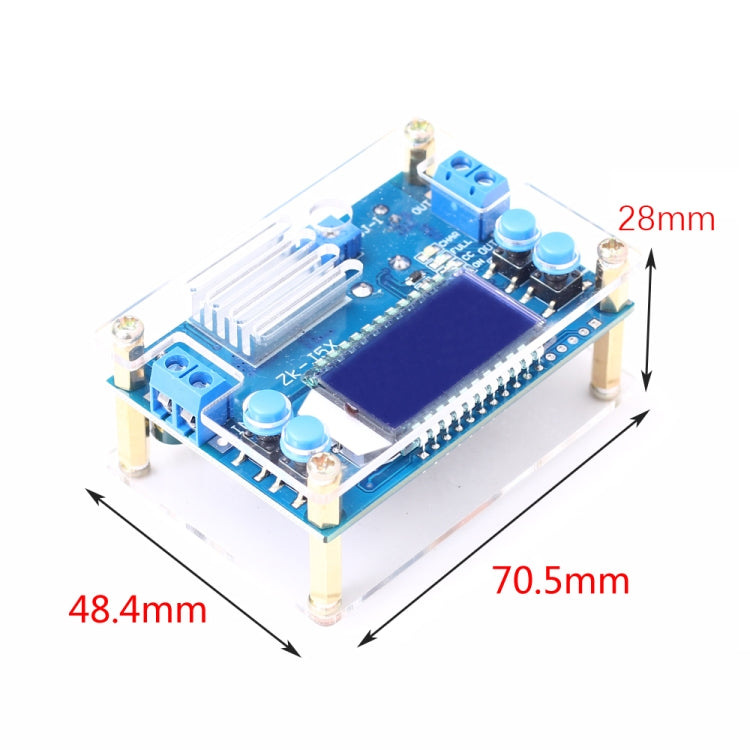

- Size: approximately 70.5 x 48.4 x 28 mm
- Weight: approximately 65 g
- Material: crystal shell

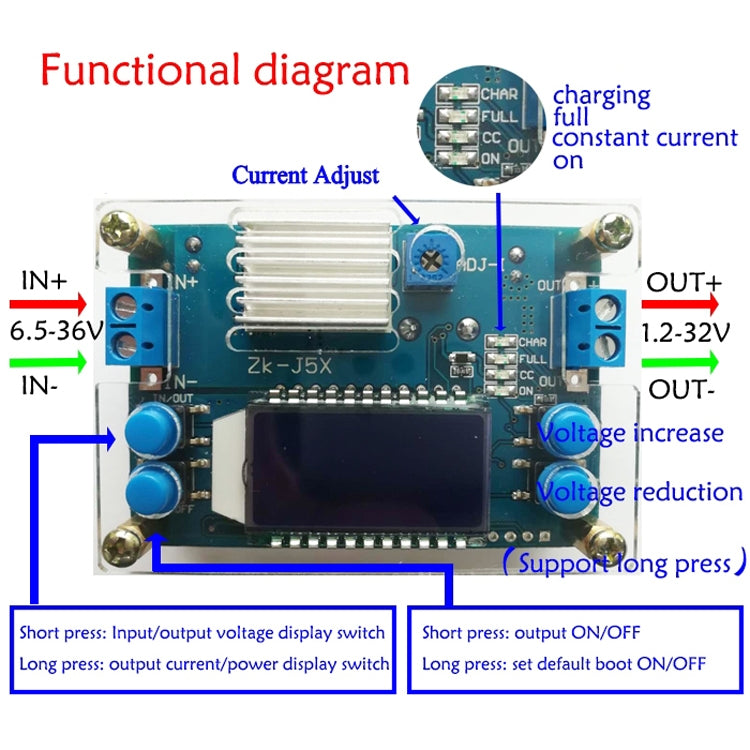

- Control buttons: IN/OUT, ON/OFF, +/-, ADJ-I

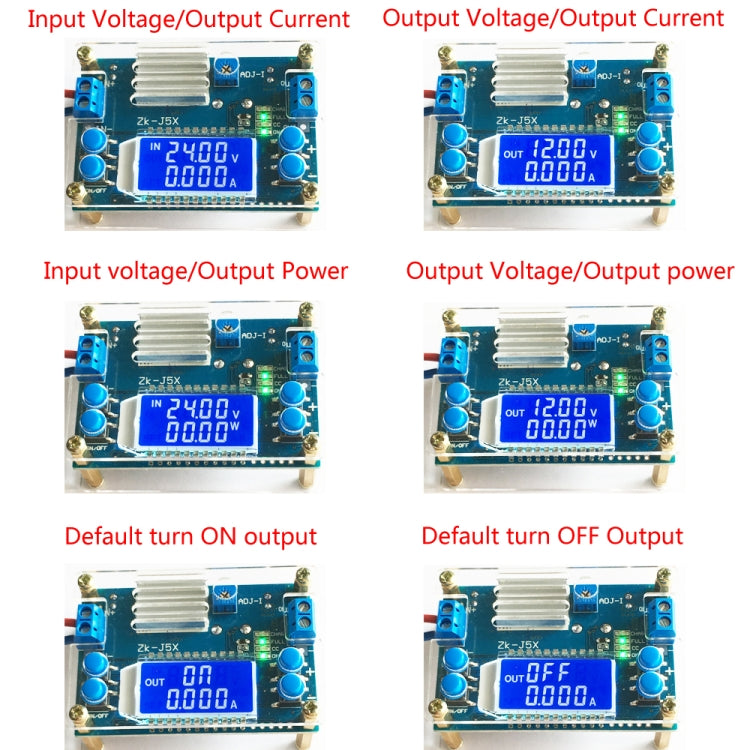

- Functionality: adjustable output voltage and current, LCD display for voltage, current, and power
- Application: suitable for office power supply, high-power LED constant current drive, lithium battery charging
