Description

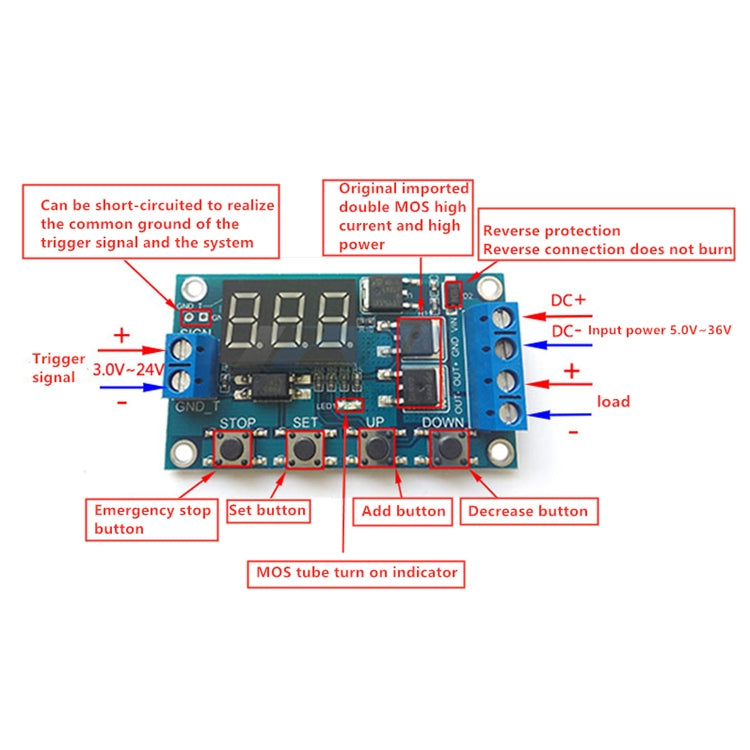

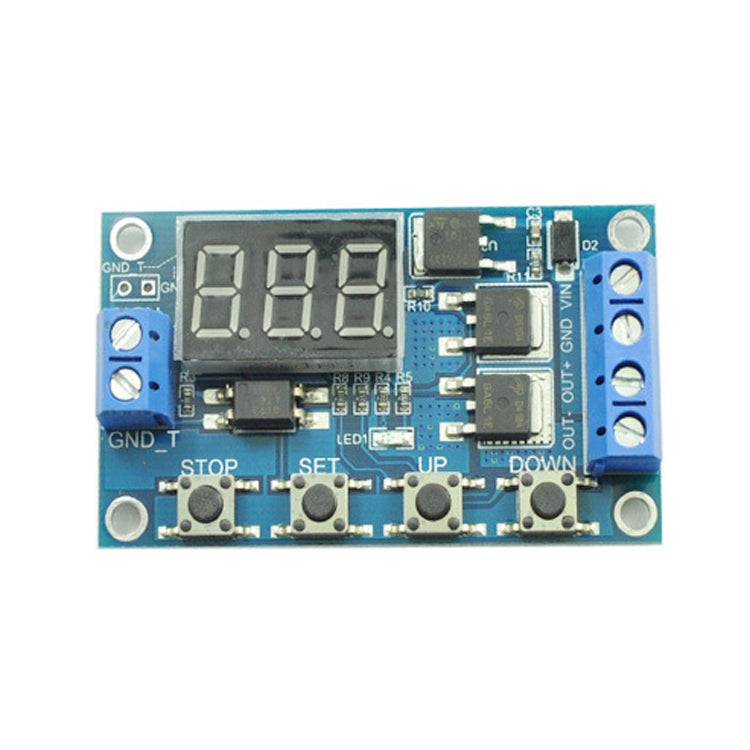

Automotive Delay Switch Module High Power MOS Control Automatic Timing is an electronic control module designed for high-frequency on-off control of various devices. It is suitable for applications such as controlling motors, light bulbs, LED strips, and solenoid valves.
- Product Type: Other Accessories
- Compatibility: DC 5-36V systems
- Material: Industrial-grade PCB
- Working Voltage: DC 5-36V
- Trigger Signal Source: High-level trigger (DC 3.0V-24V)
- Output Capacity: DC 5V-36V, continuous current 15A at room temperature, power 400W; under auxiliary cooling conditions, current can reach 30A
- Quiescent Current: 15mA
- Isolation: Optocoupler isolation for enhanced anti-interference
- Size: Approximately 6 x 3.4 x 1.2 cm
- Active Output: Voltage of output terminal equals input terminal voltage (DC 5V-36V)
- Noise-Free Operation: On-off process does not produce noise, electrical sparks, or electromagnetic interference
- Output Type: Dual MOS parallel active output for lower internal resistance and higher current
- Emergency Stop Function: One-key STOP function with reverse connection protection
- Sleep Mode: Automatically turns off display after 5 minutes of inactivity
- Parameter Settings: Different OP, CL, LOP parameters can be set and saved independently
- Parameter Memory: All settings are saved after power off
