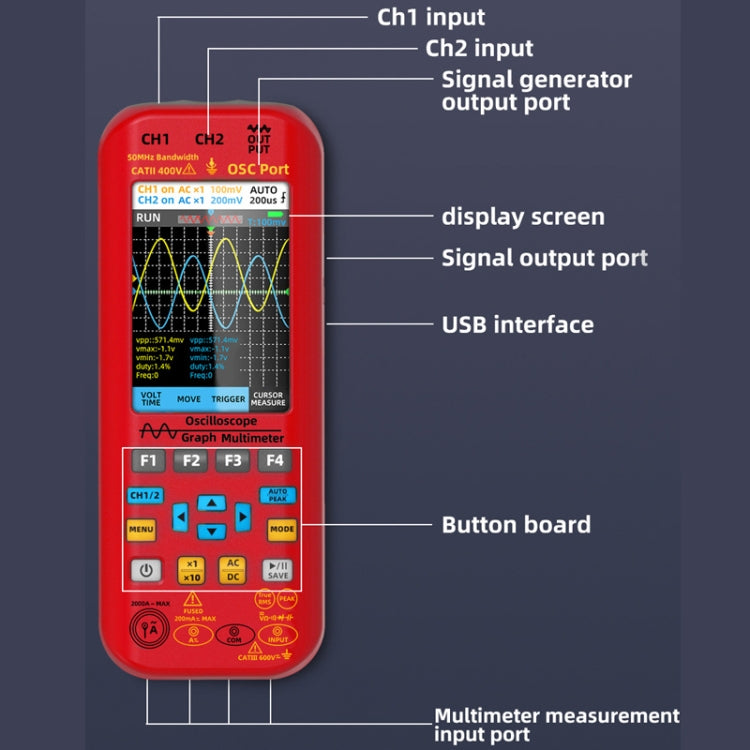

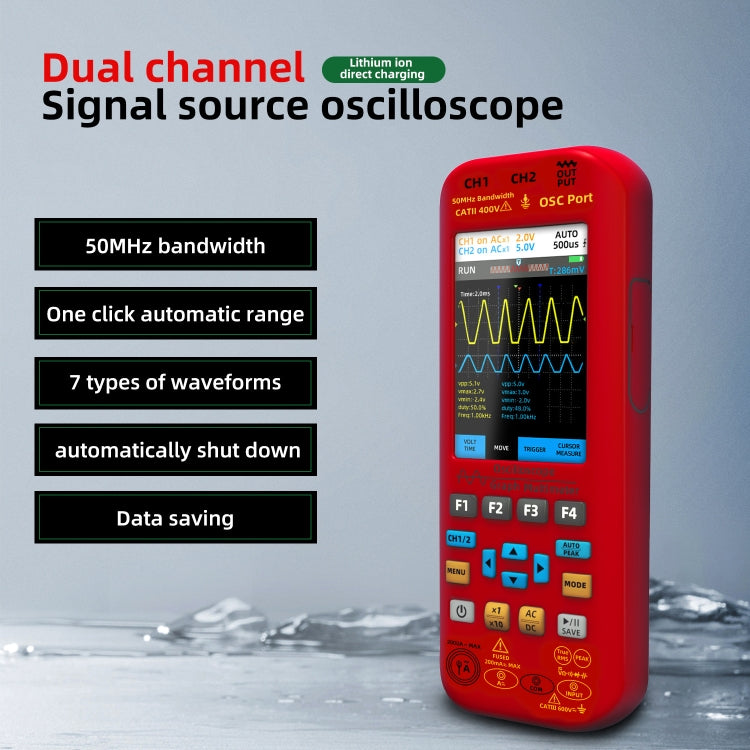

BSIDE O9 Digital Handheld Dual Channel 50MHz Oscilloscope Signal Source Multimeter, Spec: With Single Oscilloscope Probe (Red)
BSIDE O9 Digital Handheld Dual Channel 50MHz Oscilloscope Signal Source Multimeter, Spec: With Single Oscilloscope Probe (Red)
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R901.14/mo 3 months
- R455.67/mo 6 months
- R240.49/mo 12 months
- From R901.14/month over 3 months, or as low as R240.49/month over 12. Total repayable over 12 months: R2885.88. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Import Taxes & Duties Excluded
6-13 business days
In Stock CHN
Processing time: 1-3 days
Couldn't load pickup availability
Description

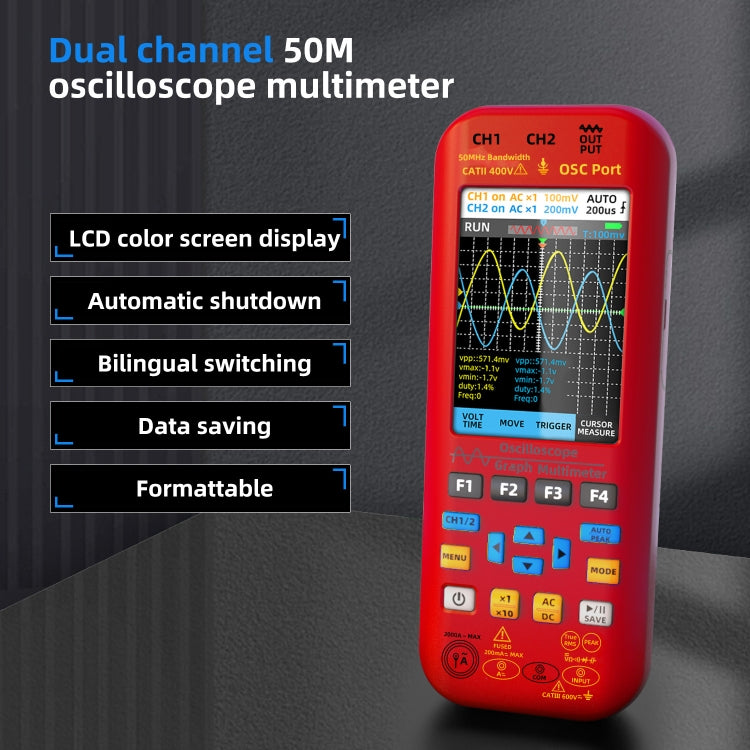

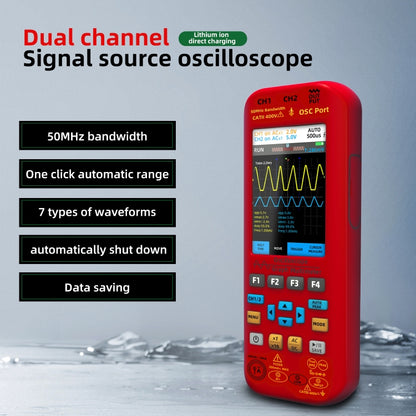

Digital handheld dual-channel oscilloscope and multimeter designed for measuring electrical signals. It is suitable for troubleshooting and testing in various electronic applications.

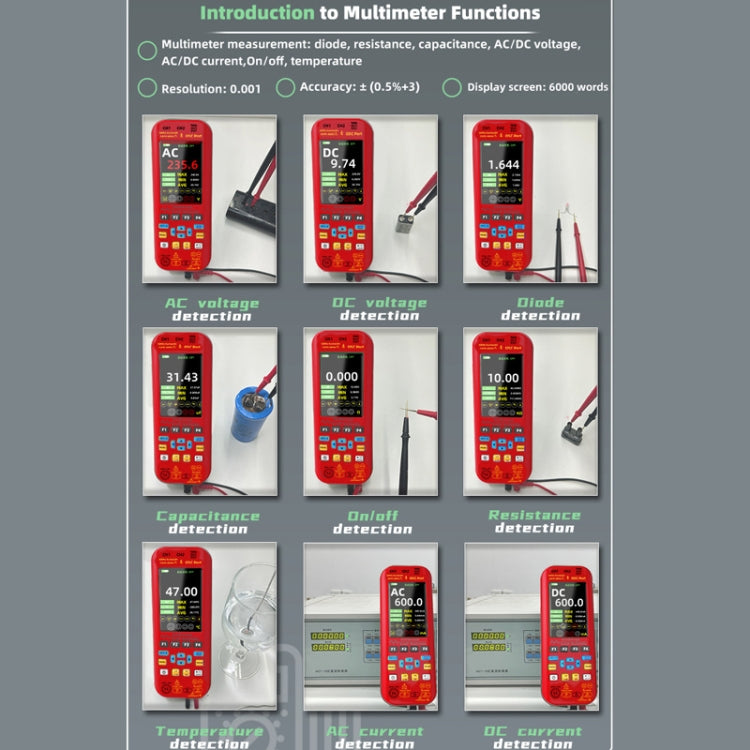

- Measurement range:
- DC voltage: 1000V
- DC voltage (mV): 200mV

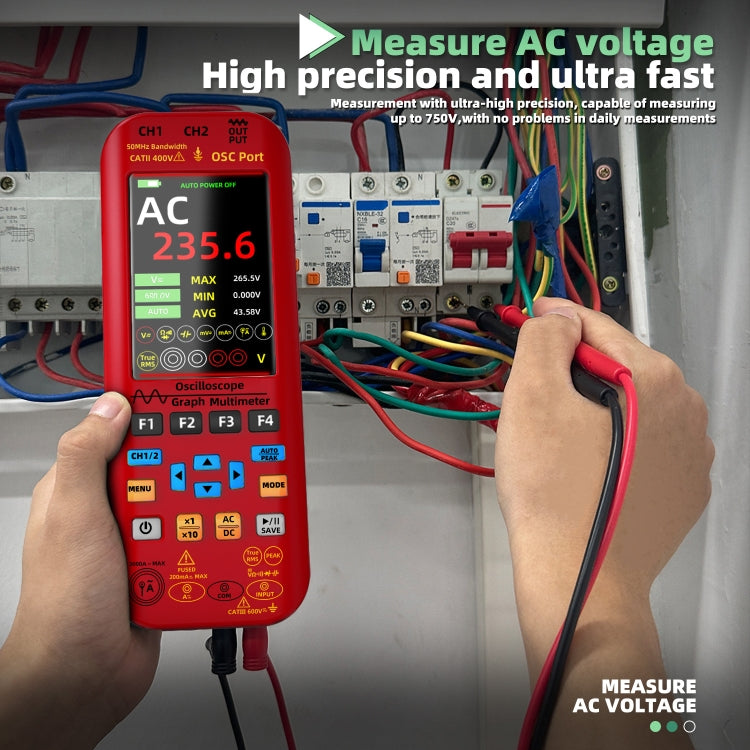

- AC voltage: 750V
- AC voltage (mV): 200mV
- DC/AC current: 200mA
- AC current: 2000A (flexible coil required)
- Resistance: 200mOhm
- Capacitance: 99.999mF
- Temperature: -20 to 1000 degrees Celsius / -4 to 1832 degrees Fahrenheit
- Resolution:
- DC/AC voltage: 0.001V
- DC voltage (mV): 0.01mV
- AC voltage (mV): 0.001mV
- DC/AC current: 0.01mA
- AC current: 0.1A
- Resistance: 0.001 mOhm
- Capacitance: 0.001F
- Temperature: 1 degree Celsius / Fahrenheit
- Functions:
- Diode test
- On-off test
- True RMS measurement
- Screen backlight
- Low battery indication
- Automatic shutdown

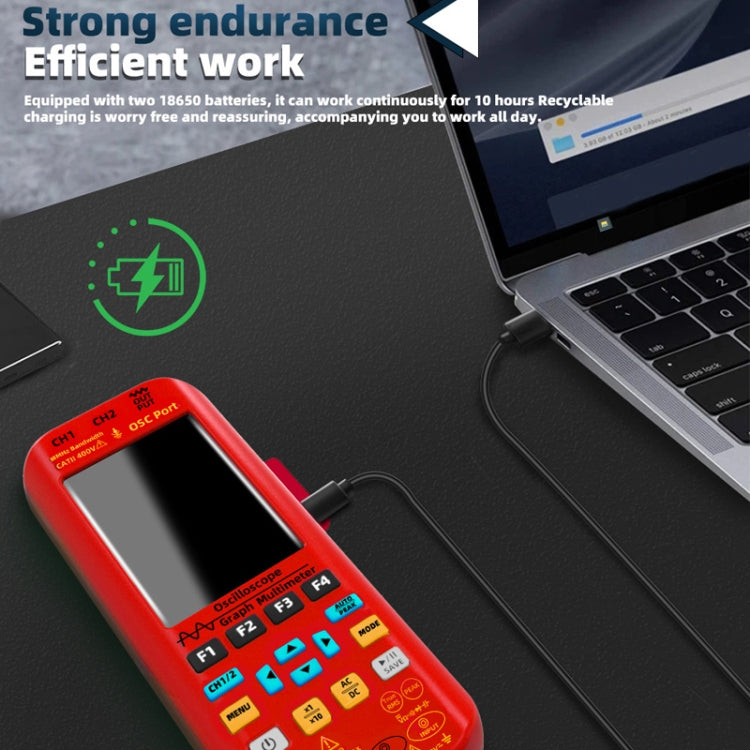

- Battery capacity: 5000mAh lithium battery (built-in)

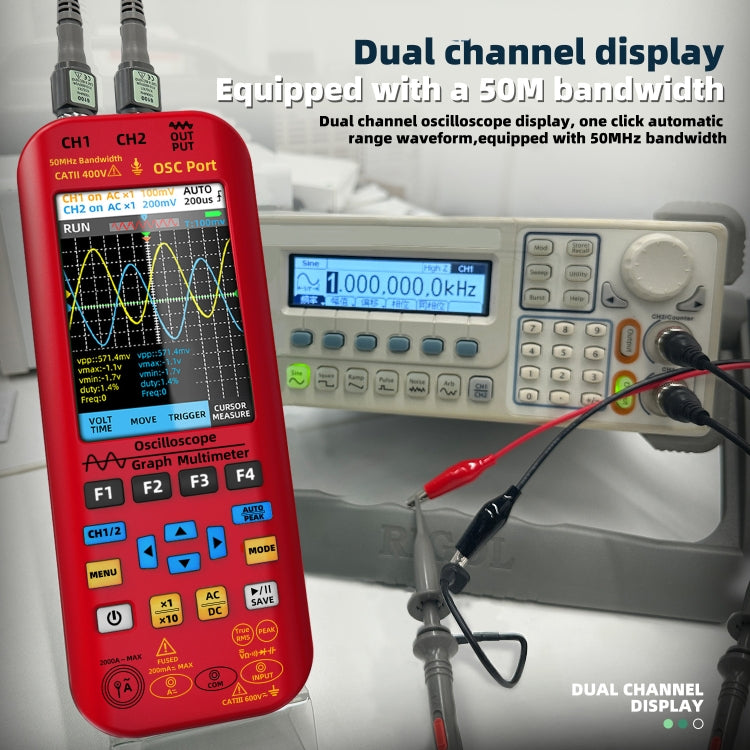

- Oscilloscope specifications:
- Bandwidth: 50MHz
- Sampling mode: real-time sampling
- Real-time sampling rate: 250MSa/s
- Number of channels: 2
- Display modes: YT, XY, scrolling

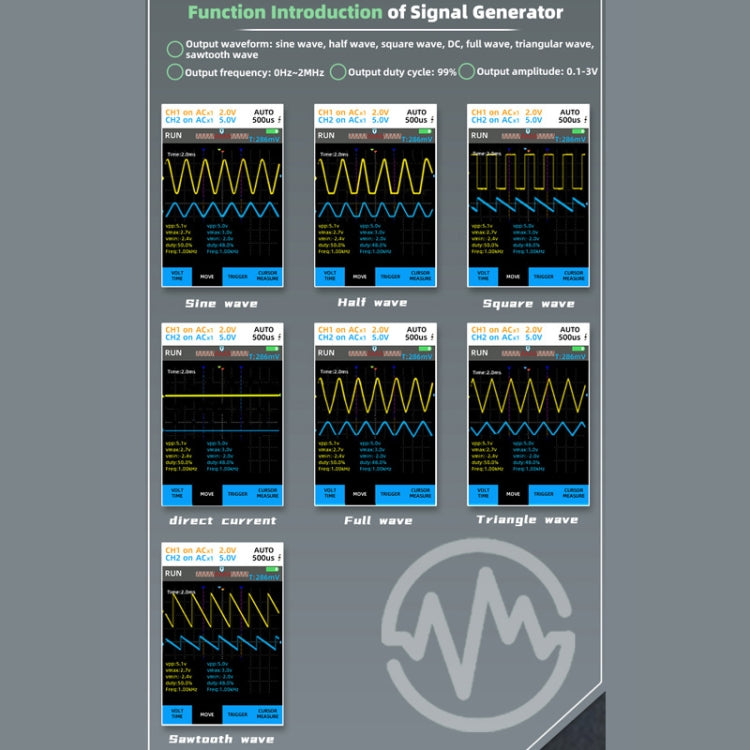

- Waveform output types: sine wave, square wave, triangle wave, half wave, full wave, sawtooth wave, DC
- Frequency range: 0Hz - 2MHz
- Output channel: 1
- Output amplitude: 0.1V - 3.0V
- Minimum resolution: 1Hz
- Square wave duty cycle: 1% - 99%
- Features:
- Bilingual display (Chinese and English)

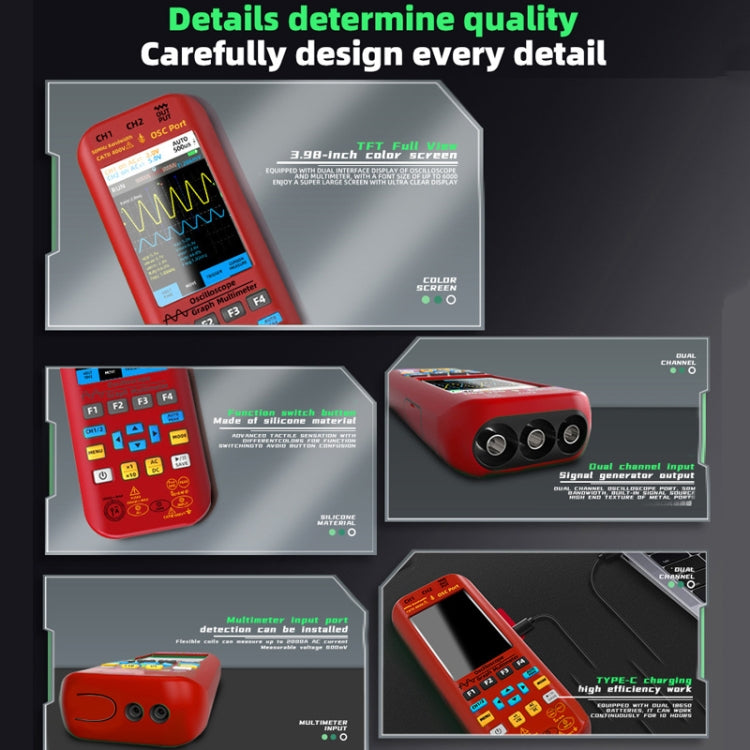

- 3.98-inch TFT color display

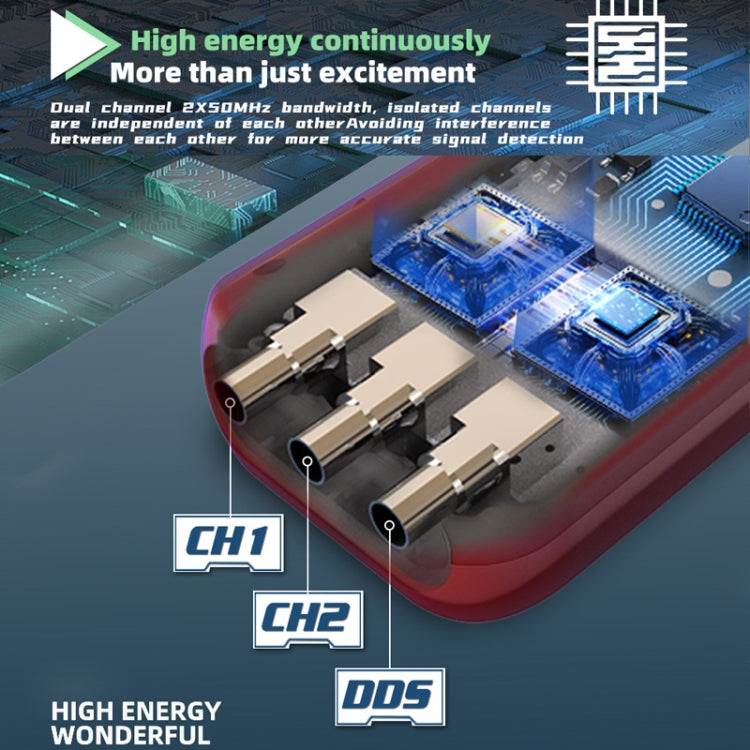

- Dual-channel operation with isolated channels

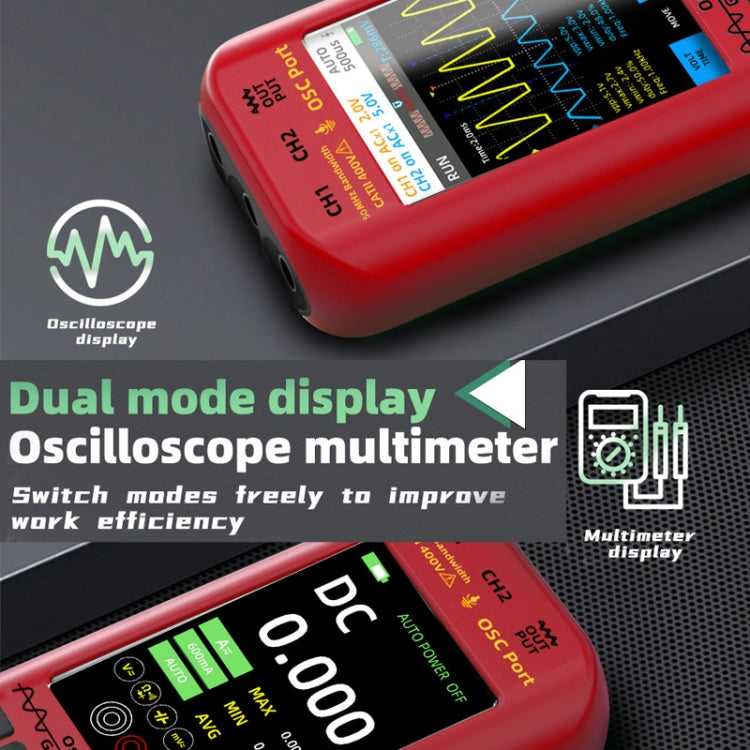

- Dual-mode display (oscilloscope/multimeter)

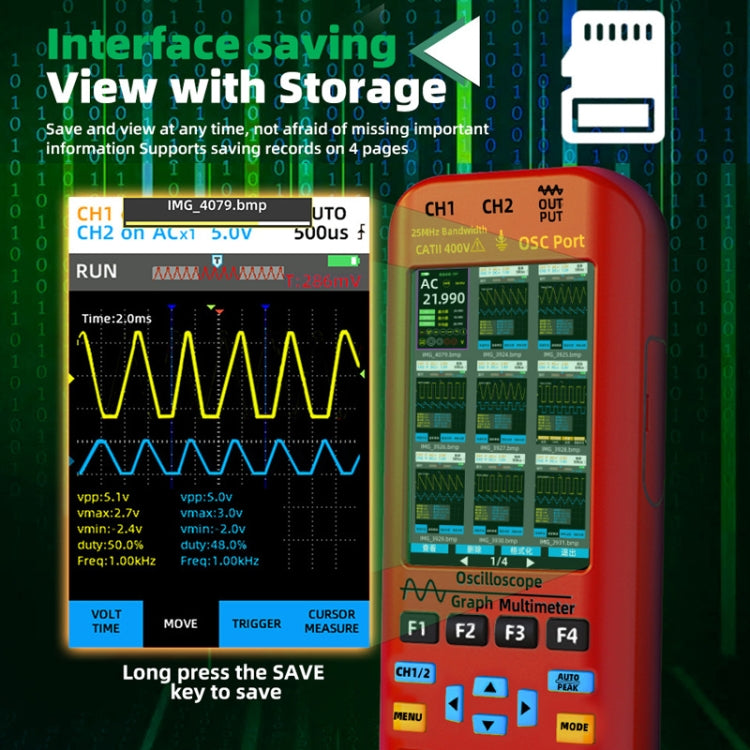

- Supports 36 saved records

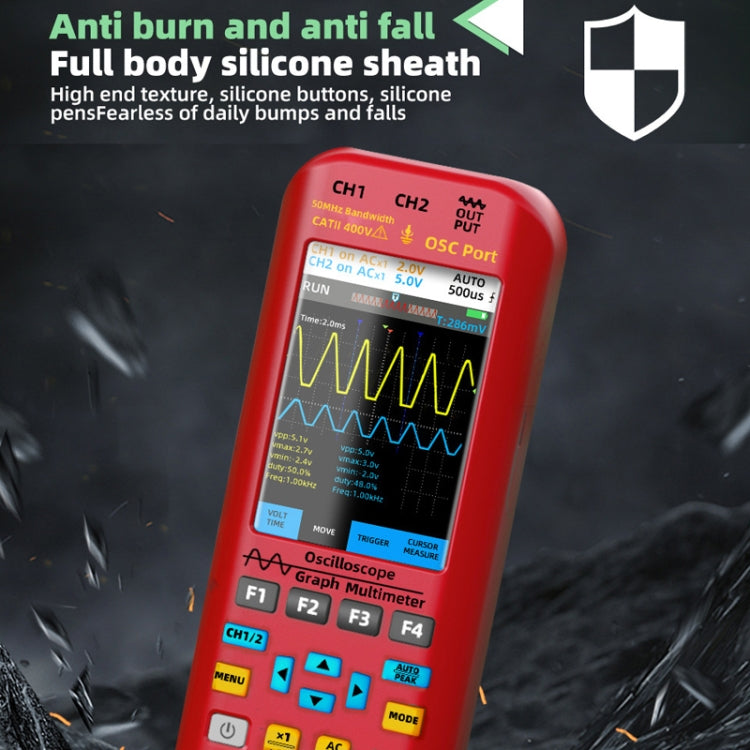

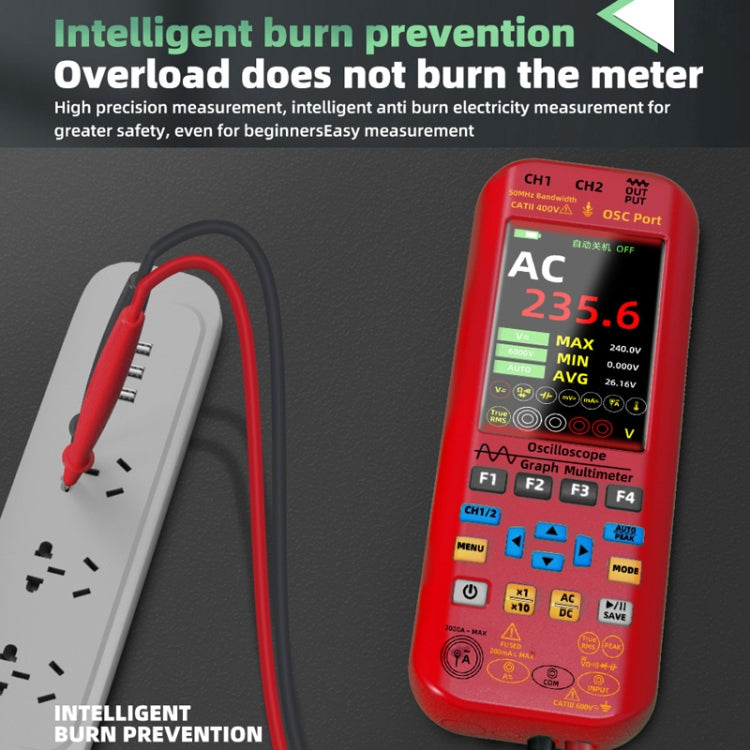

- Intelligent anti-burning feature

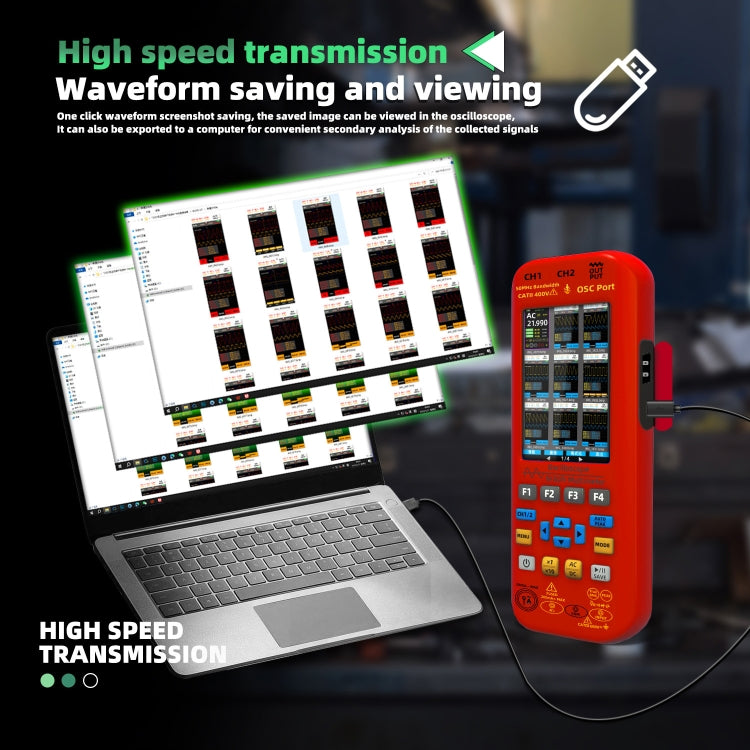

- One-key waveform screenshot save

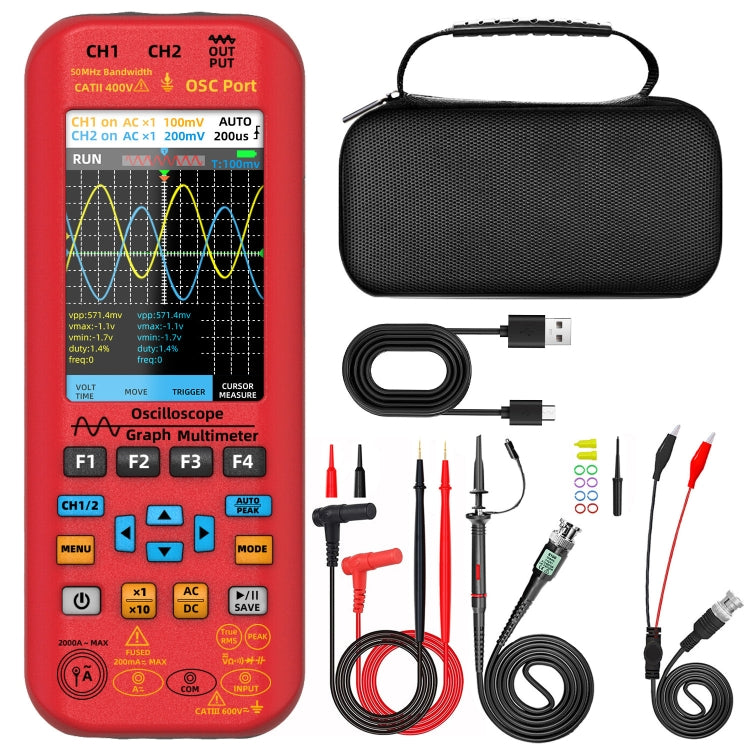

- Packing list:
- Dual-channel oscilloscope multimeter
- 10X oscilloscope probe
- Oscilloscope accessories
- Meter pen
- Red and black crocodile clip probe
- Storage bag
- Instructions
- Charging cable
