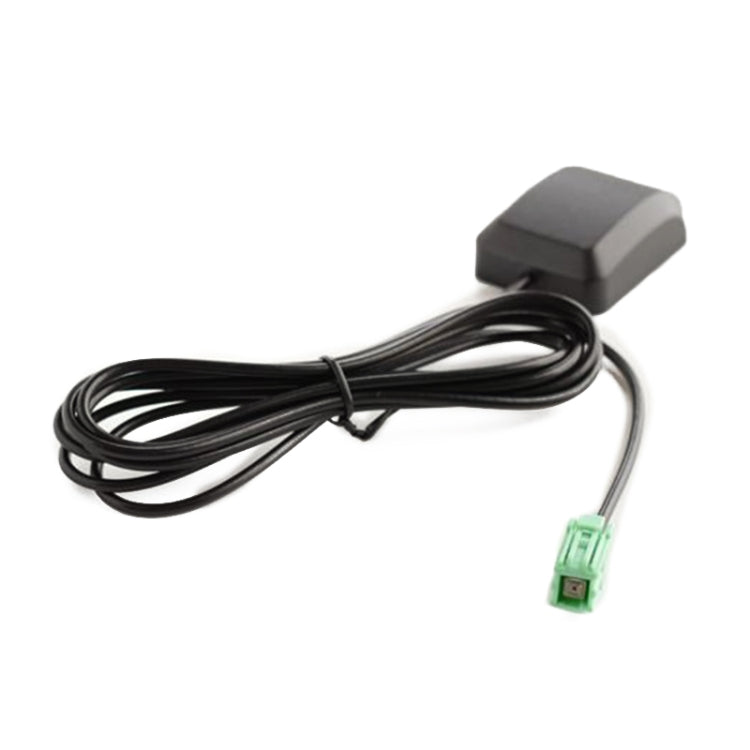

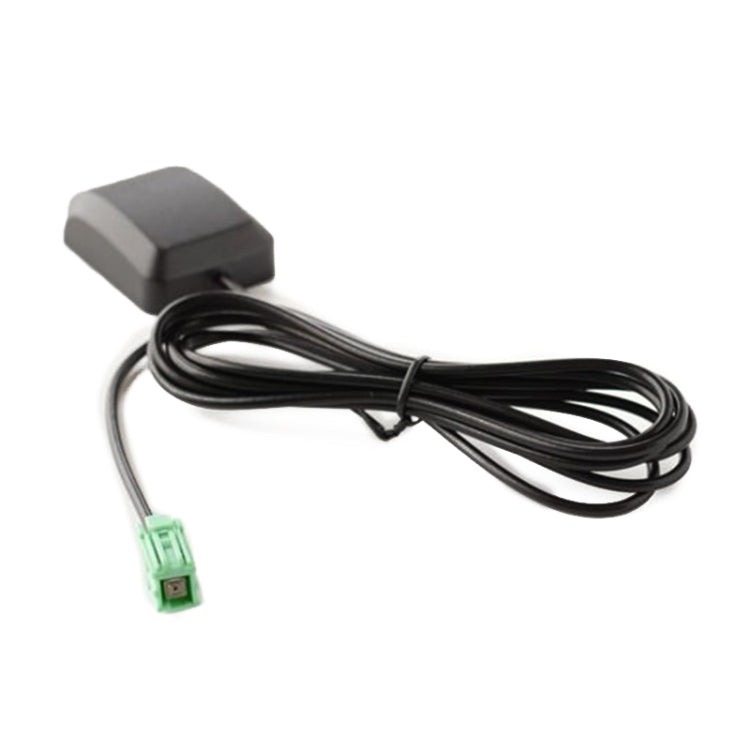

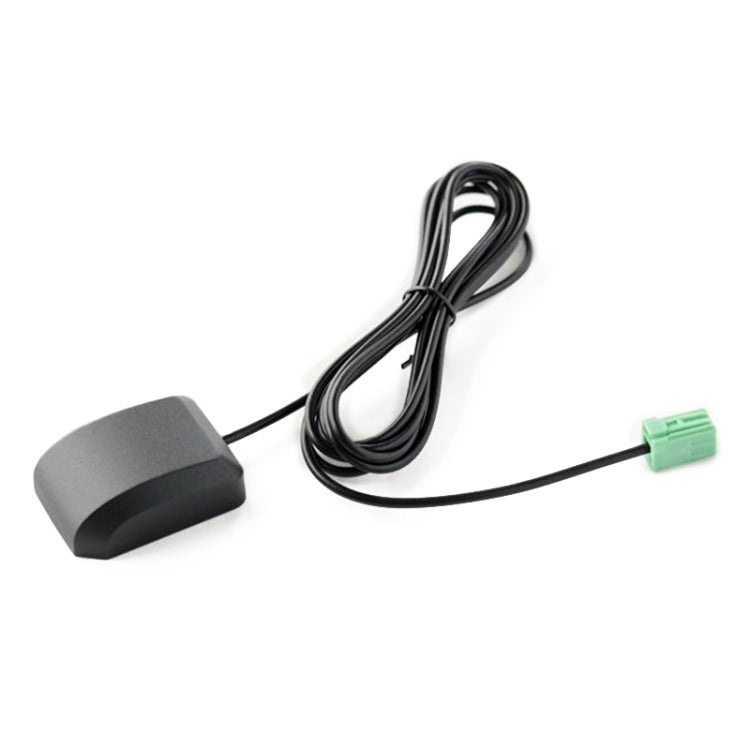

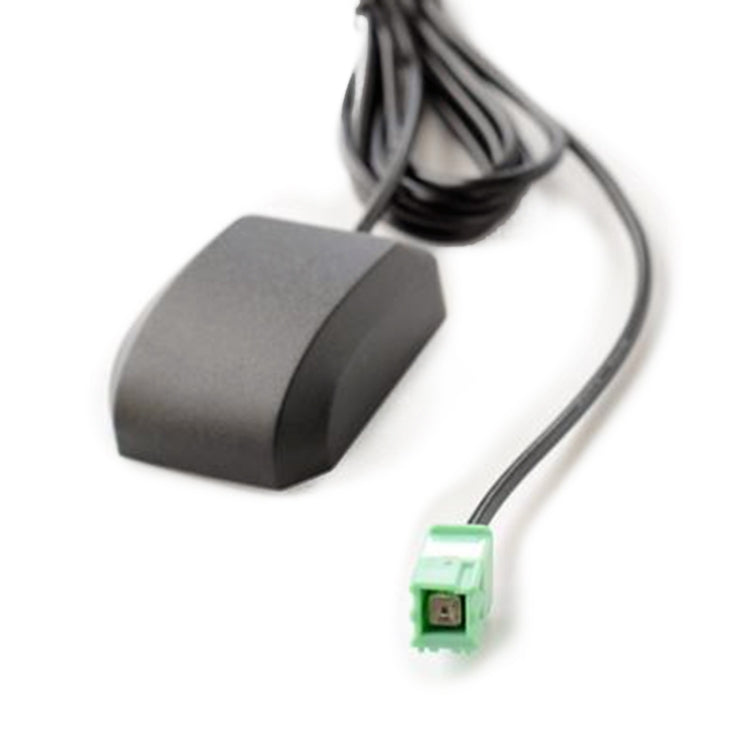

Car GPS Antenna KD51-66-DY0A KD5166DY0A for Mazda 6 CX-5
Car GPS Antenna KD51-66-DY0A KD5166DY0A for Mazda 6 CX-5
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
5-10 business days
In Stock
Processing time: 1-3 business days
Couldn't load pickup availability
Description
Car GPS Antenna KD51-66-DY0A KD5166DY0A is designed to enhance GPS signal reception. It is suitable for various Mazda models, improving navigation accuracy during travel.
- Type: Car GPS Antenna
- Model: KD51-66-DY0A KD5166DY0A
- Active Gain: Yes
- Built-in Low Noise Amplifier: Yes
- Magnetic Base: Yes
- Center Frequency: 1575.42 MHz ± 3 MHz
- V.S.W.R: 1.5:1
- Bandwidth: ± 5 MHz
- Impedance: 50 ohm
- Peak Gain: > 3 dBic (based on 7x7 cm ground plane)
- Gain Coverage: > -4 dBic at ± 90 degrees, < 0, > +90 degrees (over 75% Volume)
- Polarization: RHCP
- LNA/Filter: Yes
- LNA Gain (without cable): 28 dB (typical)
- Noise Figure: 1.5 dB
- Filter Out Band Attenuation: 7 dB min at f0=1575.42 MHz, 20 dB min at f0±20 MHz, 30 dB min at f0±50 MHz
- V.S.W.R: < 2.0
- DC Voltage: 3V, 5V, 3V to 5V
- DC Current: 5 mA, 10 mA max
- Working Temperature: -40°C to +85°C
- Vibration Sine Sweep: 1g (0-p) 10-50-10 Hz each axis
- Humidity: 95% to 100% RH
- Length: 5 m
- Compatibility: 2013-2015 Mazda 6 and CX-5 models with specified engine types
Questions about features, compatibility, or warranty? Chat with our local support team!
