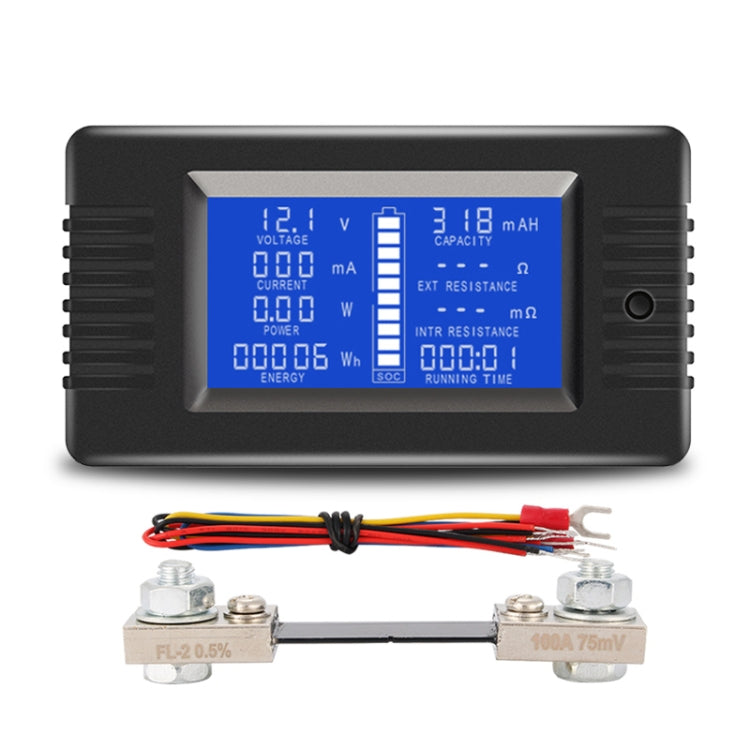

DC 0-200V Voltage Current Battery Tester, Specification: PZEM-015 With 100A Shunt

DC 0-200V Voltage Current Battery Tester is designed to measure battery voltage, current, power, impedance, internal resistance, capacity, discharge energy, and running time. It is suitable for testing various battery types in applications such as electric vehicles, renewable energy systems, and battery maintenance.

• Measuring range for voltage: 0-200V
• Display format for voltage: less than 10V as 9.99V, less than 100V as 99.9V, more than 100V as 199V
• Minimum resolution for voltage: 0.01V
• Start test voltage: 0.05V
• Measurement accuracy for voltage: 1%
• Measuring range for current: 0-300A (Model: PZEM-015)
• Display format for current: less than 1A as 999mA, less than 10A as 9.99A, less than 100A as 99.9A, greater than or equal to 100A as 199A
• Minimum resolution for current: 1mA
• Initial test current: 20mA (Model: PZEM-015)
• Measurement accuracy for current: 1%
• Measuring range for power: 0-60000W (Model: PZEM-015)
• Display format for power: less than 10W as 9.99W, less than 100W as 99.9W, less than 1000W as 999W, less than 10000W as 9.99kW, greater than or equal to 10000W as 19.9kW
• Minimum resolution for power: 0.01W
• Initial test power: 0.2W (Model: PZEM-015)
• Measurement accuracy for power: 1%
• Measuring range for impedance: 0-1000Ω
• Display format for impedance: less than 100Ω as 99.9Ω, greater than or equal to 100Ω as 999Ω
• Minimum resolution for impedance: 0.1Ω
• Measurement accuracy for impedance: 1%
• Measuring range for internal resistance: 0-999mΩ
• Display format for internal resistance: 999mΩ
• Minimum resolution for internal resistance: 1mΩ
• Measurement accuracy for internal resistance: 1%
• Measuring range for capacity: 0-1000Ah
• Display format for capacity: less than 1Ah as 999mAh, less than 10Ah as 9.99Ah, less than 100Ah as 99.9Ah, less than 1000Ah as 999Ah
• Minimum resolution for capacity: 1mAh
• Measurement accuracy for capacity: 1%
• Measuring range for energy: 0-9999kWh
• Display format for energy: less than 1kWh as 999Wh, less than 10kWh as 9.99kWh, less than 100kWh as 99.99kWh, less than 1000kWh as 999.99kWh, greater than or equal to 1000kWh as 9999kWh
• Minimum resolution for energy: 1Wh
• Measurement accuracy for energy: 1%
• Discharge energy indicator: battery symbol with 10 grids, each grid represents 10% of power
