Description

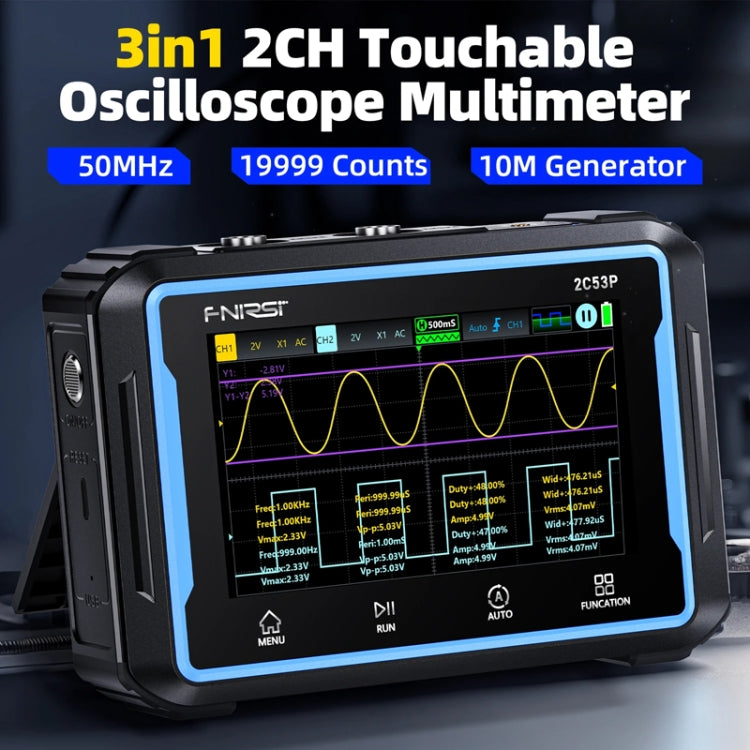

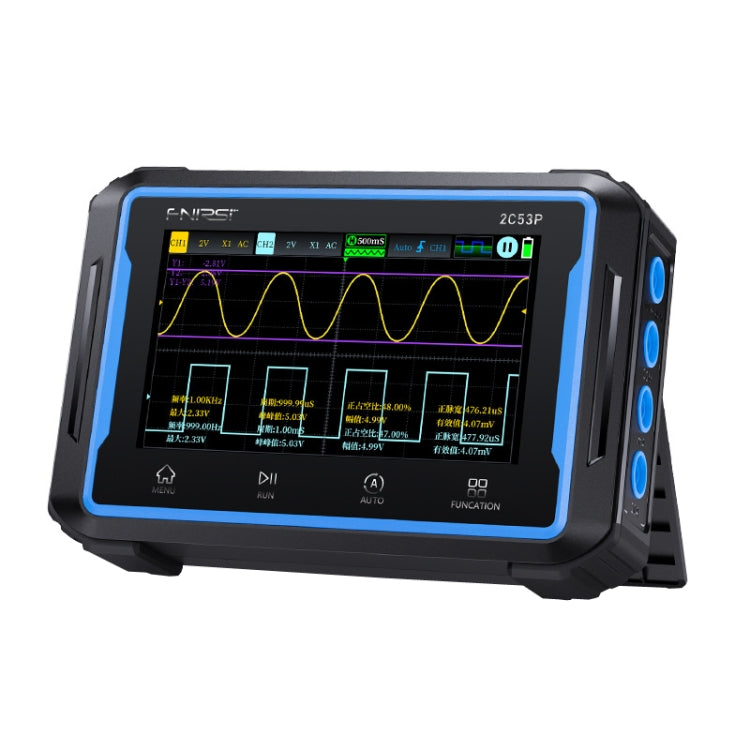

The FNIRSI 2C53P is a dual-channel flat panel digital oscilloscope, multimeter, and signal generator. It is suitable for measuring and analyzing electrical signals in various applications, including electronics testing and troubleshooting.

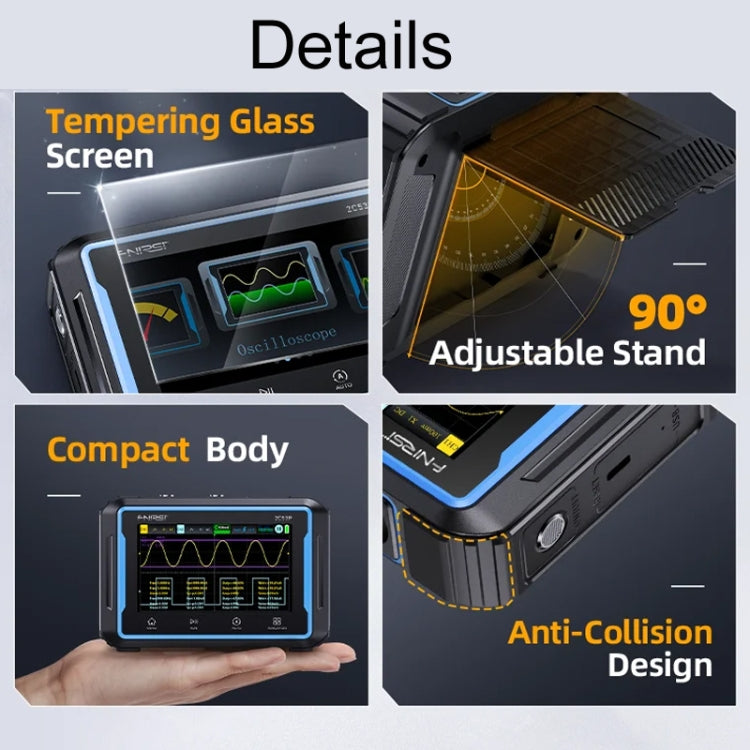

- Screen: 4.3-inch IPS ultra-high definition touch screen with tempered glass
- Backlight: Adjustable brightness
- Power Supply: Type-C (5V/2A)
- Battery: 4000mAh lithium-ion battery

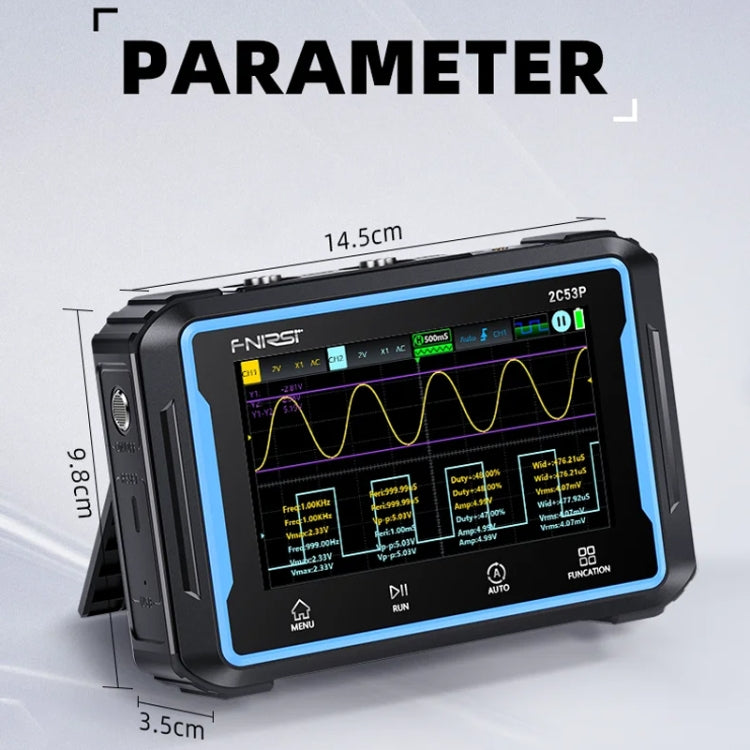

- Dimensions: 145 x 98 x 35 mm
- Weight: 360 g
- Oscilloscope Channels: Dual-channel
- Bandwidth: 50 MHz
- Real-time Sampling Rate: 250 MSa/s
- Memory Depth: Up to 64 kByte
- Time Base Range: 10 ns/div to 10 s/div
- Vertical Sensitivity: 10 mV/div to 10 V/div
- Waveform Display Modes: YT, XY, scrolling
- Vertical Resolution: 8 bits
- Input Impedance: 1 MΩ
- Bandwidth Limitation: Supports 20 MHz limitation
- Probe Attenuation Factor: 1x/10x
- Input Coupling: AC/DC
- Trigger Types: Rising edge, falling edge
- Maximum Voltage: ±400 V
- Trigger Level Range: 8 cells (positive and negative)

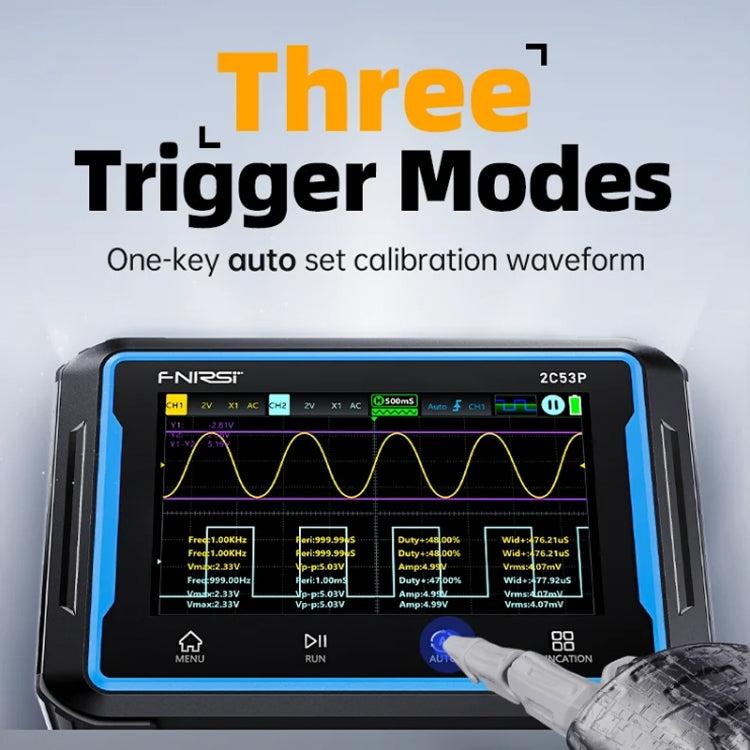

- Trigger Modes: Automatic, normal, single
- Memory Space: 13 M

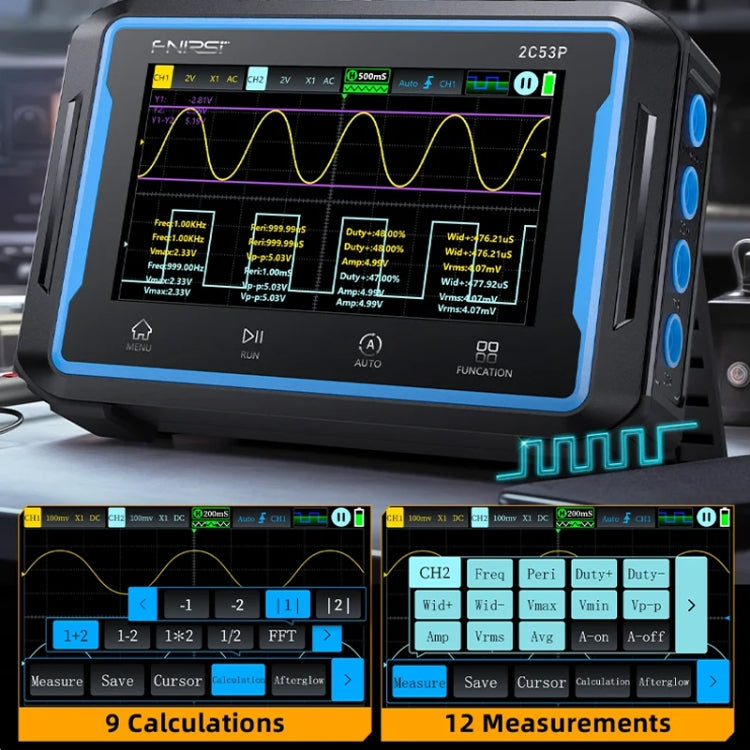

- Measurement Data: Period, frequency, peak-to-peak value, maximum value, minimum value, average value, RMS value, amplitude, duty cycle, pulse width
- Signal Generator Waveform Output Frequency: Sine wave: 10 MHz, other waveforms: 5 MHz
- Waveform Frequency: 0-10 MHz
- Waveform Amplitude: 0.1 V to 3.0 V
- Duty Cycle of Square Wave: 0-100%

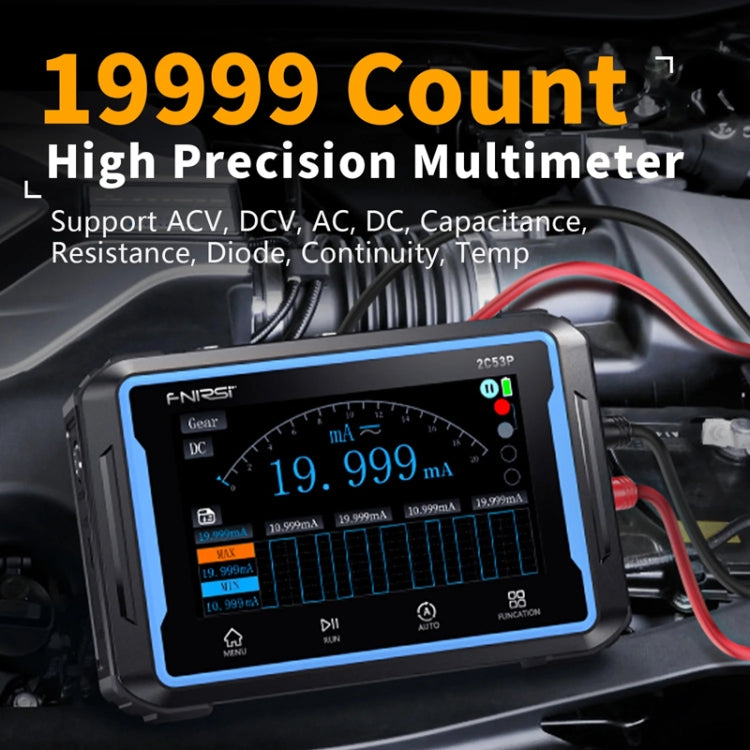

- Multimeter DC Voltage: 1.9999 V to 1000.0 V
- Multimeter AC Voltage: 1.9999 V to 760.0 V
- Multimeter DC Current: 19.999 mA to 9.999 A
- Multimeter AC Current: 19.999 mA to 9.999 A
- Multimeter Resistance: 19.999 MΩ to 199.99 Ω
- Multimeter Capacitance: 999.9 µF to 9.999 nF
- Multimeter Temperature Range: -55 to 1300 degrees Celsius (-67 to 2372 degrees Fahrenheit)
