Description

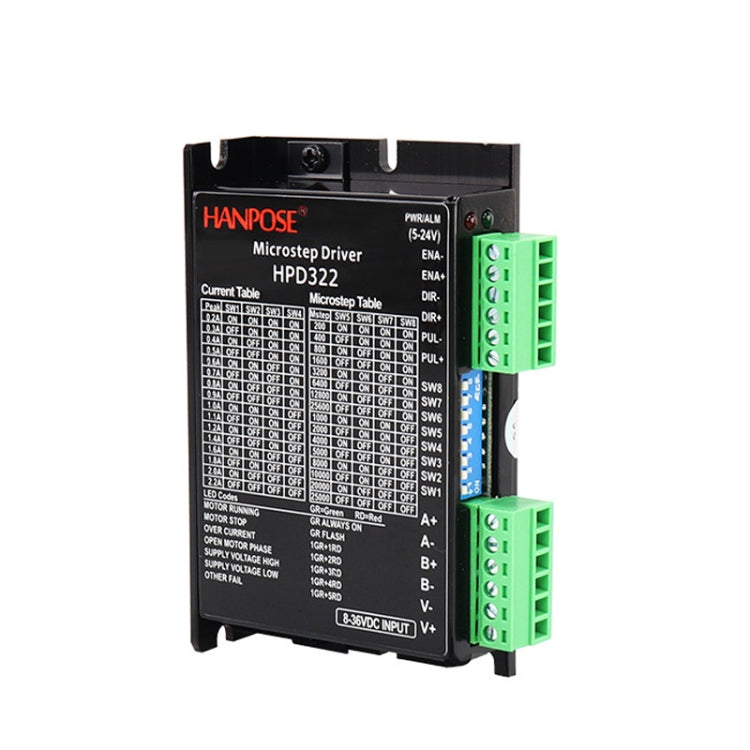

HANPOSE HPD332 is a stepper motor driver designed for two-phase stepper motors. It is suitable for applications requiring precise control of motor speed and torque.
- Product Type: Stepper Motor Driver
- Compatibility: 20, 28, 35, 39, 42 two-phase stepper motors
- Material: Multi-layer boards
- Output Current: 2.2A peak
- Subdivisions: 16 subdivisions available
- Operating Current: Selectable via dial switch
- Protection Features: Overvoltage, undervoltage, phase current, and total current overcurrent protection
- Signal Input: Single-ended, pulse + direction, and double pulse
- Maximum Power Supply: DC 36V
- Input Pulse Frequency: Maximum 300KHz
- Temperature Range: 0-50 degrees Celsius operating, -20-65 degrees Celsius storage
- Humidity Range: 40-90% RH
- Vibration Tolerance: 10-55 Hz/0.15mm
- Weight: 180g
- Usage Environment: Avoid dust, oil, corrosive gases, excessive humidity, and strong vibration
