Description

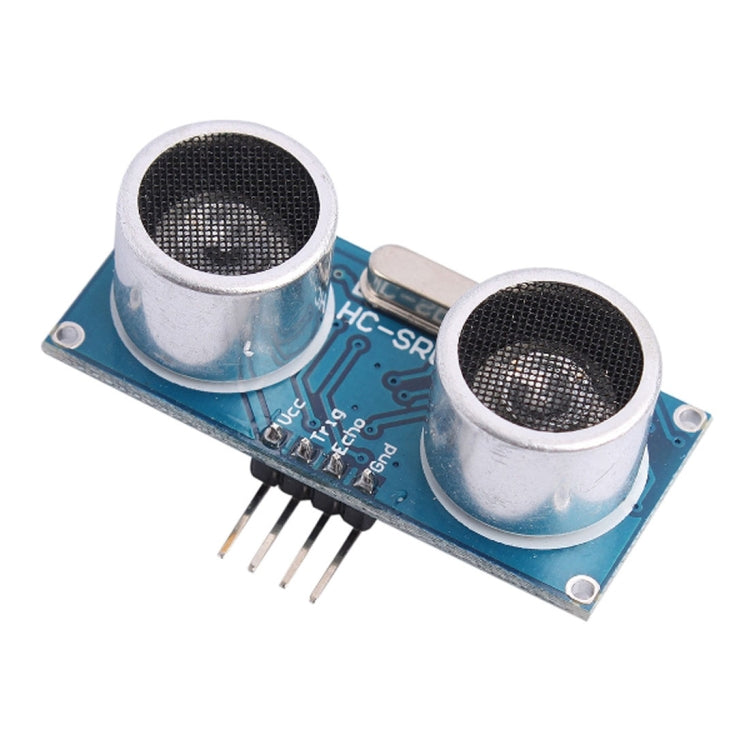

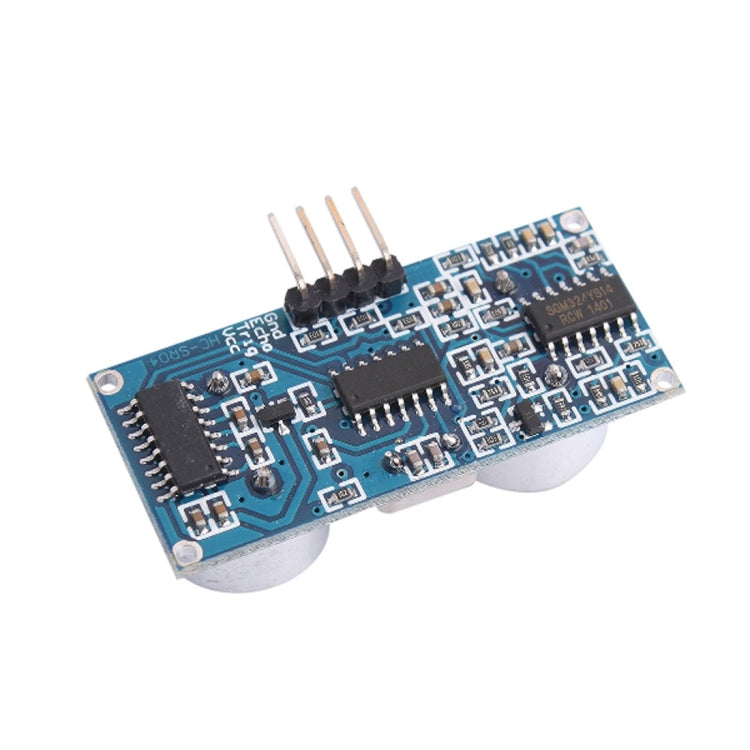

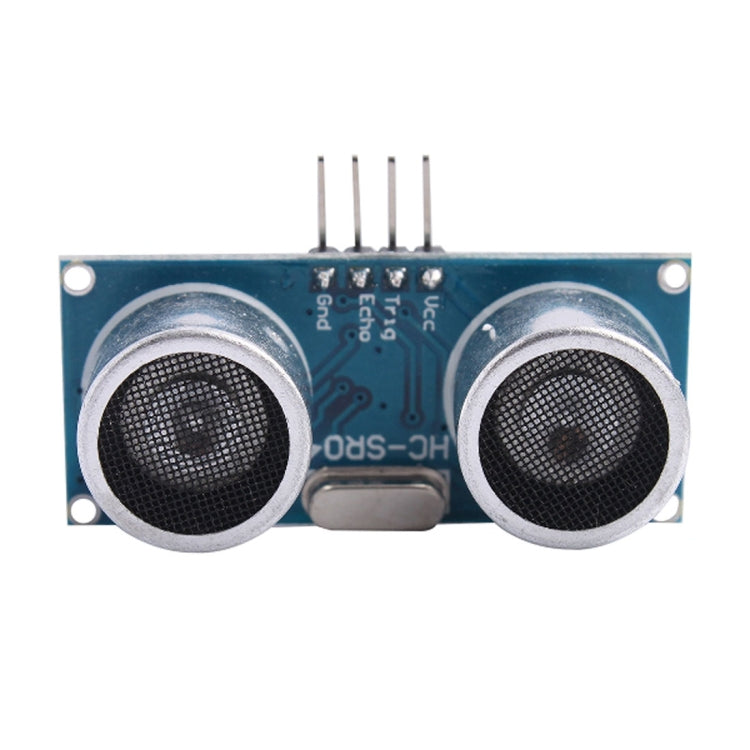

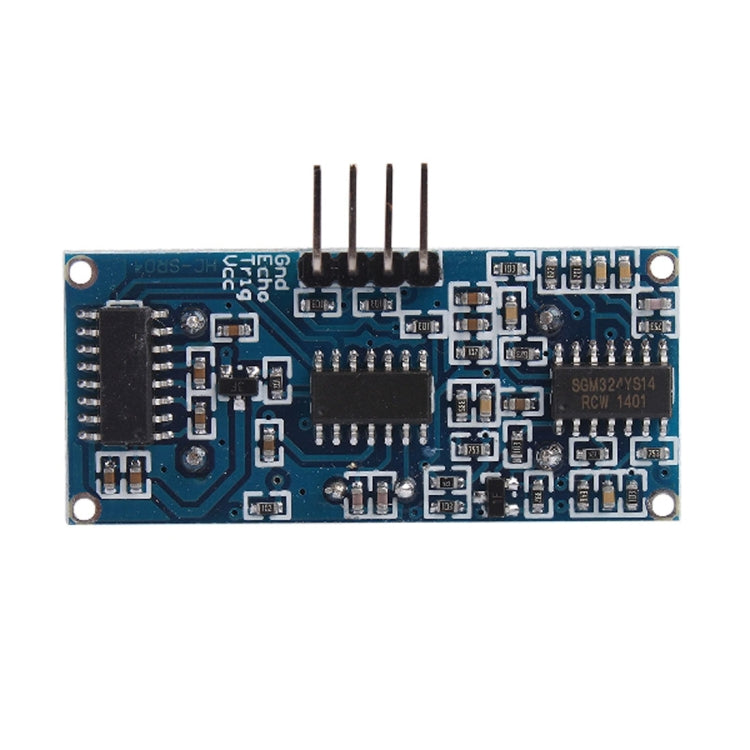

HC-SR04 Ultrasonic Sensor Distance Measuring Module is a sensor module designed for distance measurement. It is suitable for applications requiring high precision distance measurement, such as robotics and automation projects.
- Product Type: Sensor Module
- Compatibility: PICAXE Microcontroller, Arduino UNO
- Power Supply: 5VDC
- Measuring Range: 2cm to 450cm
- Precision: High precision up to 3mm
- Connection Modes: VCC, trig (T), echo (R), GND
- Output Signal: Electric frequency output signal from 0V to 5V
- Working Principle: IO trigger with a minimum 10us high level signal, sends eight 40kHz square waves, detects returning pulse signal
