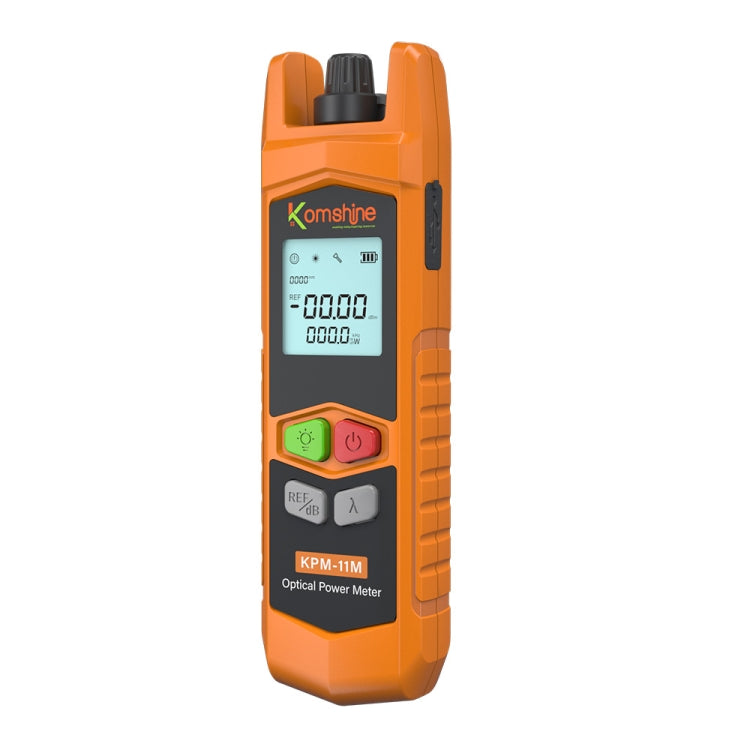

Komshine High Precision Optical Power Meter Mini Fiber Optic Light Attenuation Tester With LED, Specification: C-G/-50DBM to +26DBM

Komshine High Precision Optical Power Meter Mini Fiber Optic Light Attenuation Tester With LED, Specification: C-G/-50DBM to +26DBM

Regular price $36.09 CAD
Regular price Sale price $36.09 CAD
Sale Sold out
FREE DELIVERY on all orders.

In stock

Quantity

🔥 Buy 2 items, get 25% off 3rd item 🔥 buy more and save!

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

FREE SHIPPING at checkout. Ships via Buffalo Logistics. Fully insured.

Handling time: 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time: 5 - 10 working days.

Overseas Warehouse: Shipping from China.

Duties and Taxes

  • For orders up to and including R2000 - No Additional Charges: The price you see is the final price—no hidden costs or extra taxes.
  • For all orders over R2000, we are unable to offer DDP (Delivered Duty Paid), and you will be responsible for any import duties, taxes, and customs clearance fees.

For whatever reason, if you are unsatisfied with your order within 7 days, you can return it to us in new condition.

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.


1. Wavelength range: 800~1700 (nm)
2. Probe type: InGaAs

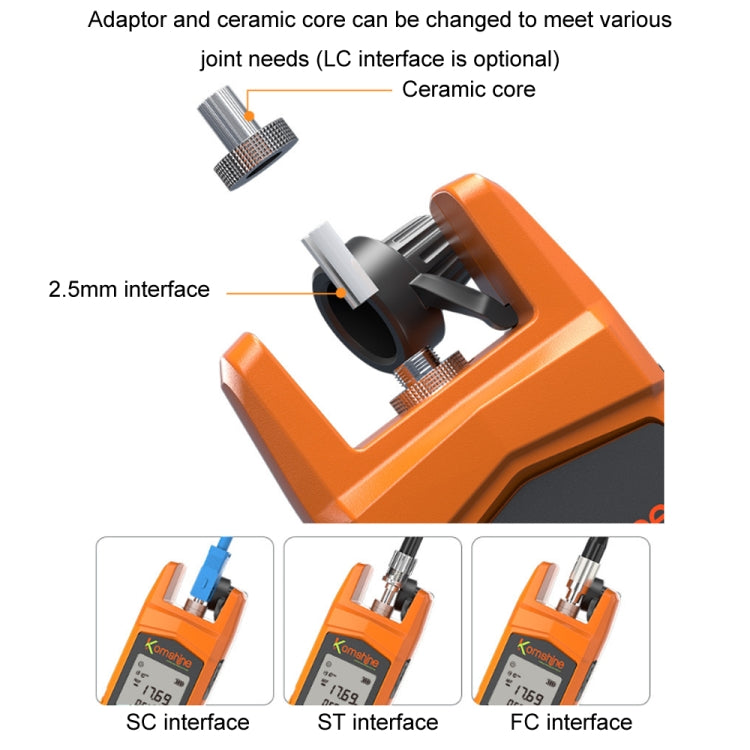

3. Interface: 2.5mm universal interface
4. Power measurement range: -70~+6 dBm/-50~+26 dBm
5. Standard wavelength: 850, 980, 1300, 1310, 1490, 1550, 1625 (nm)
6. Display resolution: 0.01dB
7. Automatic shutdown time: 10 minutes
8. Battery working time: 20 hours
9. LED flashlight: supported
10. Power supply: AAA 1.5V battery x 2 (not included)
11. This optical power meter has two models, A and C. The power test ranges are:
Type A: -70dBm~+6dBm (mainly used in telecommunications, mobile, China Unicom, etc.)
Type C: -50dBm~+26dBm (mainly used in radio and television, monitoring, etc.)

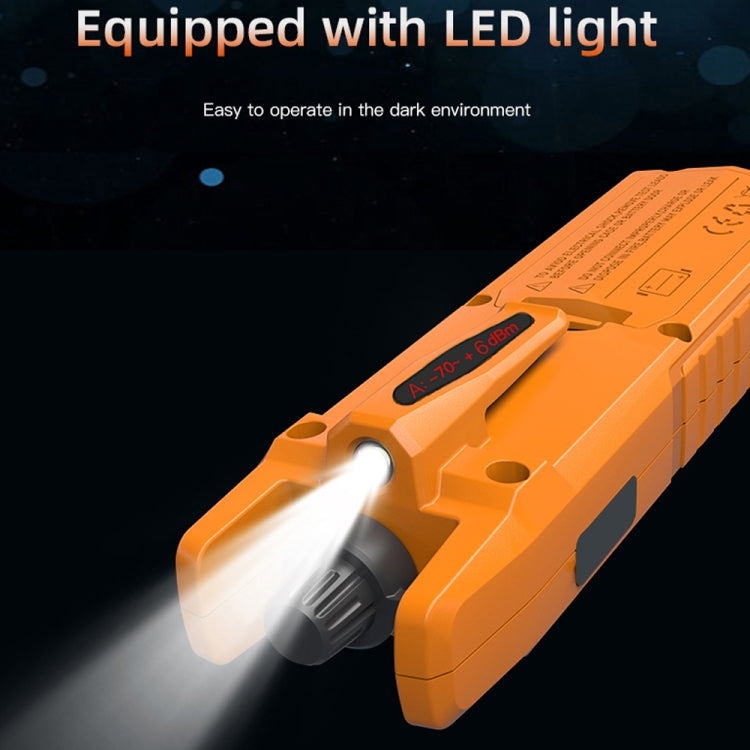

12. Equipped with a high-brightness LED flashlight to facilitate line checking and construction in dark environments, making work more convenient
13. Self-adjustable values, flexible and accurate measurement
14. Simple and lightweight, the body design conforms to ergonomic requirements, and the size is small and exquisite. It can be easily put into a pocket, clipped to clothes, and carried anywhere.
15. Short press the power button to turn on the power saving function by default. If there is no operation for 15 minutes, it will automatically shut down. When the power is on, long press the power button and the "0" icon disappears to cancel the function.

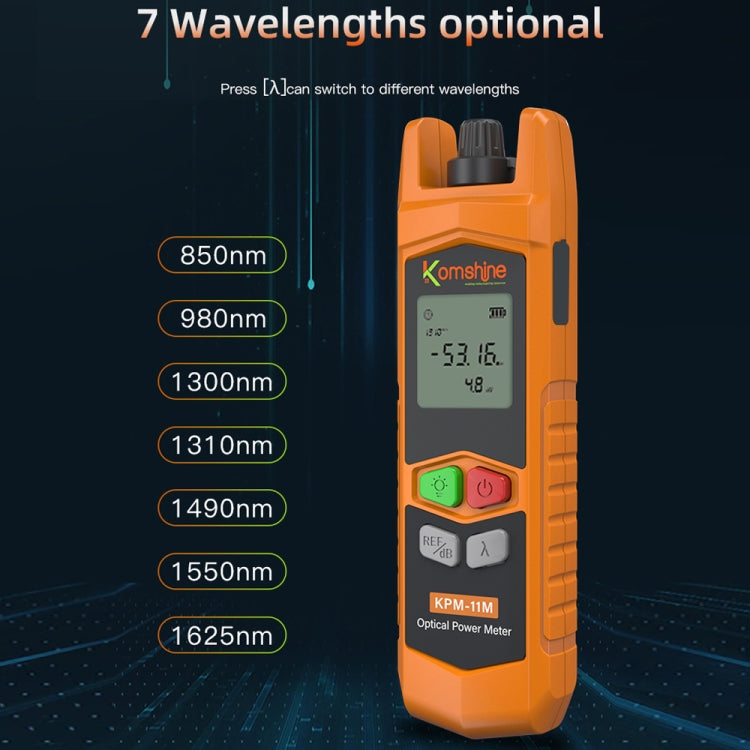

16. Seven wavelengths are available: 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm and 1625nm.

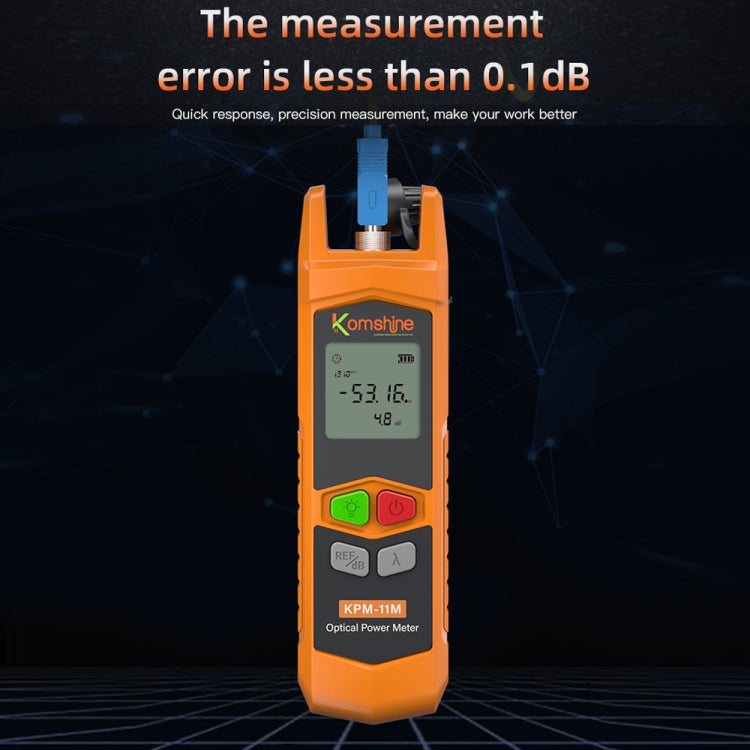

17. High-precision measurement, measurement error 0.2dB, fast response

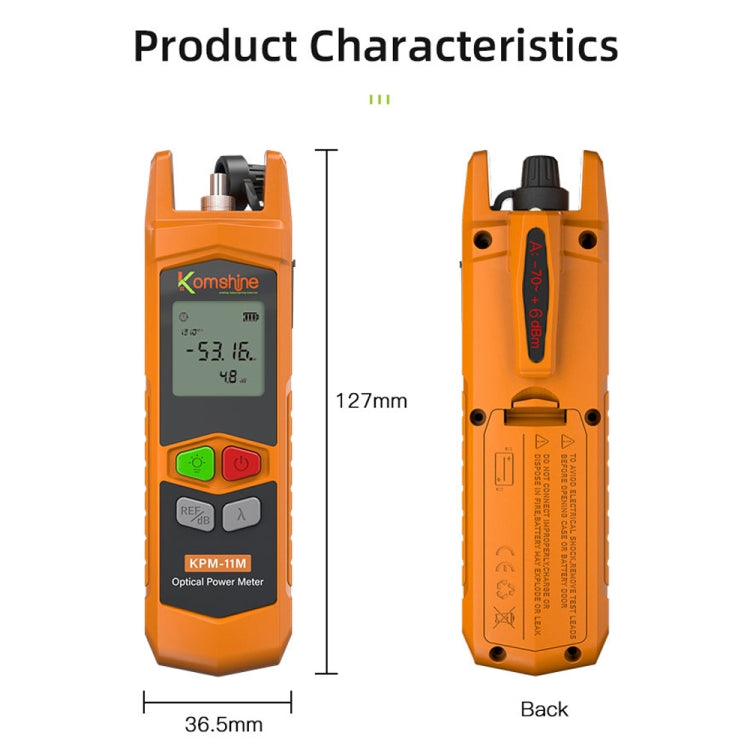

18. Dimensions: 127x36.5x28 mm
19. Weight: 61g
