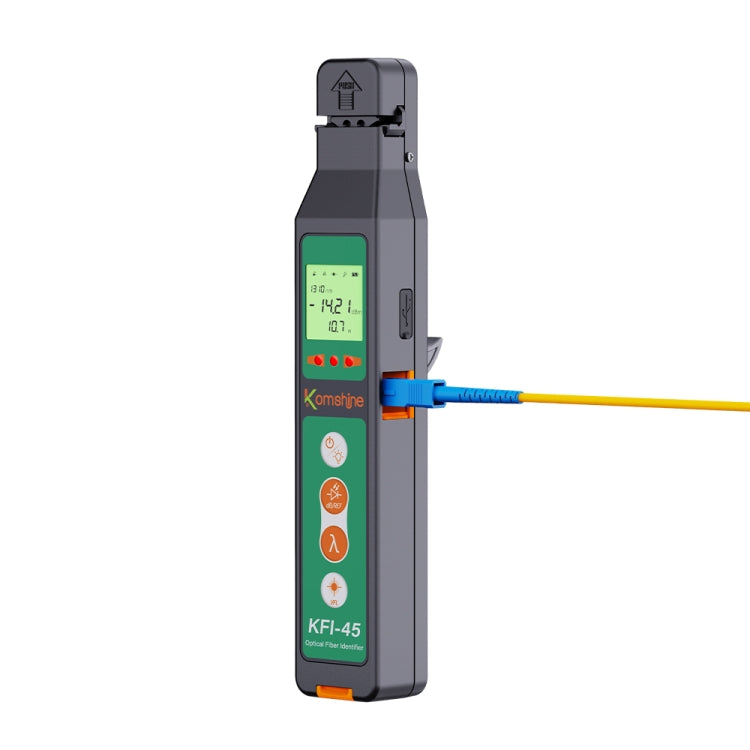

Komshine Optical Fiber Signal Direction Identification Instrument, Model: KFI-45-G
Komshine Optical Fiber Signal Direction Identification Instrument, Model: KFI-45-G
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R769.39/mo 3 months
- R389.05/mo 6 months
- R205.32/mo 12 months
- From R769.39/month over 3 months, or as low as R205.32/month over 12. Total repayable over 12 months: R2463.84. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Import Taxes & Duties Excluded
6-13 business days
In Stock CHN
Processing time: 1-3 days
Couldn't load pickup availability
Description

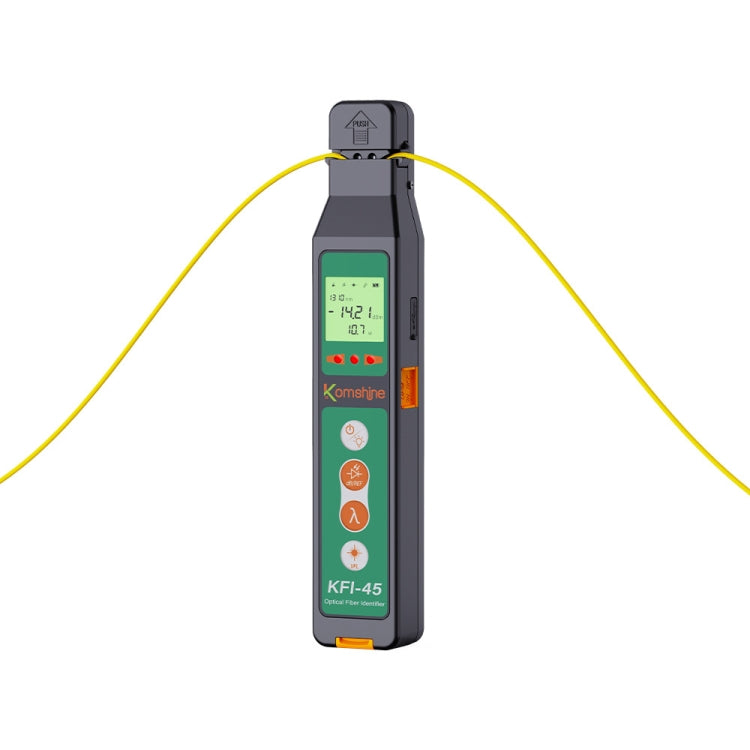

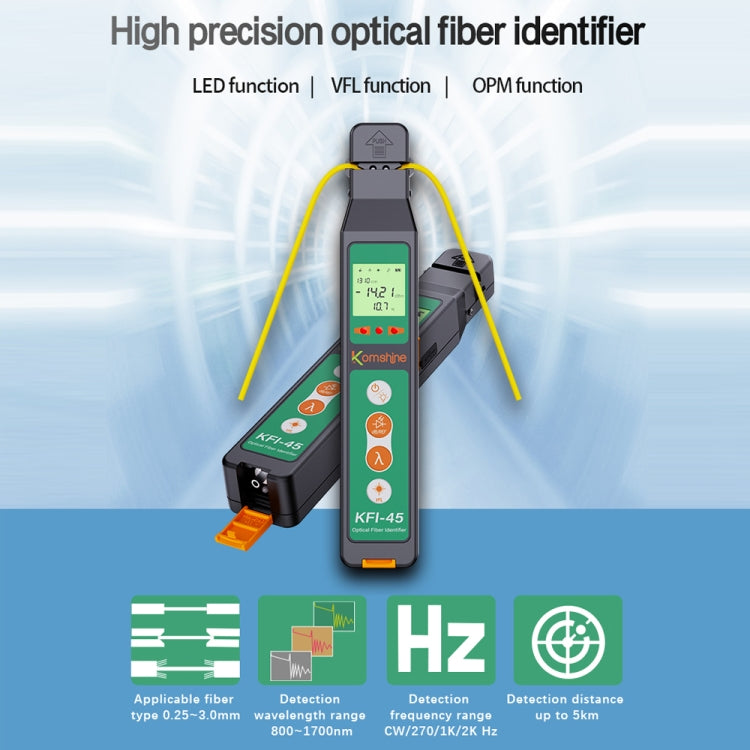

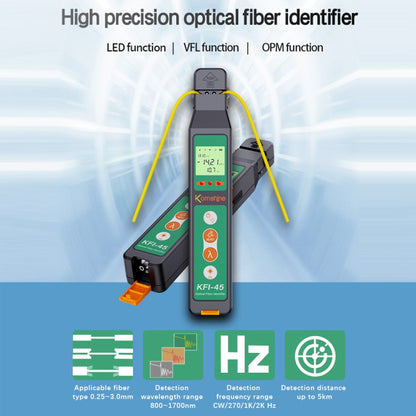

Komshine Optical Fiber Signal Direction Identification Instrument is designed to identify the direction of optical fiber signals. It is suitable for use in telecommunications and networking applications where accurate signal direction identification is required.
- Model: KFI-45-G
- Wavelength identification range: 800-1700 nm
- Detector type: 1 mm InGaAs, 2 pcs
- Optical power reading range: -40 dBm to 10 dBm

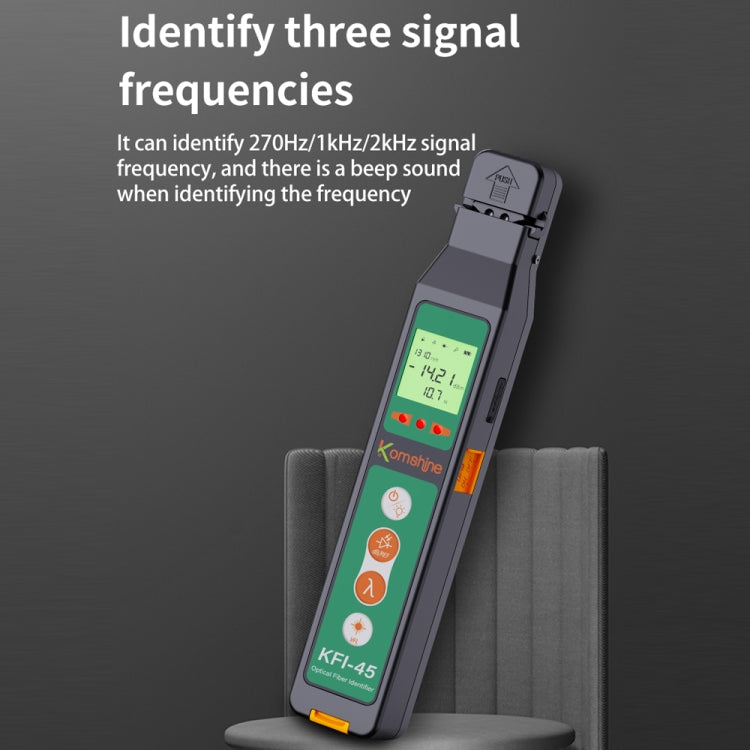

- Signal frequency range: 270 Hz, 1 kHz, 2 kHz
- Power supply type: AA x 2 (not included)
- Applicable fiber type: 0.25 mm to 3.0 mm
- Detection wavelength range: 800-1700 nm
- Detection frequency range: CW/270/1K/2K Hz
- Detection distance: up to 5 km
- Size: 219 x 45 x 28 mm
- Weight: 235 g

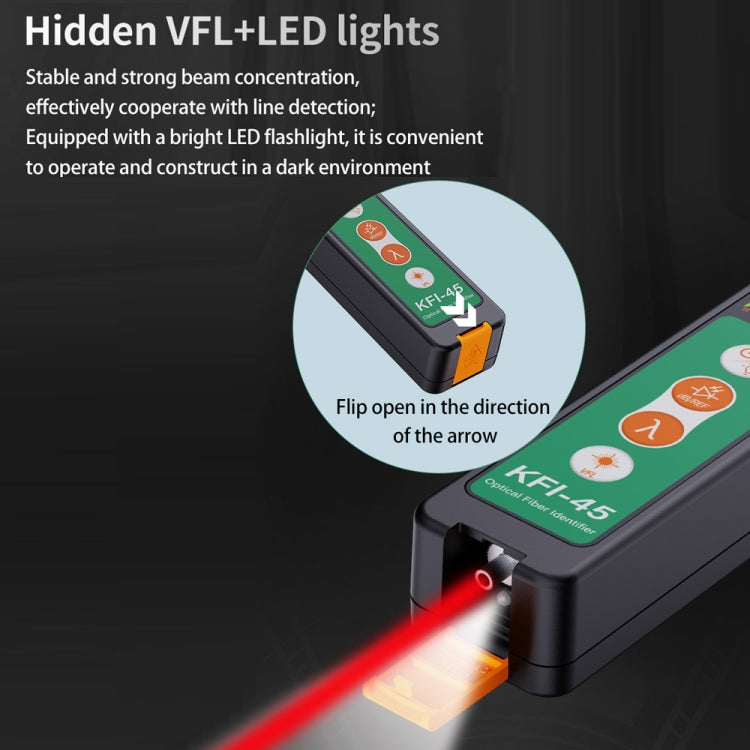

- VFL power range: 1 mW
- VFL test distance: 3-5 km
- VFL wavelength range: 650 nm
- VFL laser type: LD
- VFL LED flashlight: supported

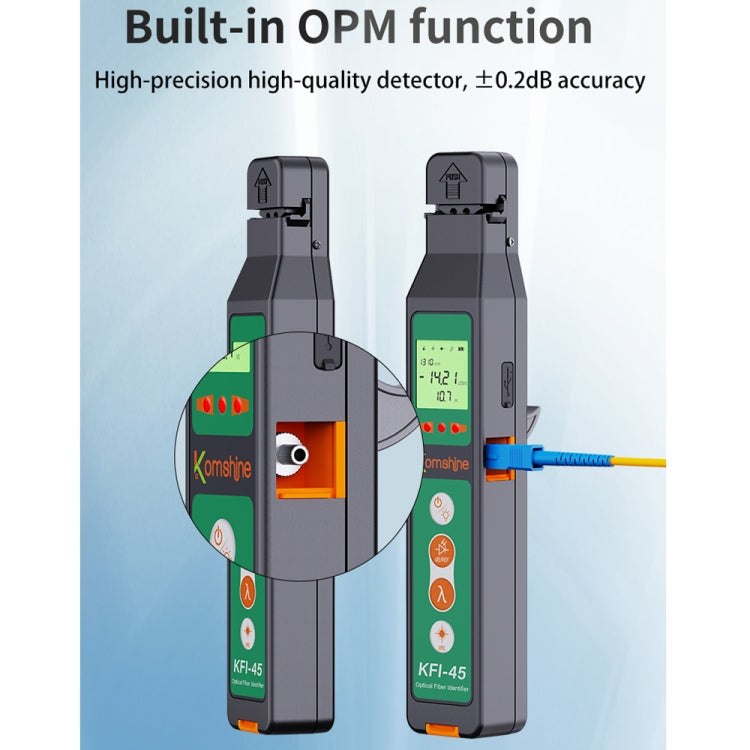

- OPM wavelength range: 800-1700 nm
- OPM power measurement range: -70 to +6 dBm / -50 to +26 dBm
- OPM standard wavelengths: 850, 980, 1300, 1310, 1490, 1550, 1625 nm
- Connector: 2.5 mm universal adapter + SC
- Probe type: InGaAs
- Accuracy: 0.2 dB

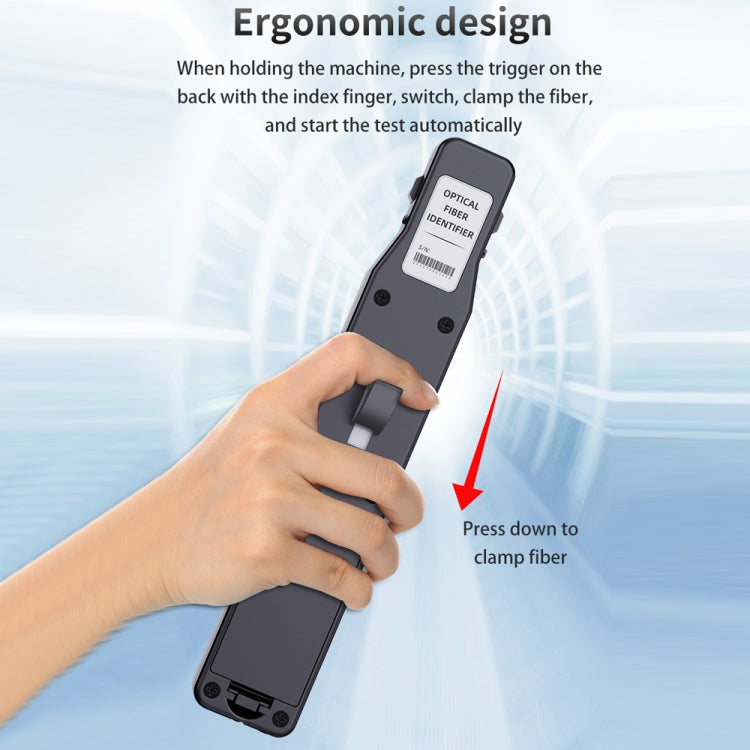

- Ergonomic design for ease of use

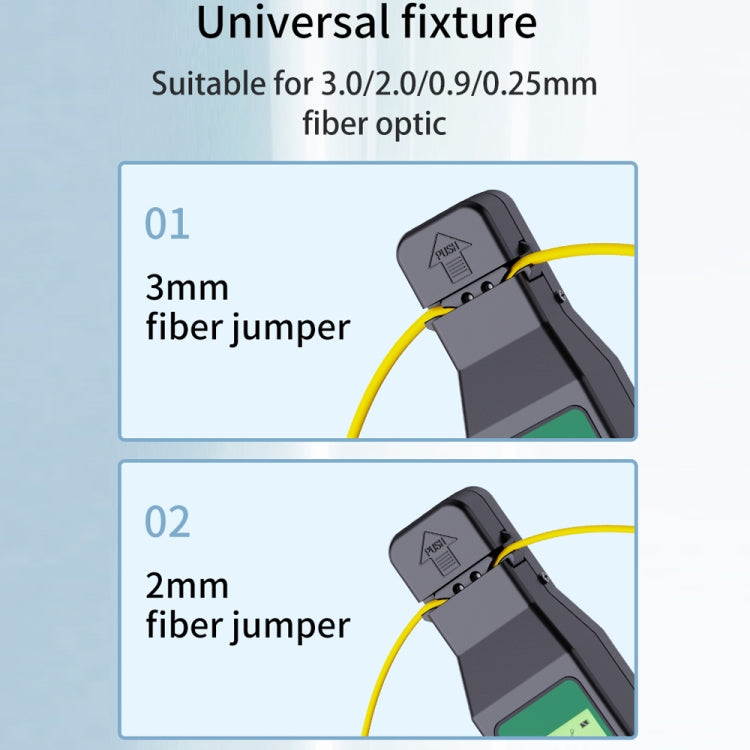

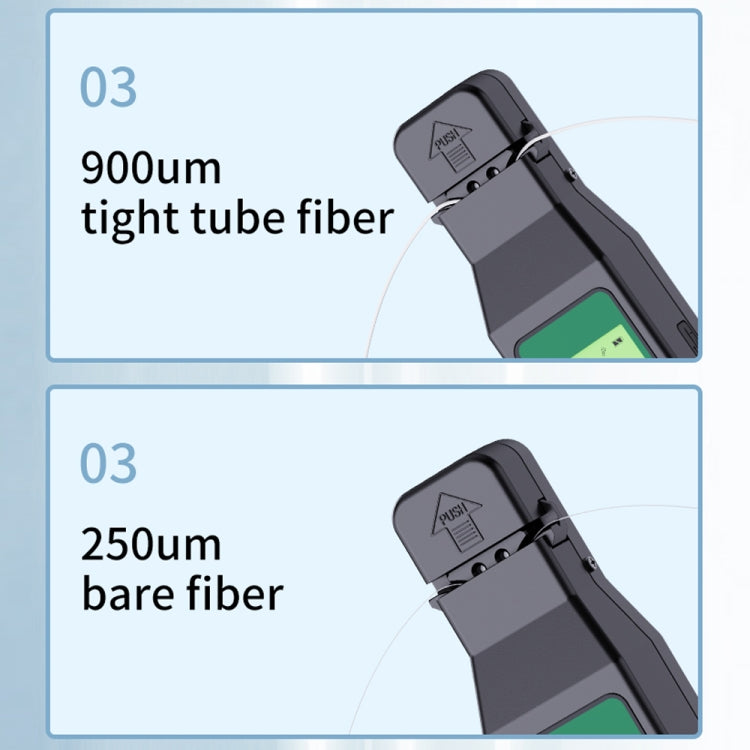

- Universal clamp compatible with 3.0 mm, 2.0 mm, 0.9 mm, and 0.25 mm fiber optic cables

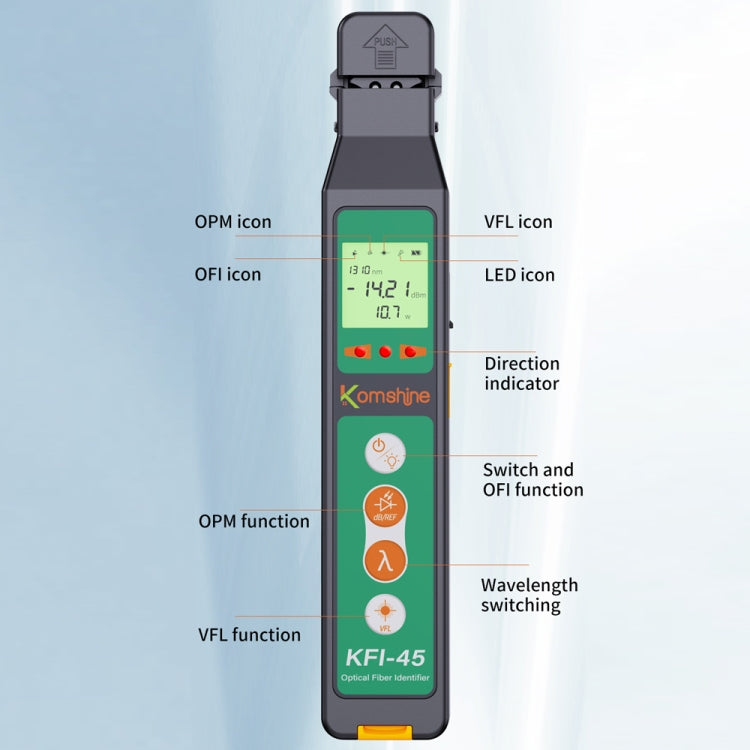

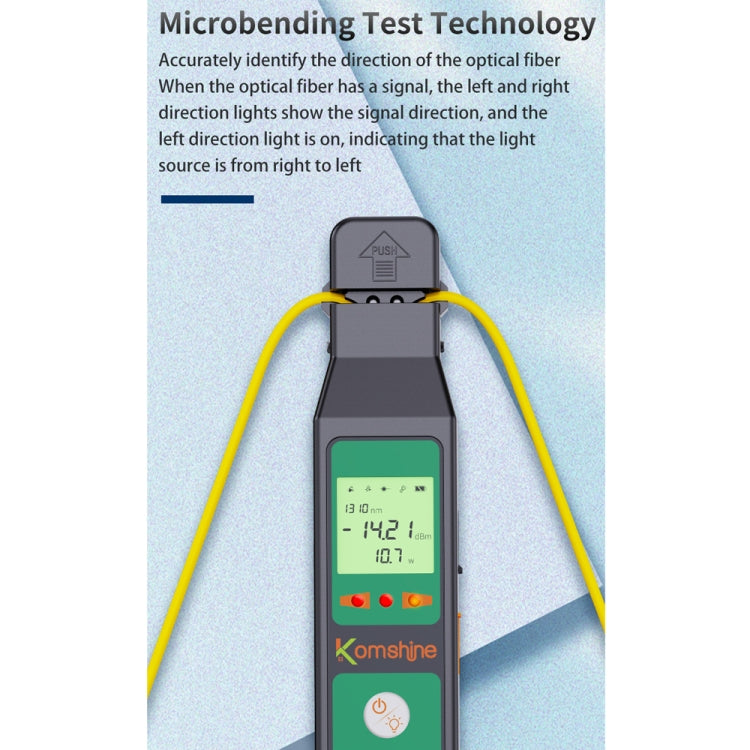

- Signal direction indication with left and right lights
- Audible signal frequency identification
