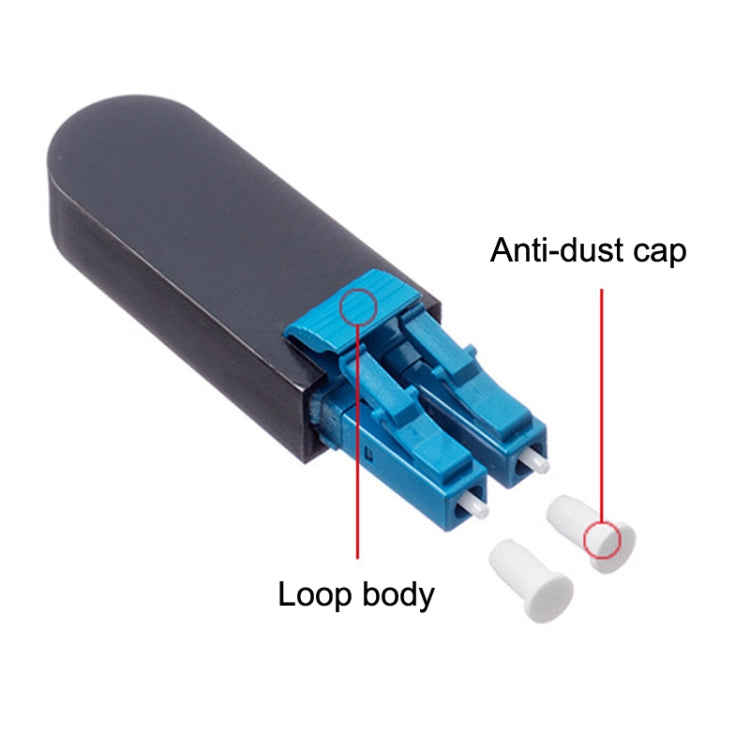

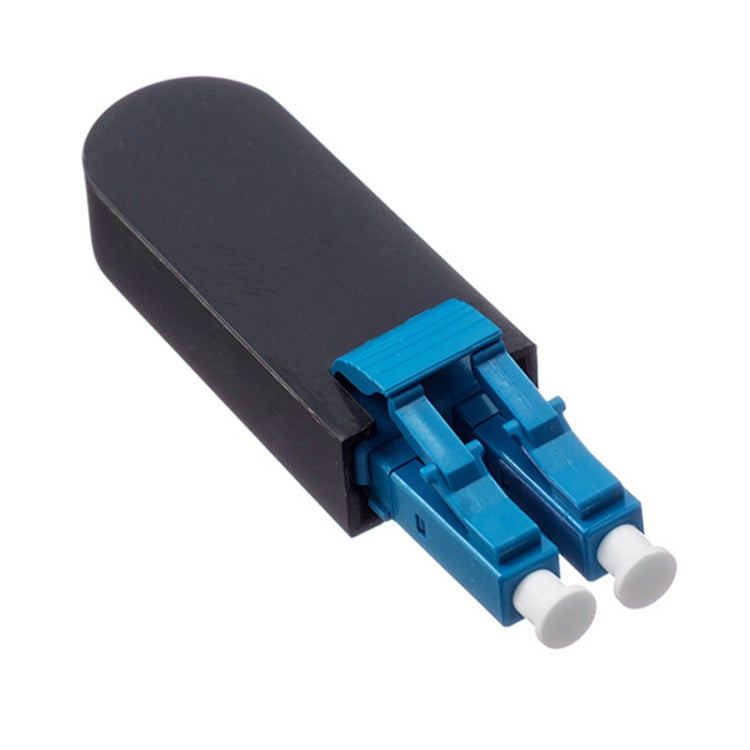

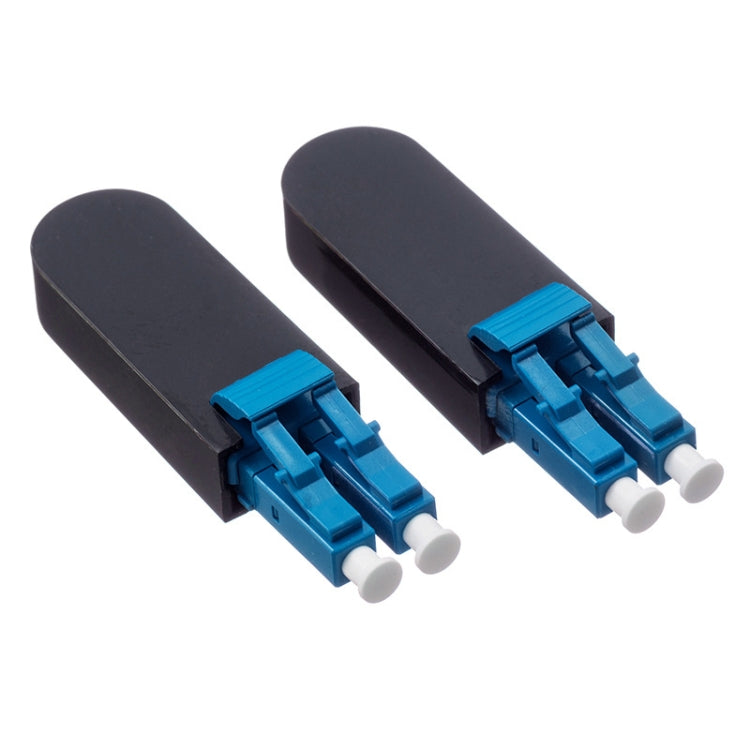

LC / UPC Optical Fiber Connecter LC Back Loop Module Single Mode Optical Fiber Loopers

LC Back Loop Module is a fiber optic jumper designed for telecommunication applications. It provides low insertion loss and high return loss, ensuring reliable signal transmission.

• Product Type: Fiber Optic Jumper
• Compatibility: LC Connectors
• Material: Ceramic
• Key Feature: Low insertion loss
• Storage Temperature: -55 to 85 degrees Celsius
• Operating Temperature: -40 to 80 degrees Celsius
• Wavelength: 1310-1550nm
• Insertion Loss: ≤ 0.1dB
• Return Loss: ≥ 60dB
• Insertion and Removal Times: > 1000 times
• Core Type: Ceramic
• Standard Production Process: Class A inserts with three-ring ceramic inserts
• Performance: Strong optical performance, high stability, good repeatability

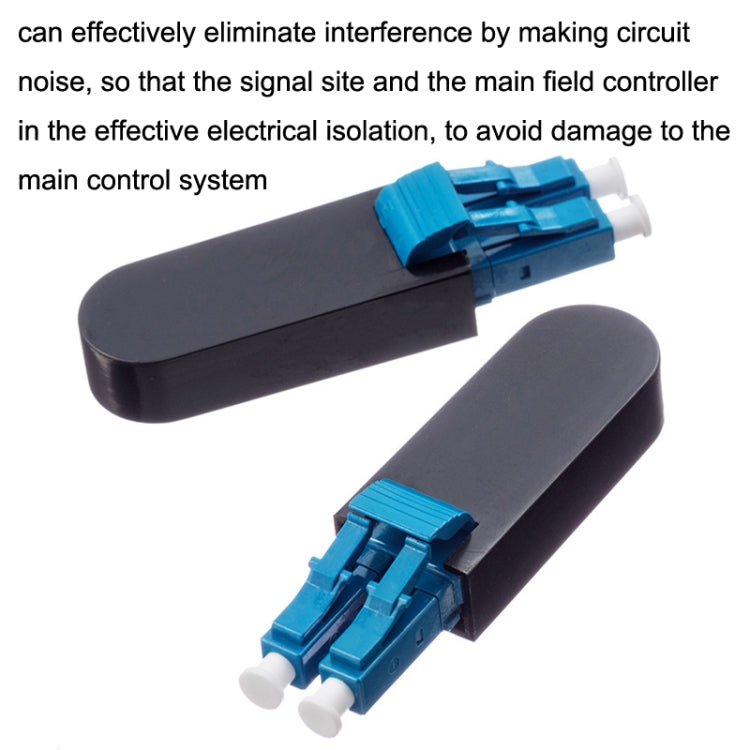

• Interference Elimination: Effectively eliminates circuit noise, providing electrical isolation
• Temperature Stability: Good temperature stability, low insertion loss, high return loss
