LILY Pi
Lily Pi ESP32 Chip WiFi Bluetooth 3.5 Inch Capacitive Touch Screen 5V Relay USB Expansion Port(USB To TTL)
Lily Pi ESP32 Chip WiFi Bluetooth 3.5 Inch Capacitive Touch Screen 5V Relay USB Expansion Port(USB To TTL)
🔥 Buy 2 items, get 25% off 3rd item 🔥 Today only!
Couldn't load pickup availability
FREE Shipping
FREE Shipping
FREE SHIPPING on all orders. Fully Insured.
Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time 7 - 15 working days.
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
Return Guarantee
Return Guarantee
For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

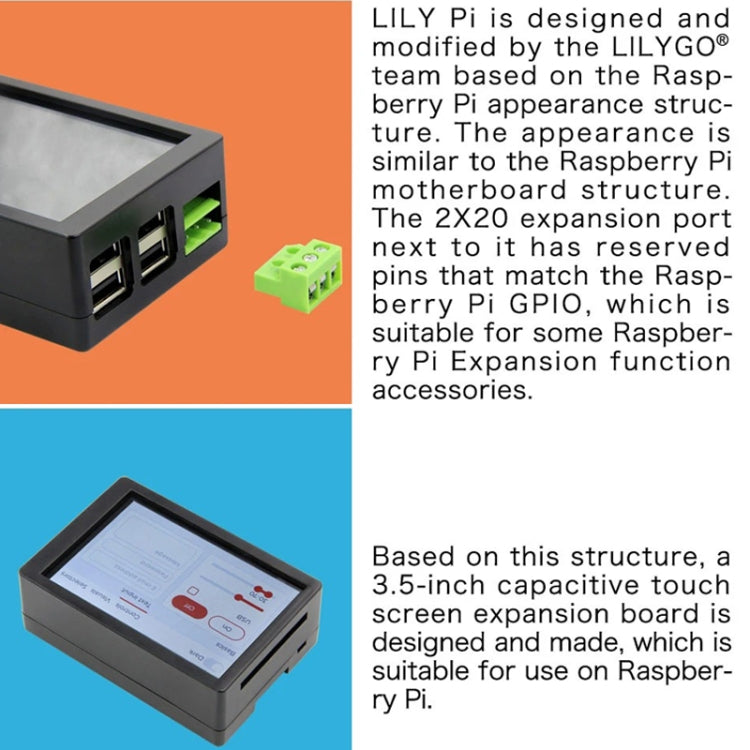

1. The design and modification are based on the shape and structure of the for Raspberry Pi. The appearance is similar to the structure of the for Raspberry Pi motherboard. The 2 x 20 expansion ports next to it have reserved pins that match the for Raspberry Pi GPIO.
2. For Raspberry Pi expansion board
3. TF card holder, self-elastic card holder, easy to pull out the card
4. Chip: ESP32-WAROVER
5. Relay: HFD3 5V 2A
6. RTC: PCF8563
7. Type-c input: 5V
8. Purpose: IoT programming development
9. Power: 0.5W
10. Rated voltage: 5v
11. DC-DC input: 5-12V
12. Extension pin header: 2.54 2 x 20
13. Double-layer USB interface: I2C/UART function respectively
14. Double-layer USB expansion port: output 5V/1A
15. Button: RST button, custom button
16. USB output: 5V 1A

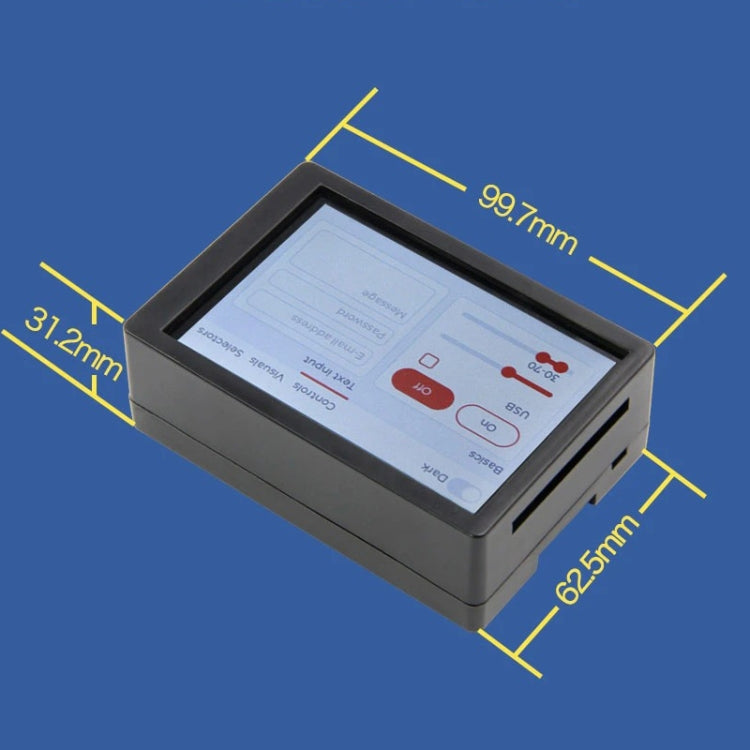

17. Dimensions: 99.7 x 62.5 x 31.2mm
