Luckfox Pico Ultra B RV1106G2 0.5TOPS Micro Linux Development Board Integrated Processor without Wi-Fi/With PoE, Specification: 720x720 Touch Screen
Luckfox Pico Ultra B RV1106G2 0.5TOPS Micro Linux Development Board Integrated Processor without Wi-Fi/With PoE, Specification: 720x720 Touch Screen
Sale
Sold out
Pre-order
Regular price
R 1,379.00
Regular price
Sale price
R 1,379.00
Unit price
per
Available to order
Processing time: 1-3 days
Couldn't load pickup availability
Estimated delivery: 6-13 working days
Ships from China (Standard) • Import Taxes & Duties Included
Description

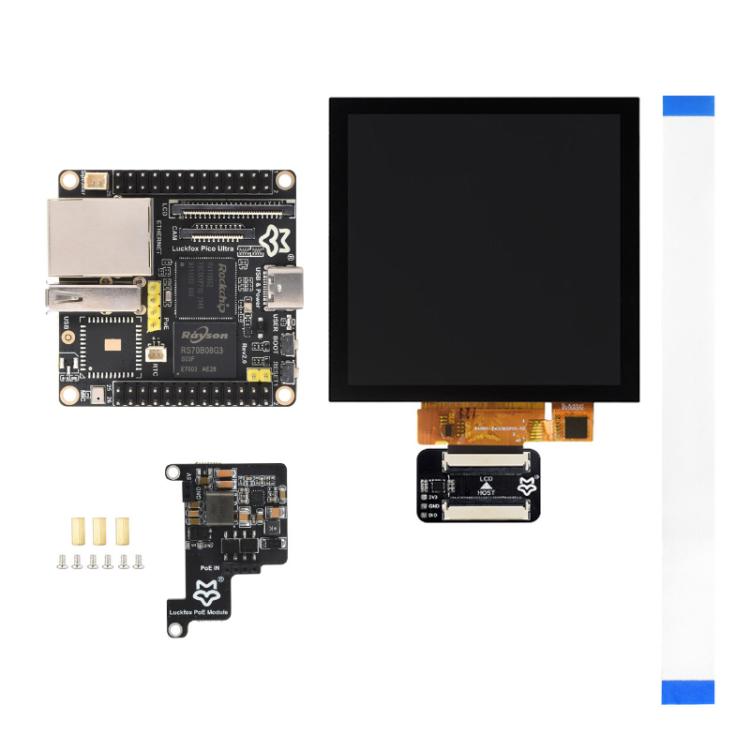

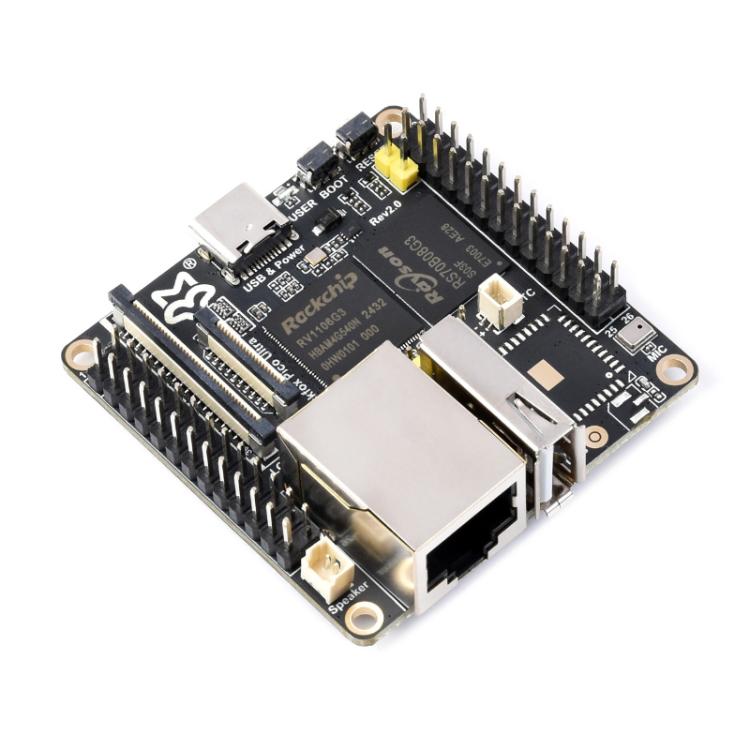

The Luckfox Pico Ultra B RV1106G2 is a micro Linux development board designed for embedded applications. It provides a cost-effective platform for developers to create and test applications with integrated processing capabilities.
- Product Type: Arduino Nucleo Accessories
- Compatibility: RV1106G2
- Material: Integrated Processor
- Processor: RV1106G2
- NPU: 0.5TOPS
- Memory: 128MB DDR3L
- Single-core ARM Cortex-A7 32-bit core with NEON and FPU
- Built-in Ruxin Micros 4th generation NPU supporting mixed quantization (int4, int8, int16)
- RV1106G2 int8 computing power: 0.5TOPS
- Built-in self-developed third-generation ISP3.2 supporting 5 million pixels, HDR, WDR, and multi-level noise reduction
- Encoding performance: supports intelligent encoding, adaptive code stream saving
- Built-in 16-bit DRAM DDR3L
- PoE module interface for flexible power supply

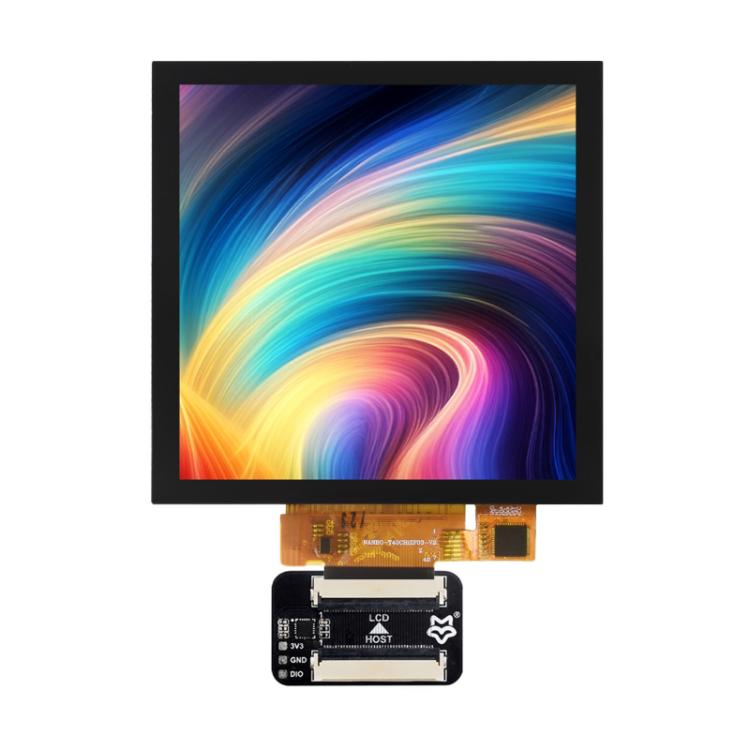

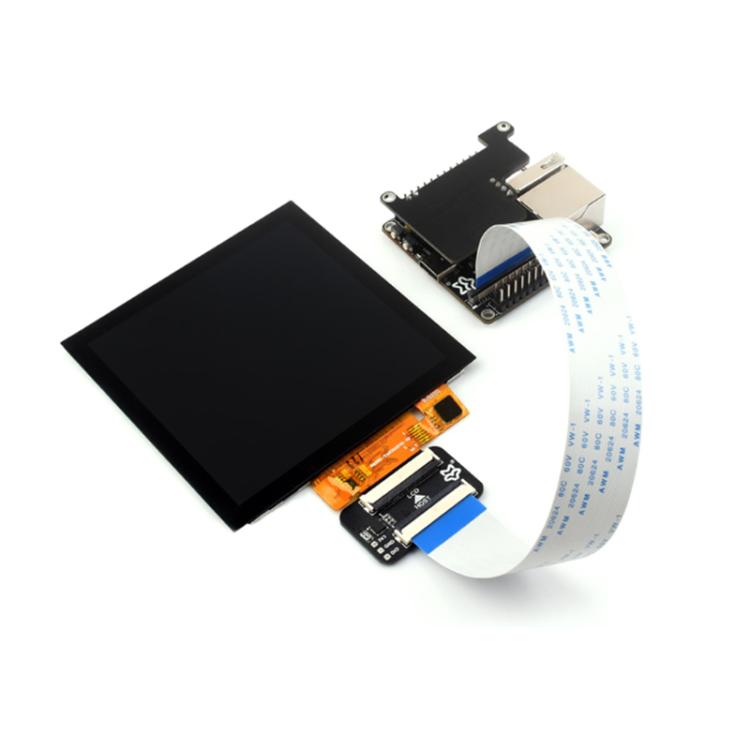

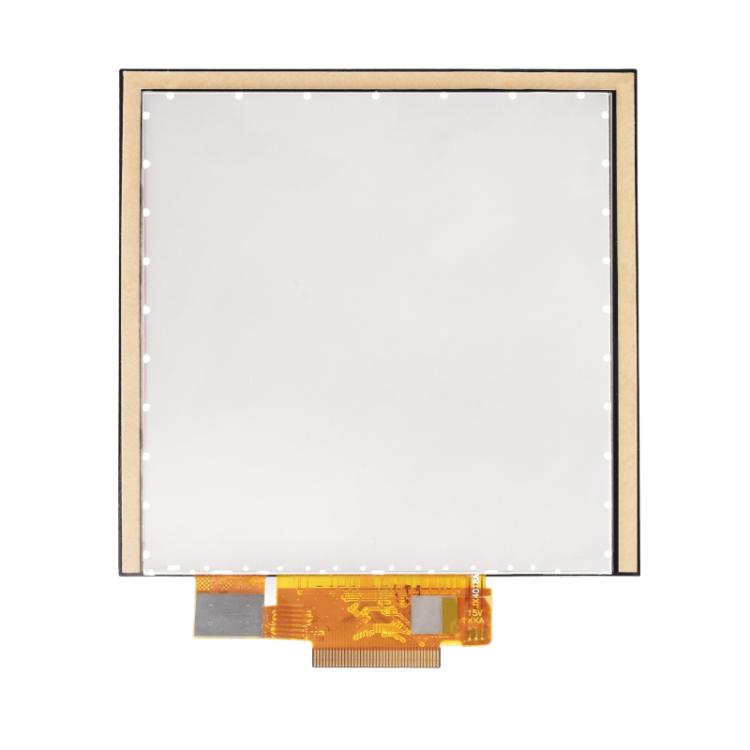

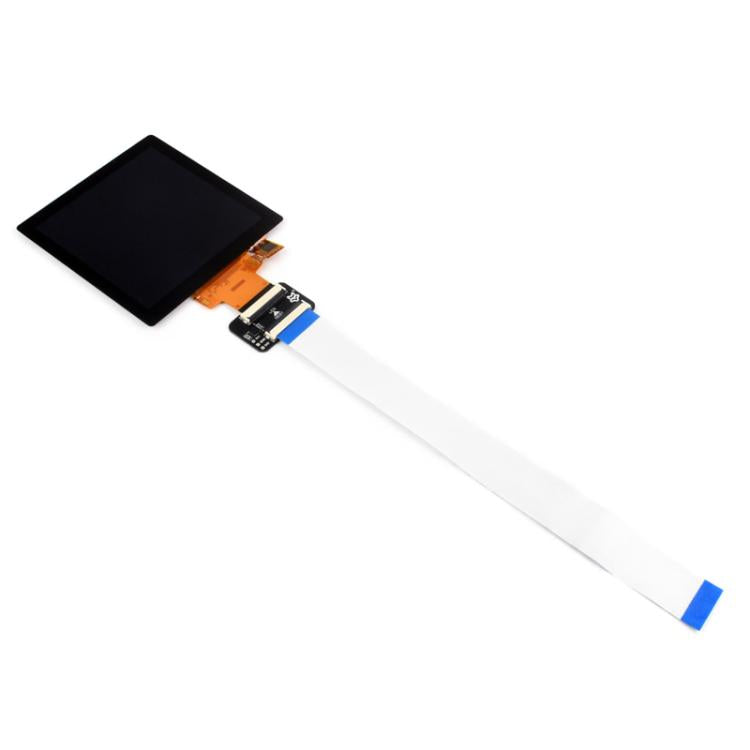

- Screen Size: 4 inches
- Screen Resolution: 720x720
- Display Panel: IPS
- Touch Type: Capacitive
- Touch Chip: GT911
- Brightness: 400cd/m2
- Working Temperature: -20 to 70 degrees Celsius
- Contrast: 1000:1
- Viewing Angle: 170 degrees
- Appearance Size: 84.0x84.0mm
- Display Size: 0.0999x0.0999 mm
- Point Spacing: 0.1497x0.1462mm
- Color Gamut: 68% NTSC
- Supports multiple interfaces: MIPI CSI, RGB LCD, GPIO, UART, SPI, I2C, USB
