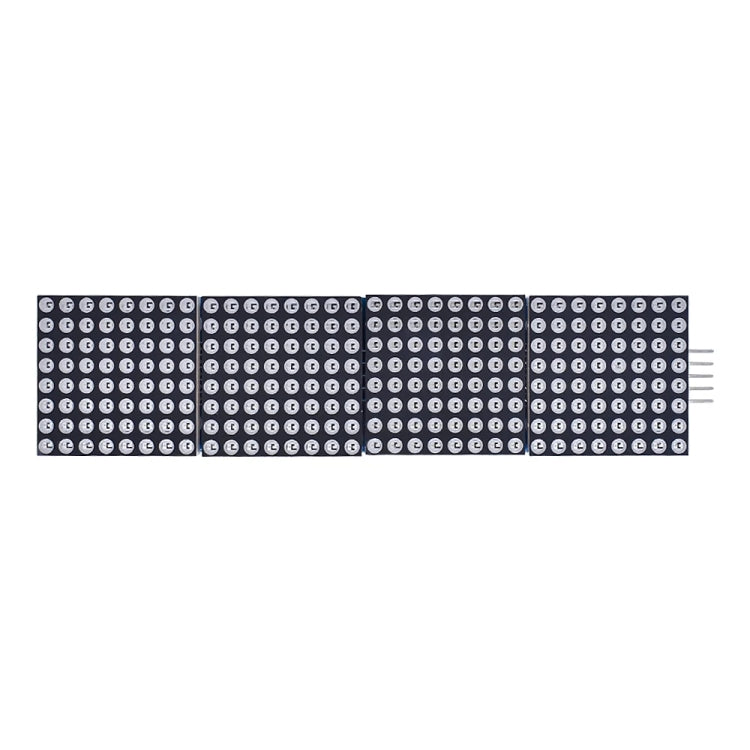

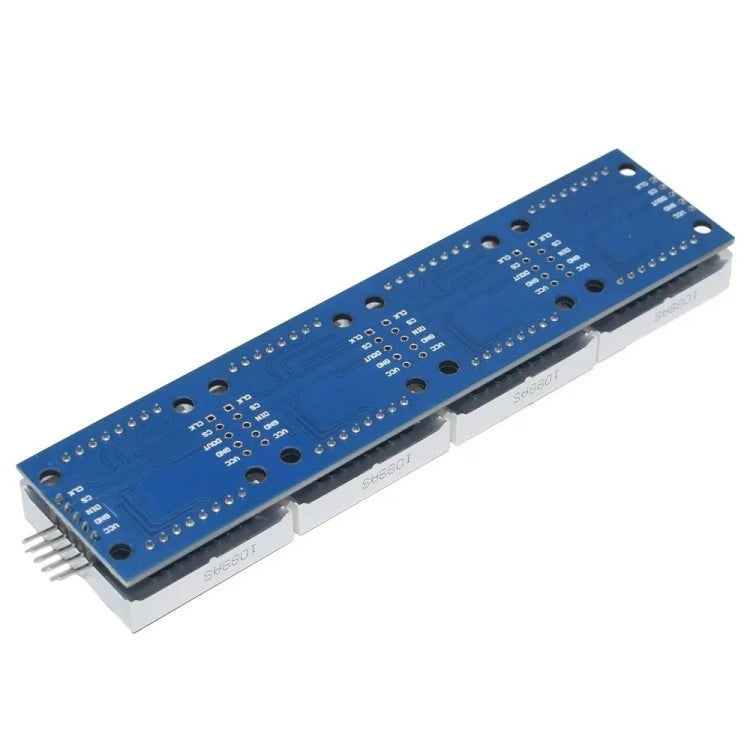

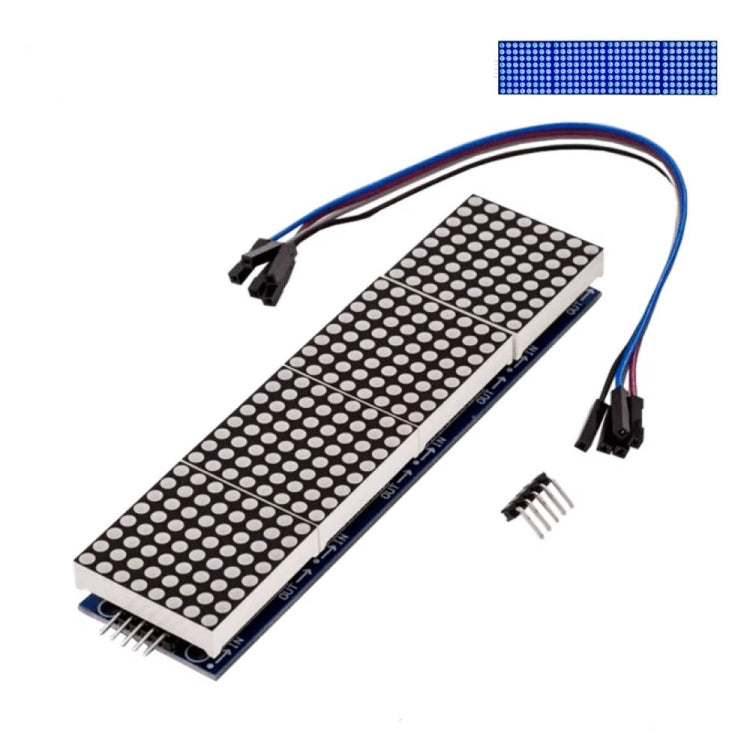

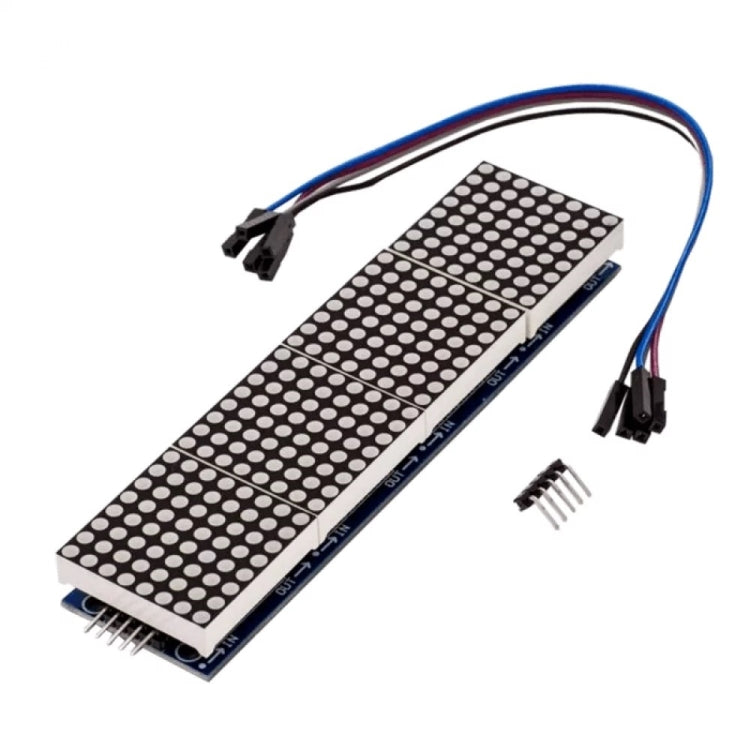

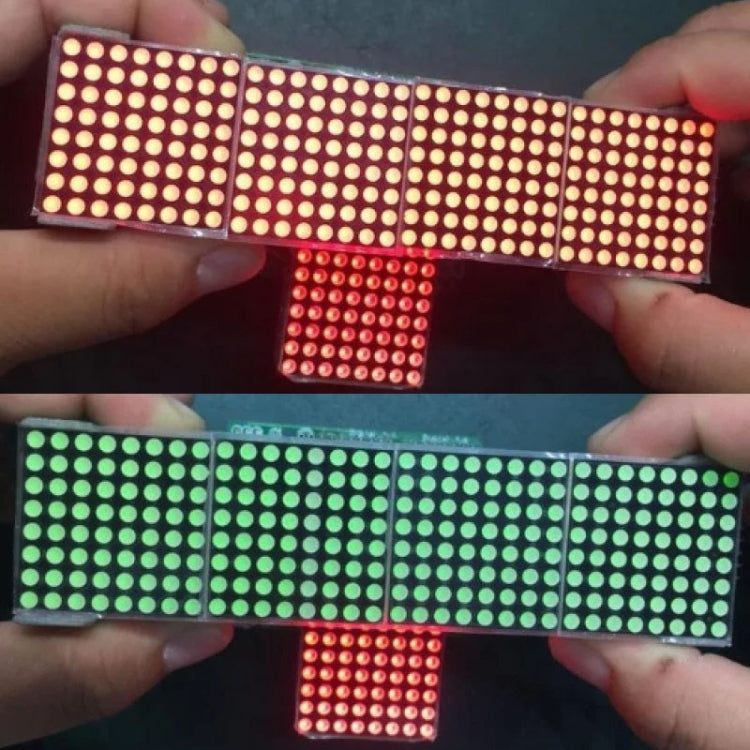

MAX7219 Point Battage Module LH Control Single-Chip Module 4 In 1 Display With 5P Cable, Specification: Blue Light
MAX7219 Point Battage Module LH Control Single-Chip Module 4 In 1 Display With 5P Cable, Specification: Blue Light
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R86.33/mo 3 months
- R43.66/mo 6 months
- R23.04/mo 12 months
- From R86.33/month over 3 months, or as low as R23.04/month over 12. Total repayable over 12 months: R276.48. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Import Taxes & Duties Included
6-13 business days
In Stock CHN
Processing time: 1-3 days
Couldn't load pickup availability
Description
MAX7219 Point Battage Module LH Control is a display module designed for driving dot matrix displays. It is suitable for everyday use in various electronic projects requiring visual output.
- Product Type: LCD & LED Display Module
- Compatibility: MAX7219
- Color: Blue Light
- Operating Voltage: 5V
- Dimensions: 12.8 x 3.2 x 1.3 cm
- Cable Length: Approximately 20 cm
- Weight: Approximately 45.2 g
- Features: Supports multiple modules cascade
- Display Capability: Drives an 8x8 common negative dot matrix
- Screw Holes: 64 fixed screw holes with a hole diameter of 3 mm
- Wiring Instructions: Left side is input port, right side is output port; connect input port to CPU for single module control; for multiple modules, connect output of one to input of the next
- Microcontroller Example: VCC → 5V, GND → GND, DIN → P2.2, CS → P2.1, CLK → P2.0
