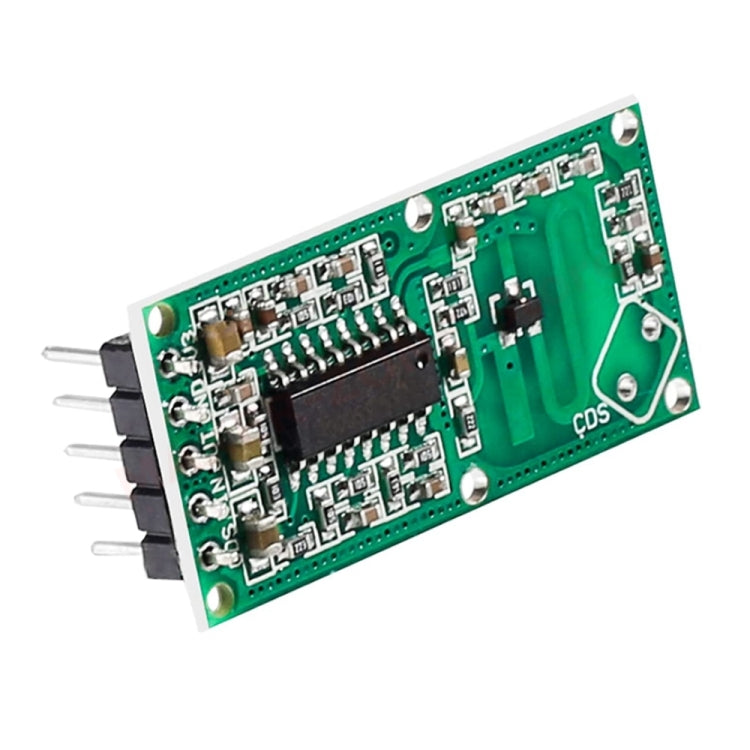

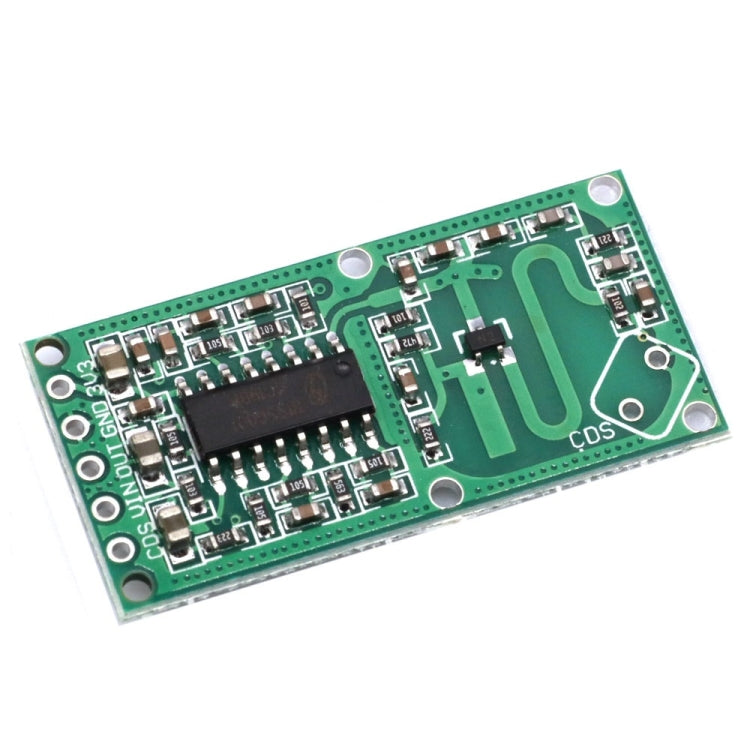

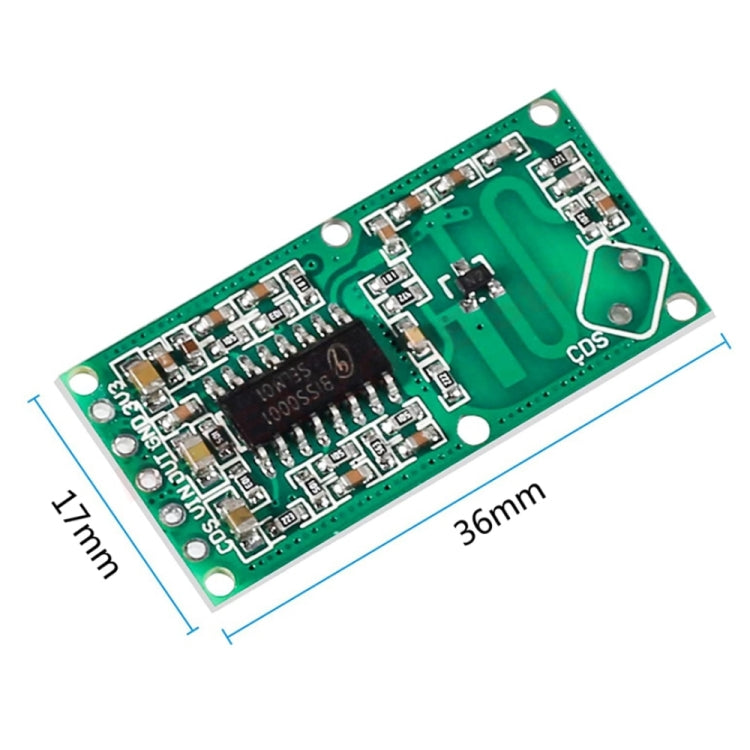

Microwave Radar Human Body Sensor Switch Detection Module(RCWL-0516)
Microwave Radar Human Body Sensor Switch Detection Module(RCWL-0516)
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R62.06/mo 3 months
- R31.38/mo 6 months
- R16.56/mo 12 months
- From R62.06/month over 3 months, or as low as R16.56/month over 12. Total repayable over 12 months: R198.72. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Import Taxes & Duties Included
6-13 business days
In Stock CHN
Processing time: 1-3 days
Couldn't load pickup availability
Description
Microwave Radar Human Body Sensor Switch Detection Module (RCWL-0516) is a sensor module that detects human body movement using microwave sensor technology. It is suitable for applications such as human body induction lighting and anti-theft alarms.
- Product Type: Sensor Module
- Compatibility: RCWL-0516
- Key Feature: Microwave sensor technology
- Sensing Distance: Approximately 3-5 meters
- Detection Technology: Doppler radar technology
- Characteristics: High sensitivity, long sensing distance, strong reliability, large sensing angle, wide power supply voltage range
- Working Voltage Range: 4.0V to 28.0V
- Output Voltage: 3.3V
- Drive Current: 100mA

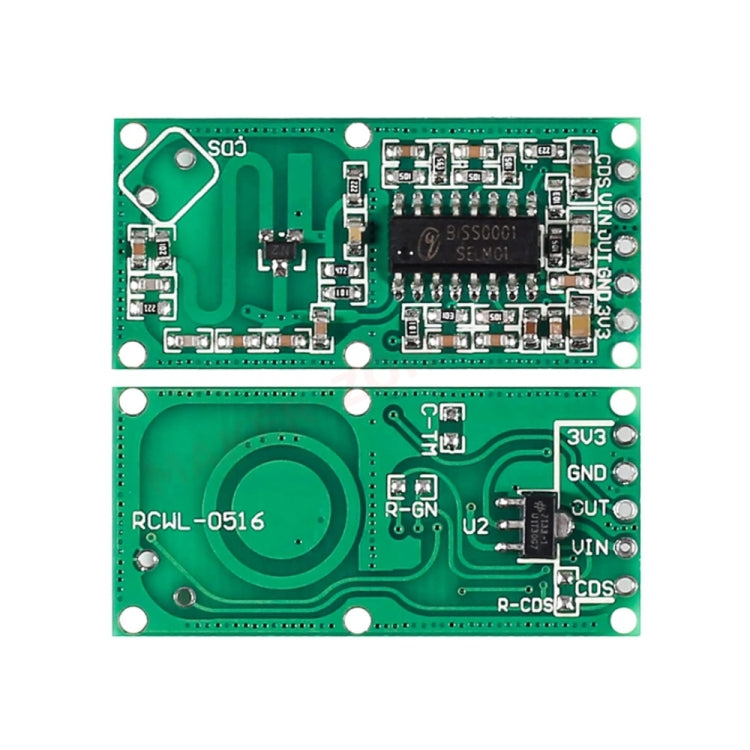

- Pin Functions:
- GND: Module ground
- OUT: Controls signal output; outputs high level when movement is detected
- VIN: Module power input (4-28V)
- CDS: Trigger control signal; connects to photoresistor
- Adjustment Features:
- C-TM: Adjusts repeated trigger time; default is 2 seconds
- R-GN: Detection distance adjustment; can be modified with a resistor
- Application Design Considerations:
- No metal shielding in front of sensing surface
- More than 1CM space required at front and back of sensing surface
- Module should be parallel to the mounting plane
- Effective in a specific detection area
- Positive sensing side is the component side
- Mutual interference if multiple modules are used in close proximity
