Description

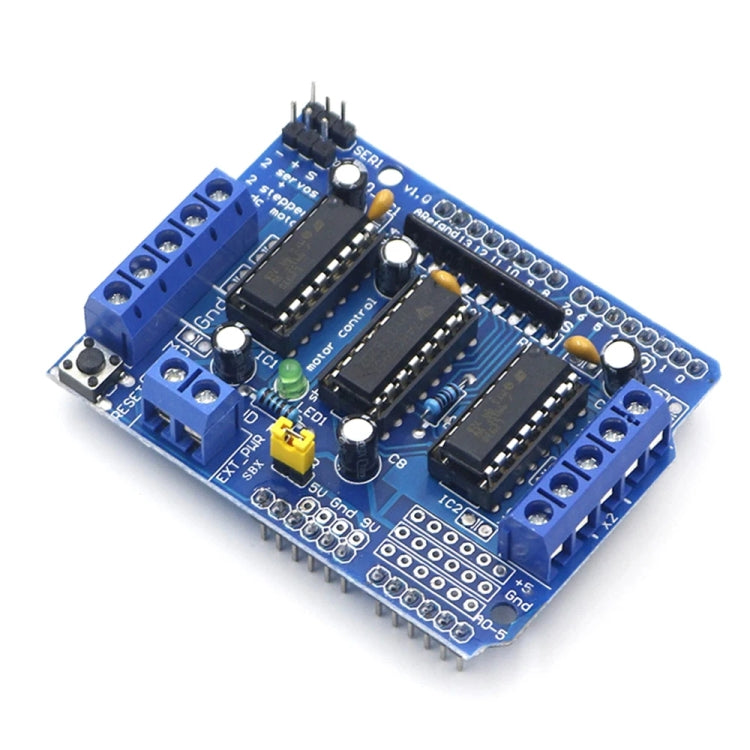

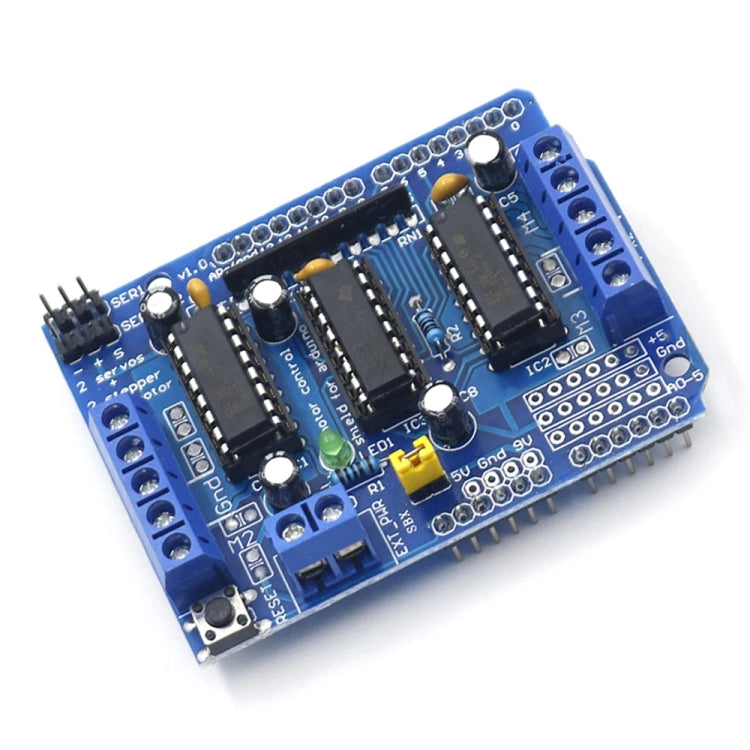

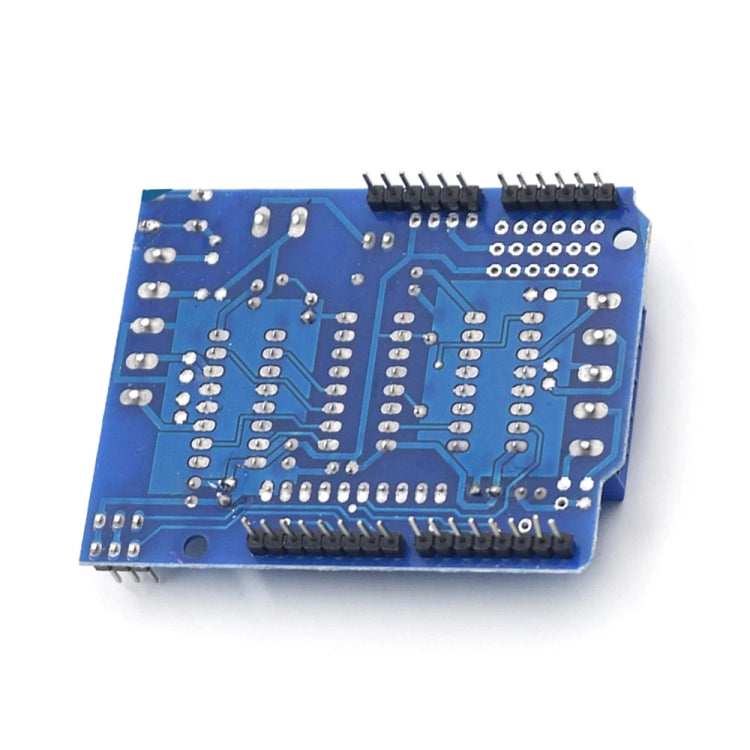

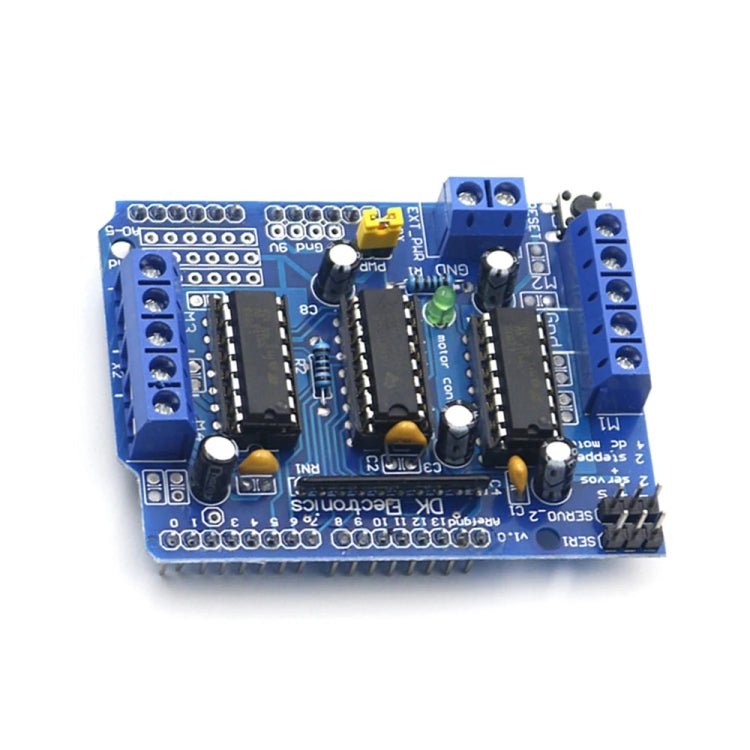

Motor Driver Board Control Shield Module is designed for controlling motors in robotics and electronics projects. It is suitable for Arduino beginners and supports multiple motor types including DC motors and stepper motors.
- Product Type: Module Expansion Accessory
- Compatibility: Arduino UNO, Arduino Mega 2560, Mega, Diecimila, Duemilanove
- Material: Not specified
- Key Feature: Supports multiple motor types
- Intended Use: Robotics and electronics projects
- Scope of Application: Suitable for Arduino beginners, Arduino experimental equipment platform, Arduino interactive electronics, Arduino robots

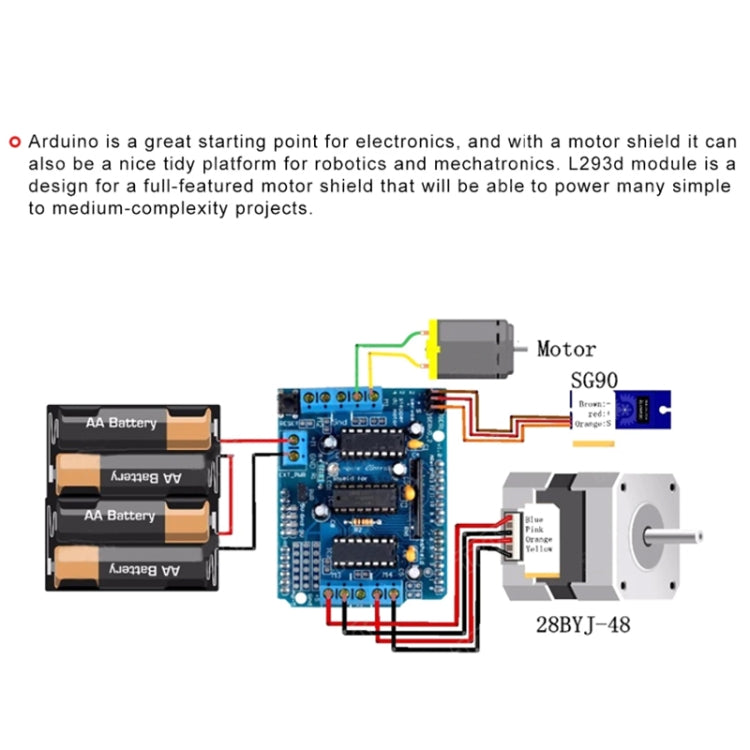

- Functionality: Drives up to 4-channel DC motors or 2-channel stepper motors and 2-channel servos
- Driver Chip: L293D small current DC motor drive chip
- Control: Up to 4 bidirectional DC motors with 4-channel PWM speed regulation (approximately 0.5% resolution)
- Stepper Motor Control: Forward and reverse control, single/double step control, staggered or micro-stepping, rotation angle control
- Current Rating: Each H-bridge provides 0.6A (peak 1.2A) current
- Voltage Range: 4.5V to 36V
- Thermal Protection: Thermal power-off protection included
- Wiring: Large terminal block for 10 - 22AWG wiring
- Power Supply: 2 large terminal external power supply terminal blocks for separating logic and motor drive power
- Reset Button: Includes an Arduino reset button
- Pull-Down Resistor: Ensures motor remains stopped when powered on
