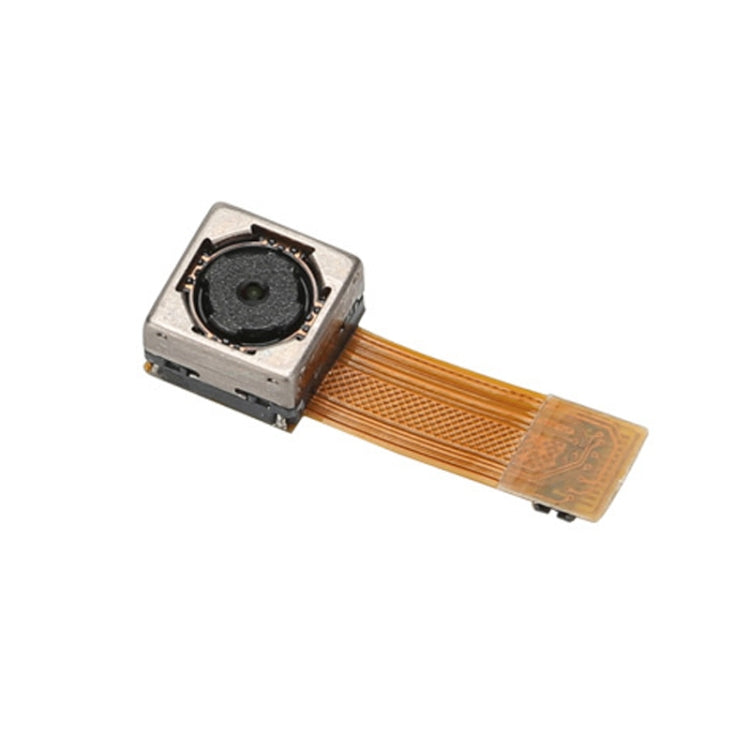

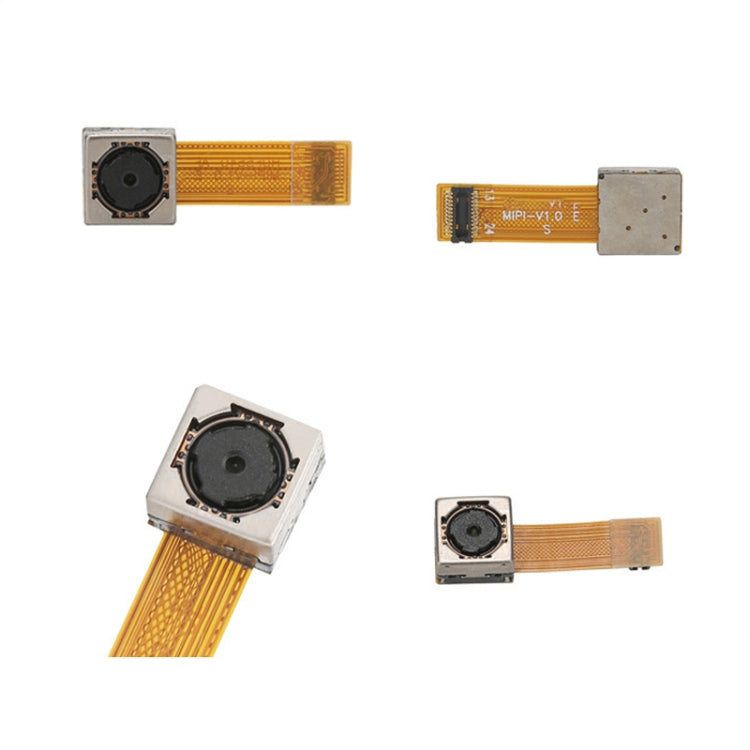

OV5645-AF-V1.0 HD Wide Angle MIPI Monitoring Module CMOS 5MP Scan Code FPC Camera Module

SKU: TBD06032375
Sale Sold out Pre-order
Regular price R 349.00
Regular price Sale price R 349.00
Pay in 3, 6, or 12 monthly instalments with

Import Taxes & Duties Included

6-13 business days

In Stock CHN

Processing time: 1-3 days

Description

The OV5645-AF-V1.0 is a 5MP MIPI camera module designed for various consumer electronics applications. It supports autofocus and is suitable for use in smartphones, digital cameras, and smart home devices.

  • Product Type: Camera Module
  • Compatibility: OV5645-AF-V1.0
  • Material: CMOS
  • Key Feature: Autofocus support
  • Intended Use: Everyday use
  • Support for anti-shake technology
  • Light-sensitive Chip: OV5645 (1/4 inch) CMOS
  • Image Quality: High image quality, low noise, high sensitivity, low crosstalk, low power consumption
  • Pixels: 5.0 megapixels (2592x1944)
  • Resolution: 2592x1944
  • Video Support: 1080P@30fps, 720P@60fps
  • Frame Rate: QSXGA (2592x1944): 15 fps; 1080p: 30 fps; 1280x960: 45 fps; 720p: 60 fps
  • Interface: MIPI
  • Field of View: 67.4 degrees
  • Focal Length: 3.37mm

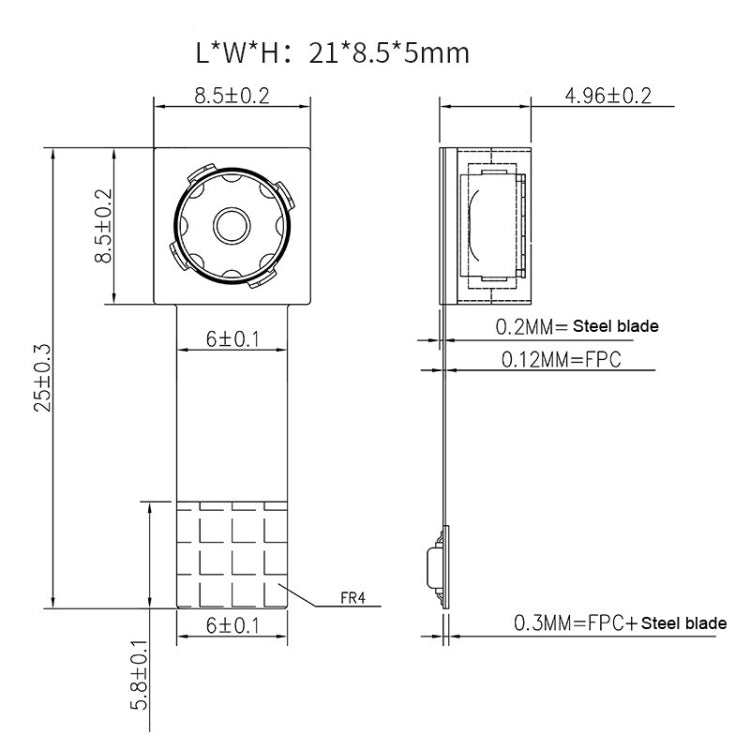

  • Size: Approximately 21 x 8.5 x 5mm
