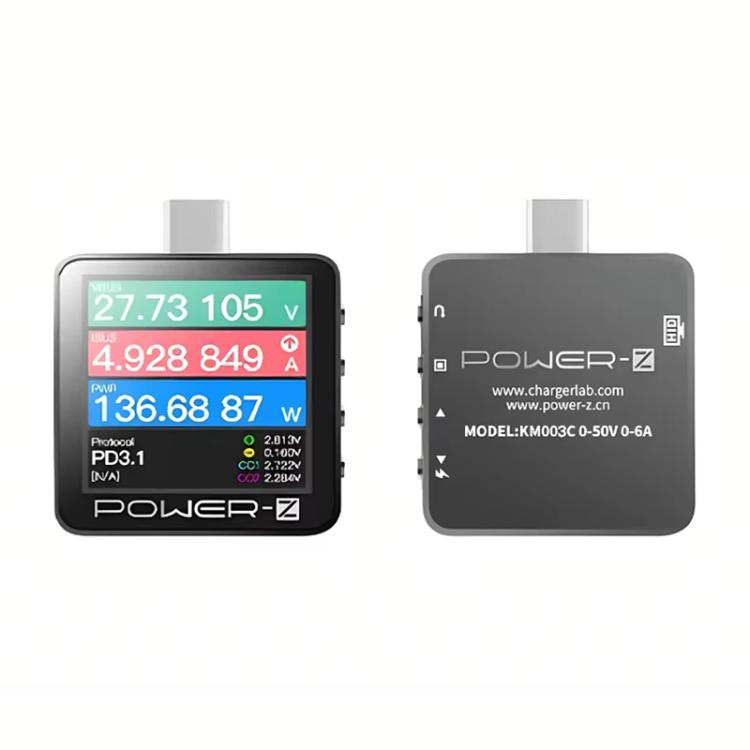

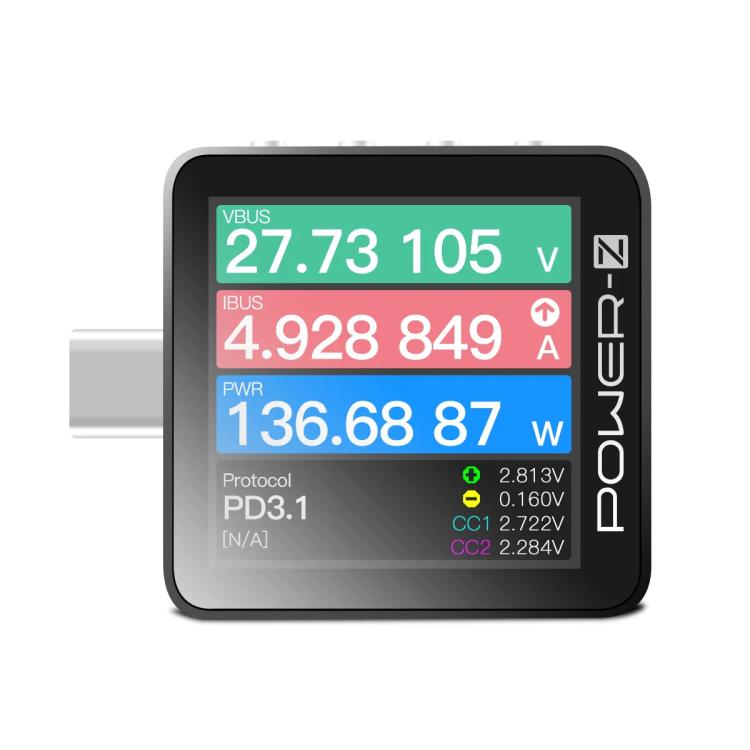

POWER-Z KM003C USB-C Fast Charging Tester PD3.1 & Protocol Analyzer(Black)

The POWER-Z KM003C USB-C Fast Charging Tester is designed to analyze and test USB PD3.1 protocols. It is suitable for evaluating charging performance and protocol compliance in various USB-C devices.

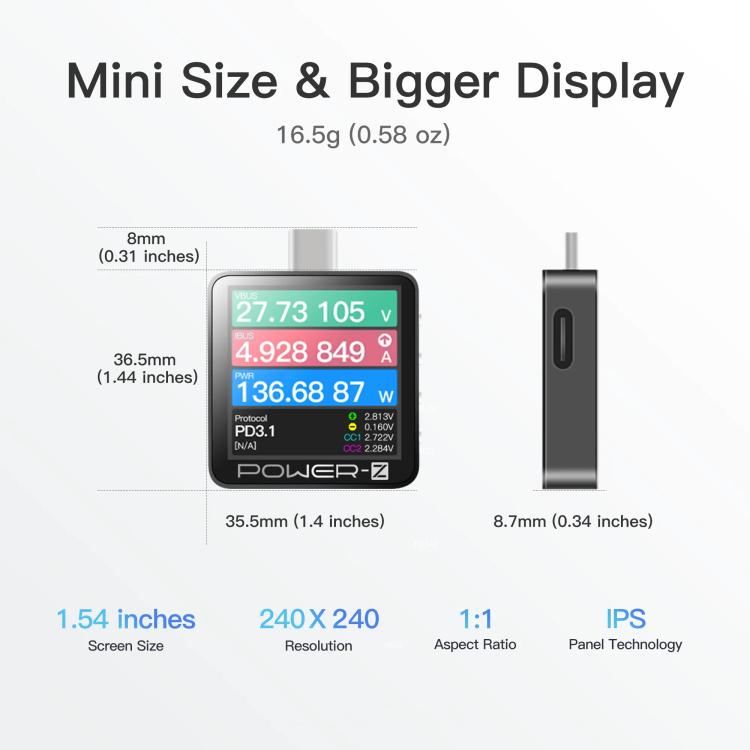

• Dimensions: 36 x 37 x 8 mm
• Screen Size: 1.54 inches
• Screen Material: IPS
• Screen Resolution: 240 x 240
• Language: English/Chinese
• Operation Type: Button
• Power Supply & Communication Port: Type-C (5V)
• Interface Internal Resistance: Approx. 20 mΩ
• Typical Operating Current: 15~50 mA
• Voltage Accuracy: 0.00002 V
• Current Accuracy: 0.00003 A
• Voltage Range: 0-50 V
• Current Range: 0-6 A
• Offline Recording Groups: 4 MB built-in storage
• Maximum Capacity/Energy Test Groups: 15-40
• Housing Material: CNC aluminum alloy

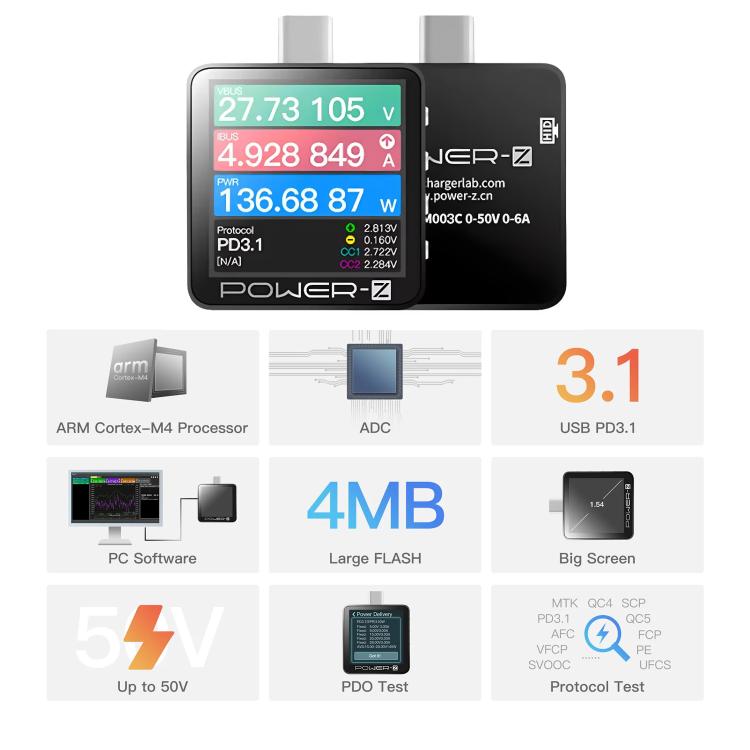

• Processor: ARM Cortex-M4
• ADC: 20-bit
• Power Output: Up to 50 V, 6 A (240 W in PD mode)

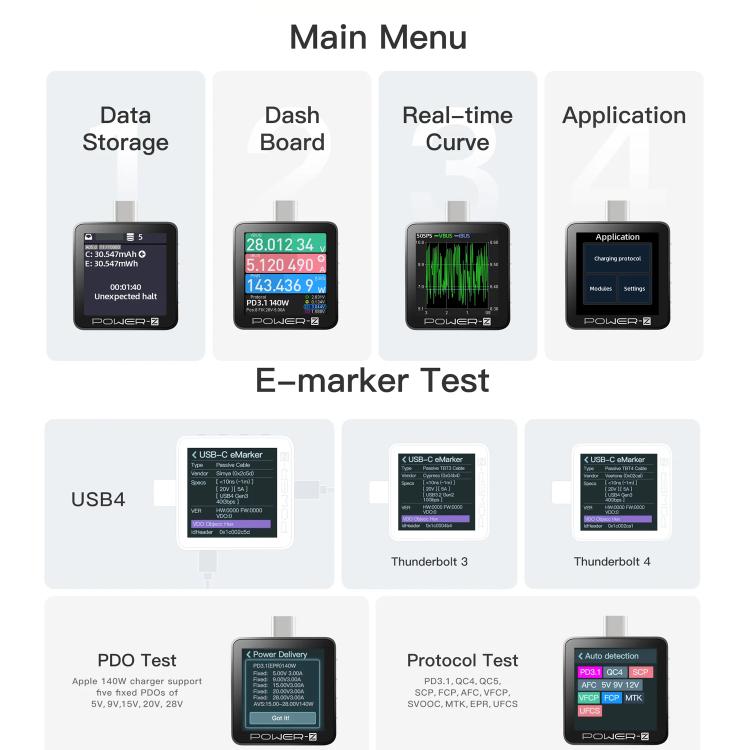

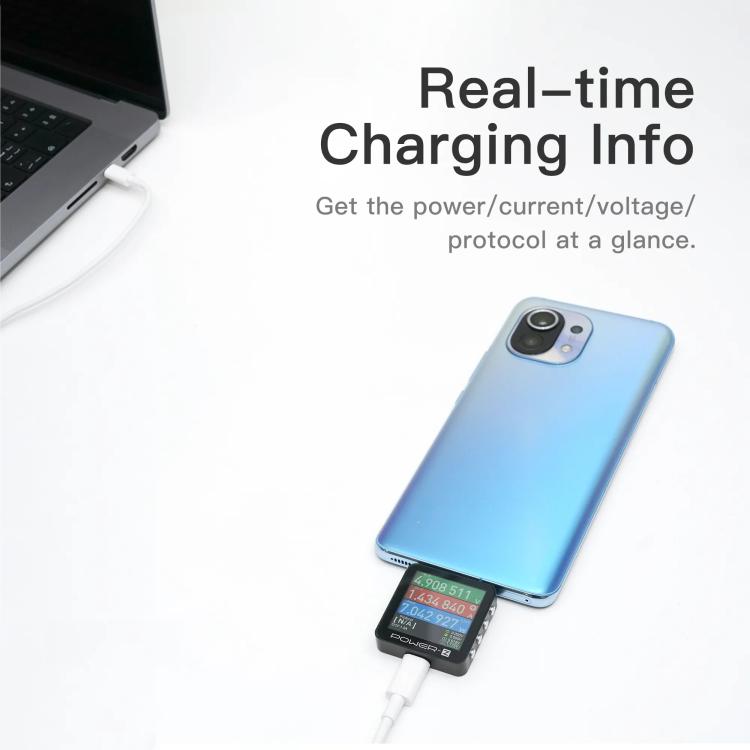

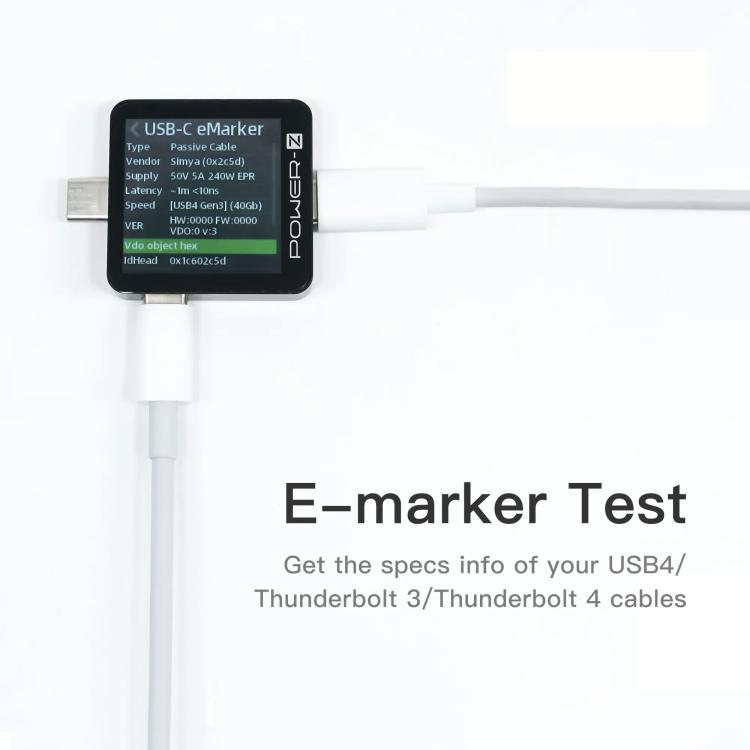

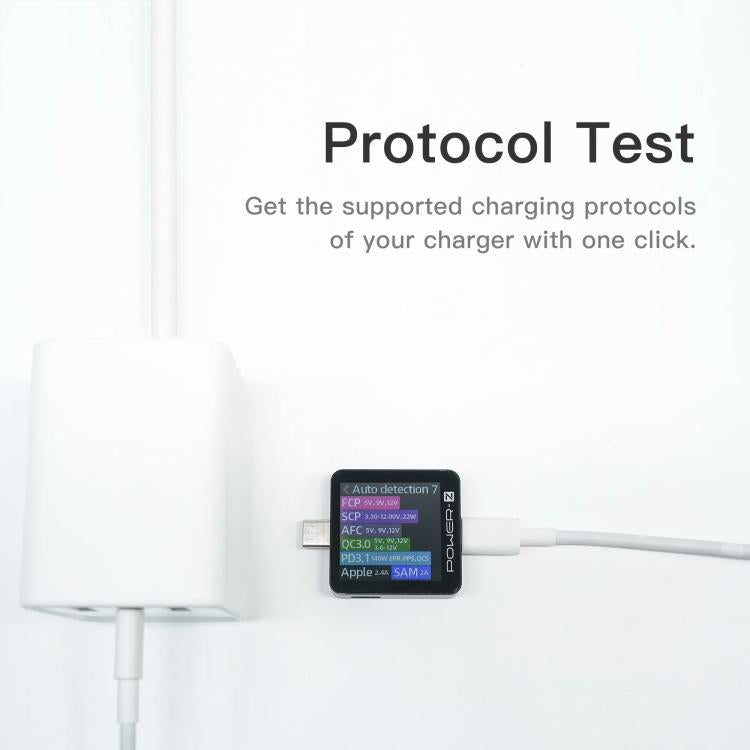

• Testing Capabilities: Voltage/current detection, capacity/energy testing, E-marker testing, PDO testing, protocol testing

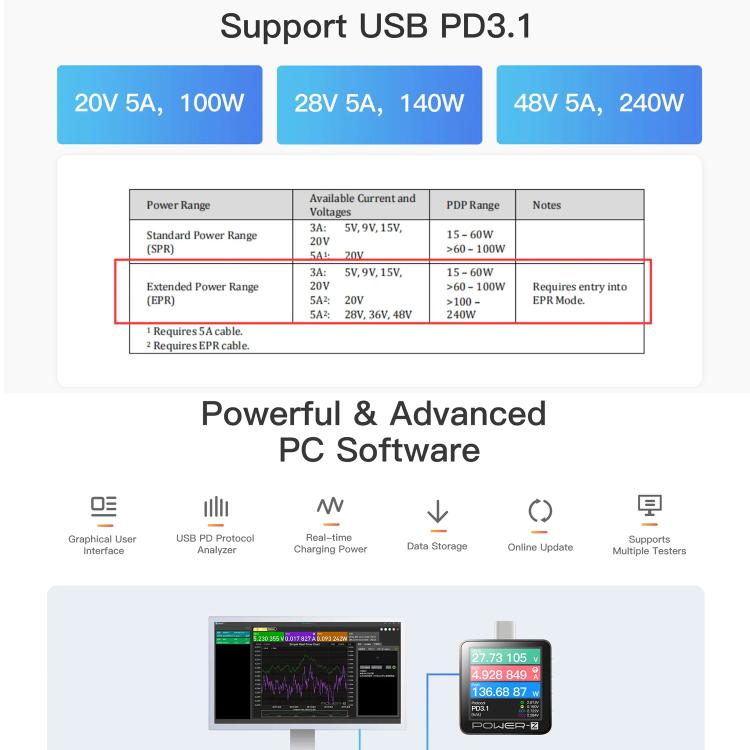

• PC Software: Collects 10 million data points

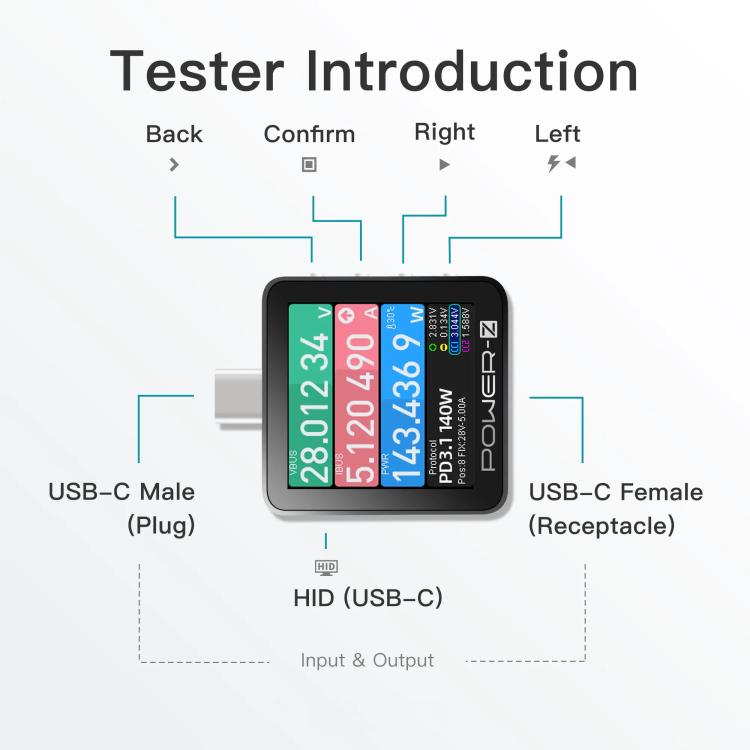

• USB-C Ports: Two for current input and output
• HID Interface: USB-C for PC connection
