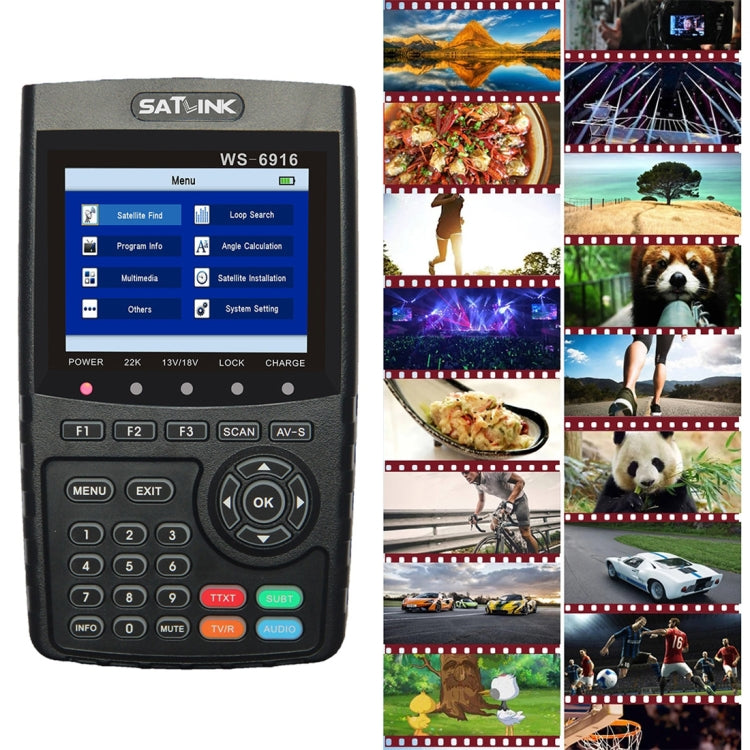

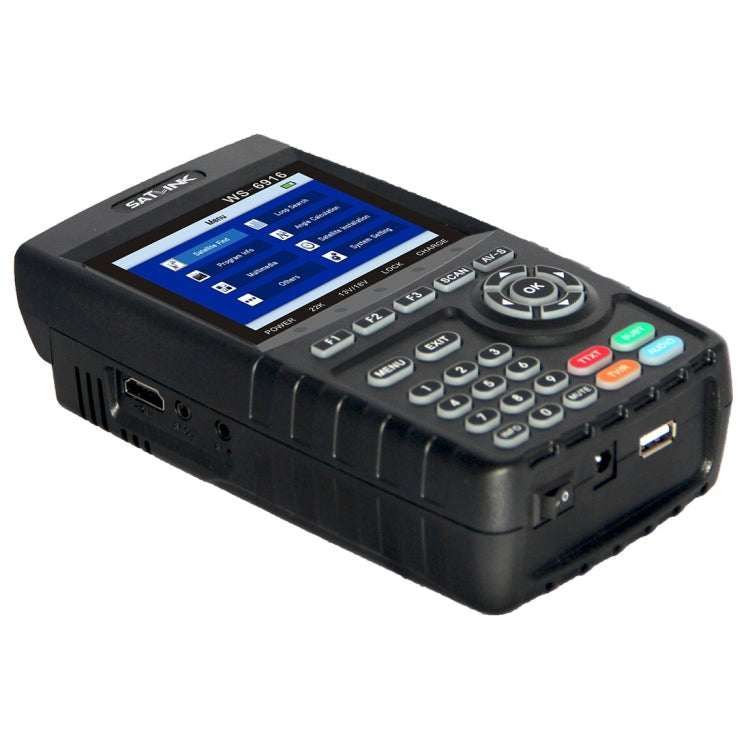

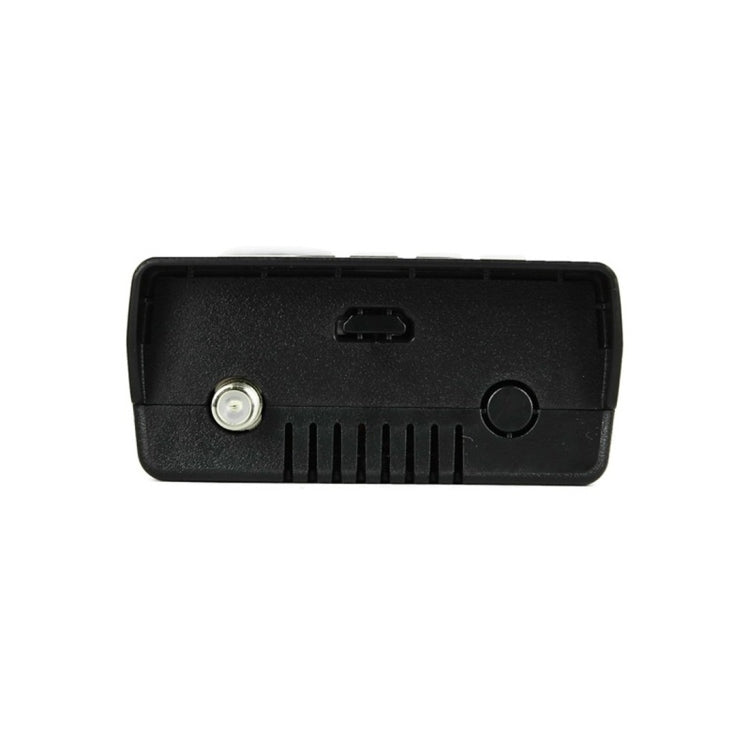

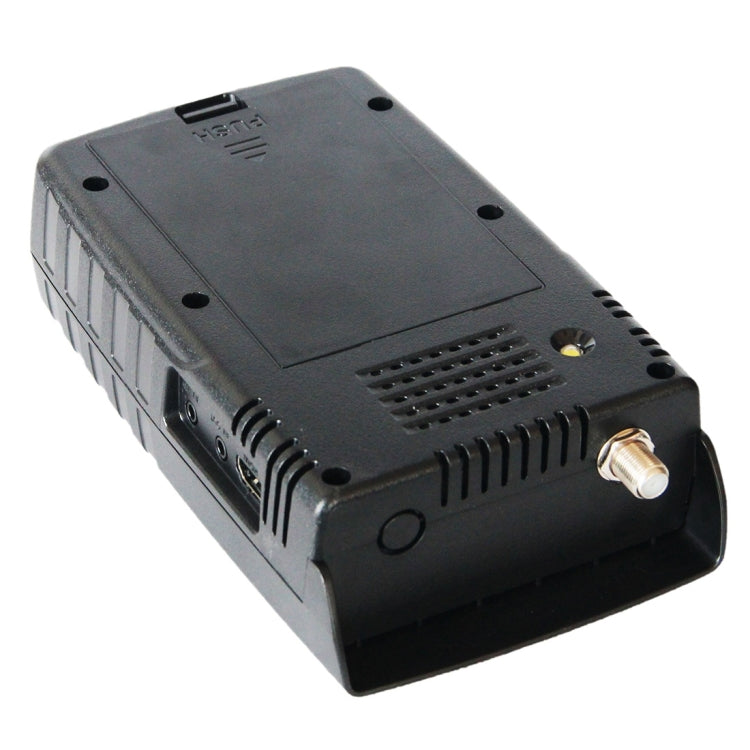

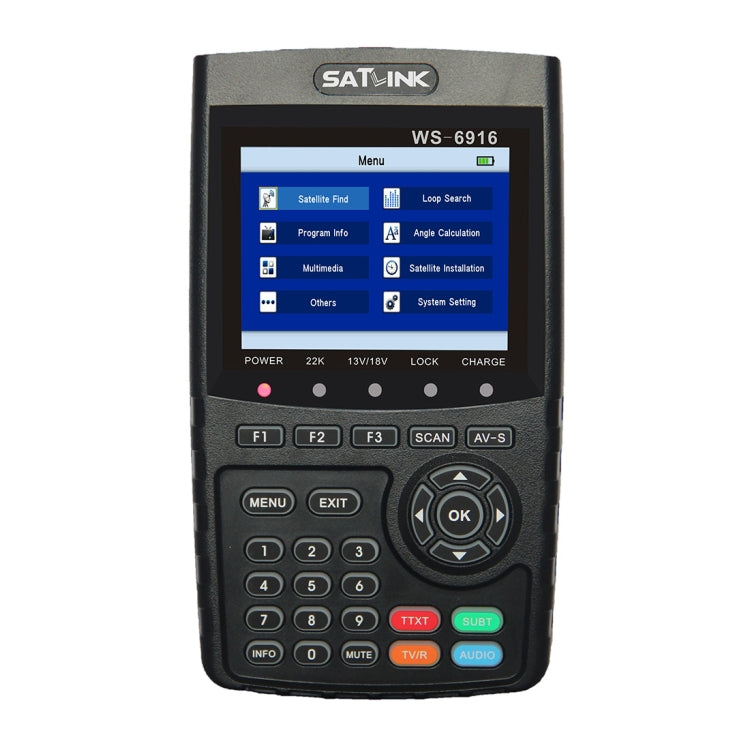

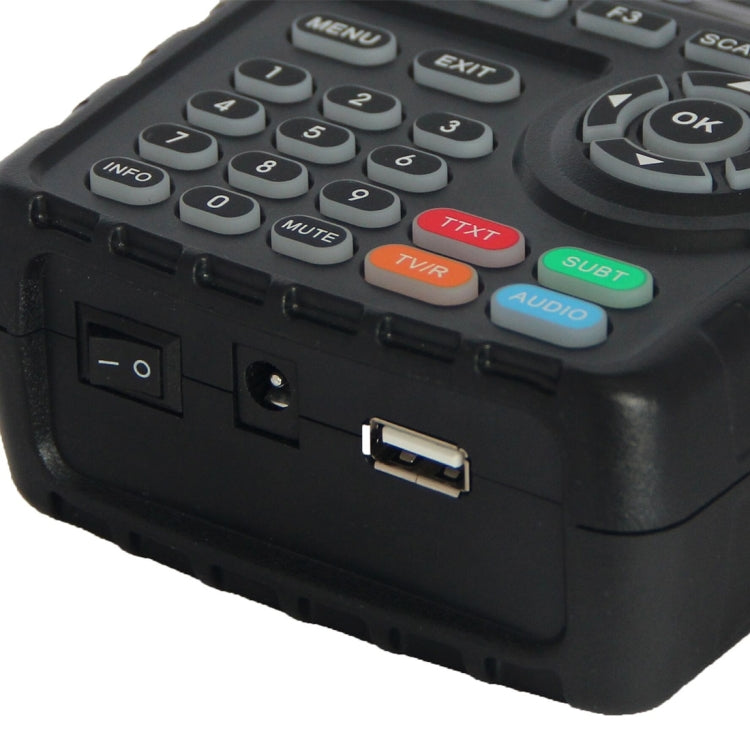

SATLINK WS6916 Digital Satellite Signal Finder Meter, 3.5 inch TFT LCD Screen, Support DVB-S / S2, MPEG-2 / MPEG-4(EU Plug)
SATLINK WS6916 Digital Satellite Signal Finder Meter, 3.5 inch TFT LCD Screen, Support DVB-S / S2, MPEG-2 / MPEG-4(EU Plug)
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
5-10 business days
In Stock
Processing time: 1-3 business days
Couldn't load pickup availability
Description
Digital satellite signal finder meter designed for measuring signal strength and quality. It is suitable for everyday use in various satellite signal applications.
- Product Type: Satellite Finder
- Compatibility: DVB-S/S2
- Display: 3.5 inch TFT LCD screen, 480(RGB) x 272 pixel resolution, active area 70.02x52.58mm
- Decoding: Fully DVB S/DVB S2, MPEG2/MPEG4 compliant, MPEG2/H.264 hardware decoding
- Signal Measurement: Digital meter for signal strength and quality
- Scanning Modes: Auto, blind, manual, NIT
- Alarm: Sound and light alarm for locking signal
- Angle Calculation: Auto calculate angle of AZ, EL
- DISEQC Support: 1.0/1.1/1.2, 0/22KHz tone
- Speaker: Integrated speaker
- AV Interfaces: Support both AV out and AV in, 3.5mm jack, CVBS video output/input, stereo audio L/R output/input
- LNB Supply: 13V/18V, Max 400mA, LNB short protect
- Battery: 7.4V/3000mAh li-ion battery included
- Software Upgrade: Via USB port
- Portability: Easy to carry
- Demodulation Type: QPSK, 8PSK
- Symbol Rate: 2 less than Rs less than 45M band (SCPC/MCPC)
- Input Frequency: 950~2150MHz
- Signal Input Level: -65~ -25dBm
- Band Switch Control: 22KHz
- Video Decompression: PAL 25 frame at 720 x 576, NTSC 30 frame at 720 x 480
- Signal Compatibility: Support conversion for different video formats
- Video Format: 4:3, 16:9, pan & scan and letter box conversion
- Audio Decompression: MPEG1 Layer I/II, MPEG2 Layer I/II
- Audio Output Mode: Stereo, Mono, R/L
