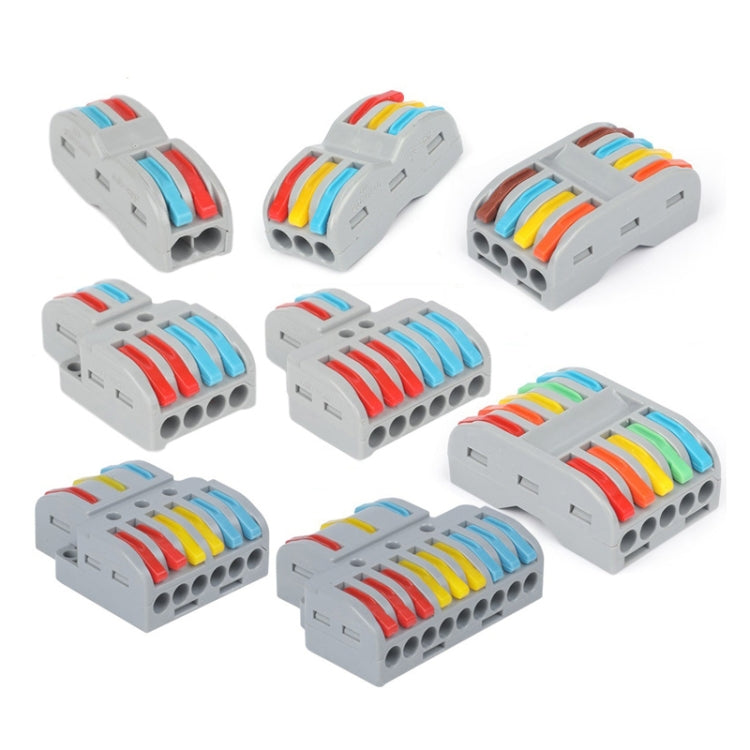

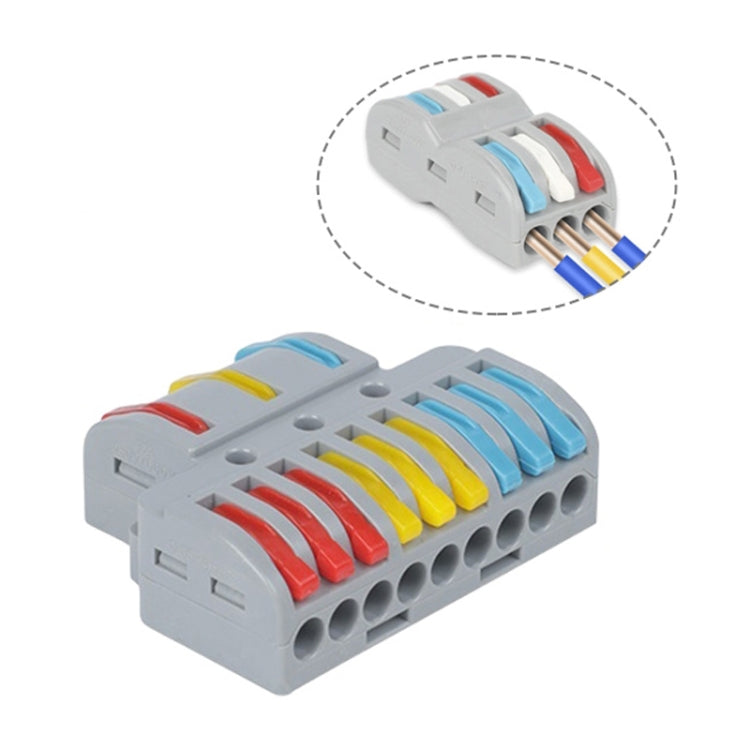

SPL-93 3 In 9 Out Colorful Quick Line Terminal Multi-Function Dismantling Wire Connection Terminal
SPL-93 3 In 9 Out Colorful Quick Line Terminal Multi-Function Dismantling Wire Connection Terminal
Spread the cost
Mobicred is a third-party credit option. Approval and terms are determined by Mobicred.
- Approval by Mobicred
- Rate & fees in your pre-agreement
- Repayments confirmed before acceptance
- Your interest rate, fees and repayment schedule are shown in Mobicred's pre-agreement.
- Approval and your credit limit are determined by Mobicred.
- Review the credit terms before accepting the agreement.
Available payment options are confirmed at checkout.
Continue to checkoutDon't have Mobicred yet? Visit Mobicred →
Credit is subject to Mobicred approval and terms. Your limit, interest rate, fees and repayment schedule are disclosed by Mobicred before acceptance. Mobicred terms and conditions
Duties & Import Tax Information
5-10 business days
In Stock
Processing time: 1-3 business days
Couldn't load pickup availability
Description
The SPL-93 is a multi-function dismantling wire connection terminal designed for quick wiring connections. It is suitable for use in various electrical applications where reliable and efficient connections are required.
- Product Type: Connectors & Terminals
- Compatibility: SPL series

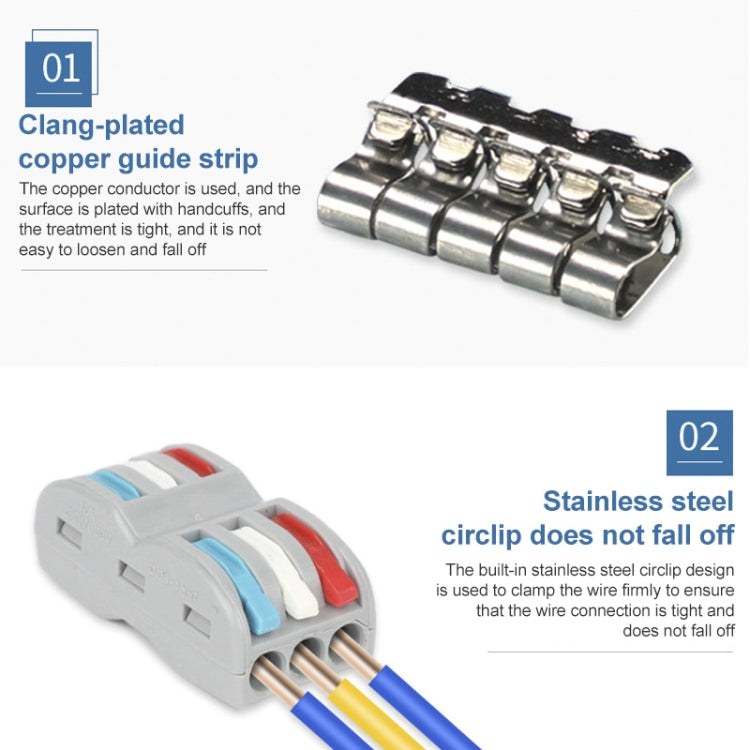

- Material: PA nylon shell, stainless steel shrapnel, electrolytic copper nickel-plated tin contacts
- Weight:
- 3.21g/piece (two inputs and two outputs)
- 4.55g/piece (three inputs and three outputs)
- 9.9g/piece (two inputs and four outputs)
- 10.18g/piece (two inputs and six outputs)
- 12.5g/piece (three inputs and six outputs)
- 18.3g/piece (three inputs and nine outputs)
- 13.14g/piece (four inputs and four outputs)
- 15.8g/piece (five inputs and five outputs)

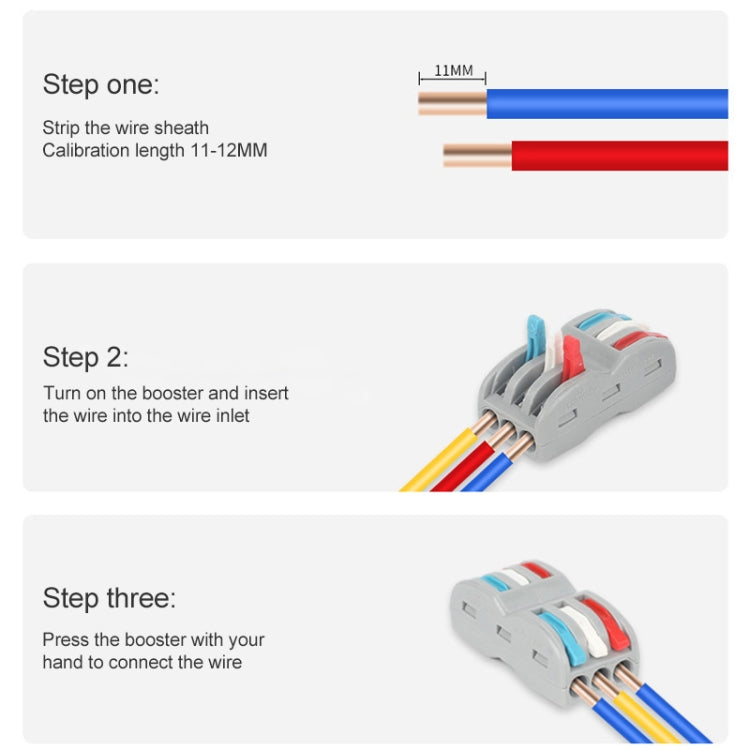

- Stripping Length: 11-12mm
- Wiring Specifications:
- SPL series and LT-2/LT-3: 0.4-2.5 square millimeters of multi-strand flexible wire / 0.5-4 square millimeters of single-strand hard wire
- LT series: 0.4-4 square millimeters of multi-strand flexible wire / 0.5-6 square millimeters of single-strand hard wire
- Rated Voltage: 250V (LT-2/LT-3 rated at 250/600V)
- Rated Current: SPL series 32A, LT series 36A (LT-2/LT-3 rated at 40A)
- Features:

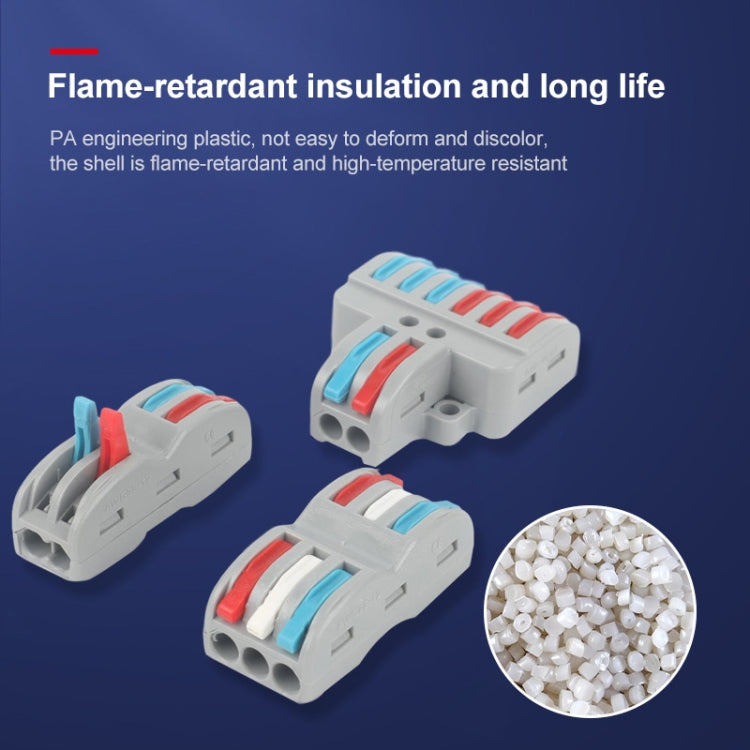

- Durable and flame retardant
- High temperature resistance

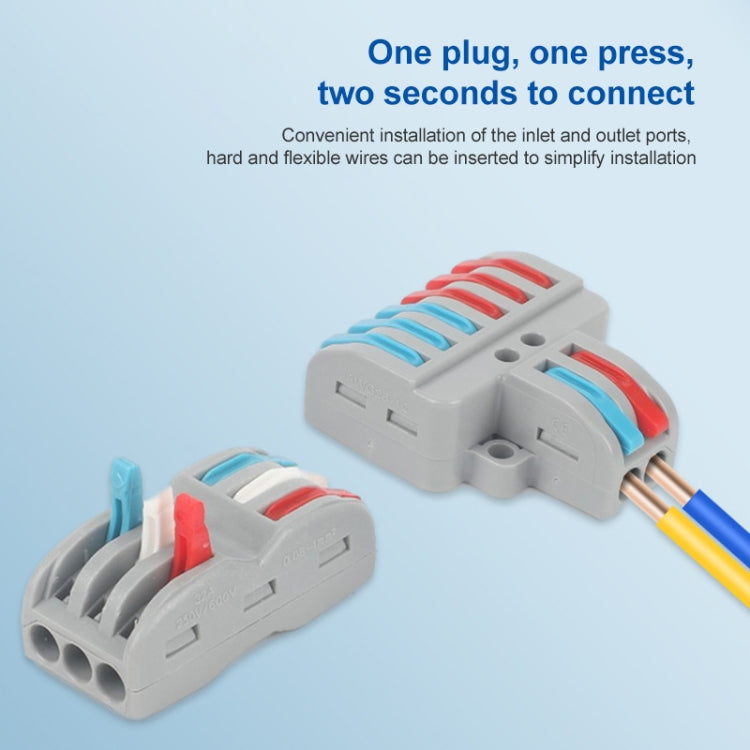

- Easy to install

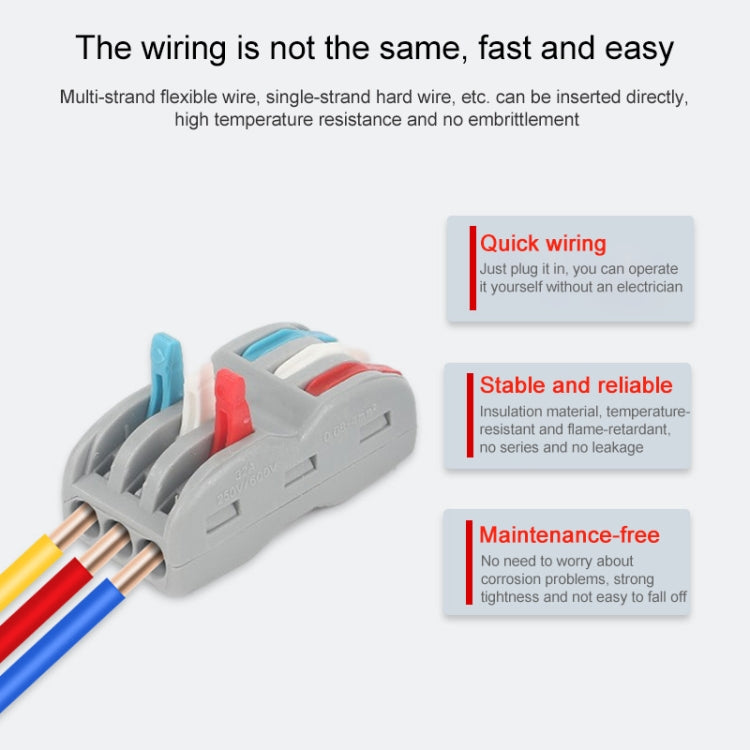

- Compatible with hard and flexible wires
- Strong tightness to prevent disconnection
