Description

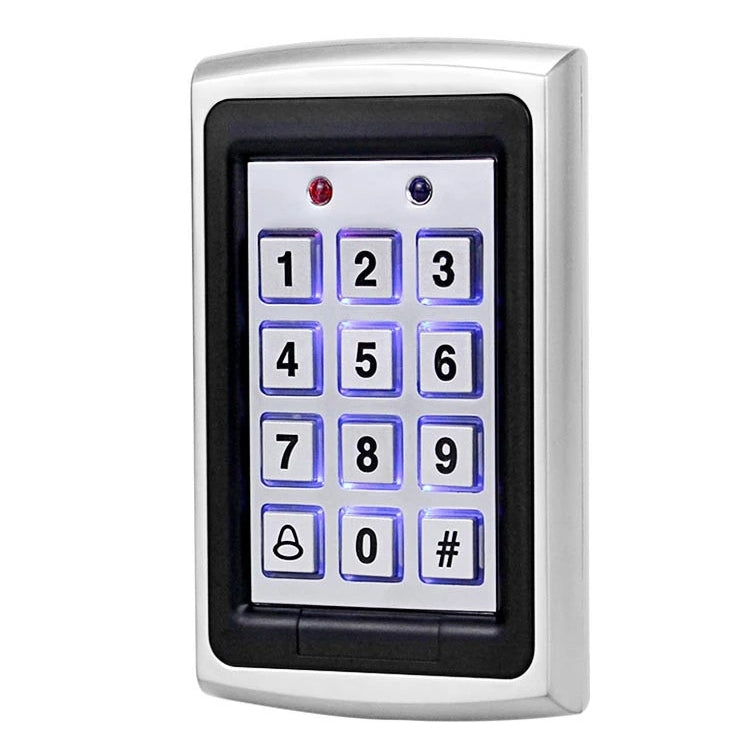

Standalone Keypad Access Control System (7612) is an access controller designed for external applications. It accommodates up to 500 users, allowing entry via proximity cards and PIN codes.
- Product Type: Access Controller
- Compatibility: Standalone Keypad Access Control System (7612)
- Material: Vandal resistant
- Color: Silver
- Operating Voltage: 12VDC from a regulated power supply
- Input Current: Standby: 40mA; Max: 130mA (not including attached devices)

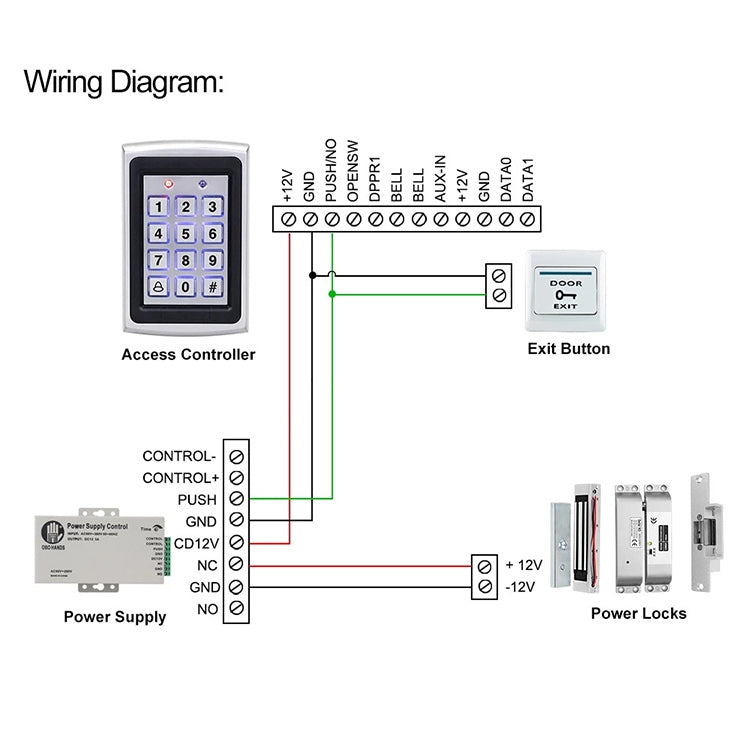

- Outputs: Lock Strike Relay (5A), Auxiliary Relay (5A), LockStrike Control Output Collector Open Output (25mA), Auxiliary Control Output Collector Open Output (25mA)
- Inputs: REX: N.O., Dry Contact; Auxiliary Input (In/Monitor): N.C., Dry Contact; Monitor Mode: N.O., Dry Contact Input Mode
- Built-in Proximity Reader: Read Range: 65mm; Modulation: ASK at 125 kHz; Compatible Cards: ALL 26-Bit EM Cards
- Dimensions: 120mm (L) x 76mm (W) x 27mm (H)
- Weight: 450g

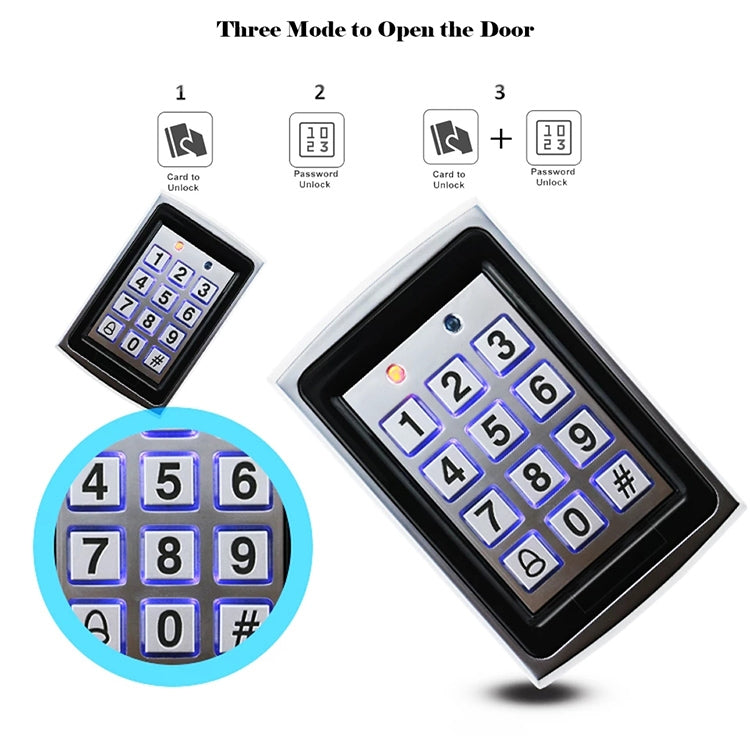

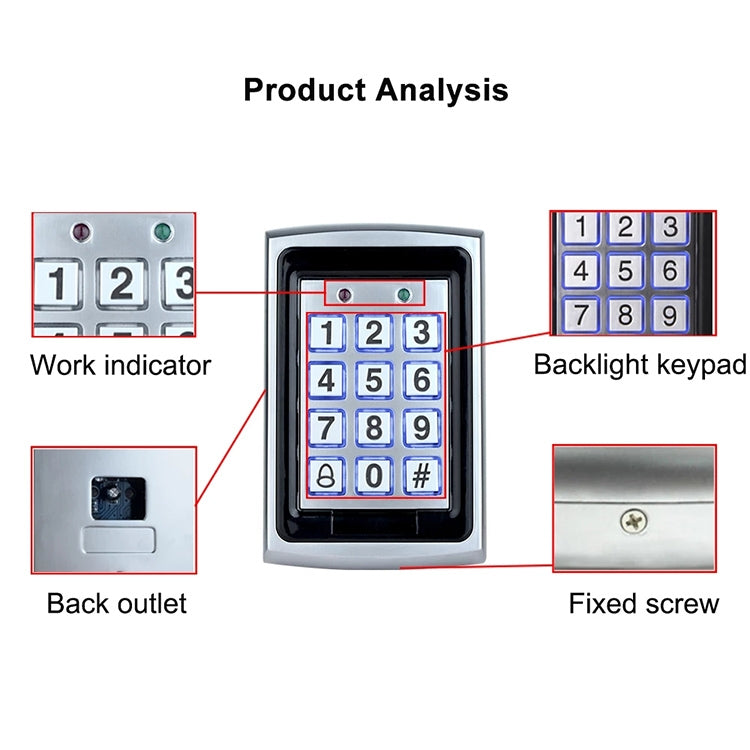

- Features: Built-in Proximity Card Reader, Built-in Keypad for PIN Code entry, Auxiliary Input & Output, Eight Auxiliary Modes (Door Ajar, Forced Door, Shunt, Door Monitor, Normal/Secure), Internal Buzzer, Two Status/Programming Interface LEDs, Two Modes of Operation (Normal, Secure), Three User Levels (Normal User, Secure User, Master User), Four Open Door Modes (4 digit PIN Code, 4 digit PIN Code & EM Card, 4 digit PIN Code & 1.4 digit PIN Code, EM Card & EM Card), Code Search Feature, Built-in Case and Back Tamper, Bell, Chime, Siren, Battery Backup, Tamper Output features available with IBA Power Supplies, Programmable Siren Time, Programmable Lock Strike Release Time
