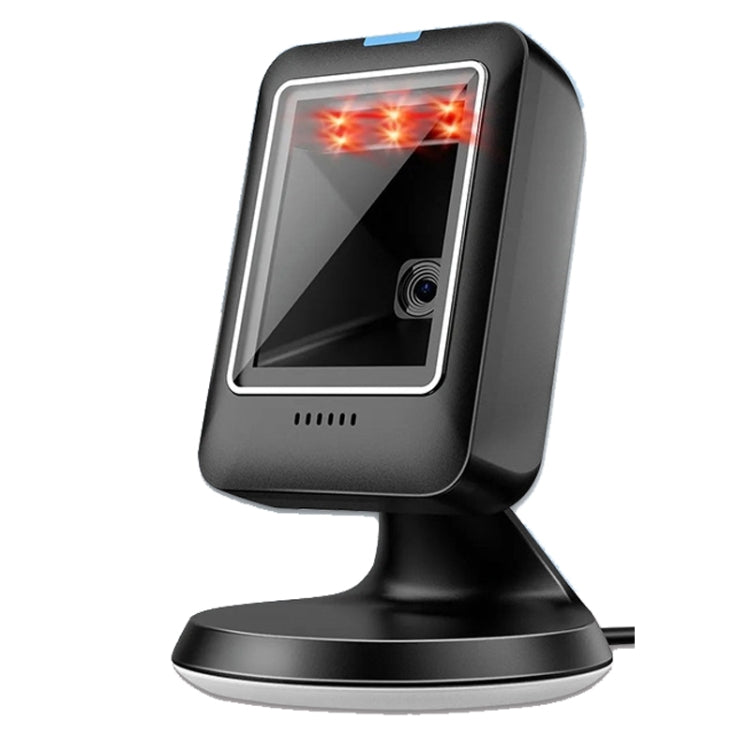

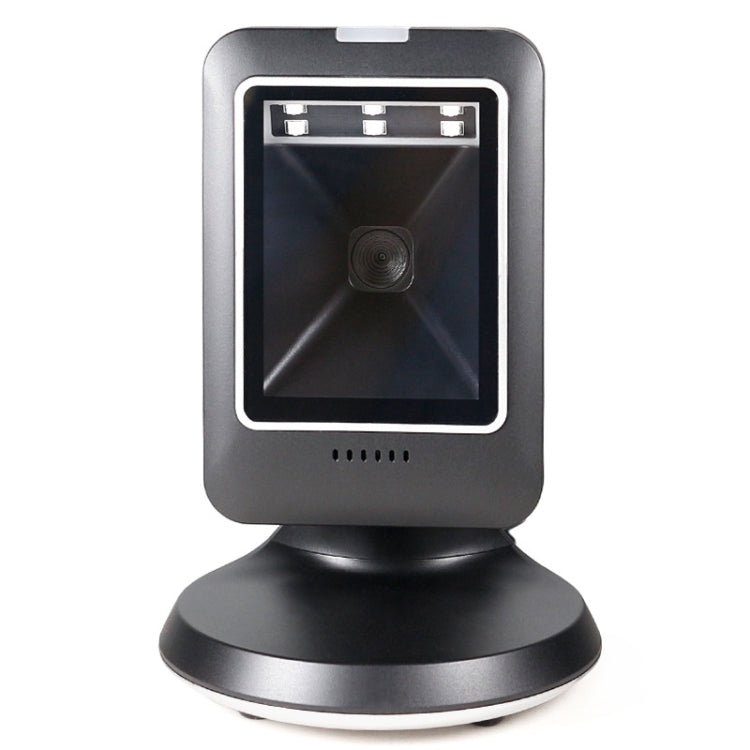

Supermarket Cashier Scanning Platform QR Code Payment Wired Handheld Barcode Scanner(DW158)

• Product type: Barcode Scanner
• Compatibility: DW158
• Material: Not specified
• Key feature: Self-sensing scanning
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Consumer Electronics

1. Image sensor: 640*480 CMOS
2. Decodable system: 1D: EAN-8, EAN-13, EAN-13 2 add-on, EAN-13 5 add-on, ISBNs UPC-A, UPC-E, Code 39, Code 39 FullASCIk Code 93, Code 128, Codabar, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, GS1-128, GS1 DataBar (RSS14) (Stacked), GS1 Data Bar Limited, Standard 25, GS1 DataBar Expanded 2D: PDF417, MicroPDF417, MicroQR, Data Matrix, QR Code
3. System compatibility: Linux, Android, Windows XP, 7, 8, 10, MACOS
4. Minimum recognition accuracy: Code 39 4mil

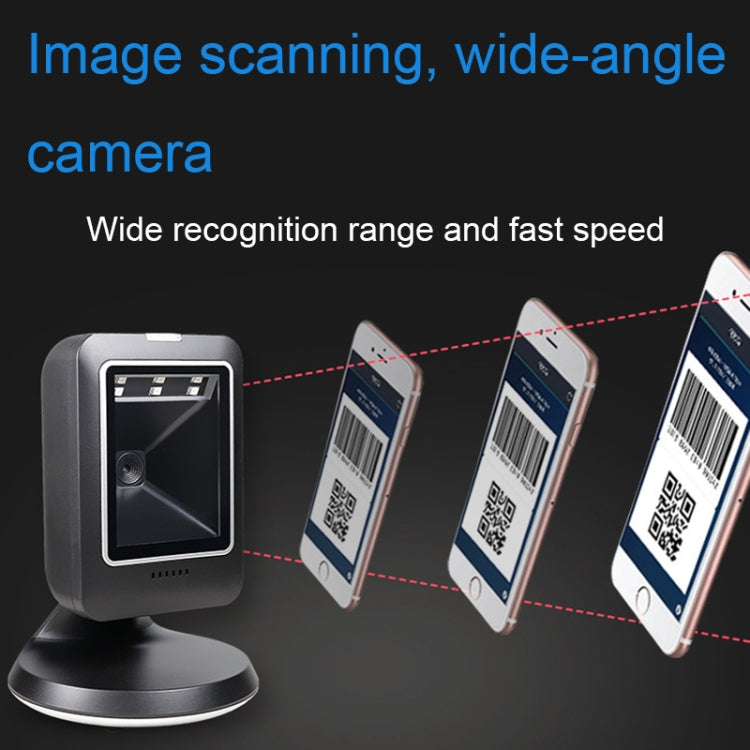

5. Scannable barcode types: one-dimensional and two-dimensional barcodes on paper and film; one-dimensional and two-dimensional barcodes on screens such as mobile phones and tablets.
6. Movement tolerance: 3.2 meters/second

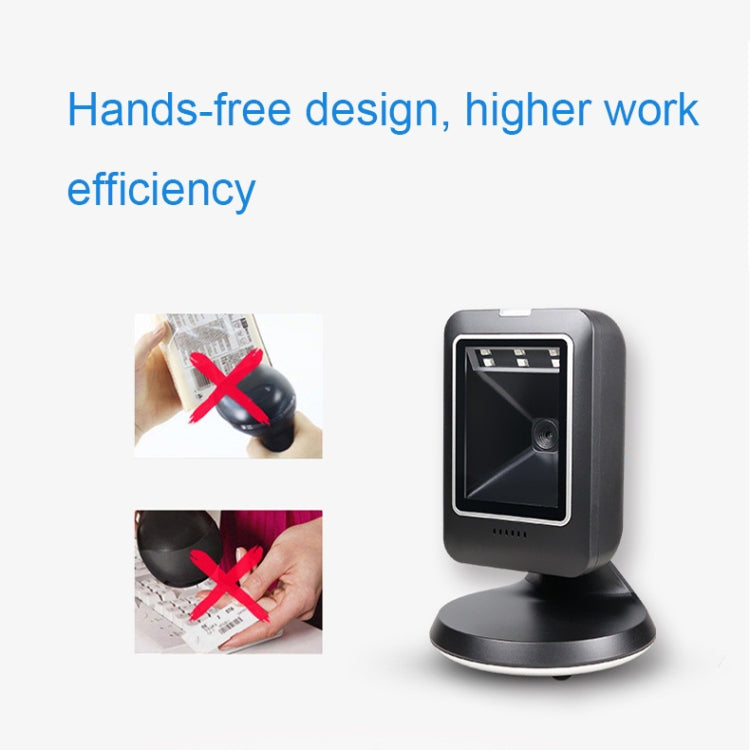

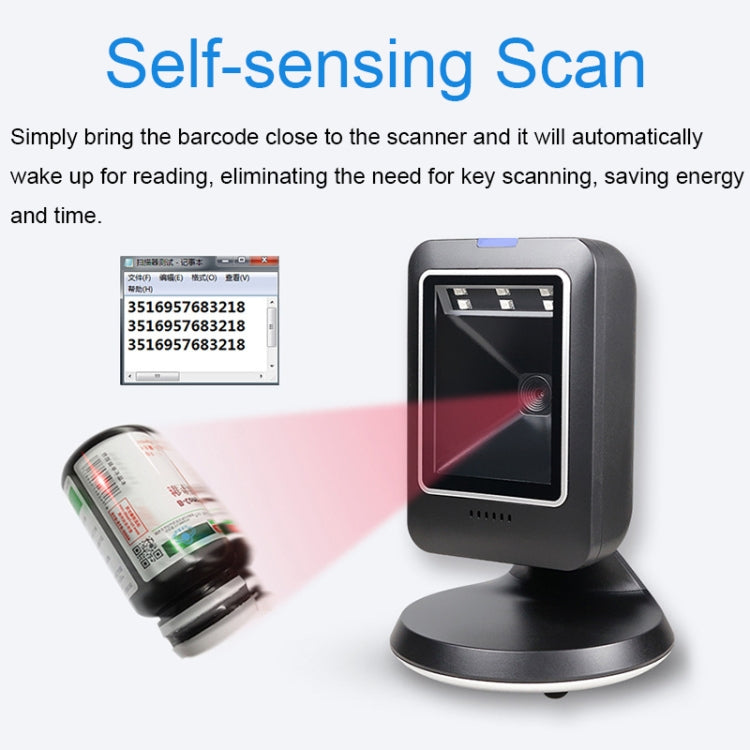

7. Scanning mode: self-sensing continuous code reading mode
8. Supported keyboards: US-English, French, Italian, German, Spanish, Turkish Q, Belgian (French), Portuguese-Portuguese, Portuguese-Brazilian
9. Support barcode language: Simplified Chinese characters (under win system)
10. Invoice function: supported (only for the Chinese market) (under win system)
11. Secondary development: Secondary development is not supported
12. Barcode output editing: supports adding suffixes/hidden characters
13. Printing contrast: 20%
14. Recognition angle range: rotation angle ±360°, elevation angle ±60°, declination angle ±70

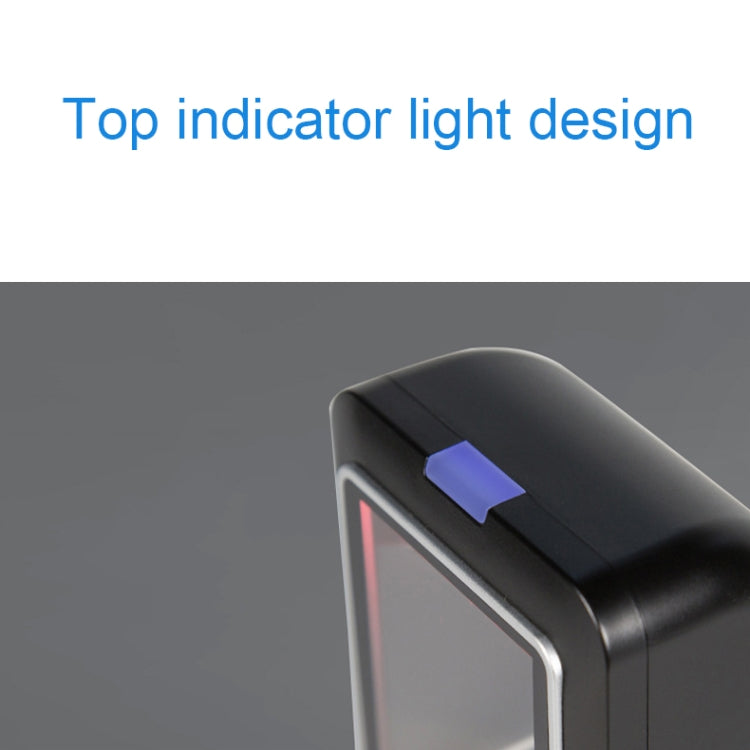

15. Indicator light: red and purple two-color indicator light
16. Buzzer: startup prompt, code reading prompt
17. Fall resistance: can withstand 3 times of free fall from 1.5 meters
18. Waterproof and dustproof: IP54
19. Operating temperature range: -20 to 55℃
20. Storage temperature range: -20 to 60℃
21. Working humidity range: 5-95% non-condensing state
22. Storage humidity range: 5-95% non-condensing state

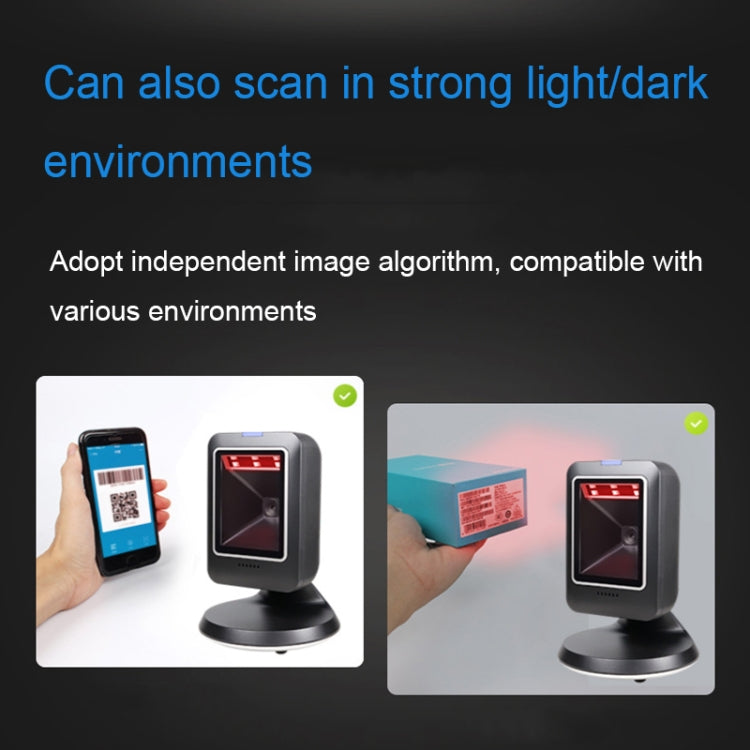

23. Ambient light intensity: 0-70000LUX
24. Data cable length: 177-183CM
25. Working voltage: 5V
26. Communication interface: USB (driver-free), serial port
27. USB standby power: 193mA/0.965W
28. USB working power: 183mA/0.915w
29. USB maximum power: 195mA/0.975W
30. Serial port standby power: 193mA/0.965W
31. Serial port working power: 183mA/0.915w
32. Maximum power of serial port operation: 195mA/0.975W

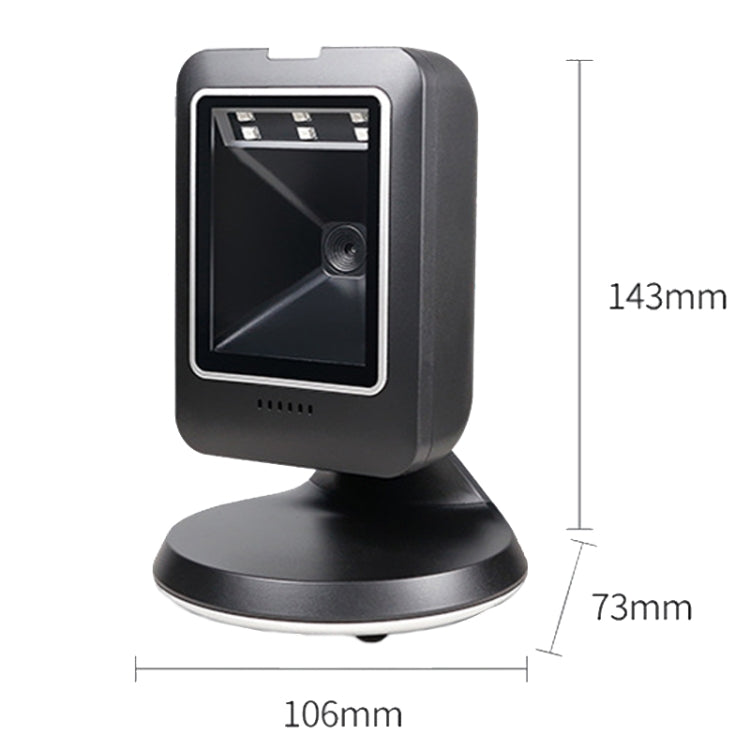

33. Product size: 106 x 73 x 143mm
34. Product net weight: 370g
