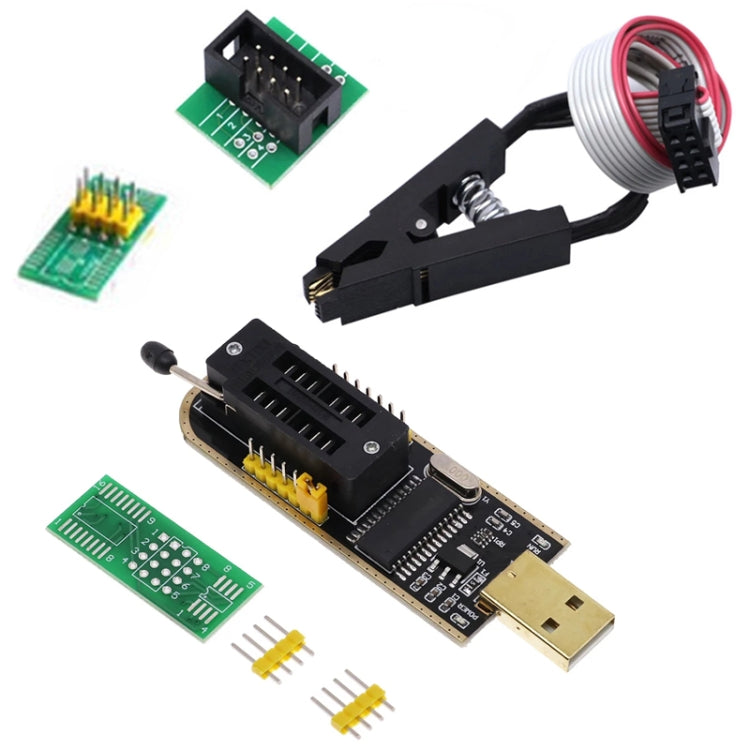

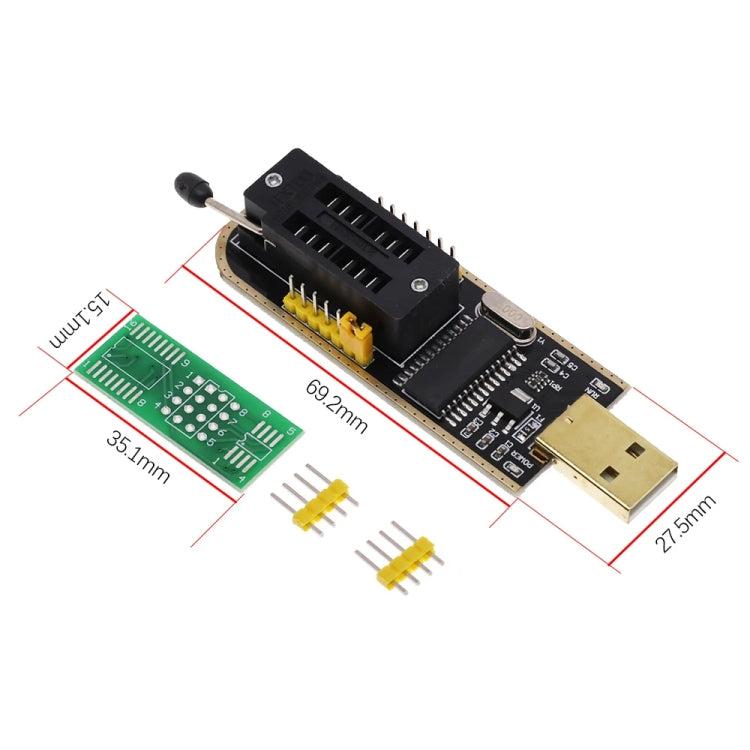

Test Clip With 2 Board+CH341A Programmer Module USB Motherboard Routing Liquid Crystals Disassembly Free SOP8 Test Tool

SKU: TBD0604399403
Sale Sold out Pre-order
Regular price R 249.00
Regular price Sale price R 249.00
Pay in 3, 6, or 12 monthly instalments with

Import Taxes & Duties Included

6-13 business days

In Stock CHN

Processing time: 1-3 days

Description

Test Clip with CH341A Programmer Module is designed for programming and testing electronic circuits. It is useful for accessing and debugging microcontroller units (MCUs) in various applications.

  • Chip: FT232BL with external EEPROM (93C46)
  • Supported Operating System: Windows 10
  • Power Supply Modes: 5V external power supply, 3.3V external power supply, external power supply (3.3V-5V required)
  • LED Indicators: TXD LED, RXD LED, POWER LED
  • Pin Configuration: GND, RXD, TXD, 3V3, 5V with curved pin pinout
  • Reserved Pins: CTS, RTS
  • Connection Instructions: GND to GND, RXD to MCU.TX, TXD to MCU.RX, 3V3/5V output, RTS to MCU.CTS, CTS to MCU.RTS
