Description

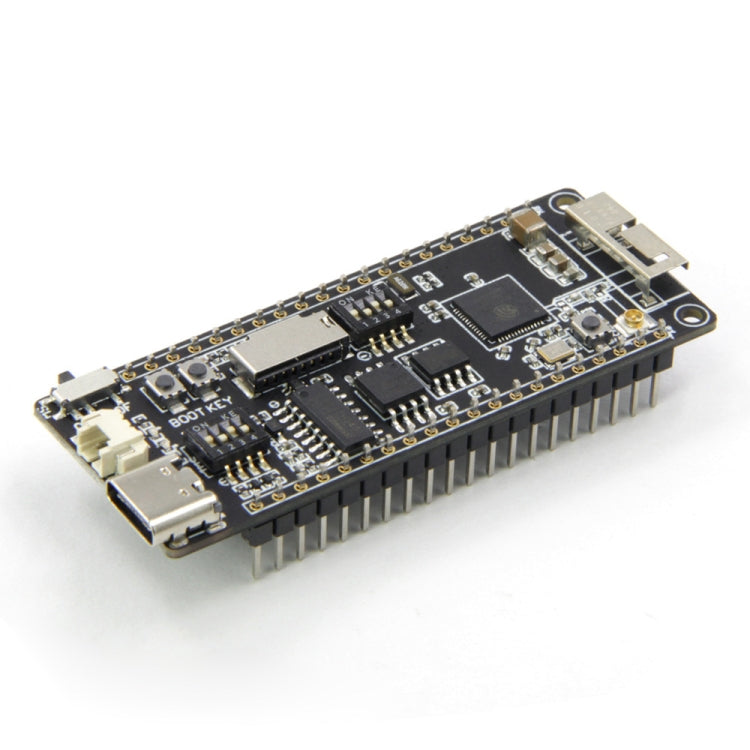

TTGO ESP32-S WiFi Wireless Module is a development board designed for wireless communication projects. It is suitable for applications requiring WiFi connectivity, such as IoT devices and remote monitoring systems.
- Chipset: ESPRESSIF-ESP32-S2
- Flash Memory: 4MB
- Static SRAM: 8MB
- SRAM: 520 kB
- Buttons: Power switch, base, start, custom
- External Device Support: TF card
- USB to TTL Converter: CH340C

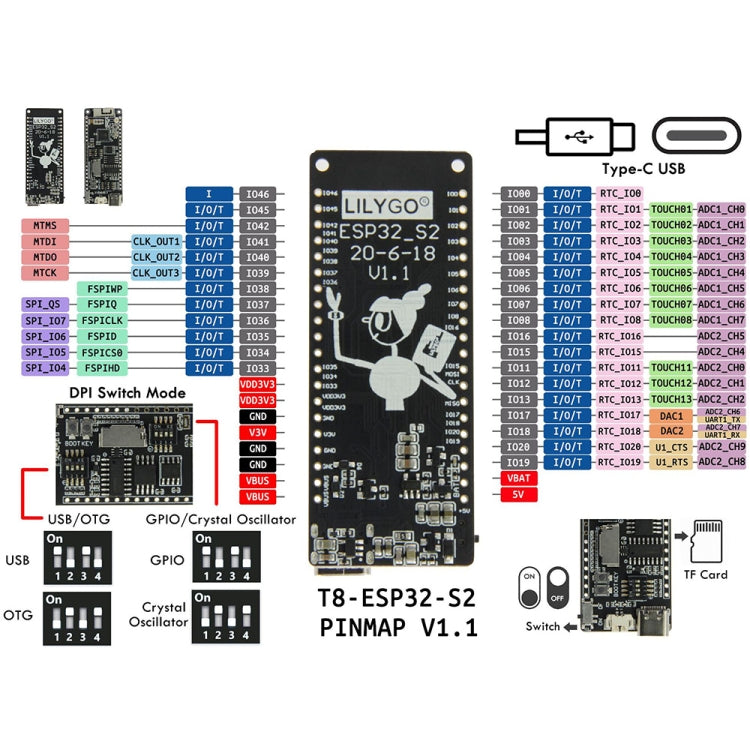

- Modular Interfaces: SD card, UART, SPI, I2C, PWM, I2S, ADC
- Vehicle Clock: 32.768KHz crystal oscillator
- Working Voltage: 2.7V to 3.6V
- Operating Temperature Range: -40°C to +85°C

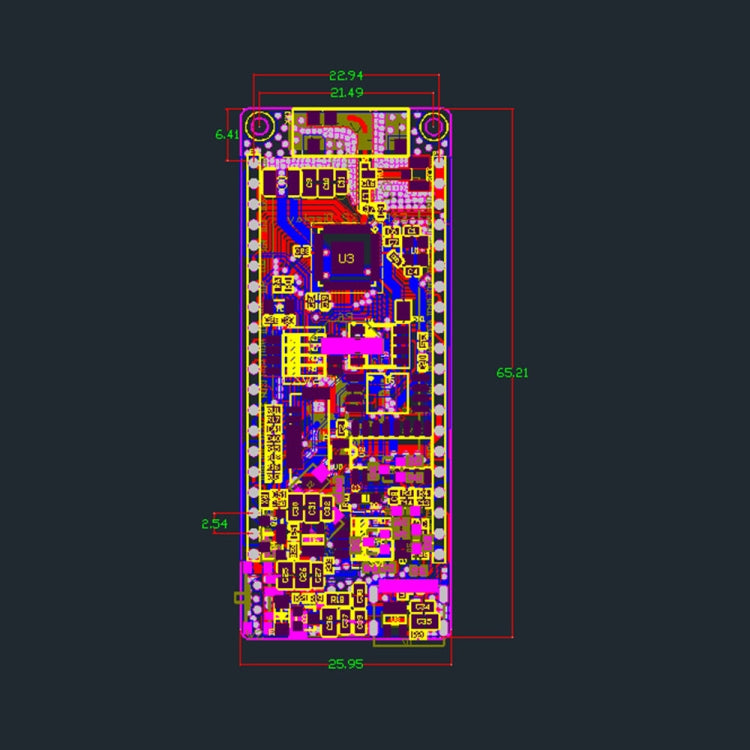

- Dimensions: 63 x 30 x 6.6 mm
- Weight: 7 g
- Power Input: USB 5V / 1A
- Charging Current: 500 mA
- Battery Input: 3.7V to 4.2V
- JST Connector: 2-pin 1.25 mm
- USB Type: Type C
- WiFi Standards: FCC / CE-RED / IC / TELEC / KCC / SRRC / NCC (ESP32 chip)
- WiFi Protocol: 802.11 b/g/n (802.11n, speed up to 150 Mbps, A-MPDU and A-MSDU aggregation, support 0.4uS guard interval)
- Frequency Range: 2.4 GHz to 2.5 GHz (2400 MHz to 2483.5 MHz)
- Transmit Power: 22 dBm
- Communication Distance: 300 m
