Description
TTGO T-PCIE ESP32-WROVER-B AXP192 Chip WiFi Bluetooth Nano Card SIM Series Module is a hardware development board designed for wireless communication applications. It is suitable for projects requiring Wi-Fi and Bluetooth connectivity, such as IoT devices and remote monitoring systems.
- Chipset: ESP32-WROVER-B, AXP192 power management chip
- Flash memory: 4MB / 16MB
- Static SRAM: 8MB
- SRAM: 520 kB
- Buttons: PWR power switch, reset
- USB to TTL: CP2104
- Vehicle clock: 40MHz crystal oscillator
- Peripheral equipment: SIM Nano card slot, Mini PCIE card slot
- Antenna: Onboard antenna (default)
- Working voltage: 2.7V to 3.6V
- Sleep current: Approximately 700mA
- Operating temperature range: -40°C to +85°C
- Dimensions: 75 x 33 x 10.5 mm
- Weight: 14.5g
- Power input: USB 5V / 1A
- Charging current: 500 mA
- Battery input: 3.7V to 4.2V
- Charging IC: AXP192
- JST connector: 2-pin 2.0mm
- USB: Type C
- Wireless standards: FCC / CE-RED / IC / TELEC / KCC / SRRC / NCC (ESP32 chip)
- Wi-Fi protocol: 802.11 b/g/n (802.11n, speed up to 150Mbps)
- Wi-Fi frequency range: 2.4GHz-2.5GHz (2400M-2483.5M)
- Transmit power: 22dBm
- Communication distance: 300m
- Bluetooth protocol: Compliant with Bluetooth v4.2BR/EDR and BLE standards
- Bluetooth radio frequency: NZIF receiver Class-1 with sensitivity of -97dBm
- Audio support: CVSD&SBC audio
- Wi-Fi modes: Workstation / SoftAP / SoftAP + Station / P2P
- Security mechanisms: WPA / WPA2 / WPA2-Enterprise / WPS
- Encryption methods: AES / RSA / ECC / SHA
- Firmware upgrade: UART download/OTA
- Software development: Support cloud server development / SDK for user firmware development
- Network protocols: IPv4, IPv6, SSL, TCP, UDP, HTTP, FTP, MQTT
- User configuration: AT + command set, cloud server, Android / iOS app
- Operating system: FreeRTOS

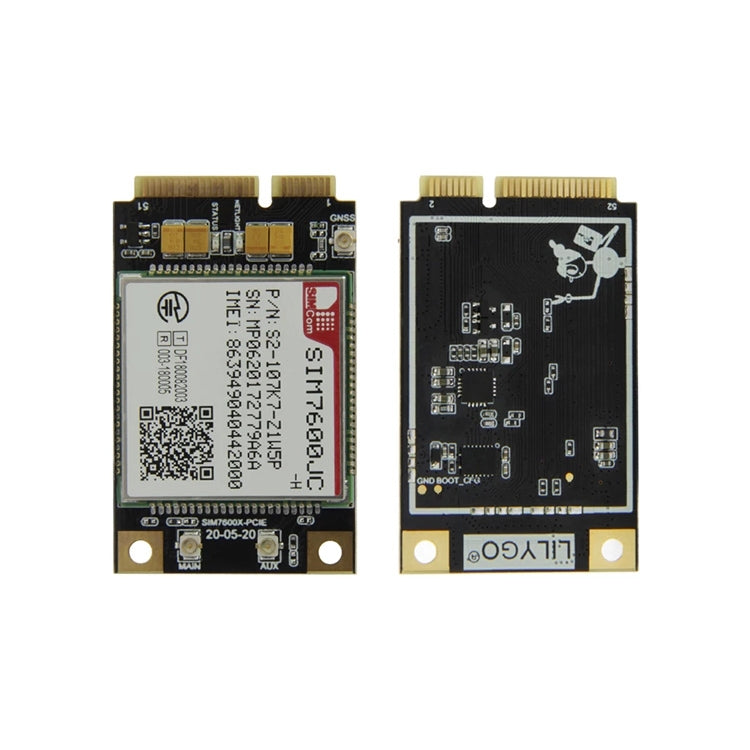

- PCIE-SIM7600JC compatibility: Suitable for Japan

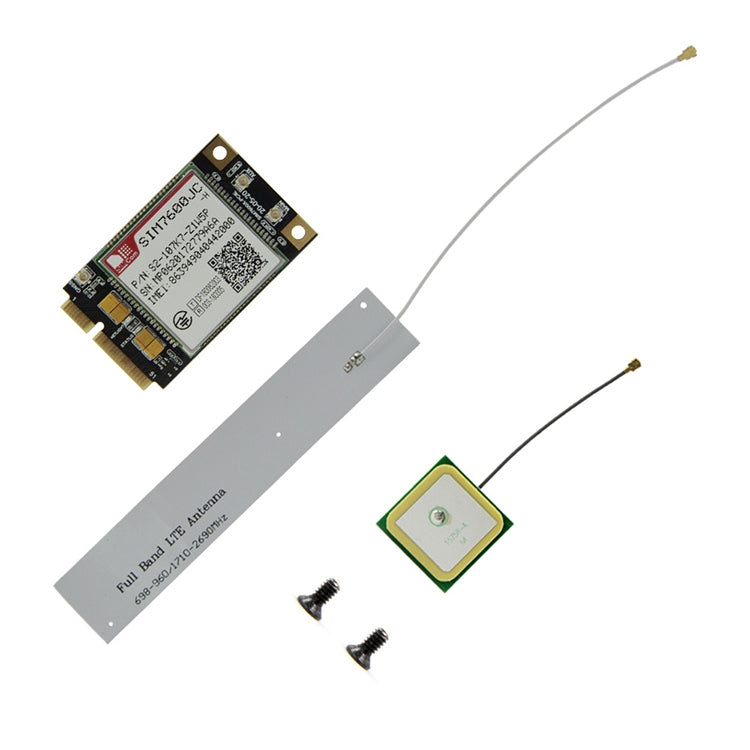

- Packing list: PCIE-SIM7600JC module x 1, LTE antenna x 1, GPS antenna x 1, screw x 2
