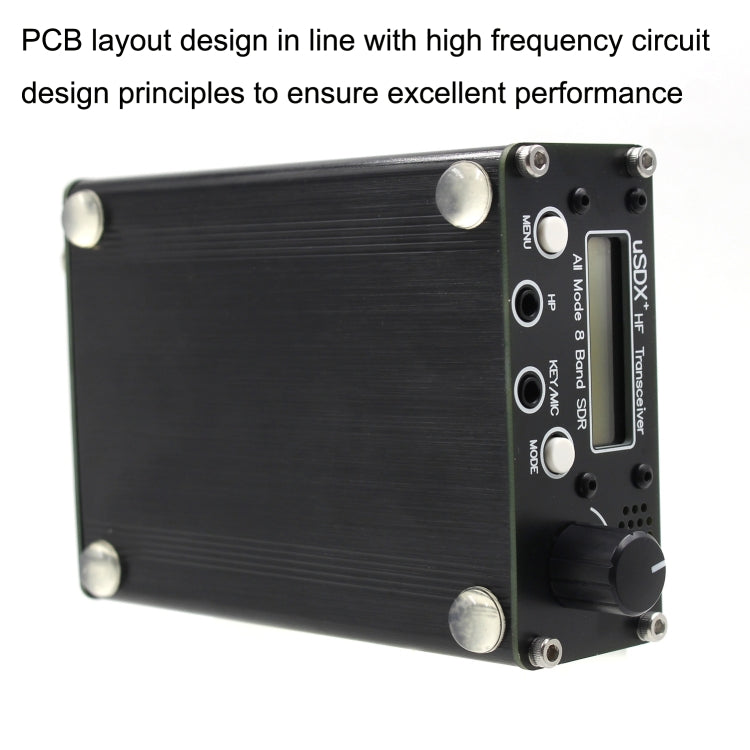

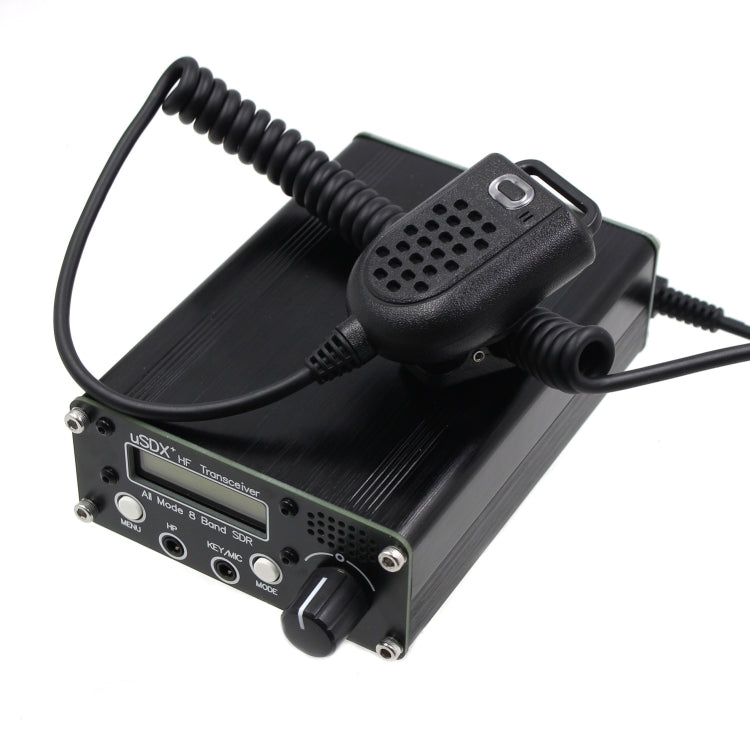

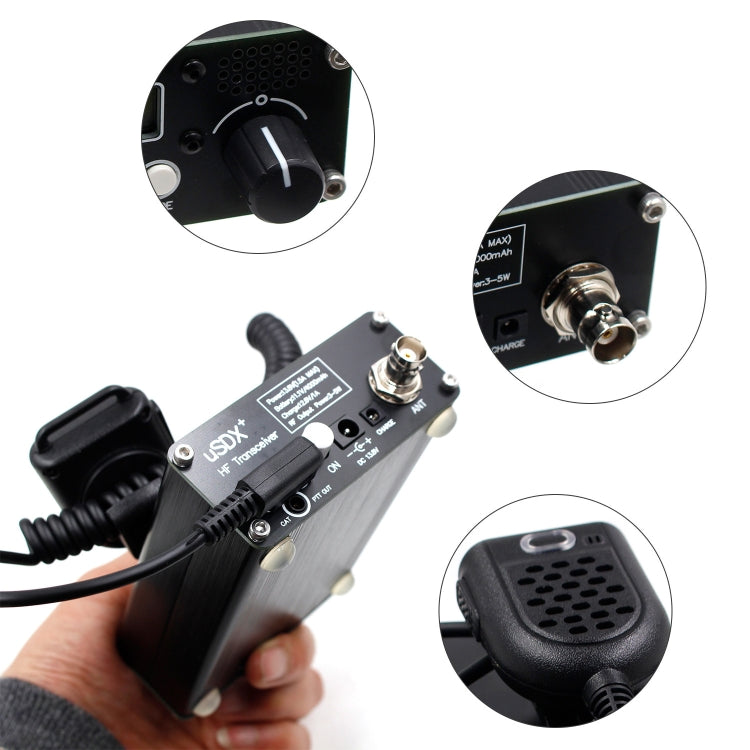

Usdr Usdx + V2 Plus 8 Band SDR Full Mode HF SSB QRP High Frequency Transceiver, Spec: US Plug
Usdr Usdx + V2 Plus 8 Band SDR Full Mode HF SSB QRP High Frequency Transceiver, Spec: US Plug
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R883.81/mo 3 months
- R446.9/mo 6 months
- R235.86/mo 12 months
- From R883.81/month over 3 months, or as low as R235.86/month over 12. Total repayable over 12 months: R2830.32. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Import Taxes & Duties Excluded
6-13 business days
In Stock CHN
Processing time: 1-3 days
Couldn't load pickup availability
Description
The Usdr Usdx + V2 Plus is an 8-band HF SSB QRP transceiver designed for shortwave communication. It is suitable for portable outdoor use, featuring a built-in 4000mAh lithium battery and various connectivity options for digital mode software control.
- Frequency Coverage: 80M, 60M, 40M, 30M, 20M, 17M, 15M, 10M

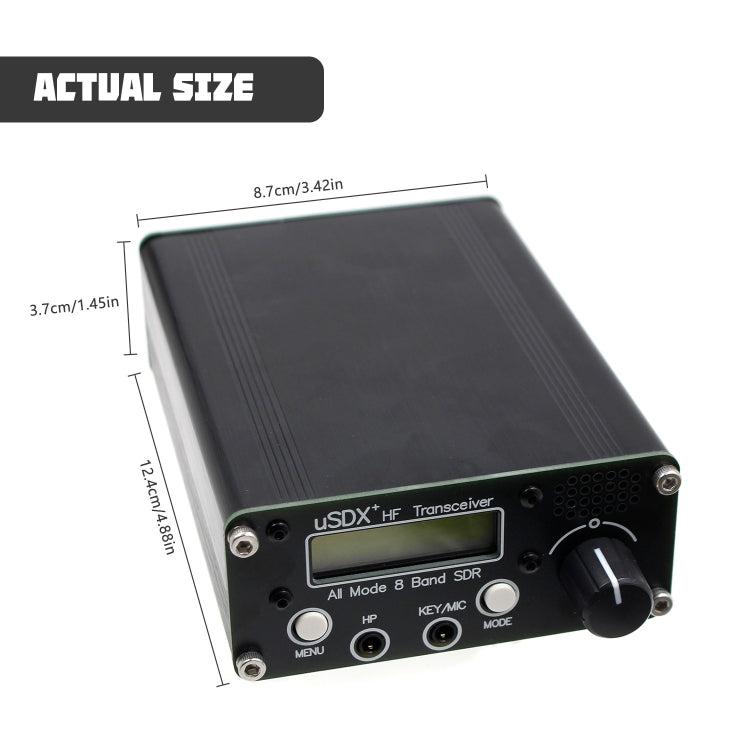

- Dimensions: 88mm x 39mm x 124mm (without bulge)
- Weight: Not specified

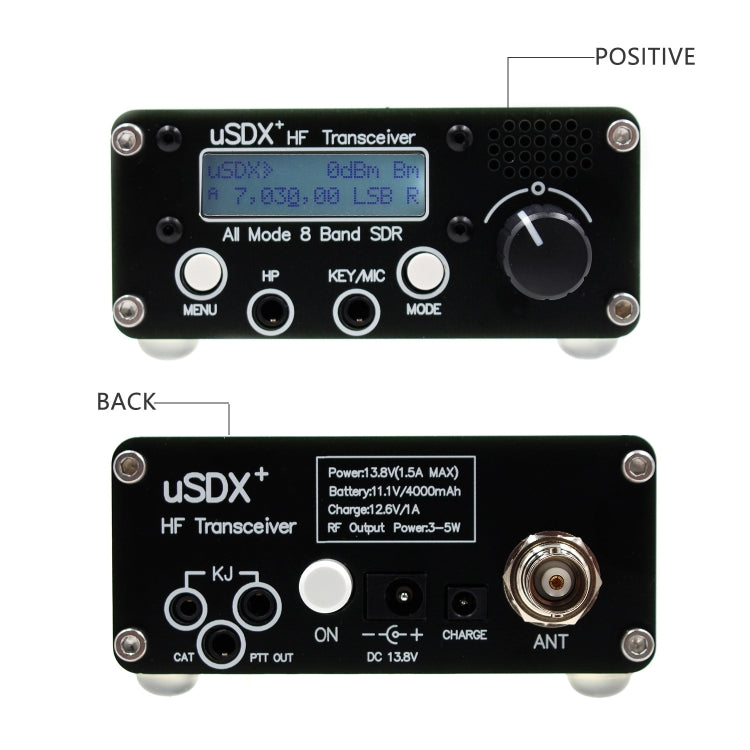

- Power Supply: Built-in 4000mAh lithium battery or external 13.8V power supply
- Output Power: 3-5W across 8 bands
- Display: 1602n LCD screen
- Speaker: Built-in speaker with cavity
- Connectivity: USB, LSB, CW, AM, FM modes supported
- DSP Filter: 4000, 2500, 1700, 500, 200, 100, 50 Hz passband
- AGC: Automatic Gain Control
- Noise Reduction: Yes
- Vox: XMIT Voice Trigger
- RX Attenuator: Yes
- TX Noise Gate: Yes
- Volume Control: Yes
- DBM/S Instrument: Yes
- Receiver Background Noise MDS: -135 dBm at 28 MHz (200 Hz BW)
- Blocking Dynamic Range: 20 kHz offset 123 dB, 2 kHz offset 78 dB
- Receiver Front-end Selectivity: +/-2 kHz scrolling at steep 45 dB/decade tuning frequency
- CW Decoder: Direct/Iambic-A/B keying
- Firmware: Open source, compatible with Arduino IDE
- Software Complexity: 2000 lines of code
- PTT/PA Output: Externally controlled
- CAT Protocol: Kenwood TS-480

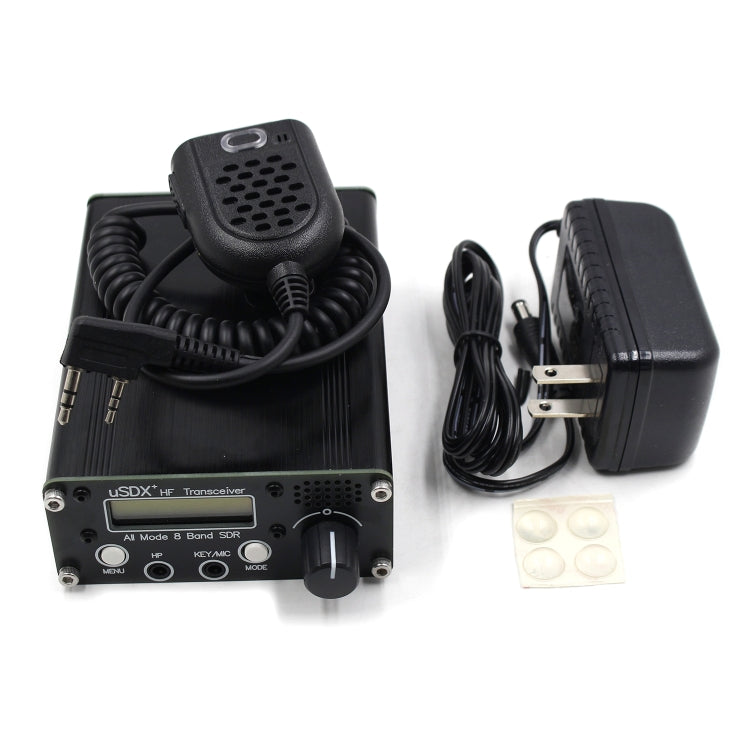

- Package Includes: Transceiver, microphone, charger, 4 machine floor mats
