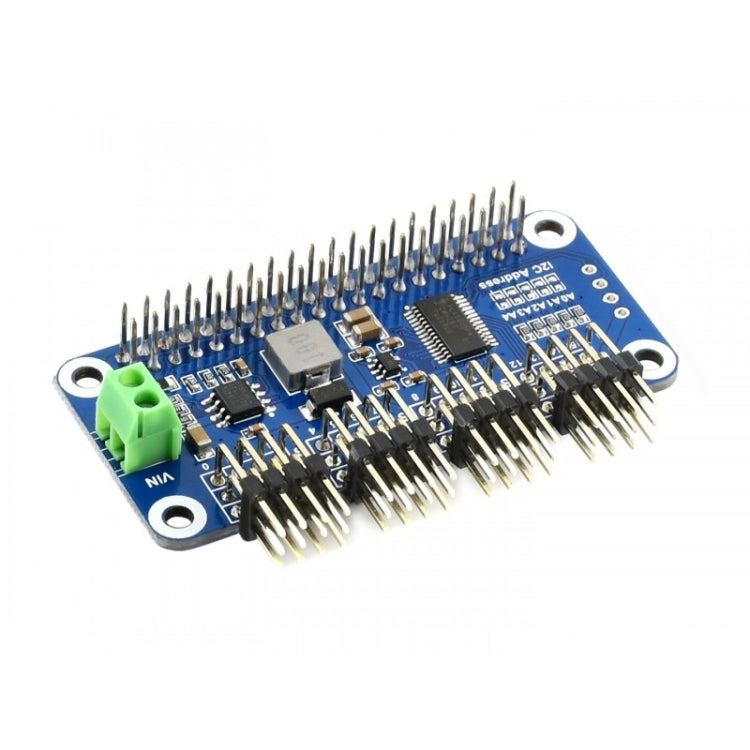

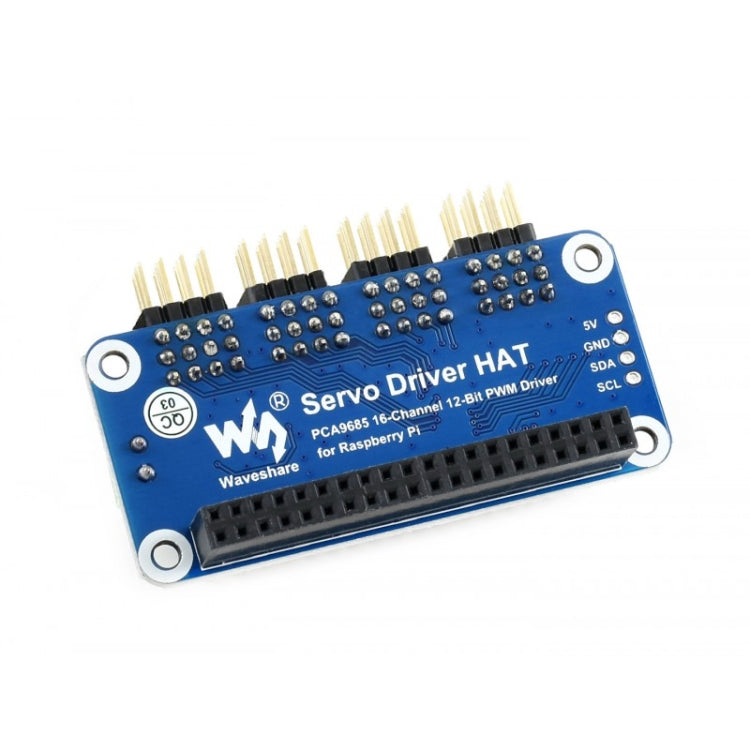

Waveshare 16-Channel 12-bit I2C Servo Driver HAT B for Raspberry Pi

Name: Waveshare 16-Channel 12-bit I2C Servo Driver HAT B for Raspberry Pi
Brand: WAVESHARE
SKU: DIY0191
Price: 459.00 ZAR
Availability: InStock

R 459.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

About The Product
Needless to say, the Raspberry Pi is powerful enough in most cases, yet it is not that good at providing precise PWM output. You may have tried to control a robotic arm or a hexapod walker by using the Pi, but finally get frustrated due to the limited number of PWM outputs and the jittering servo. Now you get a new option to bring your ideas to life, we prepare this useful Servo Driver HAT for you.

Features

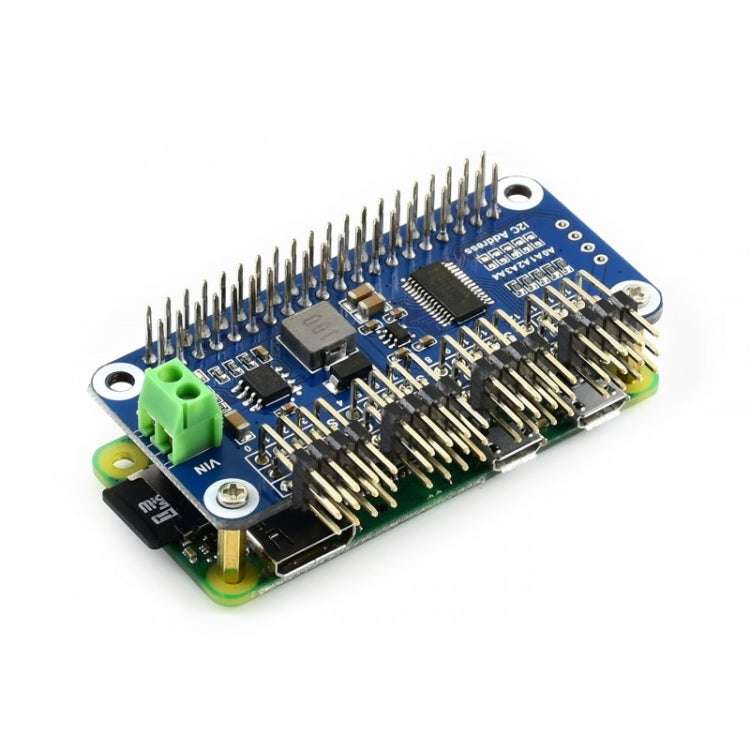

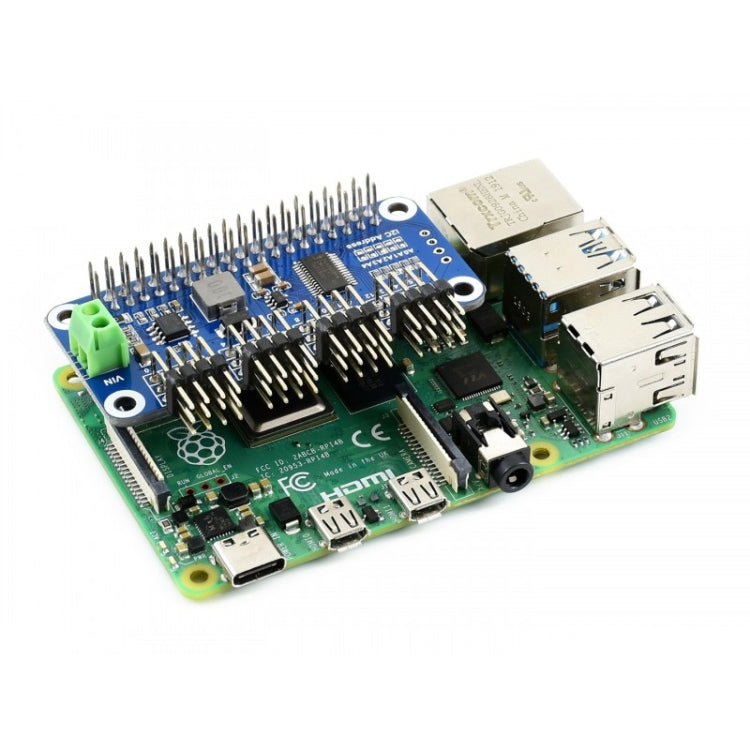

1. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
2. I2C controlled, using only 2 pins
3. Up to 16-Channel servo/PWM outputs, 12-bit resolution for each channel (4096 scales)
4. Integrates 5V regulator, up to 3A output current, can be powered from battery through VIN terminal
5. Standard servo interface, supports common used servo such as SG90, MG90S, MG996R, etc.
6. Reserved I2C control pins, allows to work with other control boards
7. Comes with development resources and manual (examples in python like Bluetooth/WiFi remote control)

Specifications
1. Power supply: 5V (Pi connector) OR 6V~12V (VIN terminal)
2. Servo voltage: 5V
3. Logic voltage: 3.3V
4. Driver: PCA9685
5. Control interface: I2C

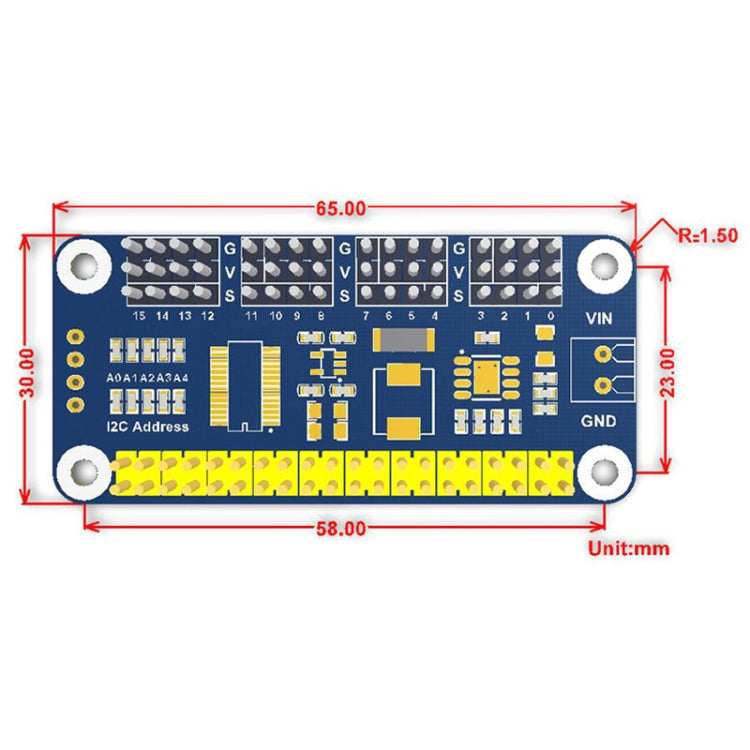

6. Dimension: 65mm x 30mm
7. Mounting hole size: 3.0mm
8. Supported Servo

This HAT can be used to drive servos such as:
- SG90 Servo
- MG90S Servo
- MG996R Servo

Package List
1. Servo Driver HAT x1
2. RPi screws pack (2pcs) x1

Note: Raspberry Pi and servos are NOT included.
