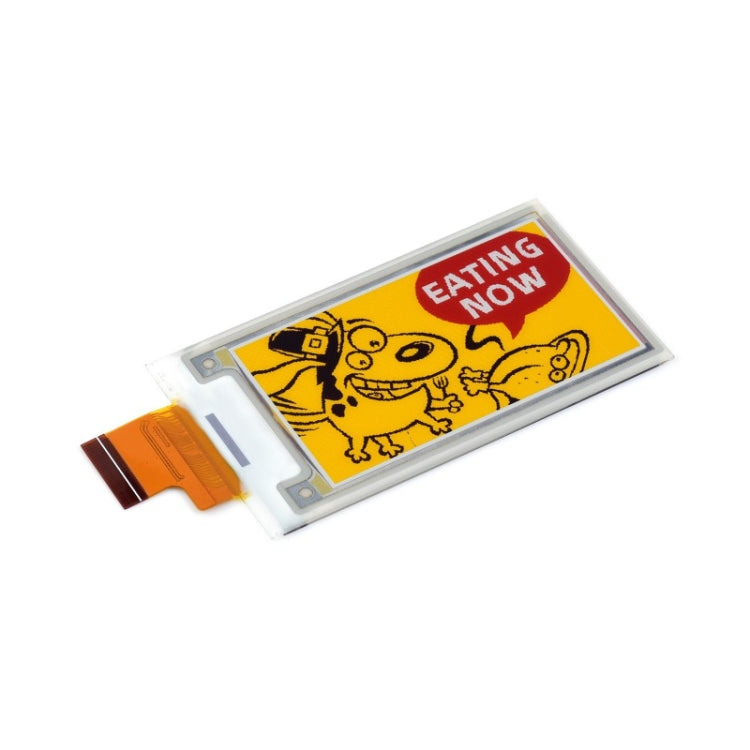

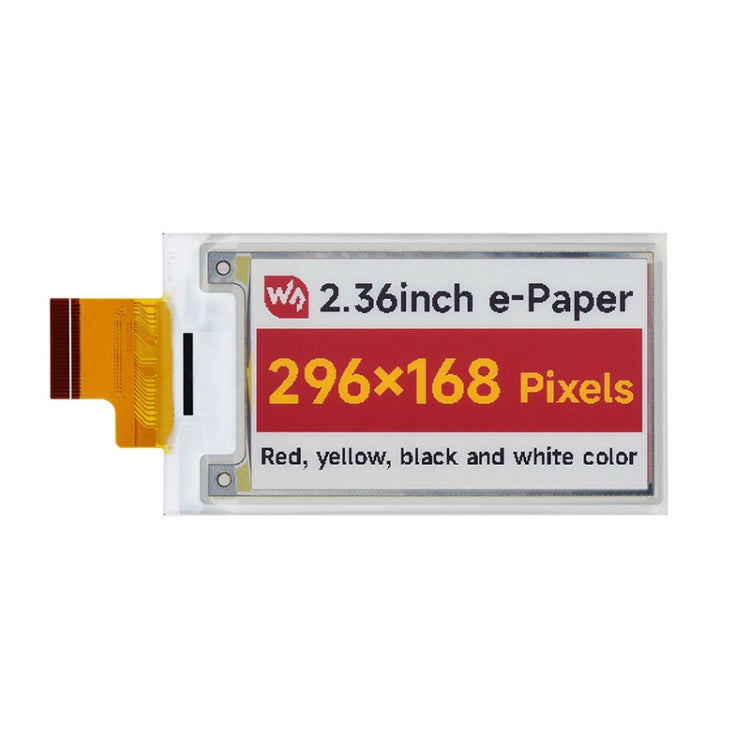

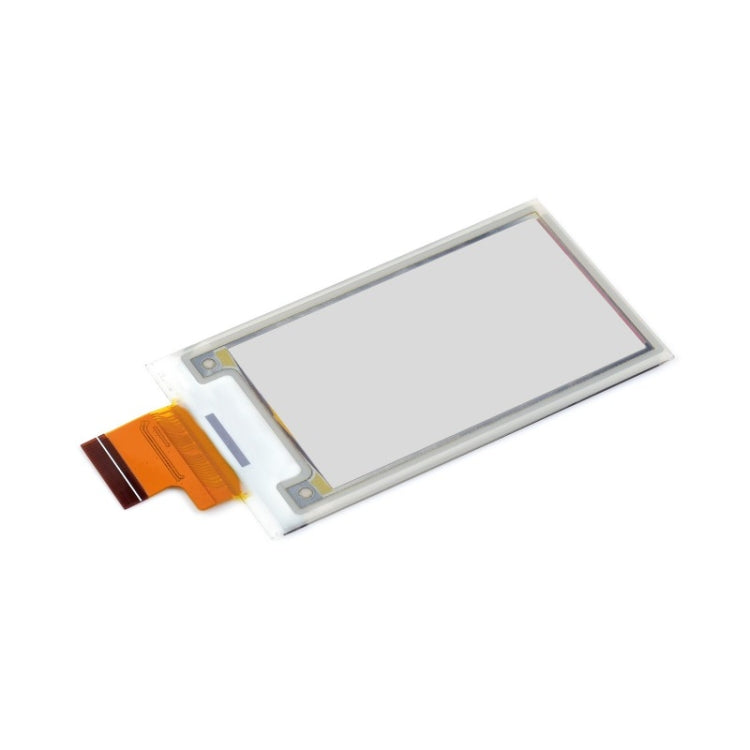

Waveshare 2.36 inch 296 x 168 Red Yellow Black White E-Paper (G) Raw Display Panel

Waveshare 2.36 inch 296 x 168 Red Yellow Black White E-Paper (G) Raw Display Panel

Regular price R 379.00
Regular price Sale price R 379.00
Sale Sold out
FREE DELIVERY on all orders.

🔥 Buy 2 items, get 25% off 3rd item 🔥 Today only!

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. No backlight, keeps displaying last content for a long time even when power down
2. Ultra low power consumption, basically power is only required for refreshing
3. Come with development resources and manual(driver board schematic, examples for Raspberry Pi/Arduino/STM32)

Specifications:
1. Operating voltage: 3.3V
2. Interface: 3-wire SPI, 4-wire SPI

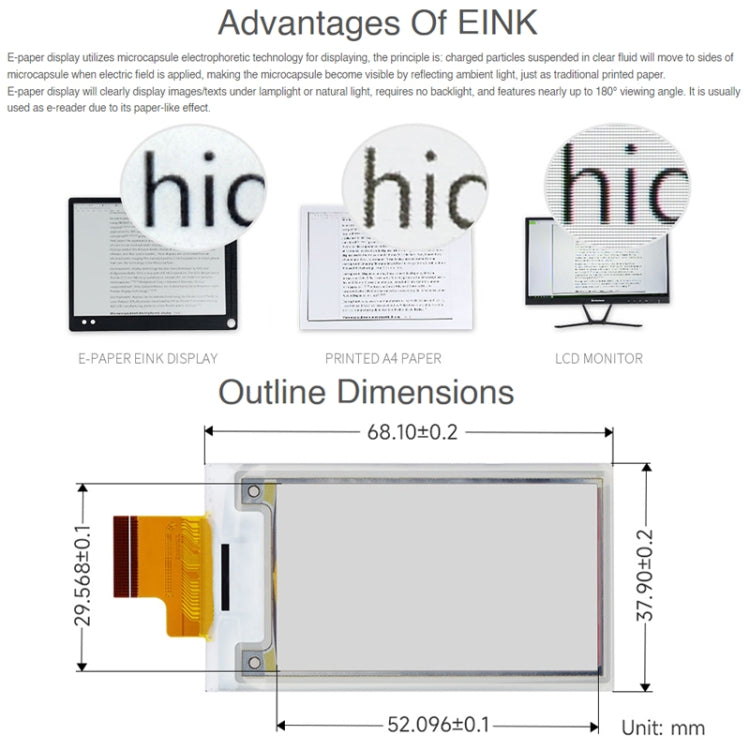

3. Outline dimension: 68.1 x 37.9 x 0.85mm
4. Display size: 52.096 x 29.568mm
5. Dot pitch: 0.176 x 0.176mm
6. Resolution: 296 x 168 pixels
7. Display color: Red/Yellow/Black/White
8. Grey level: 2
9. Full refresh time: 12s
10. Refresh power: Less than 57mW (typ.)
11. Standby power: Less than 0.01uA (almost none)
12. Viewing angle: Greater than 170 degree
