Description

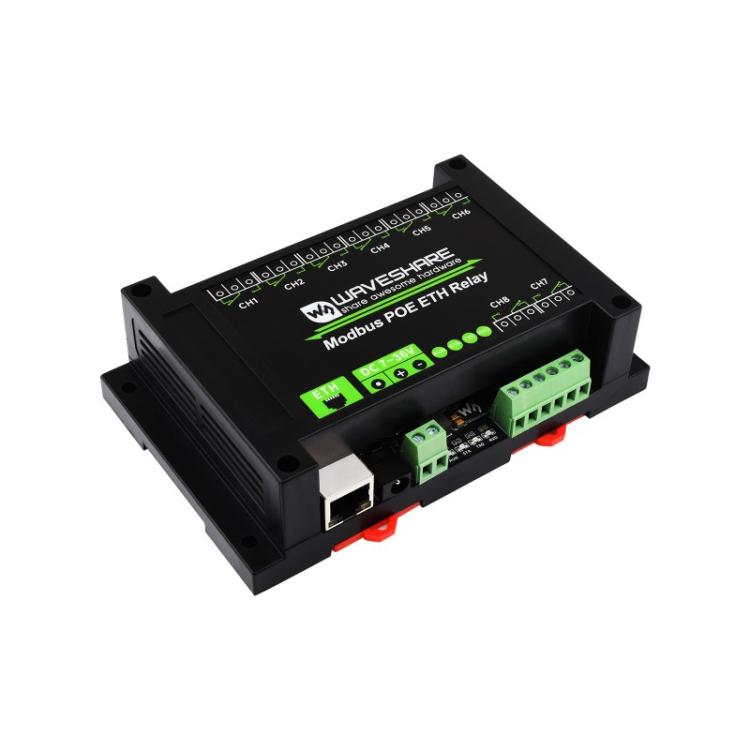

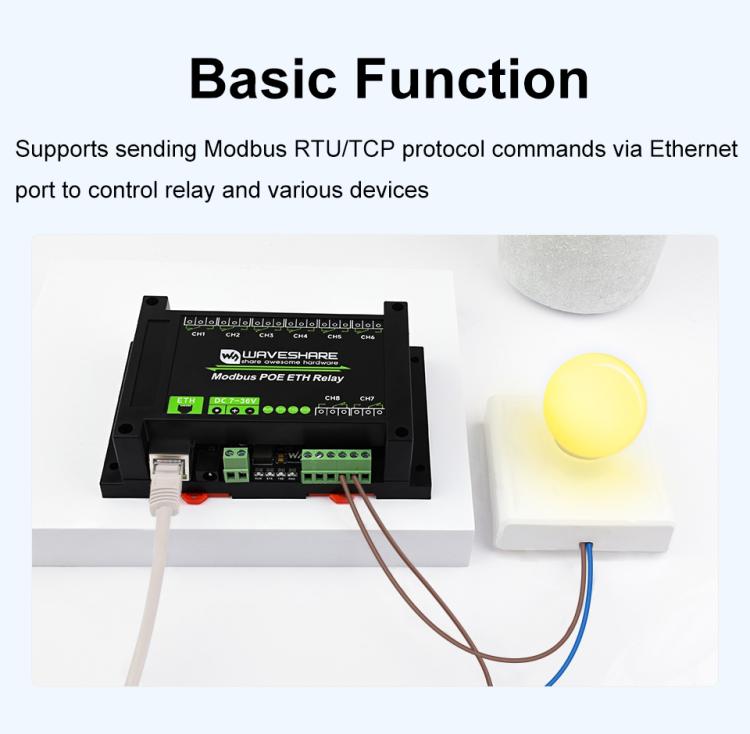

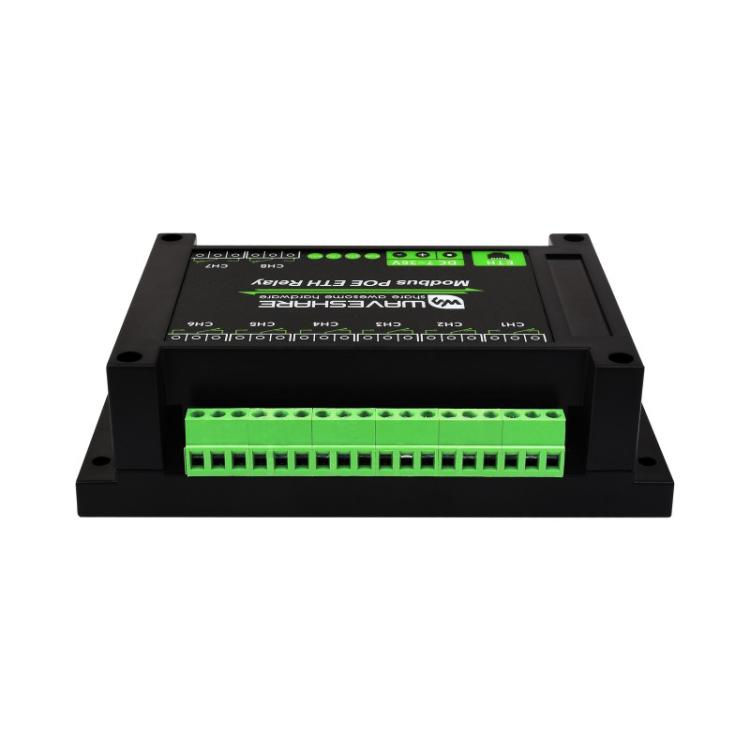

The Waveshare 24964 Industrial 8-ch Ethernet Relay Module is designed for remote relay control via Ethernet. It is suitable for applications requiring automated relay operation, such as industrial automation systems.
- Communication interface: Ethernet (supports PoE)

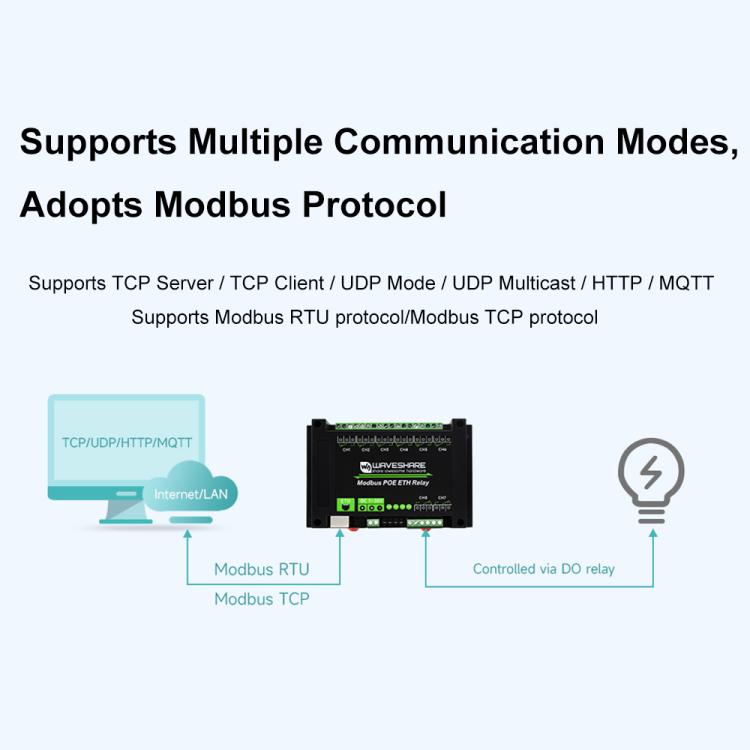

- Communication protocol: TCP/UDP/MQTT
- Modbus protocol: Modbus RTU protocol or Modbus TCP protocol
- Device address: Identified by IP address
- Output control: 8 relays
- Relay type: One normally open, one long closed

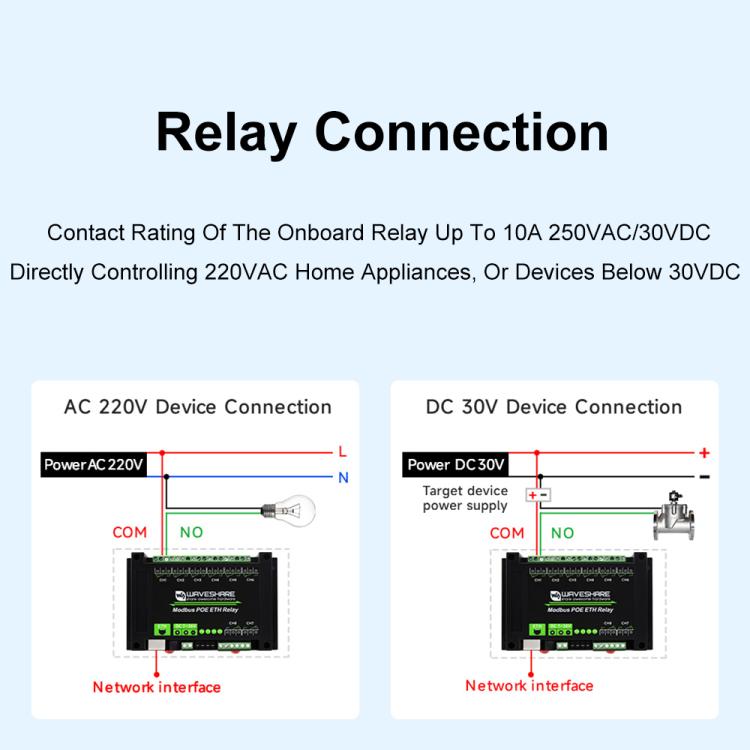

- Relay access load: ≤ 10A 250V AC or ≤ 10A 30V DC
- Input control: 8 inputs

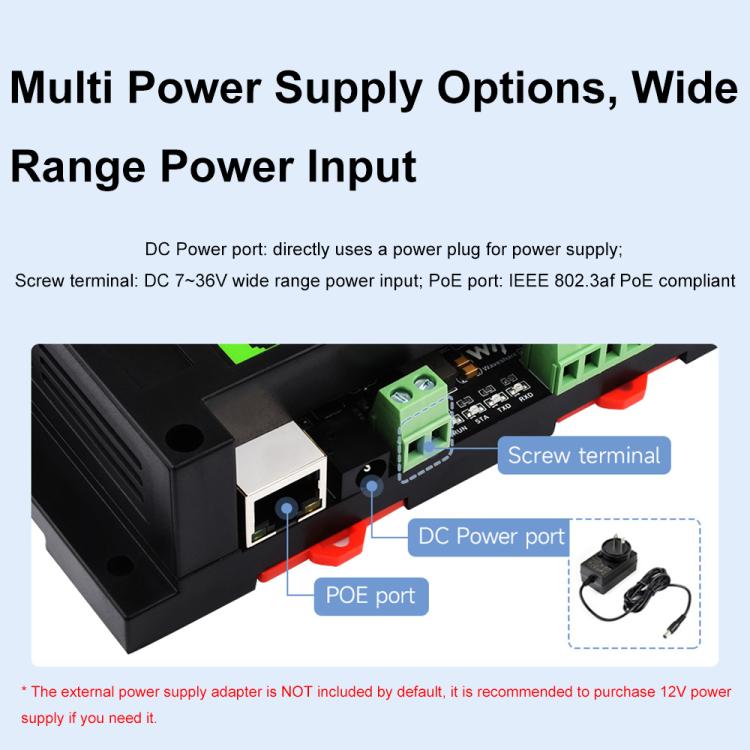

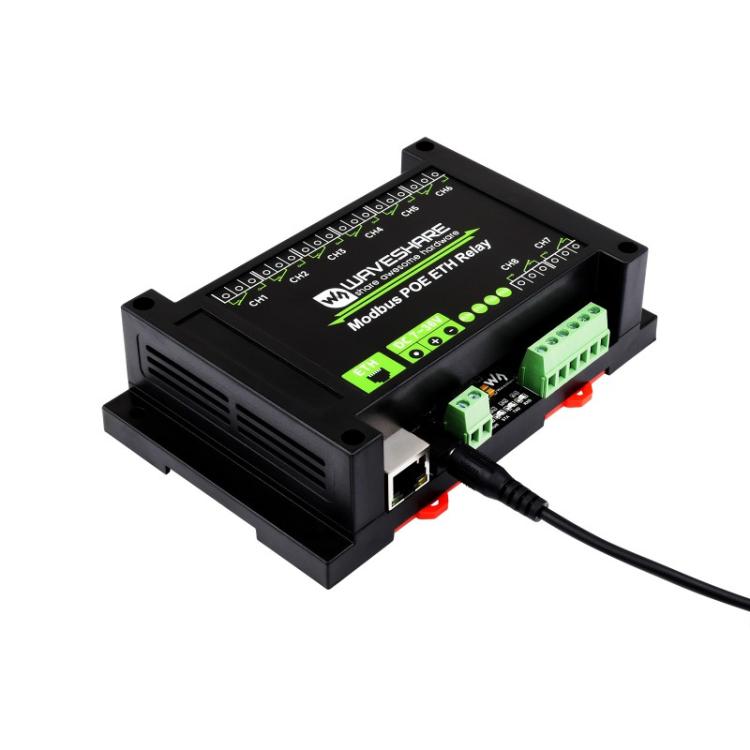

- Power supply: PoE network port, DC 5.5 x 2.1 power interface or terminal block
- Power supply range: 7-36V wide voltage

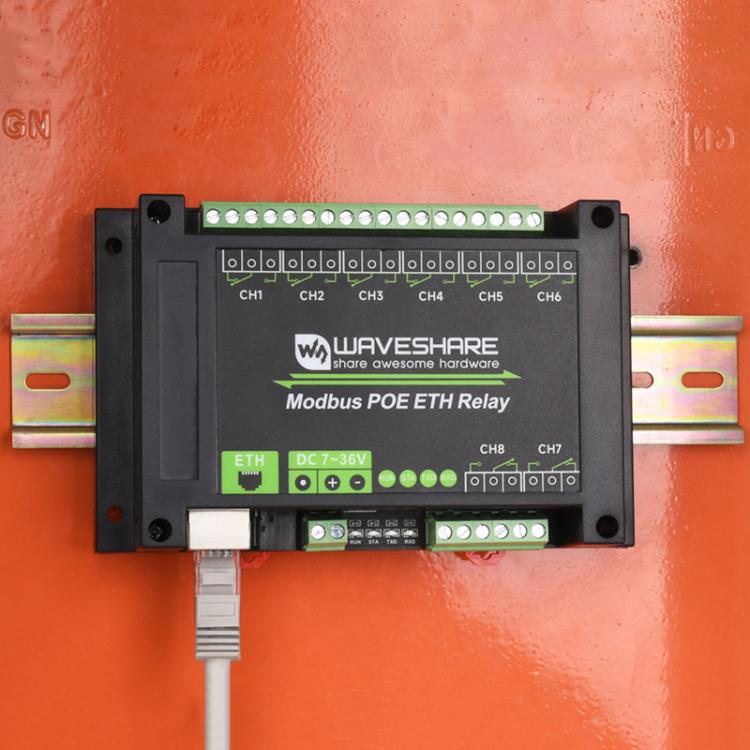

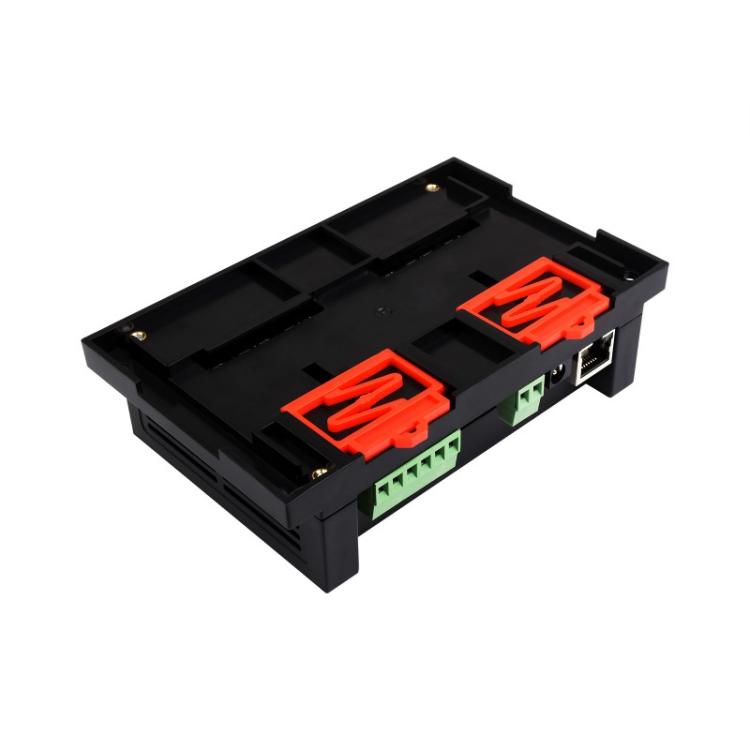

- Installation method: Standard DIN 35mm rail installation or screw hole wall installation

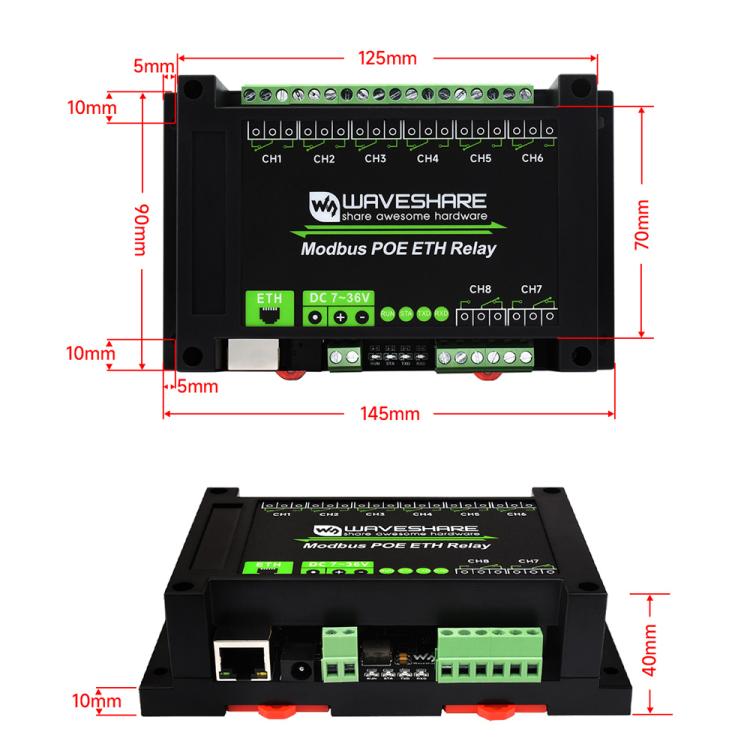

- Dimensions: 145 x 90 x 40 mm

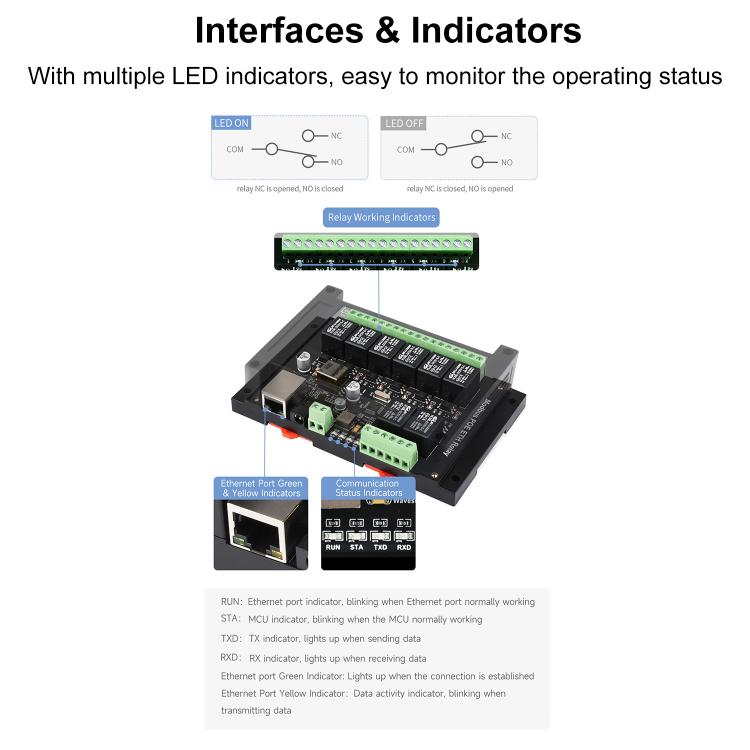

- Features: Flash-on and flash-off functions, onboard optocoupler isolation, dedicated relay driver chip with freewheeling diode protection, bidirectional optocoupler isolation for switch input, anti-reverse connection circuit (8-way B version), high-quality relays, four external LED indicators, network port indicator light
