WAVESHARE

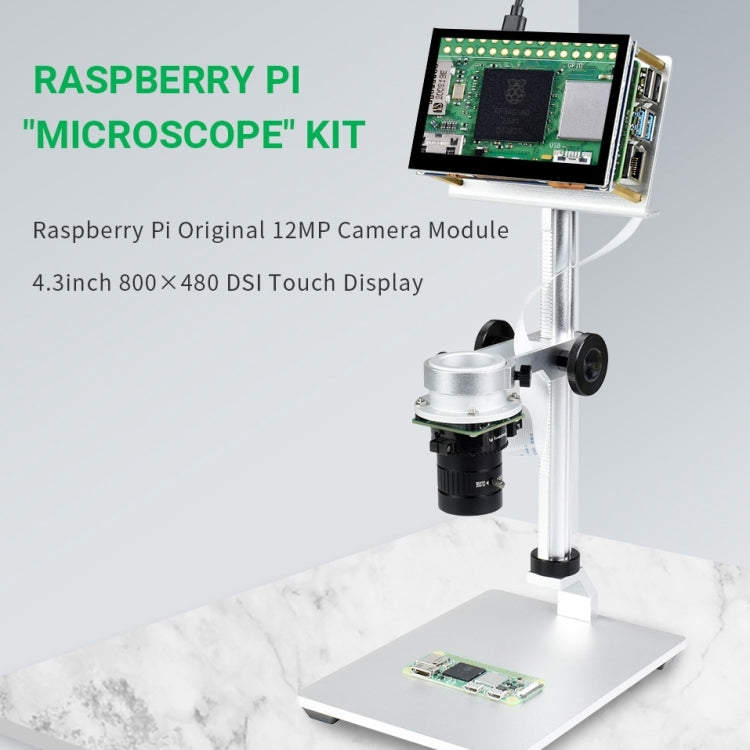

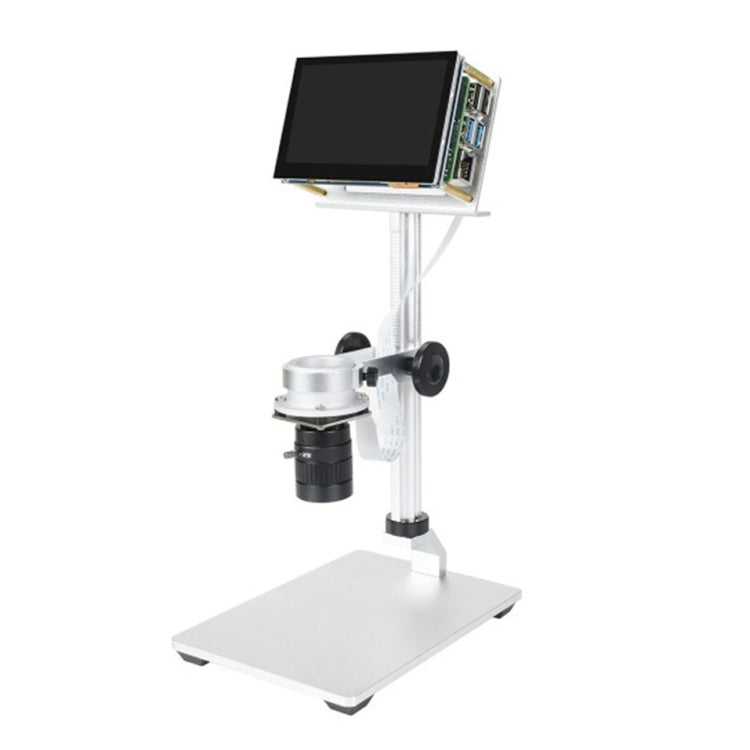

Waveshare 4.3 inch Screen Raspberry Pi Microscope Kit 12MP Camera Module with Bracket, US Plug

Name: Waveshare 4.3 inch Screen Raspberry Pi Microscope Kit 12MP Camera Module with Bracket, US Plug
Brand: WAVESHARE
SKU: DIY0238
Price: 3669.00 ZAR
Availability: InStock

R 3,669.00

Sale Sold out

FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

Features
Raspberry Pi 4B main features:
1. BCM2711B0 64 bit 1.5GHz quad core processor with 4GB memory
2. It supports 4K 60fps high-resolution dual screen display by dual micro HDMI interface
3. Gigabit Ethernet port, Bluetooth 5.0 BLE, 2.4G / 5G dual-band WIFI
4. Dual USB2.0 interface, also with dual USB3.0 interface, faster transmission speed

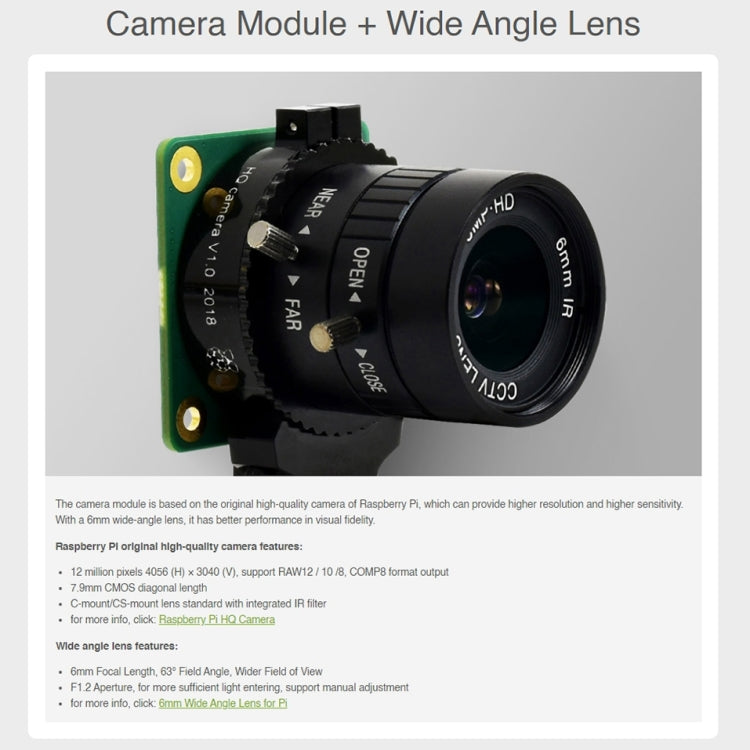

Camera Module + Wide Angle Lens:

The camera module is based on the original high-quality camera of Raspberry Pi, which can provide higher resolution and higher sensitivity. With a 6mm wide-angle lens, it has better performance in visual fidelity.

Raspberry Pi original high-quality camera features:
1. 12 million pixels 4056 (H) x 3040 (V), support RAW12 / 10 /8, COMP8 format output
2. 7.9mm CMOS diagonal length
3. C-mount/CS-mount lens standard with integrated IR filter

Wide angle lens features:
1. 6mm Focal Length, 63 degree field angle, wider field of view
2. F1.2 Aperture, for more sufficient light entering, support manual adjustment

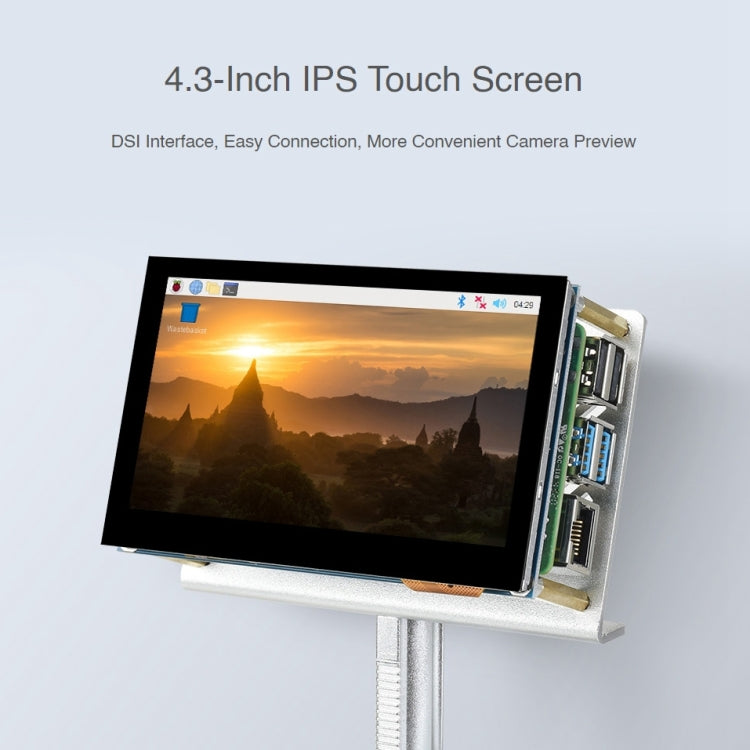

The 4.3-inch IPS screen has the advantages of true color and large viewing angle. At the same time, the DSI display has a high frame rate and does not occupy the Raspberry Pi 40pin GPIO interface. The Raspberry Pi system has good compatibility and is an ideal match for this kit.

4.3-inch capacitive touch screen features:
1. 800 x 480 pixels IPS screen, combined with tempered glass panel, supports 5-points touch, and the visual angle can up to 160??°
2. Support DSI display interface, high frame rate, good compatibility with Raspberry Pi system

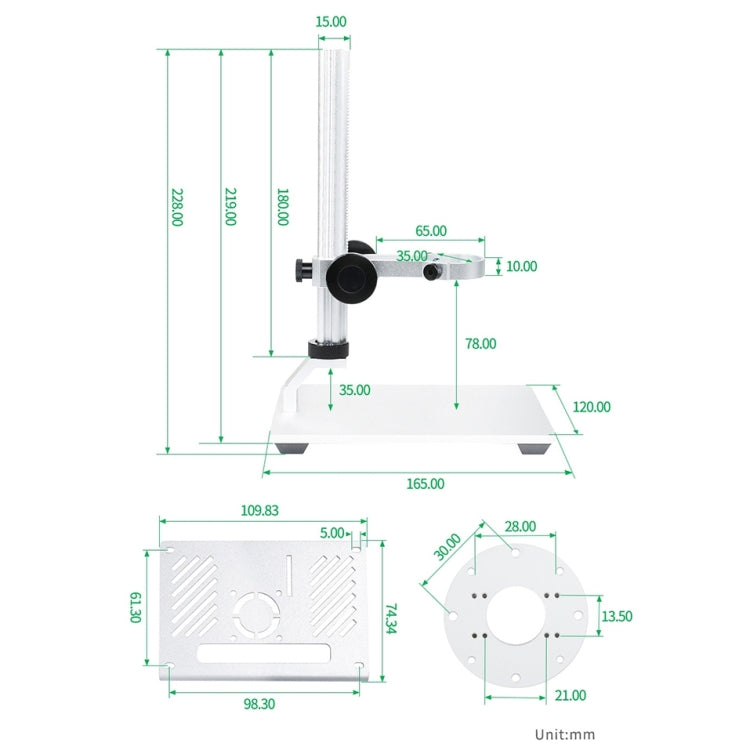

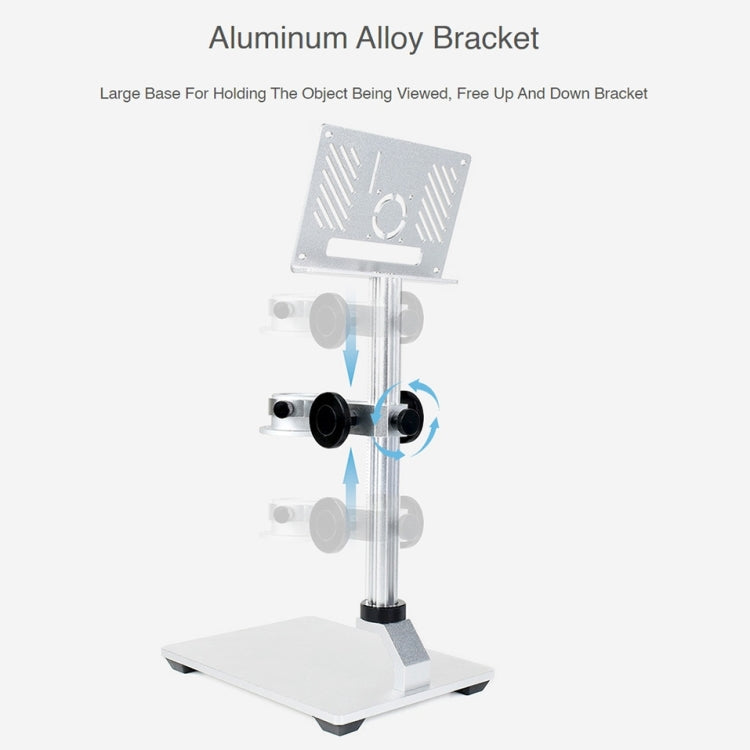

Aluminum Alloy Bracket
Large base for holding the object being viewed, free up and sown bracket

Package List
1. PI4B-4GB x 1
2. Micro SD Card 16GB x 1
3. 4.3-inch DSI LCD x 1
4. 6mm Wide Angle Lens x 1
5. Microscope Bracket Kit x 1
6. Raspberry Pi HQ Camera x 1
7. Camera holder x 1
8. 5V 4A Type C US plug power supply x 1
9. 15Pin FFC ~30cm x 1
10. Screws pack x 1
11. Card reader x 1
12. Cooling fan x 1
