Waveshare DHT11 Temperature-Humidity Sensor

• Product type: Modules Expansions Accessories
• Brand: Waveshare
• Compatibility: DHT11
• Material: Electronic components
• Key feature: Digital temperature and humidity detection
• Color/Variant: N/A
• Intended use: Everyday use
• Category: Consumer Electronics

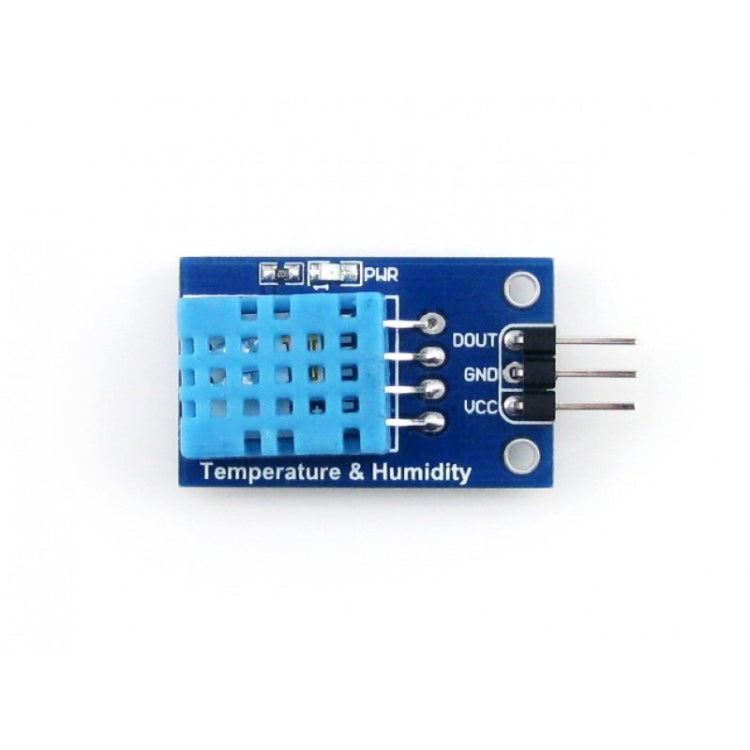

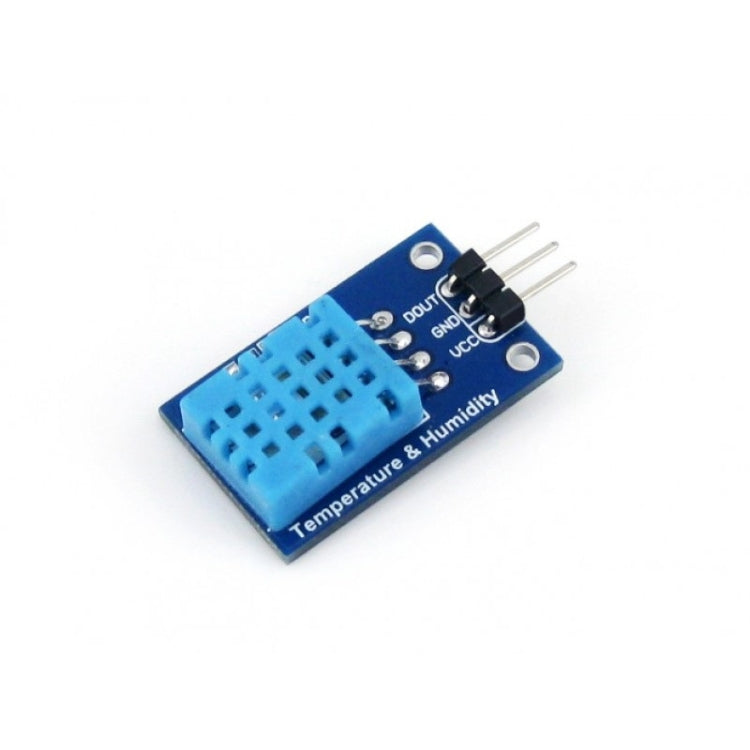

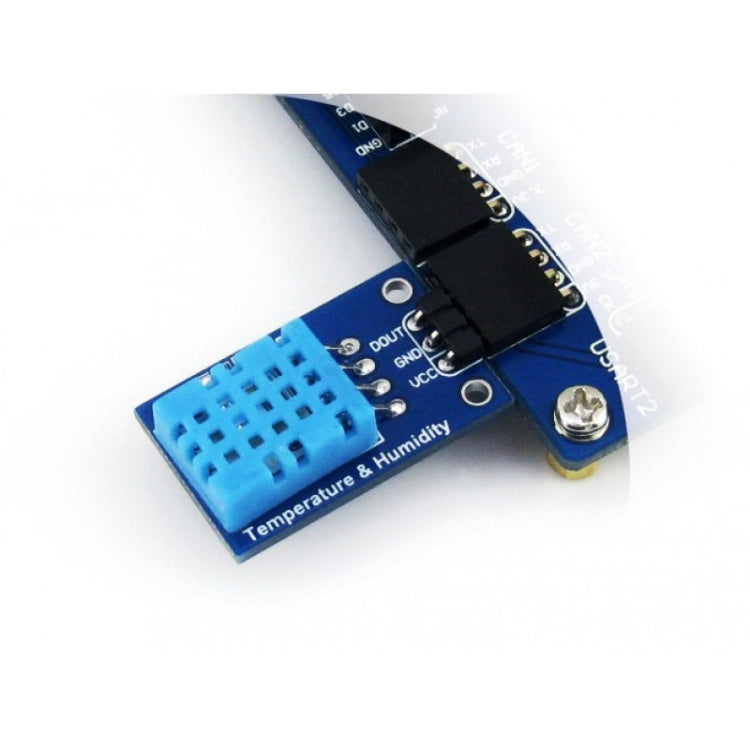

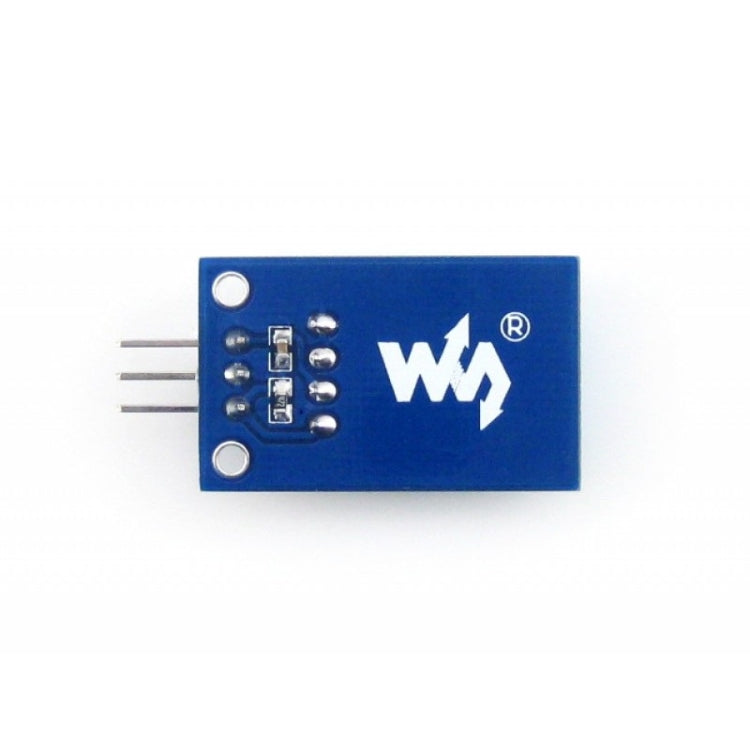

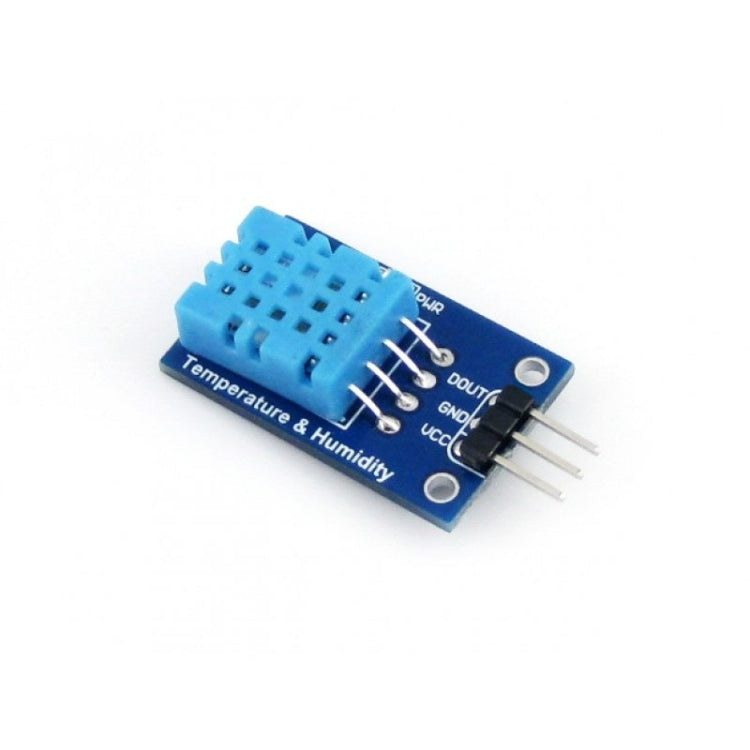

Temperature-Humidity Sensor, DHT11 OnboardOverviewThis is a calibrated digital temperature and humidity module with onboard sensor DHT11. It can be used for detecting ambient temperature and humidity, through the standard single-wire interface.Specifications1. Temperature- Resolution : 1 degree C- Accuracy : +/-2 degree C- Measuring range : 0 degree C ~ 50 degree C2. Humidity- Resolution : 1%RH- Accuracy : +/-5%RH (0~50 degree C)- Measuring range : 20%RH ~ 90%RH (25 degree C)3. Operating voltage : 3.3V ~ 5.5 V4. Recommended storage condition- Temperature : 10 degree C ~40 degree C- Humidity : 60%RH or belowApplications1. Weather station2. Humidity controller3. Test & detection deviceHow to UseIn the case of working with a MCU:1. VCC: 3.3V ~ 5.5V2. GND: GND3. DOUT: MCU.IOPackage Contents1. DHT11 Temperature-Humidity Sensor x12. 3-pin custom connector jumper wire x1
