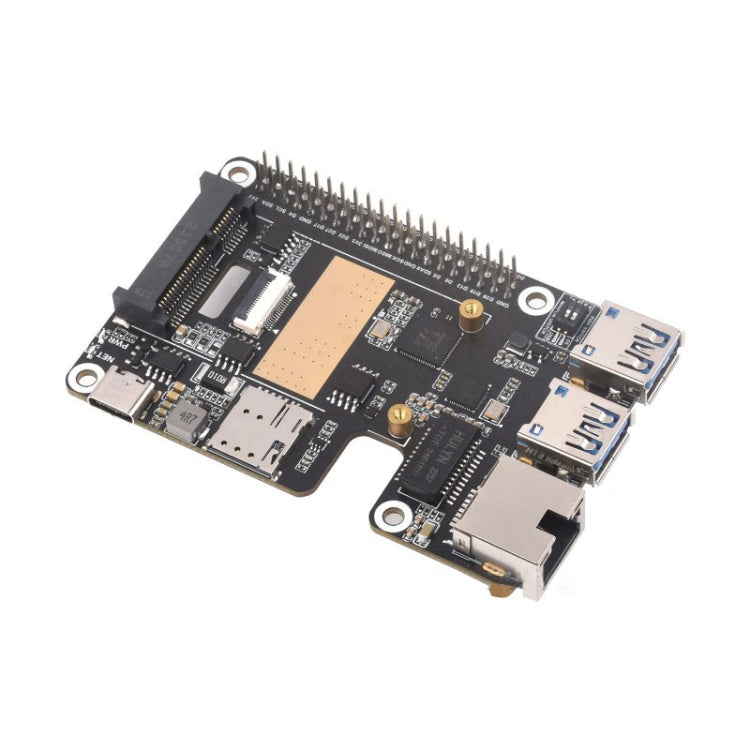

1. Designed for Raspberry Pi 5, driver-free, plug-and-play
2. Integrated EEPROM storage chip, automatically loads board configuration, simplifies development process
3. Supports Raspberry Pi 40PIN GPIO interface power supply
4. Onboard MiniPCle interface, adaptable to SIM7600G-H-PCIE, EG25-G mPCle series 4G modules
5. Onboard PCle interface, can be directly connected to Raspberry Pi 5 via 16PIN cable

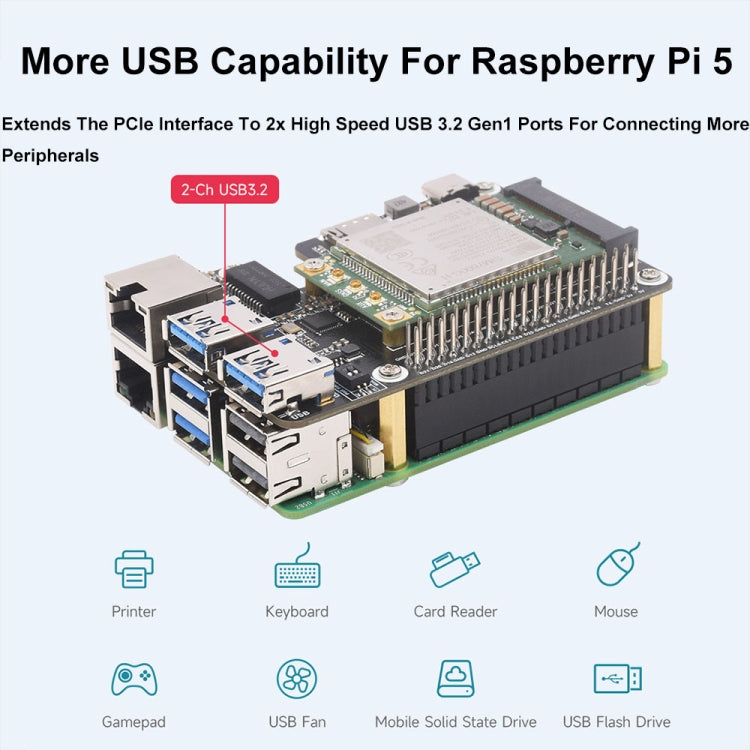

6. PCle to 2-way USB 3.2 Gen1 high-speed interface, convenient for access to more peripheral devices
7. Equipped with RT8153B high-performance Gigabit Ethernet chip
8. Support Raspberry Pi OS/Ubuntu/OpenWRT and other systems
9. Support 4G/3G/2G in global frequency bands
10. Support GNSS positioning
11. Onboard power monitoring chip and EEPROM, real-time control of power status

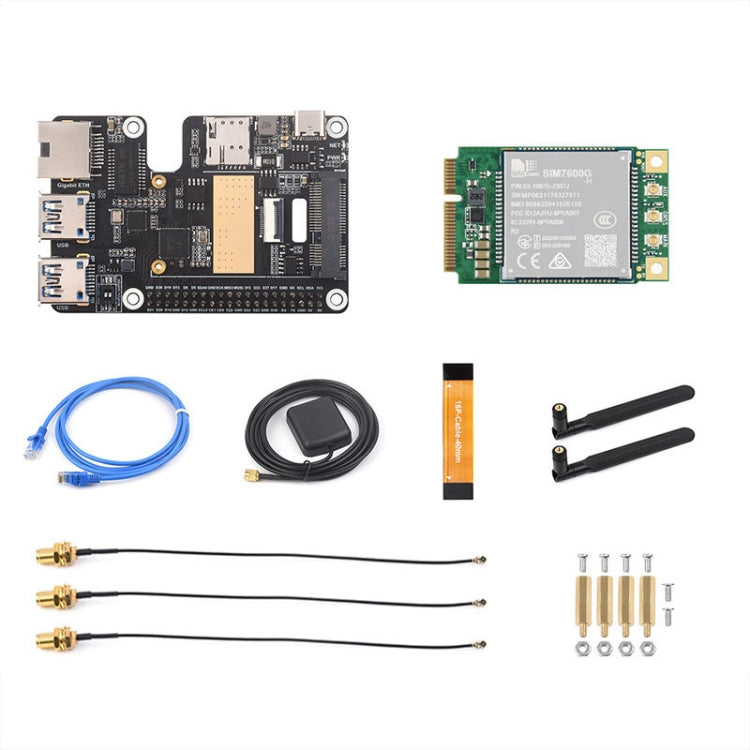

Packing list:
-Expansion board x 1
-4G module x 1
-GPS antenna x 1
-Flat cable x 1
-Network cable x 1
-Paddle antenna x 2
Adapter cable x 3
-Screw pack x 1
