Waveshare General 1.5 inch 128x128 16-bit High Color RGB OLED Display Module
Waveshare General 1.5 inch 128x128 16-bit High Color RGB OLED Display Module
Sale
Sold out
Pre-order
Regular price
R 449.00
Regular price
Sale price
R 449.00
Unit price
per
Ships in 1-3 Days
Estimated delivery:
✓ Delivered Duty Paid: No additional customs charges. All duties and taxes are included.
Couldn't load pickup availability
Guaranteed Safe Checkout
Guaranteed Safe Checkout
Description
• Product type: Modules Expansions Accessories
• Brand: Waveshare
• Compatibility: Raspberry Pi, Arduino, STM32
• Material: Electronic components
• Key feature: 128x128 high resolution, 65K colors
• Color/Variant: RGB
• Intended use: Everyday use
• Category: Consumer Electronics

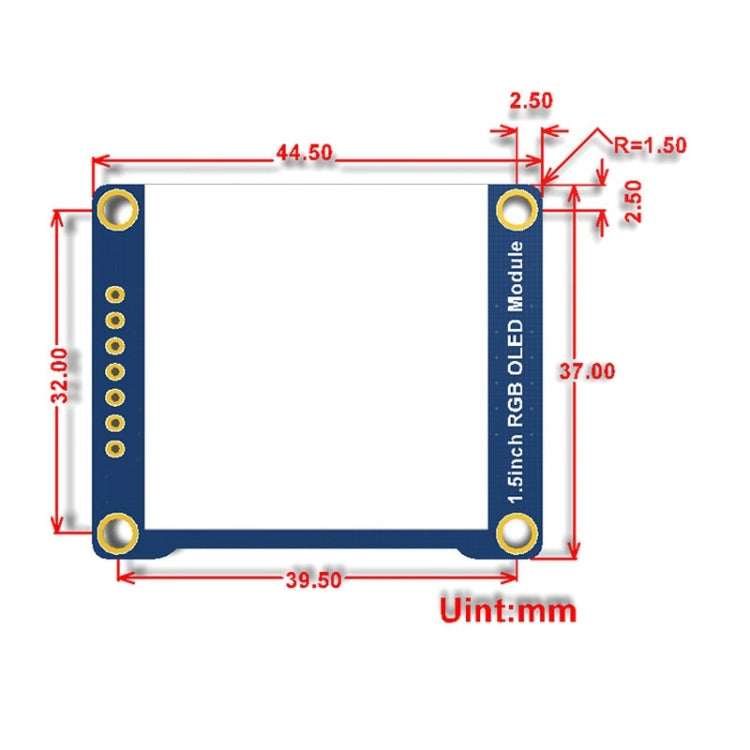

1.5 inch RGB OLED display module, 128x128 pixels, 16-bit high color, SPI interfaceOverviewThis is a general RGB OLED display Module, 1.5inch diagonal, 128x128 pixels, 16-bit high color (65K colors), with embedded controller, communicating via SPI interface.Features1. 128x128 high resolution, 65K colors, clearly displays colorful images2. Support 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor3. Come with development resources and manual (examples for Raspberry Pi/Arduino/STM32)Specifications1. Driver: SSD13512. Interface: 4-wire SPI, 3-wire SPI3. Display color: RGB, 65K colors4. Resolution: 128x1285. Viewing angle: >160 degree6. Operating voltage: 3.3V / 5V7. Dimension: 44.5 x 37 (mm)Package Contents1. 1.5 inch RGB OLED Module x12. PH2.0 7Pin x1
• Brand: Waveshare
• Compatibility: Raspberry Pi, Arduino, STM32
• Material: Electronic components
• Key feature: 128x128 high resolution, 65K colors
• Color/Variant: RGB
• Intended use: Everyday use
• Category: Consumer Electronics
1.5 inch RGB OLED display module, 128x128 pixels, 16-bit high color, SPI interfaceOverviewThis is a general RGB OLED display Module, 1.5inch diagonal, 128x128 pixels, 16-bit high color (65K colors), with embedded controller, communicating via SPI interface.Features1. 128x128 high resolution, 65K colors, clearly displays colorful images2. Support 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor3. Come with development resources and manual (examples for Raspberry Pi/Arduino/STM32)Specifications1. Driver: SSD13512. Interface: 4-wire SPI, 3-wire SPI3. Display color: RGB, 65K colors4. Resolution: 128x1285. Viewing angle: >160 degree6. Operating voltage: 3.3V / 5V7. Dimension: 44.5 x 37 (mm)Package Contents1. 1.5 inch RGB OLED Module x12. PH2.0 7Pin x1
