Waveshare LuckFox Pico Plus RV1103 Linux Micro Development Board, With Ethernet Port without Header
Waveshare LuckFox Pico Plus RV1103 Linux Micro Development Board, With Ethernet Port without Header
Sale
Sold out
Pre-order
Regular price
R 399.00
Regular price
Sale price
R 399.00
Unit price
per
Available to order
Processing time: 1-3 days
Couldn't load pickup availability
Estimated delivery: 6-13 working days
Ships from China (Standard) • Import Taxes & Duties Included
Description

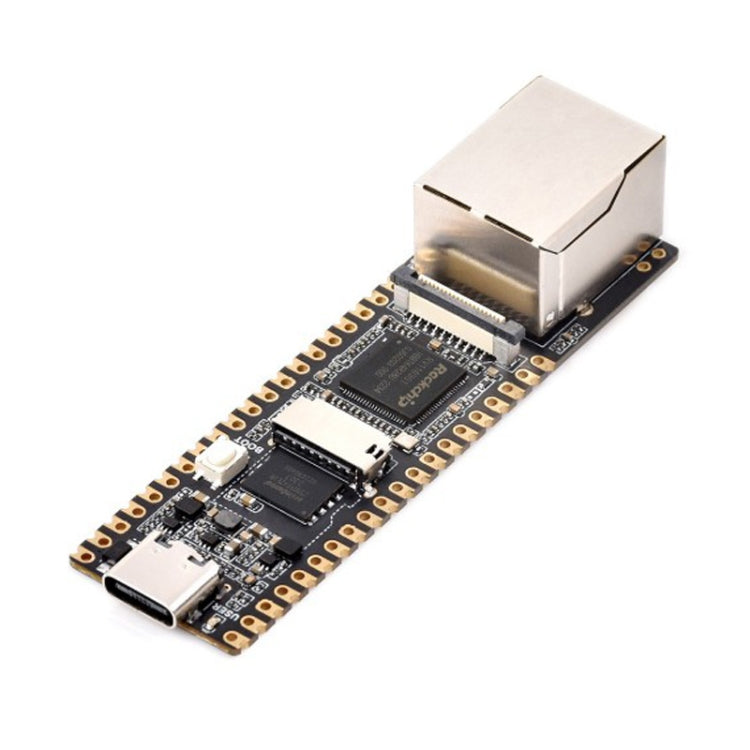

The Waveshare LuckFox Pico Plus RV1103 is a Linux micro development board designed for embedded applications. It is suitable for projects requiring image processing and AI functionalities.
- Processor: Cortex A7 @ 1.2GHz
- RISC-V MCU for low power consumption and fast startup
- NPU: 0.5 TOPS, supports int4, int8, int16 mixed quantization
- ISP: Supports 4 megapixels, HDR, WDR, and multi-level noise reduction
- Memory: 64MB DDR2
- USB: USB 2.0 host/device

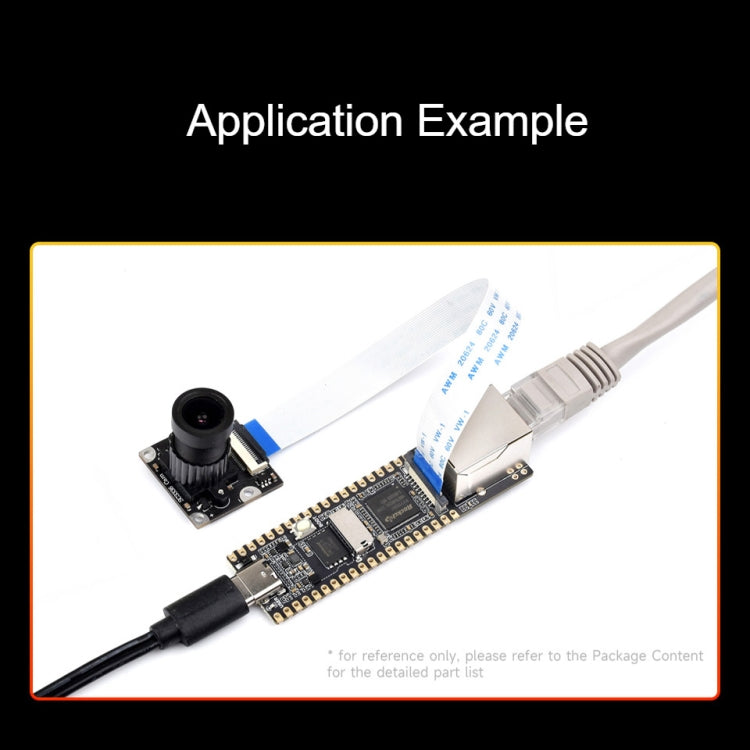

- Camera: MIPI CSI 2-lane

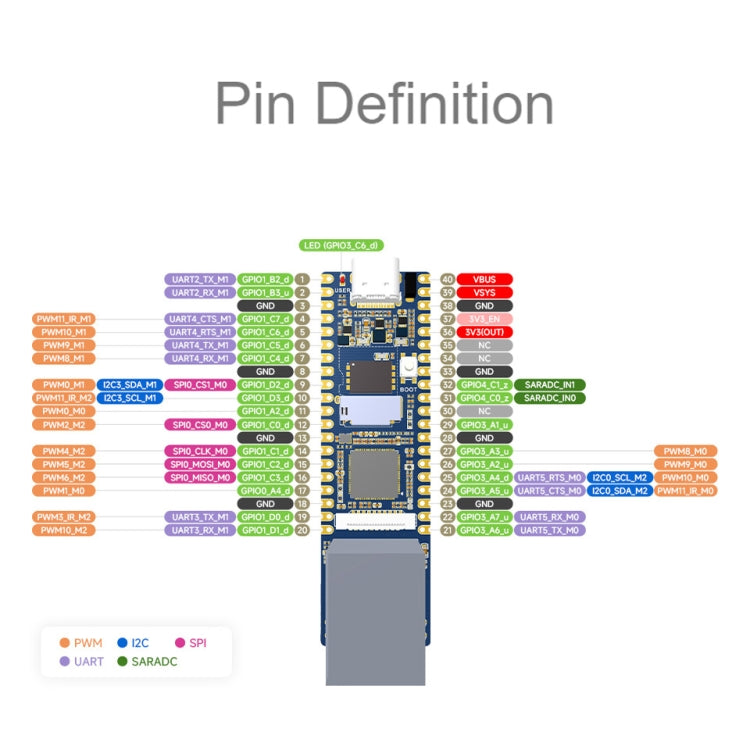

- GPIO: 25 GPIO pins
- Ethernet: 10/100M Ethernet controller with embedded PHY
- Storage: SPI NAND FLASH (128MB)
- Product dimensions: 72 x 21 mm
- Weight: 13g
- Integrated audio codec and MAC PHY
- Fast image capture in 250ms
- Intelligent encoding mode for efficient bit rate management
