Waveshare MCP23017 IO Expansion Board, Expands 16 I/O Pins
Waveshare MCP23017 IO Expansion Board, Expands 16 I/O Pins
Spread the cost
No lump sum. No stress. Pick a repayment term that works for your budget — and keep your cash flow intact.
- R96.74/mo 3 months
- R48.92/mo 6 months
- R25.82/mo 12 months
- From R96.74/month over 3 months, or as low as R25.82/month over 12. Total repayable over 12 months: R309.84. Interest at 20.75% p.a. applies.
- Quick online application — most people get a decision within minutes. Your first payment only kicks in 30 days after you buy.
- Mobicred is a registered South African credit provider (NCR reg. NCRCP7852). Available to SA residents aged 18+ with a valid ID and bank account.
At checkout, simply select Mobicred as your payment method.
Continue to checkoutDon't have Mobicred yet? Apply free — takes about 2 minutes →
Mobicred is a revolving credit facility provided by Retail Capital (Pty) Ltd, a registered credit provider (NCR reg. NCRCP7852) in terms of the National Credit Act 34 of 2005. Credit is subject to approval and an affordability assessment. Interest rate: 20.75% p.a. compounded monthly (1.7292%/month). Available to South African residents aged 18 and older. Full terms & conditions apply.
Import Taxes & Duties Included
Delivery: 6-13 working days
Available To Order CHNThis item is shipped from China. Learn More
Processing time: 1-3 days
Couldn't load pickup availability
Ships from International Fulfilment Center (Standard)
Description

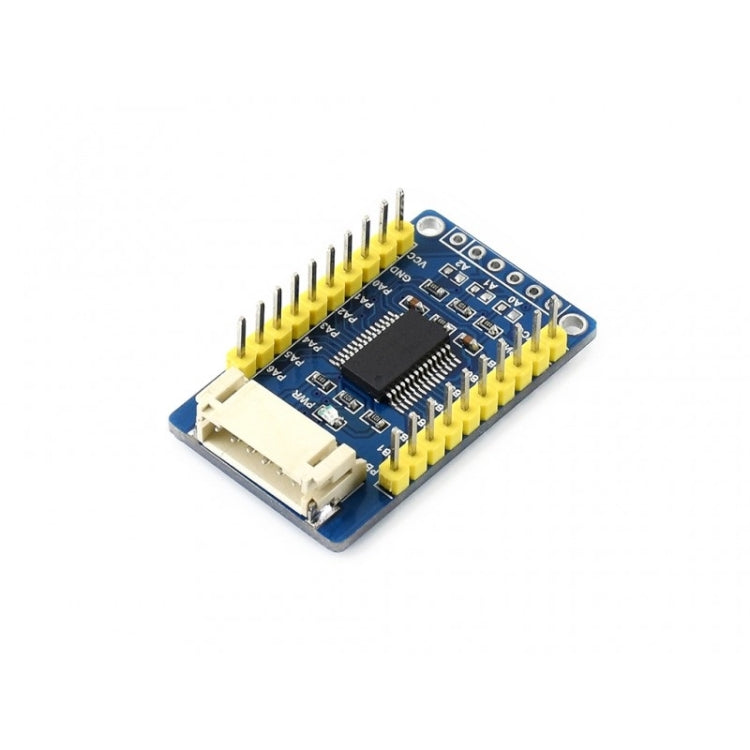

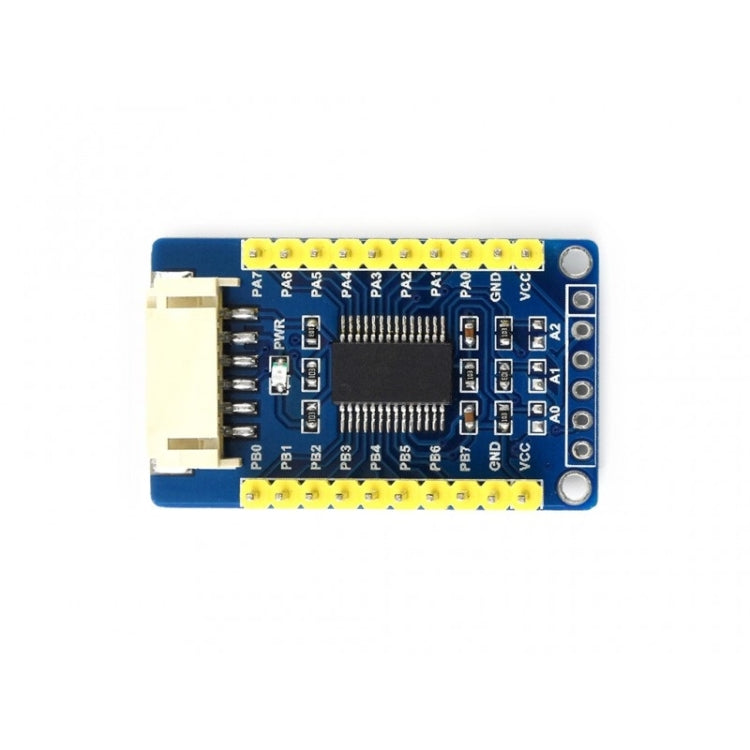

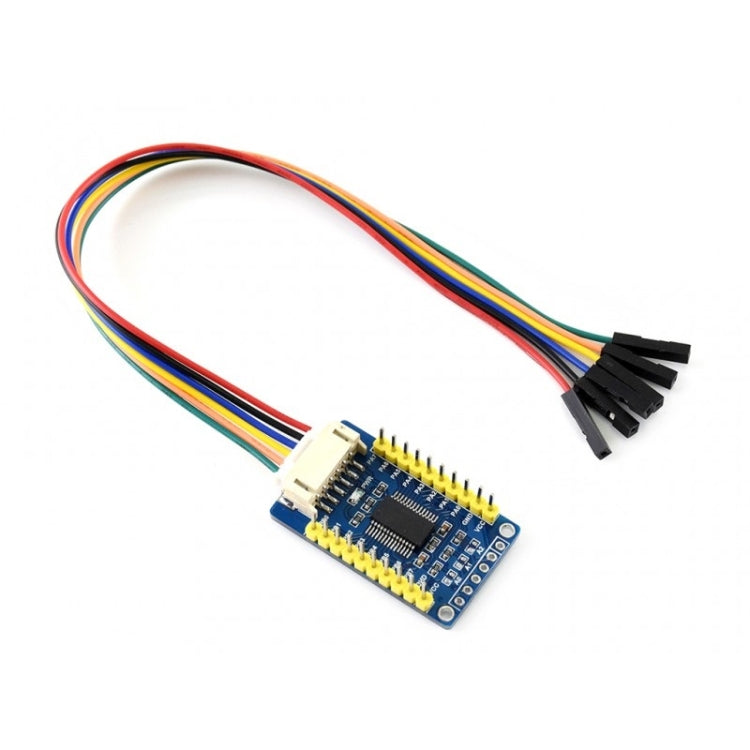

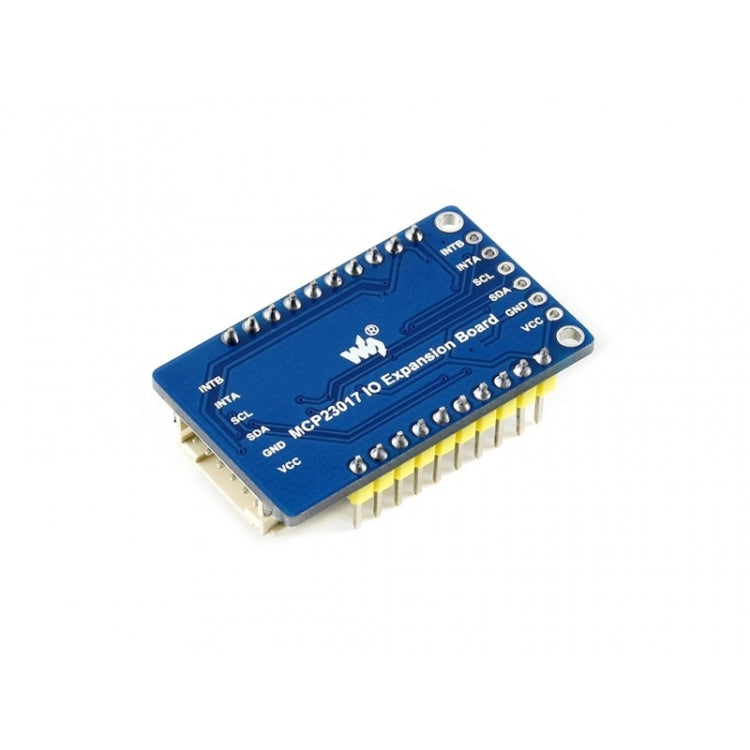

The Waveshare MCP23017 IO Expansion Board is an electronics module that expands 2 signal pins into 16 I/O pins. It is suitable for applications requiring multiple I/O connections, such as interfacing with microcontrollers like Raspberry Pi, Arduino, and STM32.
- Product Type: Modules Expansions Accessories
- Compatibility: MCP23017
- Material: Not specified
- Key Feature: Expands 2 signal pins as 16 I/O pins
- Operating Voltage: 5V/3.3V
- Interface: I2C
- Interrupt Pins: INTA, INTB
- Expansion I/Os: 16
- Dimension: 38mm × 23mm
- Mounting Hole Size: 2.0mm
- I2C Address Configurable: Yes, by shorting the A0/A1/A2 jumpers

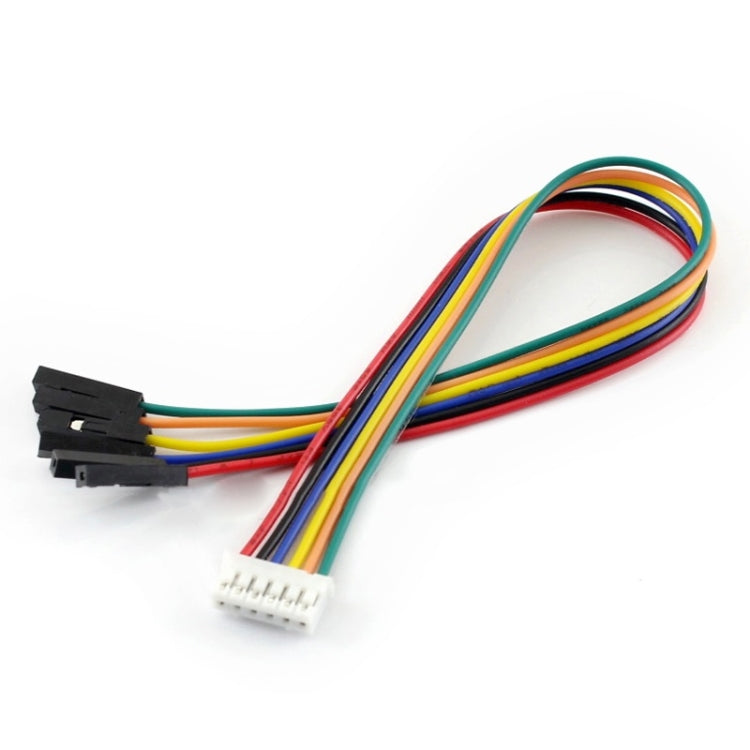

- Connector Options: PH2.0 terminal and/or solder pads
- Onboard Voltage Translator: Yes, compatible with 3.3V/5V levels
- Development Resources: Includes manual and examples for Raspberry Pi, micro:bit, Arduino, STM32
