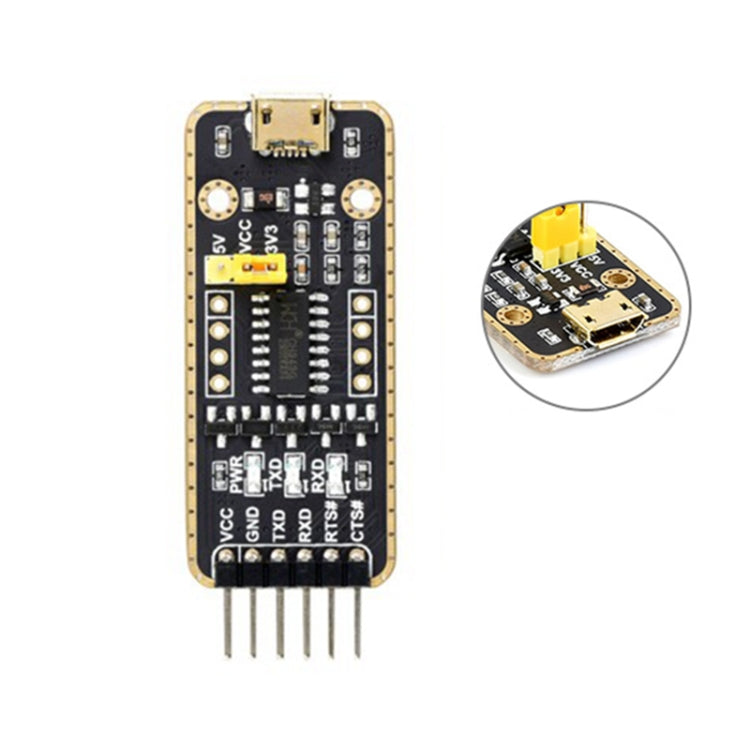

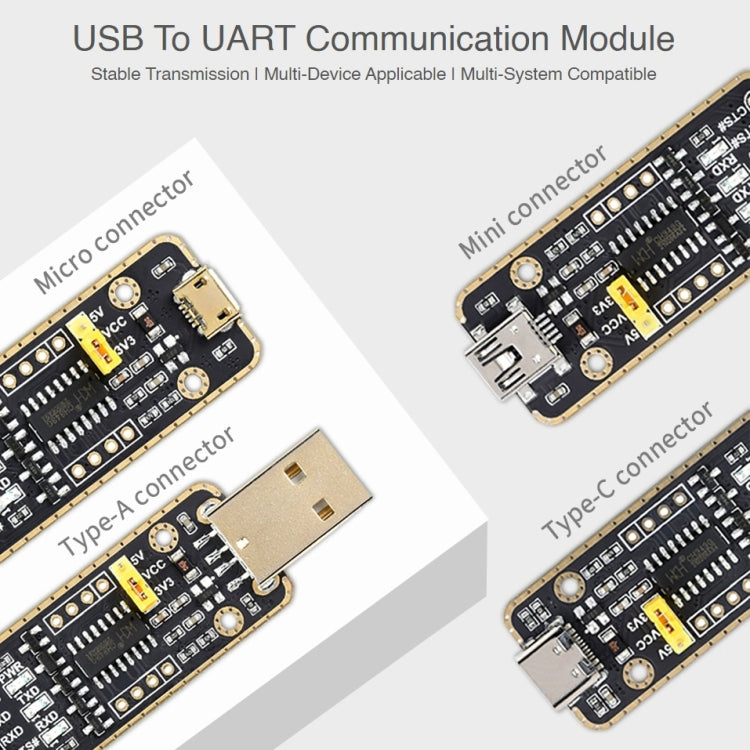

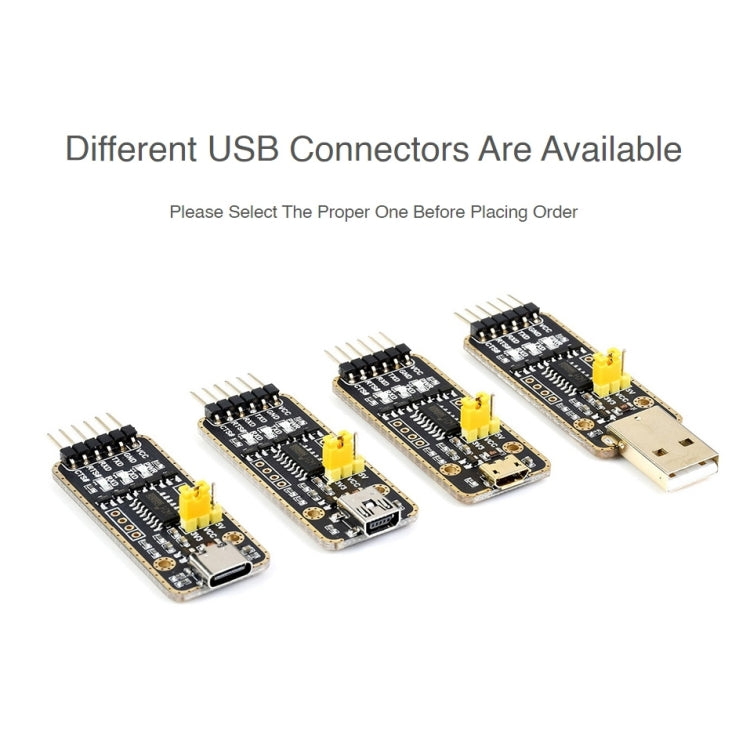

Waveshare Micro USB to UART High Band Rate Transmission Module Connectors

• Product type: Other Accessories
• Brand: WAVESHARE
• Compatibility: UART devices
• Material: Durable construction
• Key feature: High data rate support
• Color/Variant: Black
• Intended use: Everyday use
• Category: Electronics Module

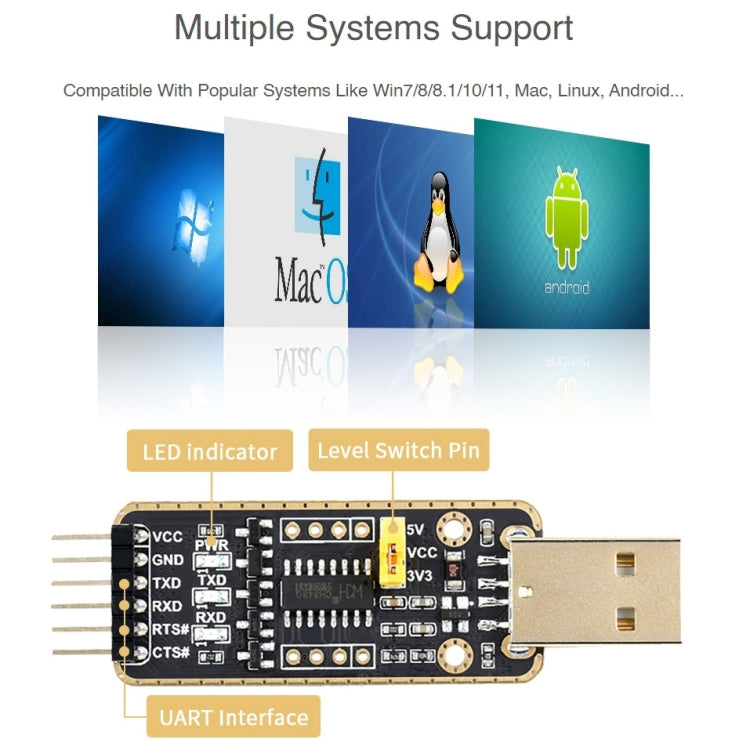

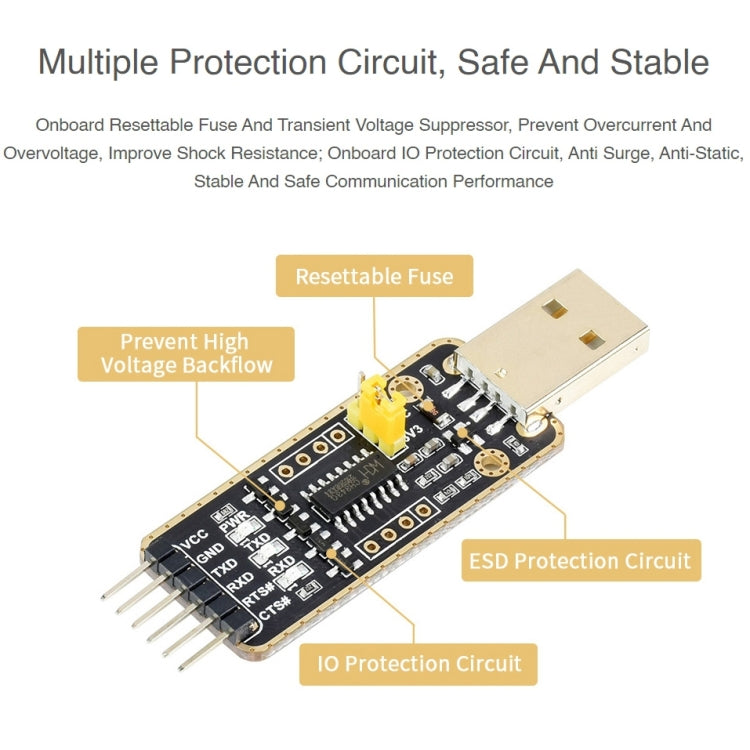

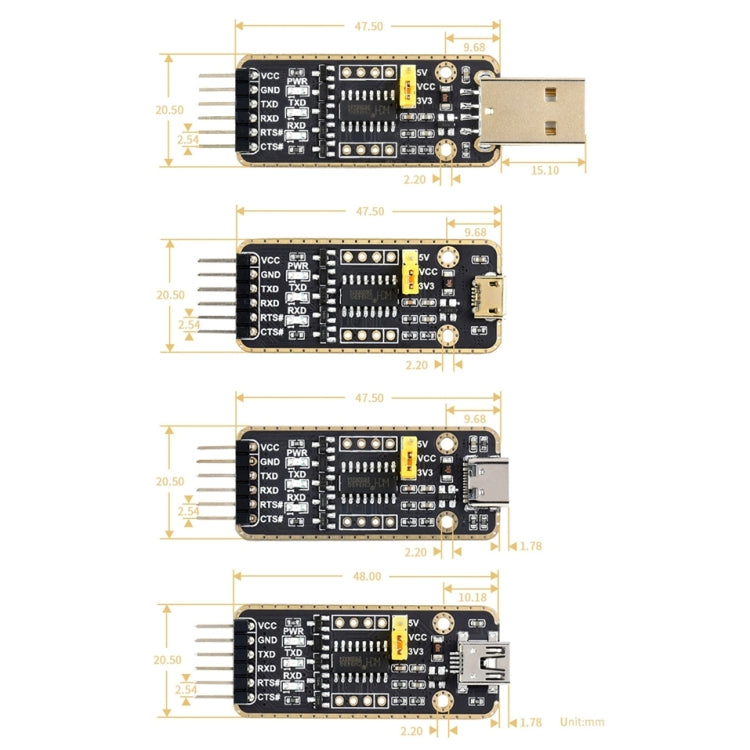

Features1. Adopt new version CH343G chip. Compared with CH340G, it supports higher data rate (up to 6Mbps) and more serial port IO levels (5V / 3.3V / 2.5V / 1.8V) 2. Support Mac, Linux, Android, Windows 7/8/8.1/10/11 3. Onboard resettable Fuse and Transient Voltage Suppressor, anti-overcurrent and anti-overvoltage, anti-surge, anti-static, improve shock resistance, stable and safe communication performance 4. Onboard IO protection circuits, anti-surge, anti-static, stable and safe communication performance 5. Onboard 3.3V and 5V TTL level switch pins for selecting TTL communication level 6. Support 3.3V/5V output (the module is powered by USB, and the onboard jumper should be shorted to 3.3V or 5V accordingly) 7. Adopt double-sided black immersion gold process, which is durable and has a good lookIndictor Description1. PWR: Power indicator, turn on when the voltage is detected from USB interface 2. RXD: Receiving indicator, turn on when data is sent back from the device interface 3. TXD: Sending indicator, turn on when data is sent from USBPinouts Definition1. VCC: 5V or 3.3V output for external device (configured by jumper) 2. GND: Ground 3. TXD: Connects to MCU.RXD 4. RXD: Connects to MCU.TXD 5. RTS: Connects to MCU.CTS 6. CTS: Connects to MCU.RTSSpecifications1. Host interface: USB 2. Device interface: UART 3. Communication range: 50bps ~ 6Mbps 4. USB device interface: Micro USB 5. Protection: resettable Fuse, ESD protection 6. UART interface connector: 6-pin right-angle pinheader 7. Protection: IO protection diode
