Description

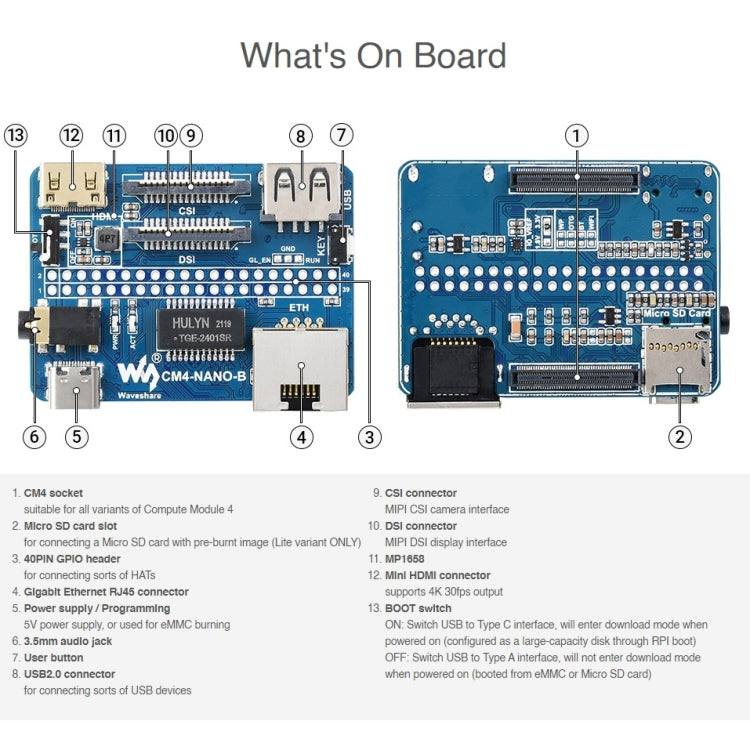

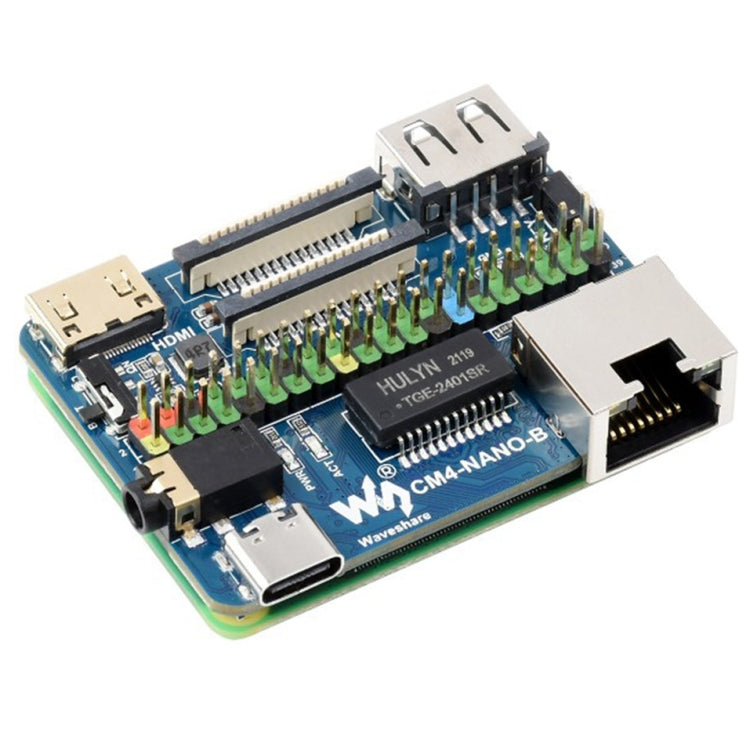

The Waveshare Nano Base Board B is a module expansion accessory designed for the Raspberry Pi CM4. It is suitable for evaluating the Raspberry Pi CM4 or integrating it into end products.
- Product Type: Module Expansion Accessory
- Compatibility: Raspberry Pi CM4

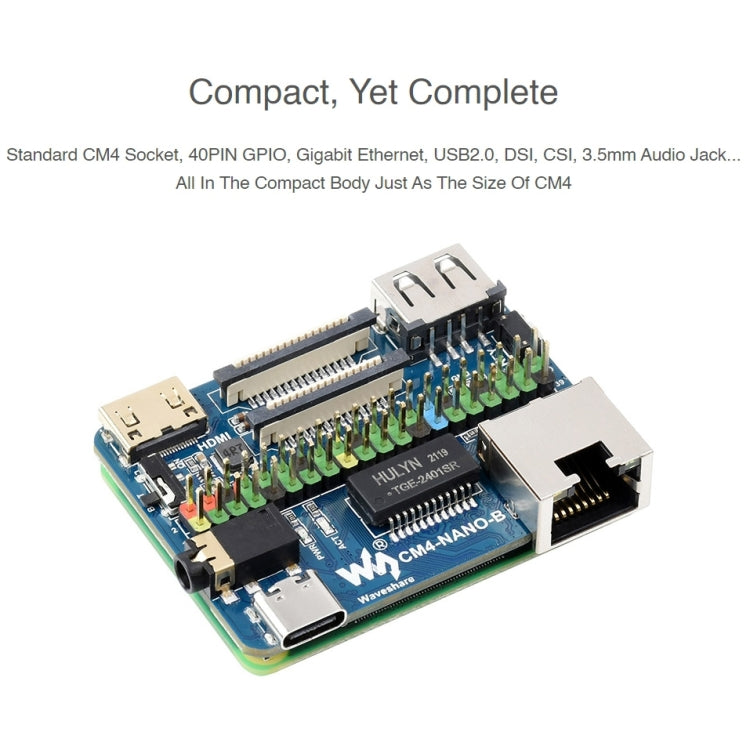

- Key Feature: Compact design
- CM4 Socket: Suitable for all variants of Compute Module 4
- Networking: Gigabit Ethernet RJ45 connector
- Connector: Raspberry Pi 40PIN GPIO header x 1
- USB: USB 2.0 Type A connector x 1
- Display: MIPI DSI port x 1 (15pin 1.0mm FPC connector)
- Camera: MIPI CSI-2 port x 1 (15pin 1.0mm FPC connector)
- Video: Mini HDMI port x 1, supports 4K 30fps output
- Audio: 3.5mm jack

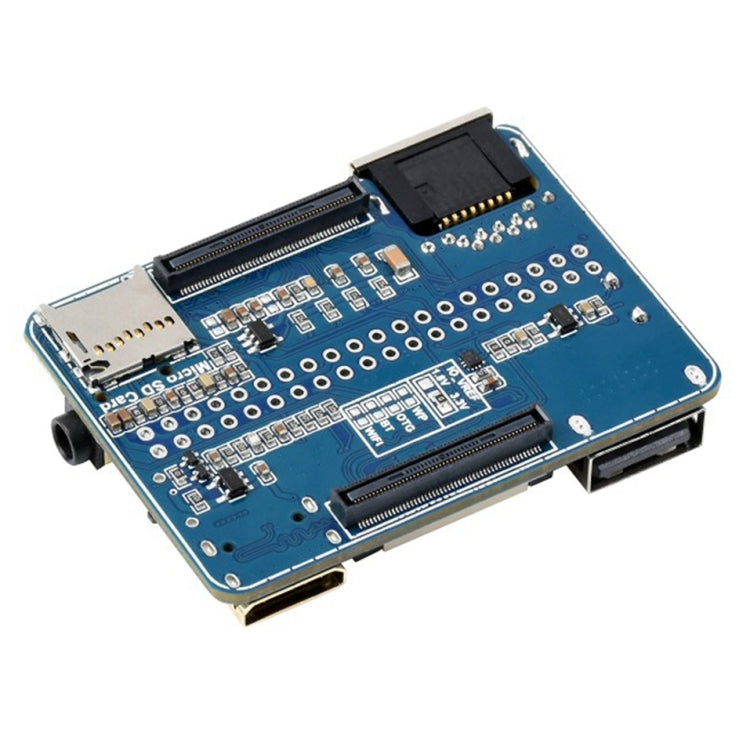

- Storage: Micro SD card socket for Compute Module 4 Lite (without eMMC) variants
- Power Input: 5V

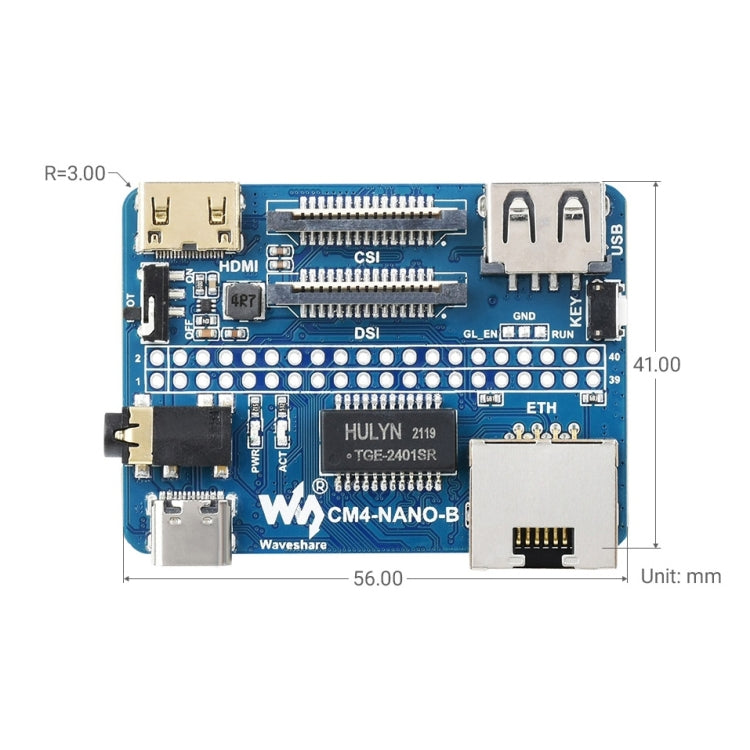

- Dimensions: 56 x 41mm
- Package List: CM4-NANO-B x 1, 2*20PIN color-coded straight pinheader x 1
