Description

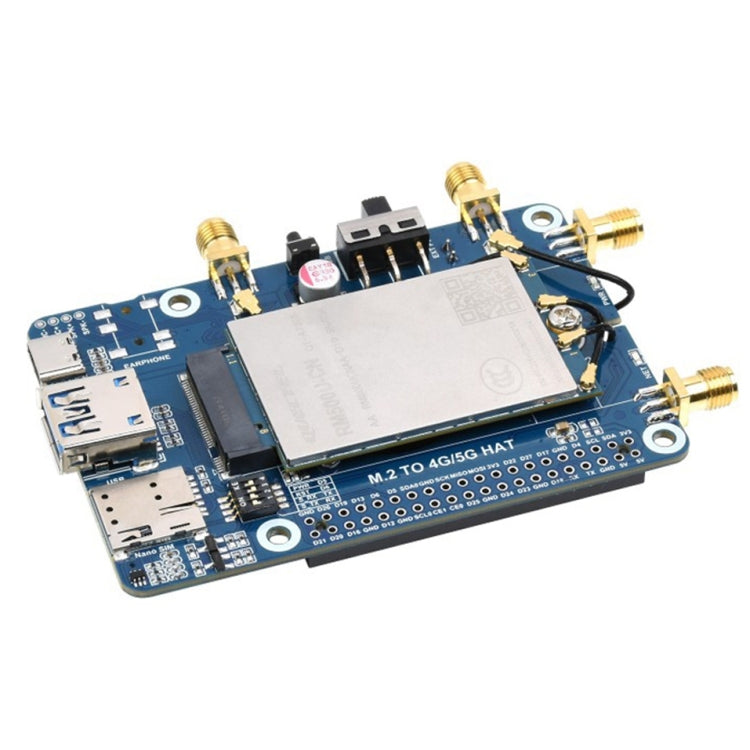

The Waveshare RM500U-CN 5G HAT is a multi-band module board designed for high-speed 5G communication. It is suitable for use with Raspberry Pi, enabling advanced connectivity in various applications.
- Core module: RM500U-CN
- Network support: 5G and LTE-A multi network types
- 5G networking: Supports 5G NSA and SA
- Protocols: Extensive network protocols with multi drivers and software support
- Operating systems: Compatible with Windows, Linux, and Android
- USB interface: USB 3.1 port (USB 2.0 compatible)

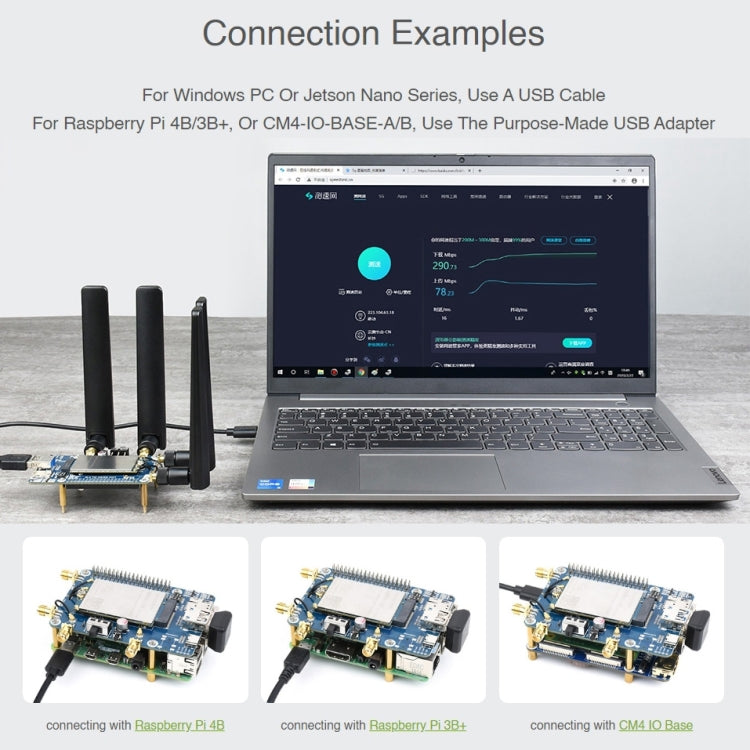

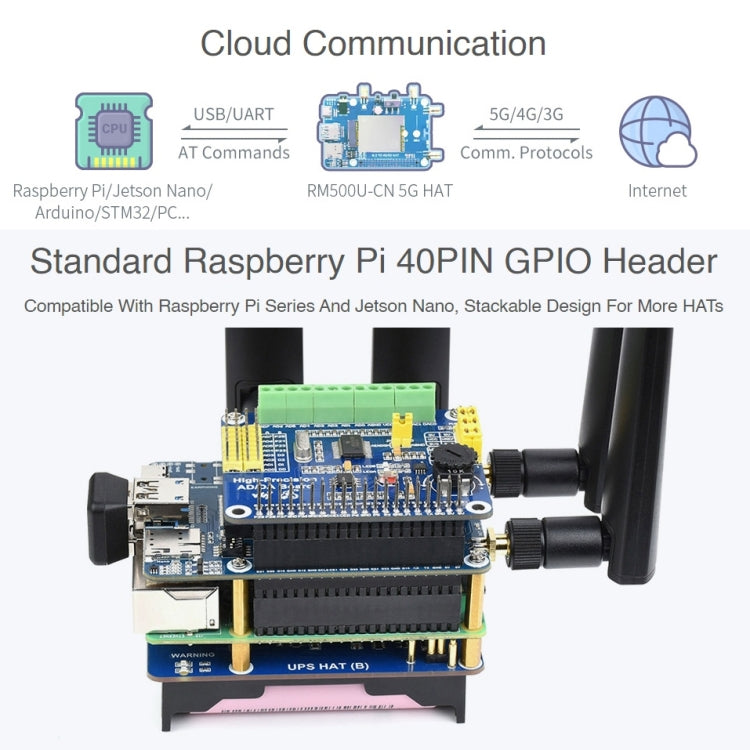

- Host compatibility: Connects to PC, Raspberry Pi, or Jetson Nano
- M.2 slot: Standard M.2 B KEY slot for 5G modules (RM500U-CN / RM500Q-CN / RM500Q-GL series)
- Control pins: Onboard UART, PWR, and RST control pin
- Voltage level translator: Built-in, enabled via DIP switch
- Power supply: Onboard USB-C connector for standalone power supply
- Power supply control: Onboard power supply on/off switch, reset button, and LED indicator
- SIM card slots: 2x SIM card slot, dual card single standby
- Power supply circuit: High efficiency, up to 3A output current
- Frequency bands: 5G NR: n41, n78, n79; LTE: B1, B2, B3, B5, B7, B8, B20, B28; UMTS: B1, B2, B5, B8
- Data rates: 5G SA Sub-6: Downlink 2 Gbps; uplink 1 Gbps; 5G NSA Sub-6: Downlink 2.2 Gbps; uplink 575 Mbps; LTE: Downlink 600 Mbps; uplink 150 Mbps; UMTS: Downlink 42.2 Mbps; uplink 11 Mbps
- Operating temperature: -30°C to +75°C
- Extension temperature: -40°C to +85°C
- Module dimensions: 30.0 x 52.0 x 2.3 mm
- Module weight: 8.9 g
- Package contents: M.2 TO 4G/5G HAT, RM500U-CN, 4 antennas, 4 IPEX adapter cables, 2*20PIN pin header, 5V 3A Type-C power adapter, dual plug USB3.0 cable, USB3.0 adapter, USB2.0 adapter, 4 SMA protective caps, screws pack
