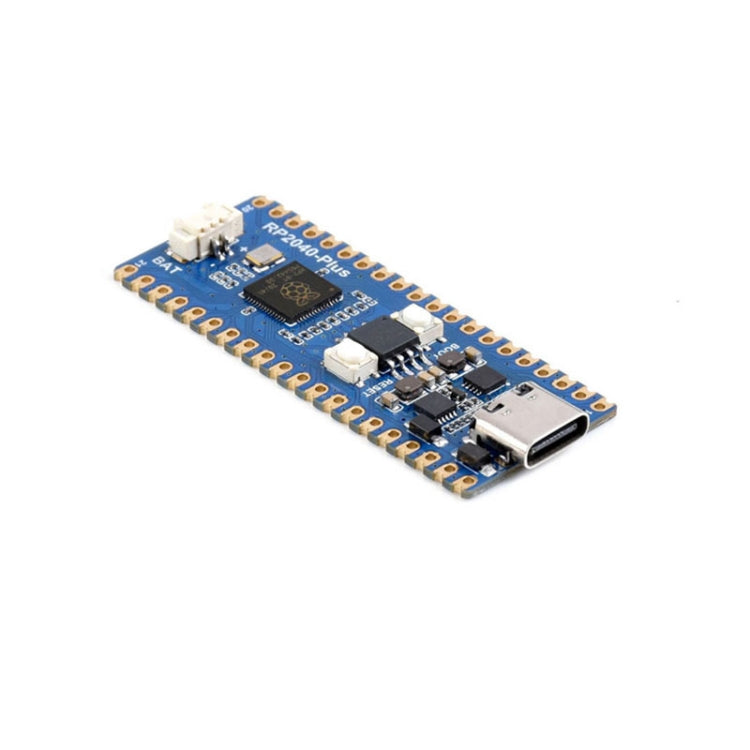

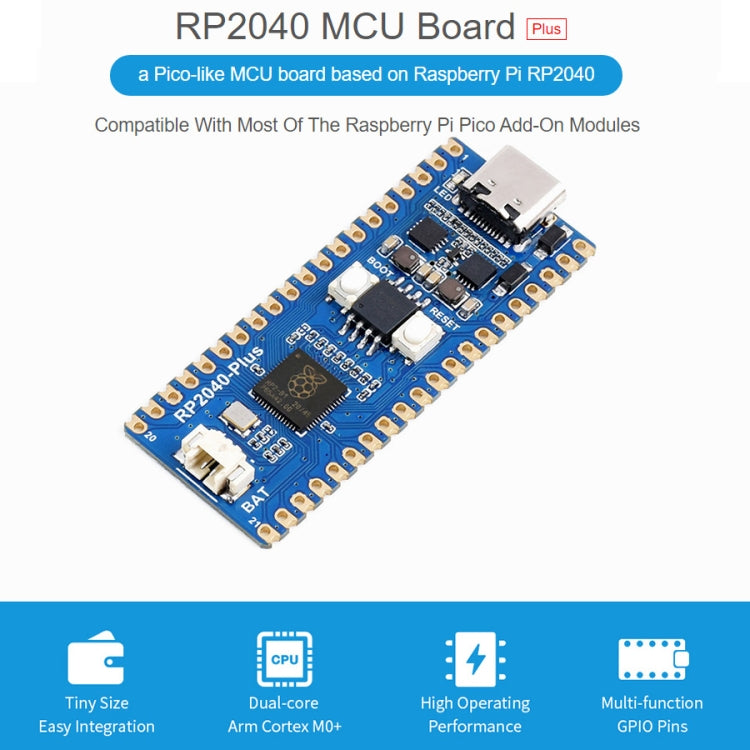

Waveshare RP2040-Plus Pico-like MCU Board Based on Raspberry Pi MCU RP2040, without Pinheader

The Waveshare RP2040-Plus is a microcontroller board designed for electronics projects. It is suitable for applications requiring additional Flash memory and a modern USB-C connector.

• Product Type: Modules Expansions Accessories
• Compatibility: Raspberry Pi Pico
• Material: Electronic components
• Microcontroller: RP2040 designed by Raspberry Pi
• Processor: Dual-core Arm Cortex M0+ running up to 133 MHz
• SRAM: 264KB
• Onboard Flash Memory: 4MB
• Connector: USB-C
• Recharge Header: Lithium battery recharge/discharge header
• DC-DC Chip: TPS63000, high efficiency DC-DC buck-boost chip, 1.8A current switch
• Castellated Module: Allows soldering direct to carrier boards
• USB Support: USB 1.1 with device and host support
• Power Modes: Low-power sleep and dormant modes
• Programming: Drag-and-drop programming using mass storage over USB

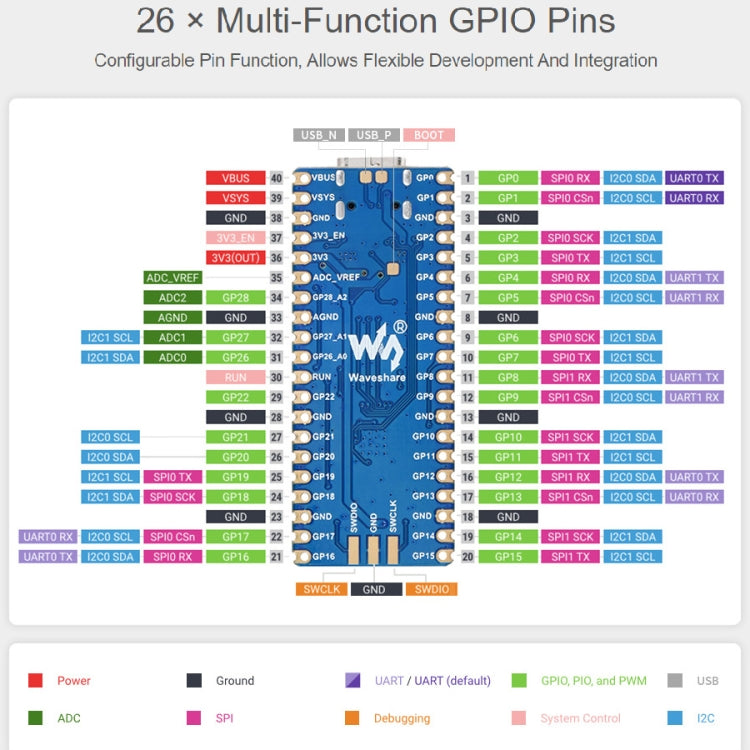

• GPIO Pins: 26 x multi-function GPIO pins
• Communication Interfaces: 2 x SPI, 2 x I2C, 2 x UART, 3 x 12-bit ADC, 16 x controllable PWM channels
• Clock and Timer: Accurate clock and timer on-chip
• Temperature Sensor: Integrated temperature sensor
• Floating-Point Libraries: Accelerated floating-point libraries on-chip
• Programmable I/O: 8 x Programmable I/O (PIO) state machines for custom peripheral support
