Description

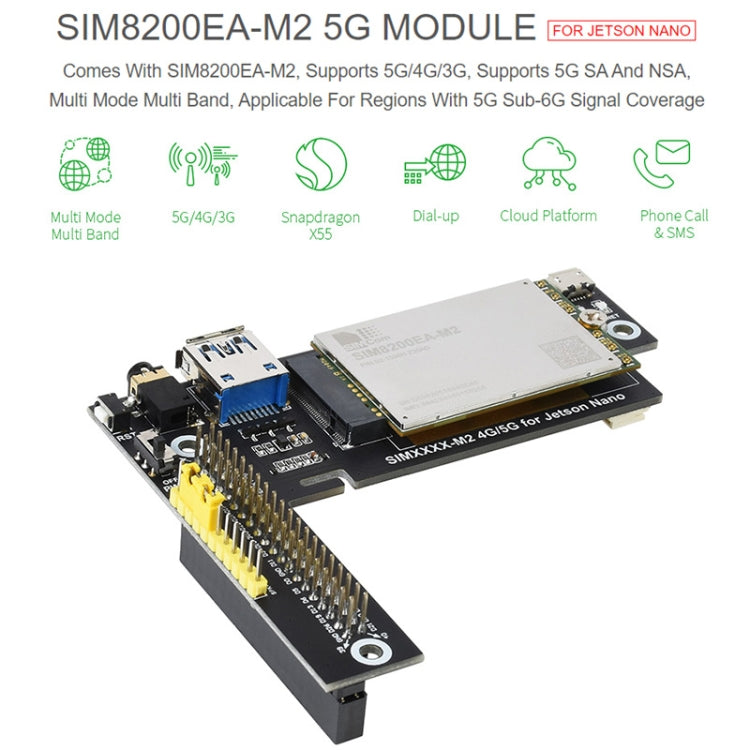

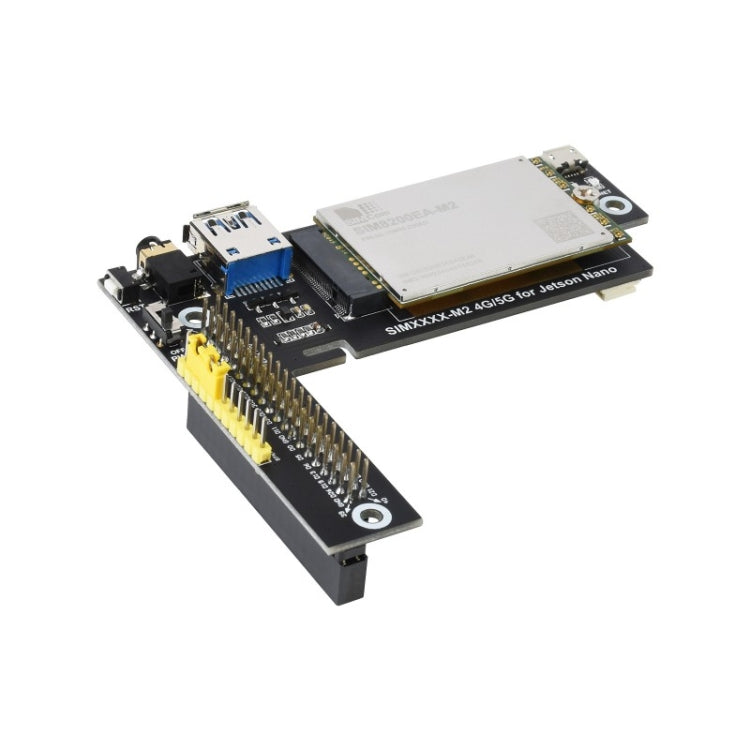

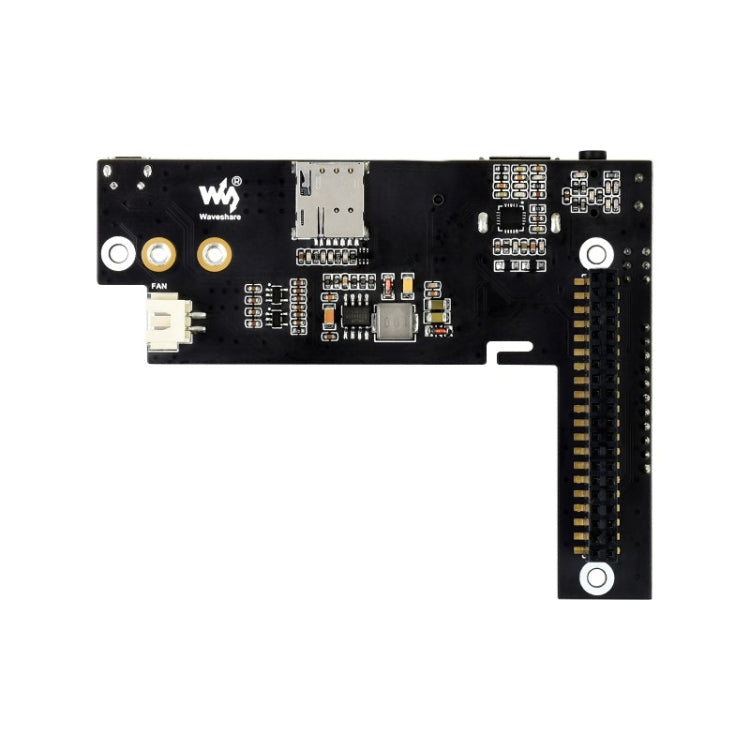

The Waveshare SIM8200EA-M2 is a 5G communication module designed for Jetson Nano. It enables high-speed data transmission and supports various applications requiring 5G connectivity.
- Module Type: 5G/4G/3G communication module
- Core Module: SIM8202G-M2 based on Qualcomm Snapdragon X55 platform

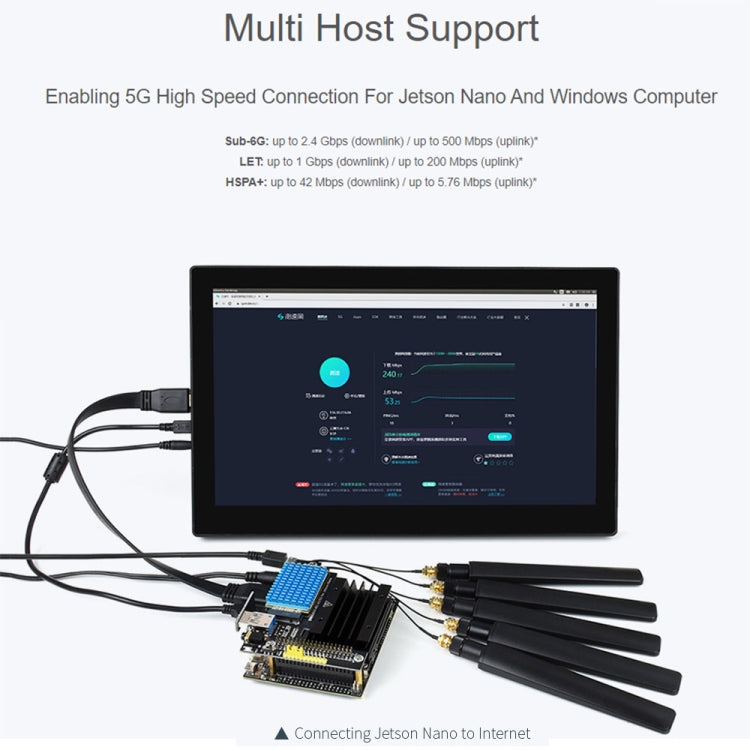

- Data Rate: Up to 2.4 Gbps (DL) / 500 Mbps (UL)
- Frequency Bands: Supports multiple bands including Sub-6G (SA and NSA), LTE-FDD, LTE-TDD, and WCDMA
- Operating Systems: Compatible with Windows, Linux, and Android
- Power Supply: 5V, 3A

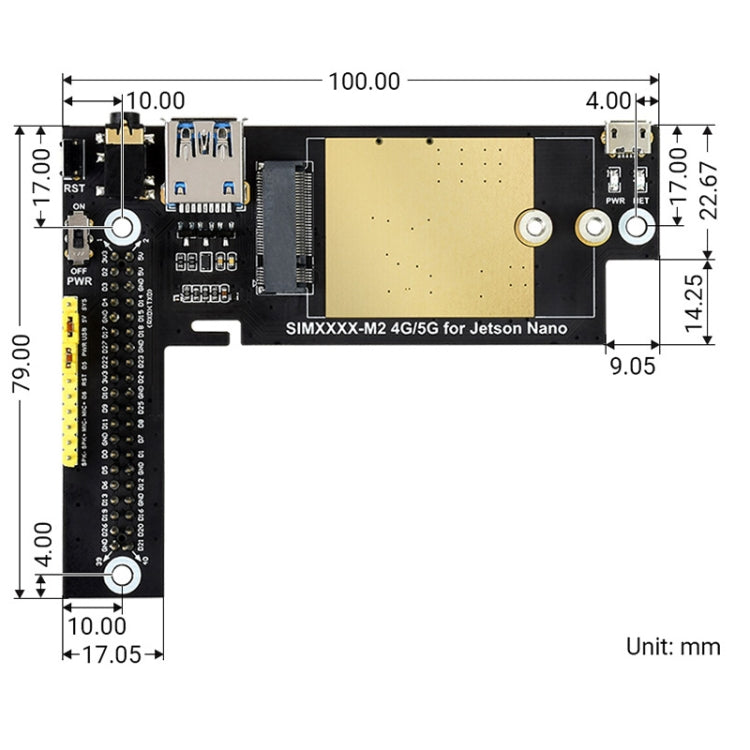

- Dimensions: 42.0 x 30.0 x 2.3 mm
- Connector Type: Standard M2 connector

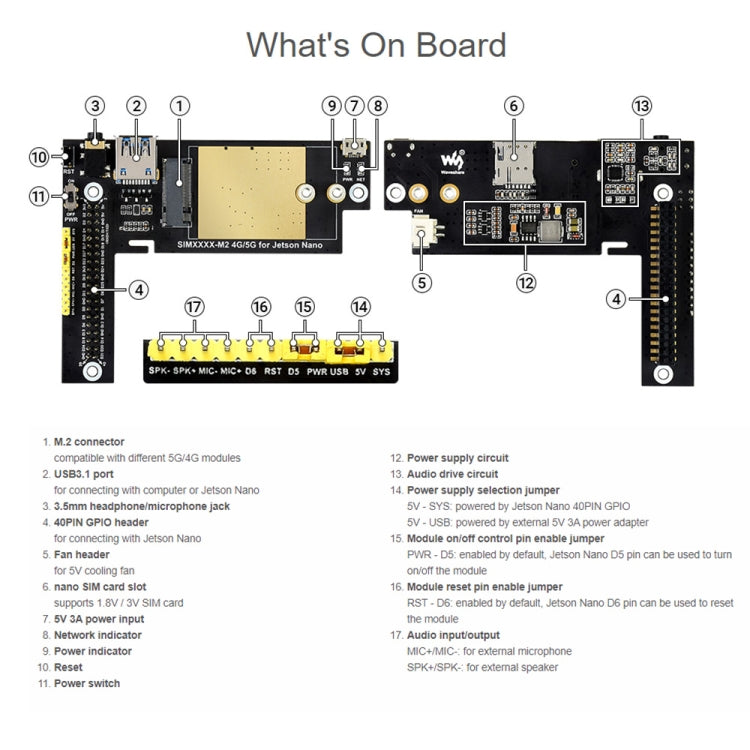

- Onboard Interfaces: USB 3.1 port, audio jack, SIM card slot
- LED Indicators: 2x for monitoring working status
- GNSS Support: GPS, GLONASS, Beidou, Galileo, QZSS

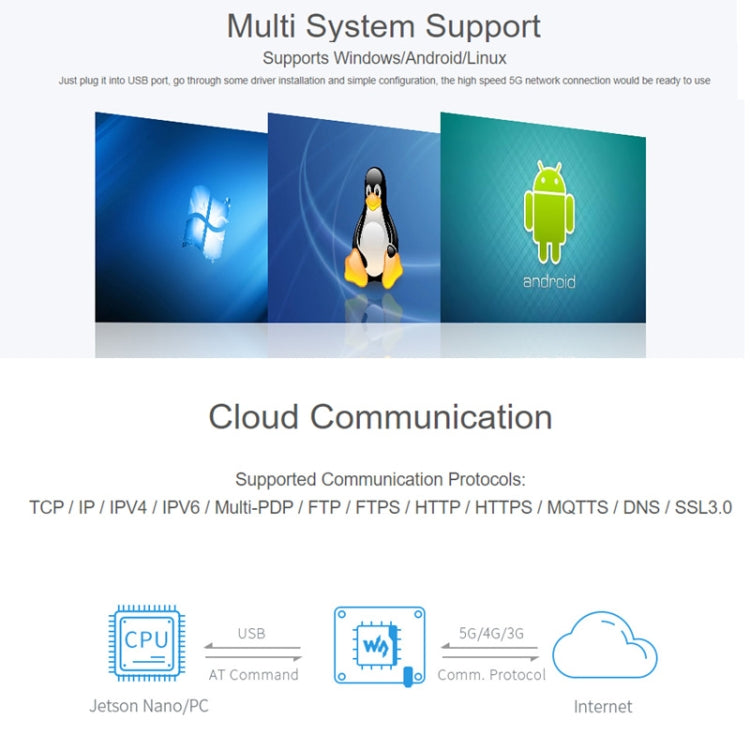

- Communication Protocols: TCP/IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, MQTTS, DNS, SSL3.0

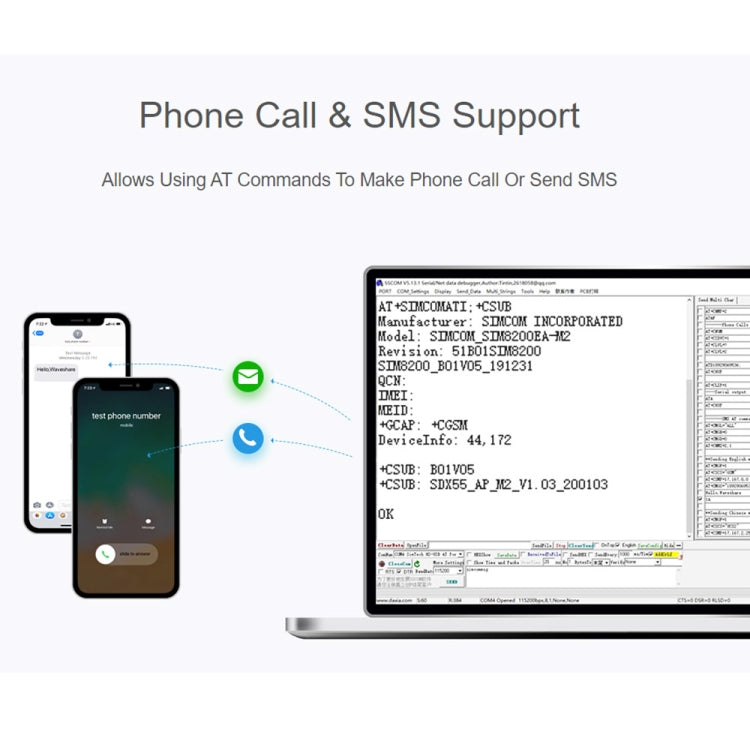

- SMS Support: MT, MO, CB, Text, PDU
- Firmware Upgrade: Via USB port
- Applications: Suitable for regions with 5G Sub-6G signal coverage

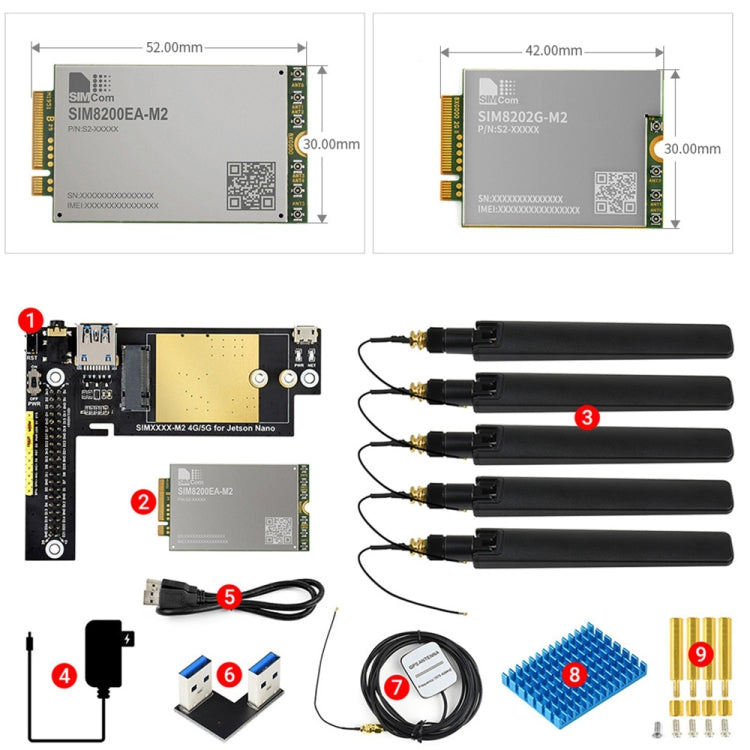

- Package Contents: SIMXXXX-M2 4G/5G module base, SIM8202G-M2, 5G external antennas, 5V 3A power adapter, USB3.0 dual plug cable, USB 3.0 Adapter (C), heatsink, screws pack
