Description

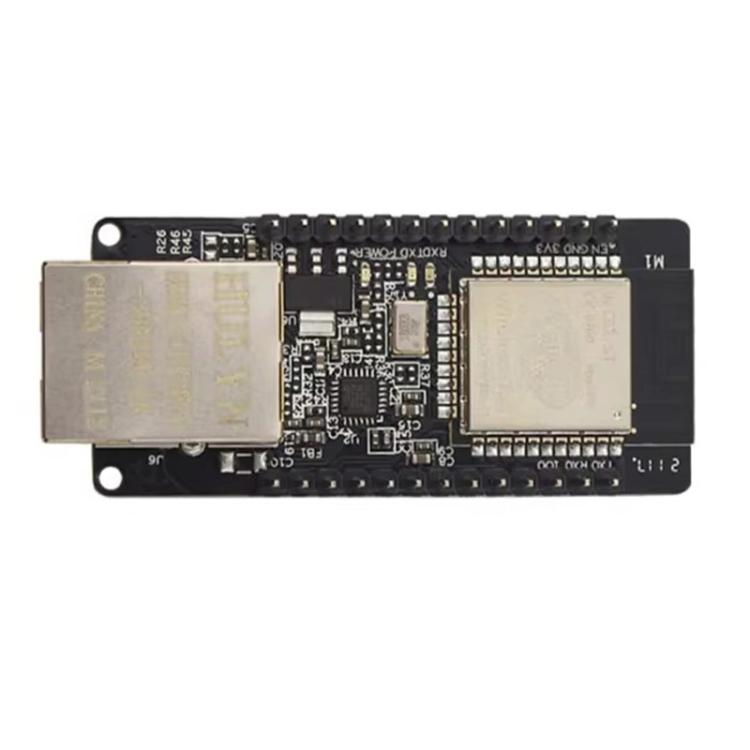

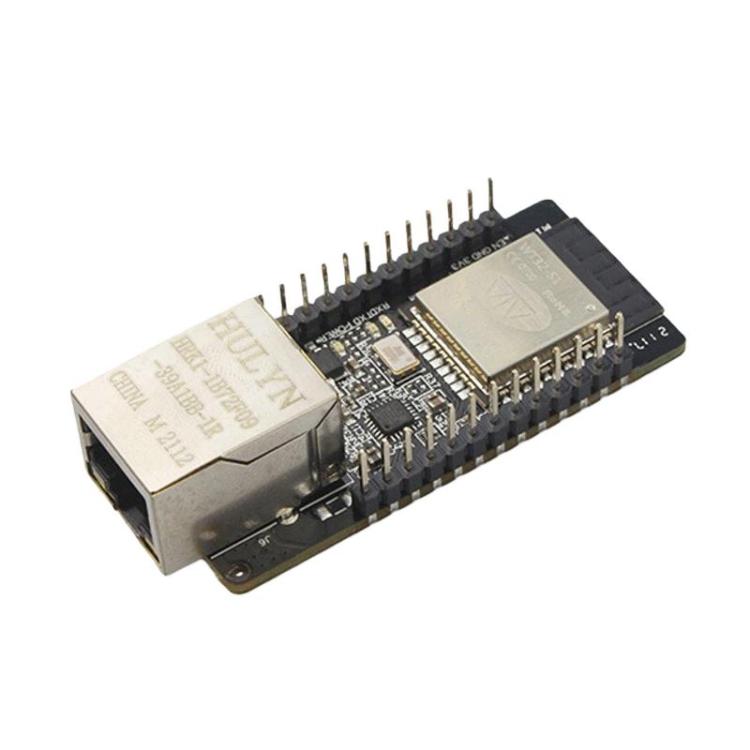

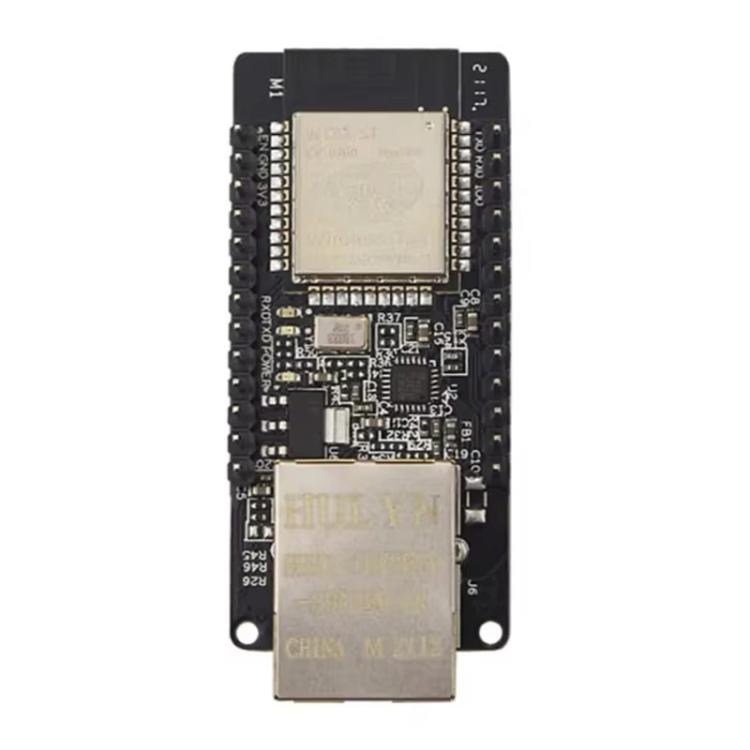

WT32-ETH01 is an embedded serial port to Ethernet module that functions as a Bluetooth and WiFi gateway. It is designed for use in embedded devices, optimizing networking functions and reducing development time.
- Product Type: Module
- Compatibility: WT32-ETH01
- Material: Not specified
- Key Feature: Optimized TCP/IP protocol stack
- Intended Use: Embedded devices
- Category: Consumer Electronics
- Wi-Fi Protocol: 802.11 b/g/n/e/i (up to 150 Mbps)
- Wi-Fi Frequency Range: 2.4 - 2.5 GHz
- Bluetooth Protocol: Bluetooth v4.2 BR/EDR and BLE
- Bluetooth Radio Frequency Sensitivity: -97dBm
- Network Port Specification: RJ45, 10/100Mbps
- Serial Port Baud Rate: 80 - 5000000
- Built-in Flash: 32Mbit
- Operating Voltage: 5V or 3.3V
- Average Operating Current: 80mA
- Minimum Supply Current: 500mA
- Operating Temperature Range: -40℃ to +85℃
- WiFi Modes: Station/softAP/SoftAP+station/P2P
- WiFi Security Mechanisms: WPA/WPA2/WPA2-Enterprise/WPS
- Encryption Types: AES/RSA/ECC/SHA
- Firmware Upgrade: Remote OTA upgrade via network
- Software Development: SDK for secondary development
- Network Protocols: IPv4, TCP/UDP
- IP Acquisition Methods: Static IP, DHCP (default)
- Transmission Modes: TCP Server/TCP Client/UDP Server/UDP Client
- User Configuration: AT command set
