Description

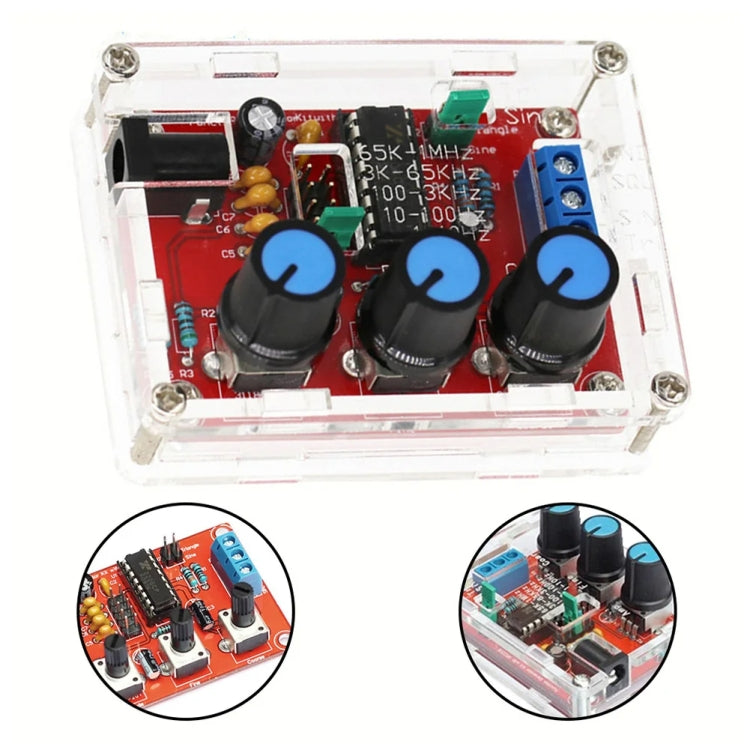

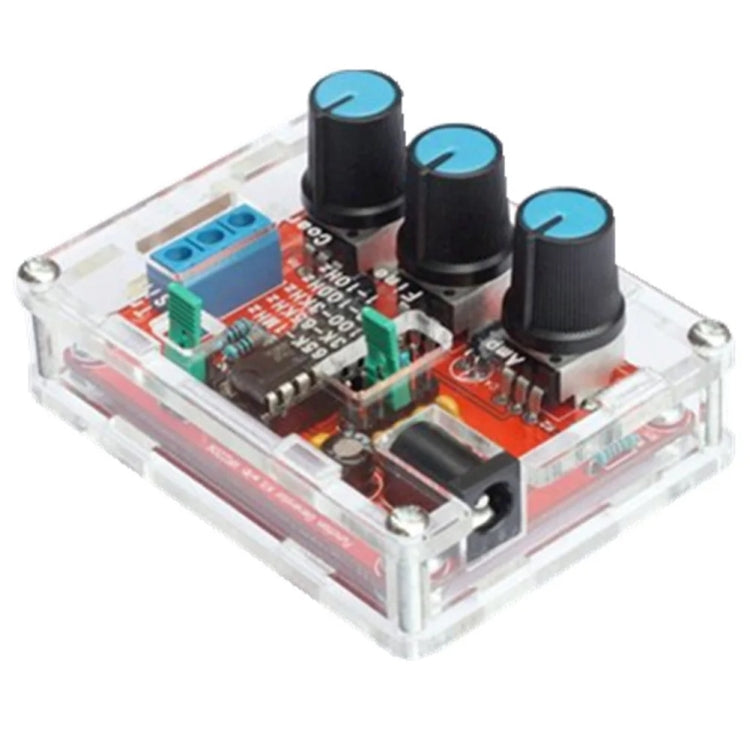

The XR2206 High Precision Signal Generator DIY Kit is designed to generate sine, triangle, and square waveforms. It is suitable for electronics projects requiring precise waveform generation within a frequency range of 1Hz to 1MHz.

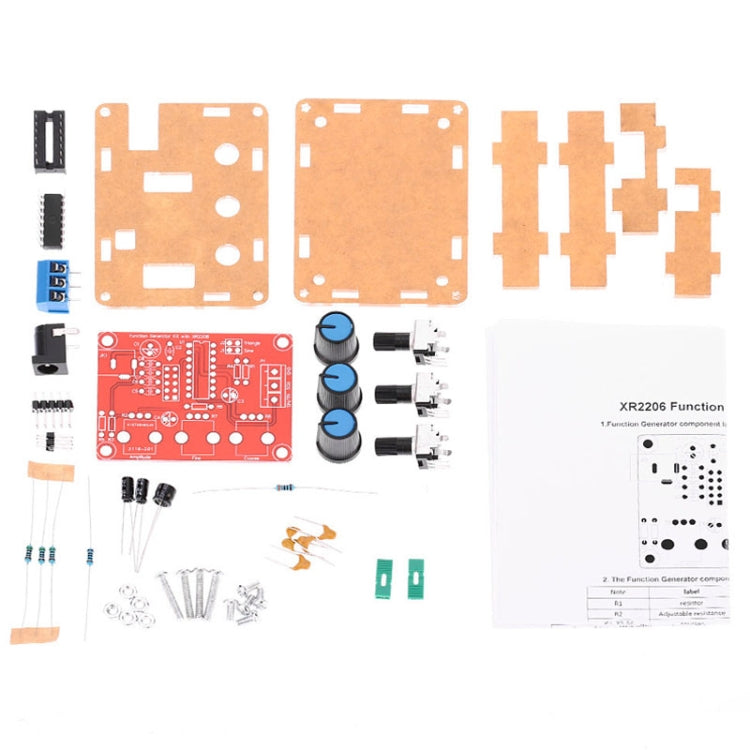

- Product Type: Signal Generator DIY Kit
- Compatibility: XR2206
- Material: Parts
- Power Supply Voltage: 9-12V DC input
- Waveforms: Sine, triangle, and square waves
- Impedance: Approximately 600 ohms
- Frequency Range: 1Hz to 1MHz
- Sine Wave Specifications:
- Amplitude: 0-3V (at 9V DC input)
- Distortion: Less than 1% (at 1kHz)
- Flatness: +0.05dB (1Hz-100kHz)
- Square Wave Specifications:
- Amplitude: 8V (no load at 9V DC input)
- Rise Time: Less than 50ns (at 1kHz)
- Fall Time: Less than 30ns (at 1kHz)
- Symmetry: Less than 5% (at 1kHz)
- Triangle Wave Specifications:
- Amplitude: 0-3V (at 9V DC input)
- Linearity: Less than 1% (up to 100kHz)
- Features:
- 5-bit precision resolution
- Frequency adjustment with coarse and fine tuning
- Direct insertion components for simple installation
- External power supply compatibility (9-12V or 9V battery)

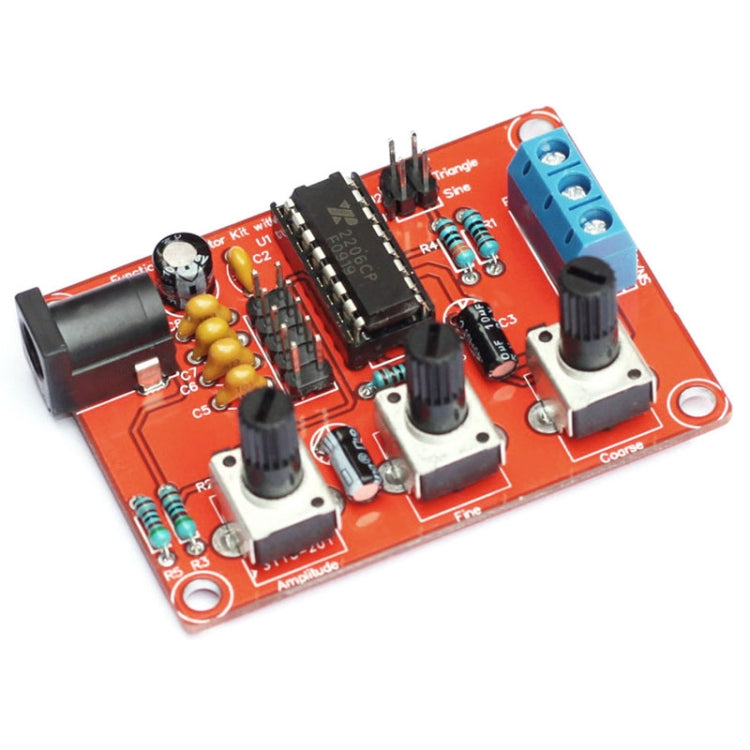

- Assembly Precautions:
- Weld components from low to high, starting with capacitors, resistors, and diodes
- Weld IC sockets and terminals last
- Use diagonal pliers to cut short pins after assembly
- Debugging Steps:
- Ensure correct IC orientation during installation
- Check for reverse IC installation
- Power supply connection: 5.5 x 2.1 port, negative pole inside and outside
- Power supply voltage: 9-12V

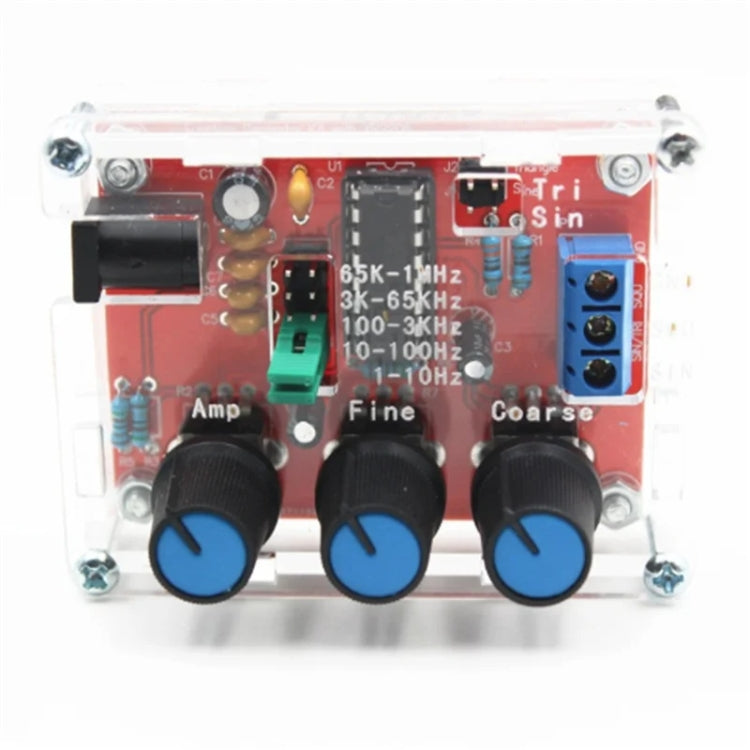

- Usage Steps:
- Insert J1 jumper cap for sine wave output
- Insert J2 jumper cap for triangle wave output
- SQU blue terminal outputs pulse
- Adjust amplitude for sine and triangle waves
- Fine-tune frequency with FINE adjustment
- Coarse frequency adjustment available
