Description

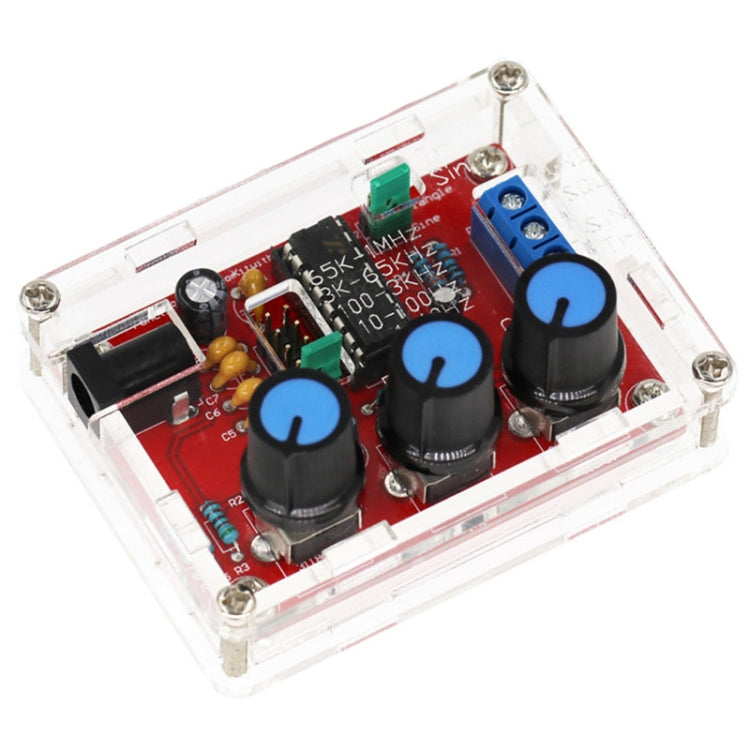

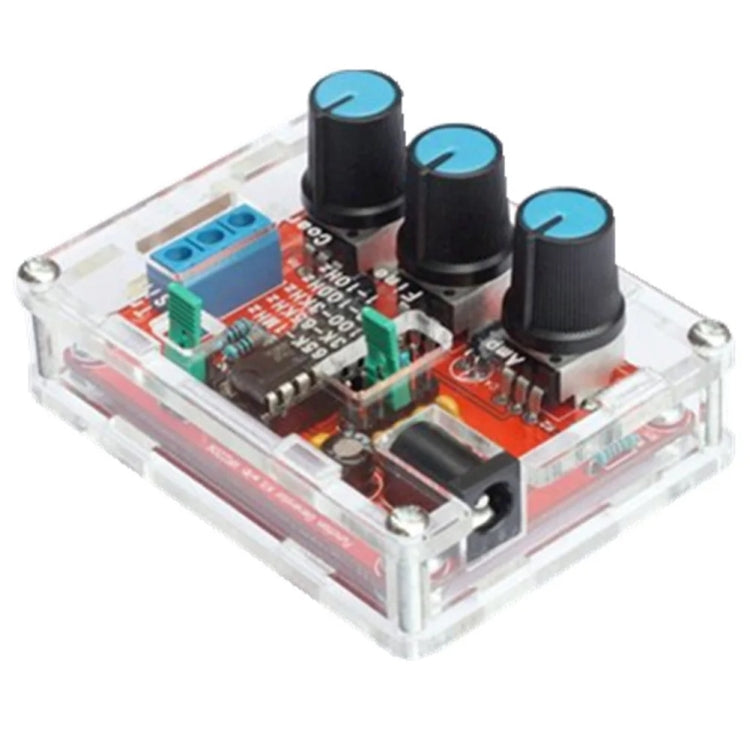

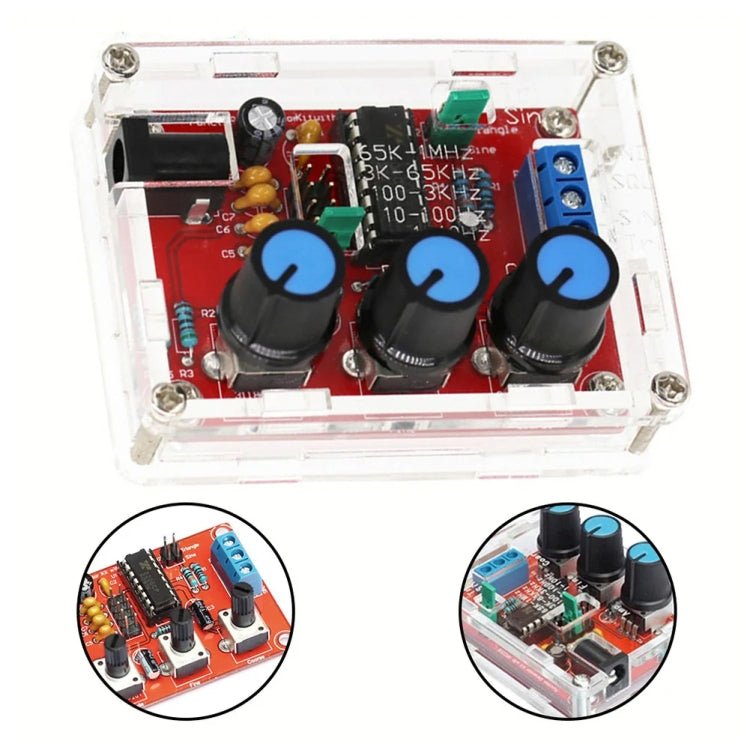

XR2206 High Precision Signal Generator DIY Kit generates sine, triangle, and square waves within a frequency range of 1Hz to 1MHz. It is suitable for various DIY electronics projects requiring precise waveform generation.
- Product Type: Boards & Shields
- Compatibility: XR2206 Signal Generator
- Power Supply Voltage: 9-12V DC input
- Waveforms: Sine, triangle, and square waves
- Impedance: Approximately 600 ohms
- Frequency Range: 1Hz-1MHz
- Sine Wave: Amplitude 0-3V (at 9V DC input), Distortion less than 1% (at 1kHz), Flatness +0.05dB (1Hz-100kHz)
- Square Wave: Amplitude 8V (no load at 9V DC input), Rise Time less than 50ns (at 1kHz), Fall Time less than 30ns (at 1kHz), Symmetry less than 5% (at 1kHz)
- Triangle Wave: Amplitude 0-3V (at 9V DC input), Linearity less than 1% (up to 100kHz)
- Precision Resolution: 5-bit

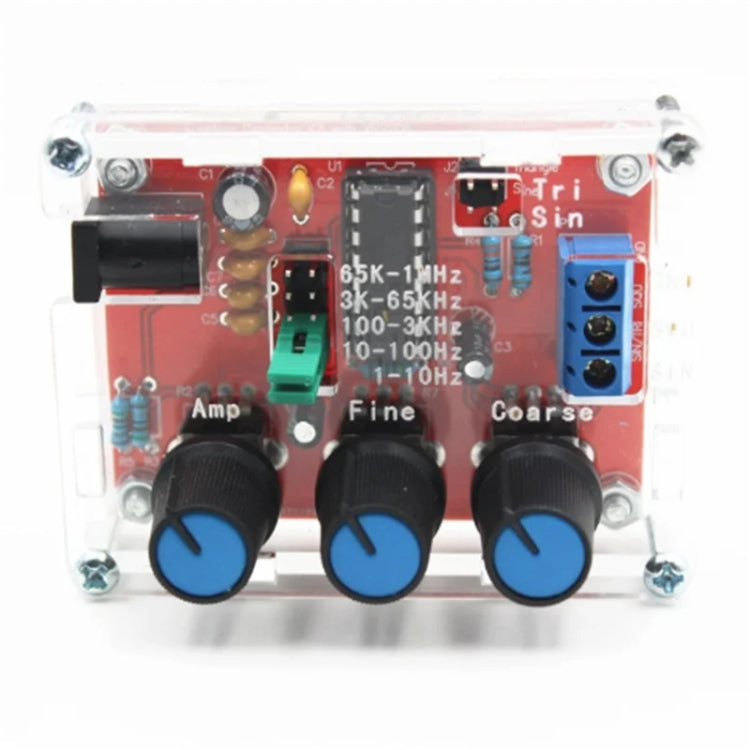

- Frequency Adjustment: Coarse and fine tuning available
- Installation: Direct insertion components, simple installation and commissioning
- Debugging Steps: Ensure correct IC orientation, check for reverse insertion, and verify power supply connections
- Usage Steps: Jumper cap settings for sine/triangle wave output, amplitude adjustment, and frequency tuning
